[shortdesc]
- Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support
[/shortdesc]
[properties]
| Properties |
MikroTik cAP RBCAP2ND |
| Description |
Ceiling AP, Dual-Chain 2.4GHz, 650MHz CPU, RouterOS L4, 802.3at/af support |
| Product Family |
cAP Series |
| Product Type |
Access Point |
| 10/100 Ethernet ports |
1 |
| Extras |
Mode button |
| Dimensions |
185mm diameter, 31mm height |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
4 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
11-57 V |
[/properties][specifications]
| Specifications |
RBCAP2ND |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9533 650 MHz |
| CPU core count |
4 |
| OS |
RouterOS level 4 license |
| Wireless capabilities |
| Wireless 2.4 GHz Max data rate |
300 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n |
| Antenna gain dBi for 2.4 GHz |
2 |
| Wireless 2.4 GHz chip model |
QCA9533 |
| Wireless 2.4 GHz generation |
Wi-Fi 4 |
| Wireless specifications |
| 2.4 GHz |
|
| 1MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -96 |
| 11MBit/s |
Transmit (dBm): 22
Receive Sensitivity: -89 |
| 6MBit/s |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| 54MBit/s |
Transmit (dBm): 18
Receive Sensitivity: -74 |
| MCS0 |
Transmit (dBm): 20
Receive Sensitivity: -93 |
| MCS7 |
Transmit (dBm): 16
Receive Sensitivity: -71 |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| 24V 0.2A power adapter |
| Ceiling mount |
| PoE injector |
| K-46 screw kit |
[/accesories]
MikroTik RBCAP2ND Access Point

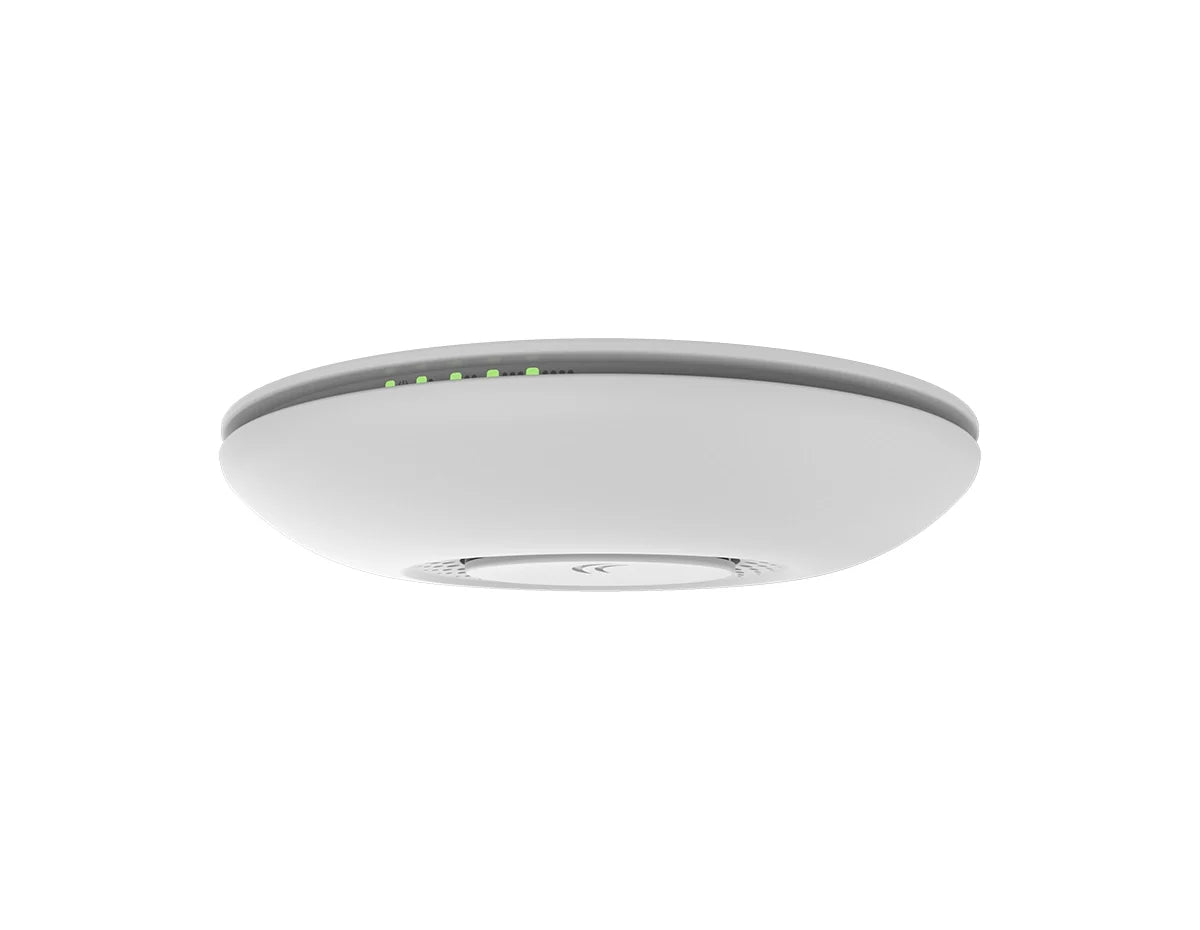

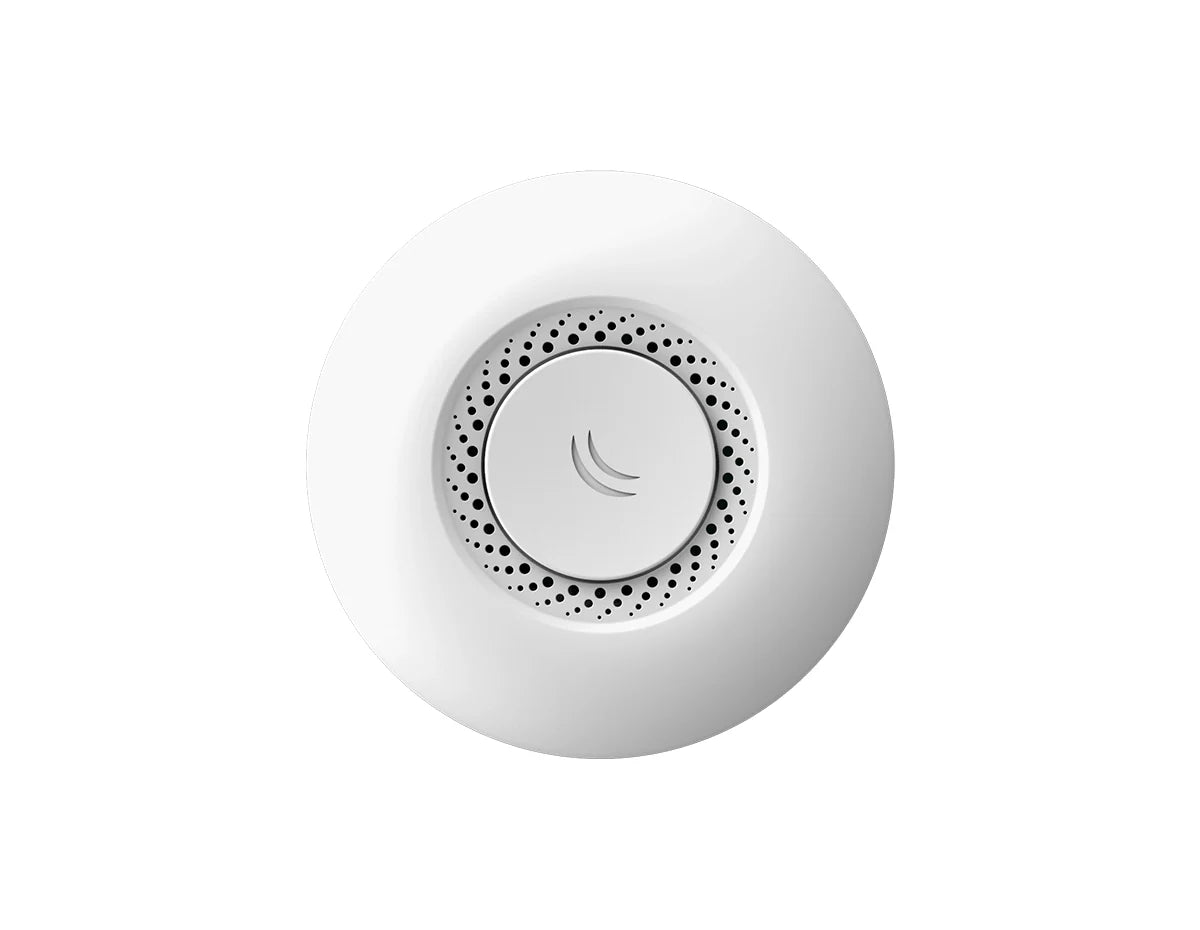

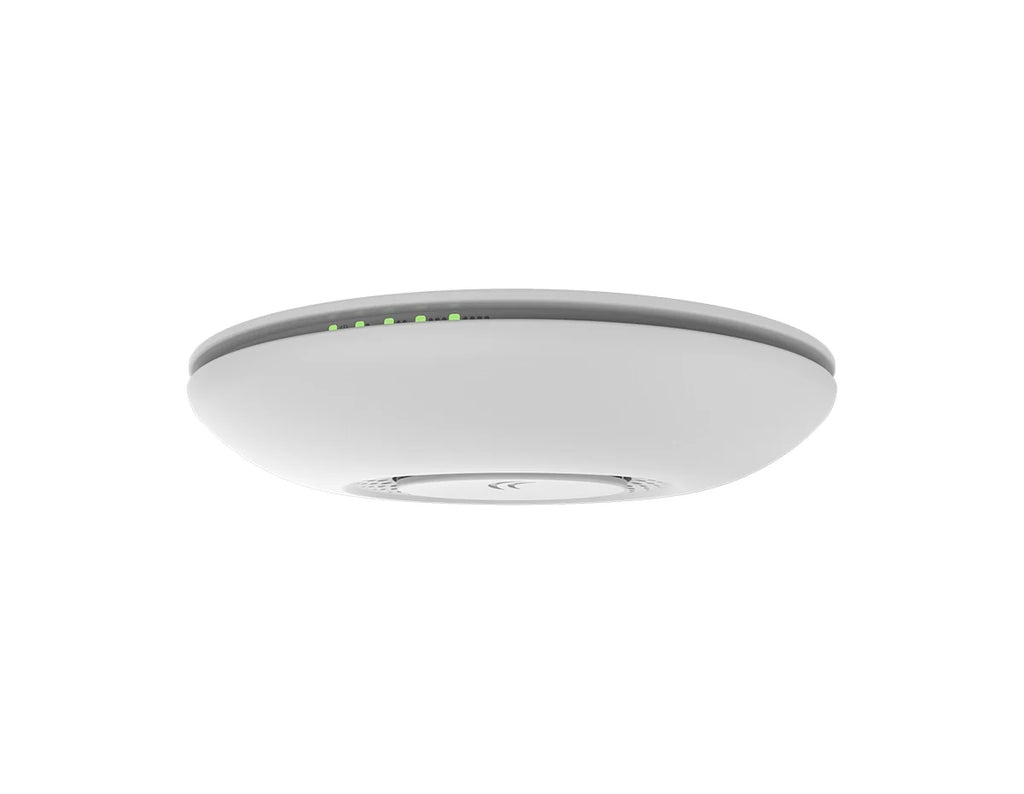

The RBCAP2ND is a 2.4GHz Dual-Chain ceiling access point (AP) with a discreet design that seamlessly integrates into its surroundings, making it well-suited for deployment in hospitality settings such as hotels, airports, and shopping malls. This AP model is compatible with 802.11b/g/n standards and can be powered using Power over Ethernet (PoE). It is an ideal complement to the MikroTik CAPsMAN, a system manager for controlled APs, enabling centralized management of multiple AP devices.
Quick Specs:
-
1x 10/100 Ethernet Port
-
QCA9533, 1 core, 650 MHz CPU
-
PoE-in: 802.3af/at
-
64 MB RAM
Please see the related tabs for the RBCAP2ND datasheet and compatible accessories.
