[properties]

Properties	MikroTik hAP Lite RB941-2ND
Description	Low cost home wireless AP with dual chain 2.4GHz wireless, powered by USB
Product Family	hAP Series
Product Type	Access Point
10/100/1000 Ethernet ports	4
Dimensions	113 x 89 x 28mm
MicroUSB input Voltage	5-5 V
Number of DC inputs	1 (MicroUSB)
Max power consumption	3.5 W
Cooling type	Passive

[/properties][specifications]

Specifications	RB941-2ND
Memory	32 MB
Flash Storage size	16 MB
CPU	QCA9533 400 MHz
CPU core count	1
Switch chip model	QCA9533-BL3A
OS	RouterOS level 4 license
Wireless capabilities
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz standards	802.11b/g/n
Antenna gain dBi for 2.4 GHz	1.5
Wireless 2.4 GHz chip model	QCA9533
Wireless 2.4 GHz generation	Wi-Fi 4
Wireless specifications
2.4 GHz
1MBit/s	Transmit (dBm): 22 Receive Sensitivity: -96
11MBit/s	Transmit (dBm): 22 Receive Sensitivity: -89
6MBit/s	Transmit (dBm): 20 Receive Sensitivity: -93
54MBit/s	Transmit (dBm): 18 Receive Sensitivity: -74
MCS0	Transmit (dBm): 20 Receive Sensitivity: -93
MCS7	Transmit (dBm): 16 Receive Sensitivity: -71
MTBF	Approximately 100.000 hours at 25C
Temperature	-20°C to 60°C tested
Certification	FCC, IC

[/specifications][accesories]

5V 1A power adapter[/accesories]

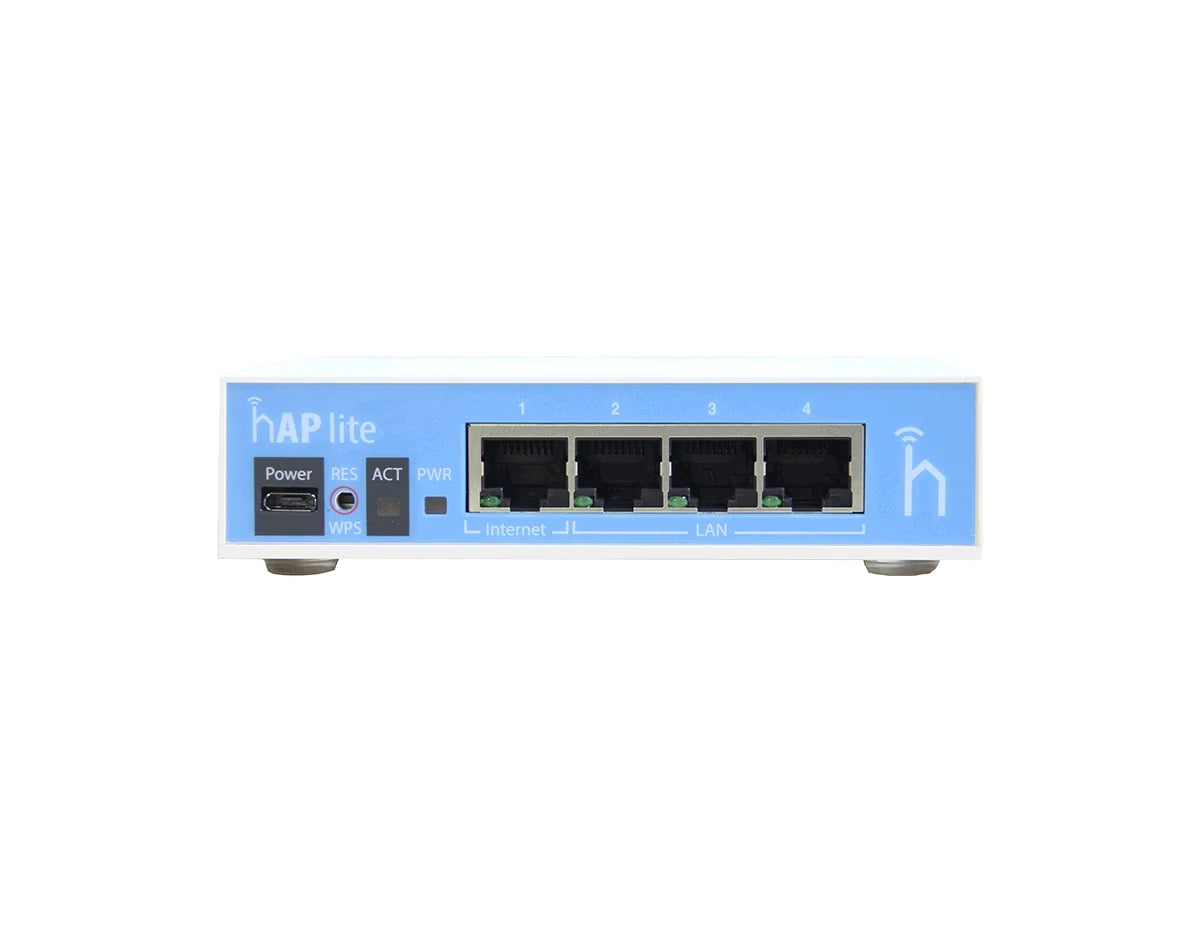

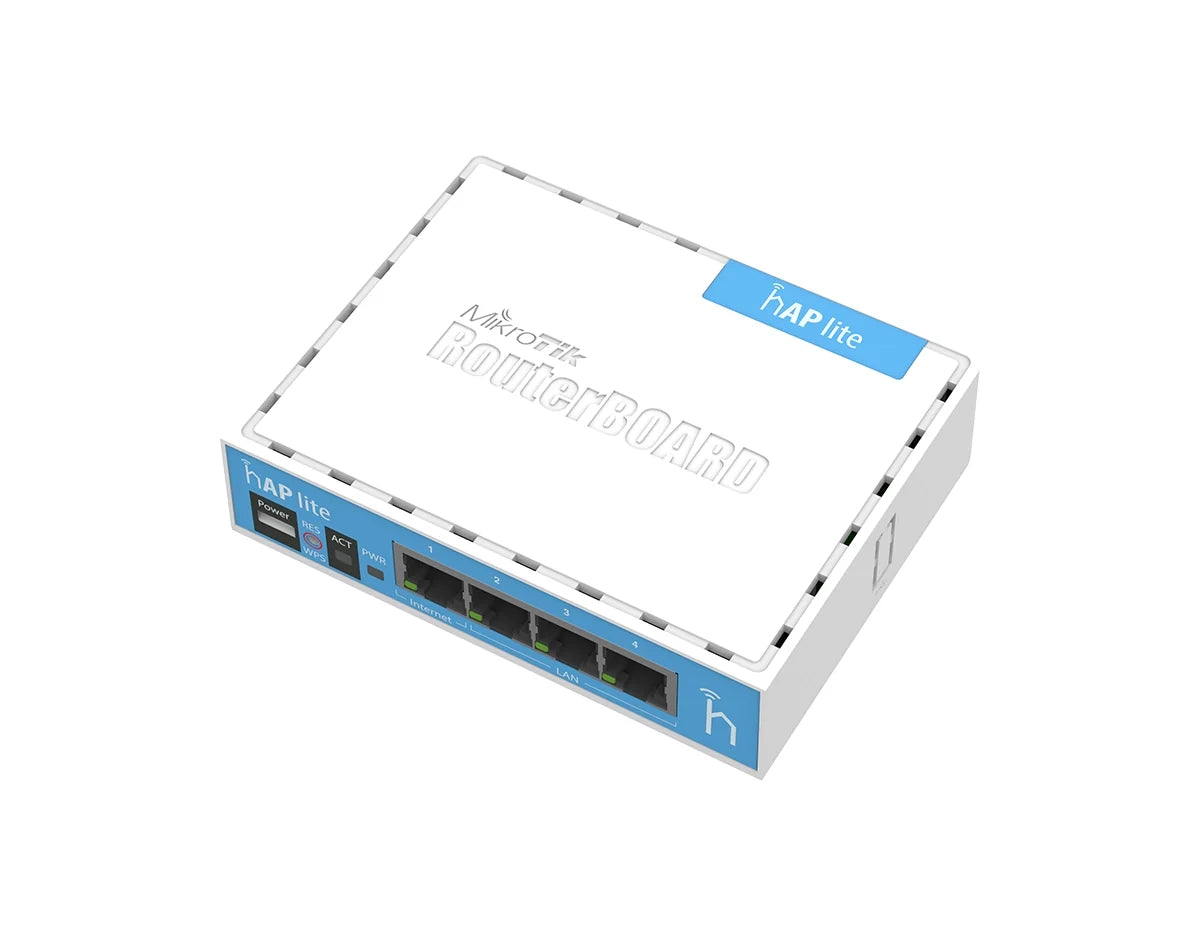

MikroTik RB941-2ND Access Point

The RB941-2ND is a compact and versatile device suitable for use in residential or office settings. It operates on RouterOS, offering a wide range of features including bandwidth shaping, firewall, and user access control. The RB941-2ND is powered by a robust 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports, and comes with a RouterOS L4 license. Additionally, it comes with a USB power supply.

Quick Specs:

• 4x 10/100 Ethernet Port
• QCA9533, 1 core, 650 MHz CPU
• RouterOS
• 32 MB RAM

Please see the related tabs for the RB941-2ND datasheet and compatible accessories.
