[shortdesc]
- 5GHz 120 degree 15dBi dual polarization sector Integrated antenna with 720Mhz CPU, 128MB RAM, SFP, PSU and PoE
[/shortdesc]
[properties]
| Properties |
MikroTik mANTBox 15S Antenna RB921GS-5HPACD-15S-US |
| Description |
5GHz 120 degree 15dBi dual polarization sector Integrated antenna with 720Mhz CPU, 128MB RAM, SFP, PSU and PoE |
| Product Family |
mANTBox Series |
| Product Type |
Access Point |
| 10/100/1000 Ethernet ports |
1 |
| SFP |
1 |
| Extras |
PCB temperature monitor
Voltage Monitor
Beeper |
| Dimensions |
140 x 348 x 82 mm |
| Weight |
Package: 1.35 Kg
Unit: 816g |
| Polarization |
Vertical and horizontal |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
9-30 V |
| Max power consumption |
13 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-28 V |
[/properties][specifications]
| Memory |
128 MB |
| NAND Storage size |
128 MB |
| CPU |
QCA9557 720 MHz |
| CPU core count |
1 |
| OS |
RouterOS level 4 license |
| 3DB Beamwidth - azimuth |
120 deg |
| 3DB Beamwidth - elevation |
10 deg |
| VSWR |
1.43 typ, 1.8 max |
| Port to Port isolation |
>40 dB min |
| Front-to-Back ratio |
>30 Db |
| Cross Polarization |
>30 dB |
| Frequency range |
5.17 - 5.825 GHz |
| Wireless capabilities |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
15 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| Wireless 5 GHz chip model |
QCA9892 |
| Wireless specifications |
| 5 GHz |
|
| 6MBit/s |
Transmit (dBm): 31
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 21
Receive Sensitivity: -81 |
| MCS0 |
Transmit (dBm): 30
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 27
Receive Sensitivity: -77 |
| MCS9 |
Transmit (dBm): 22
Receive Sensitivity: -72 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
| 24V 0.8A power adapter |
| Gigabit PoE injector |
| DIN mount (K-27) |
| Metal ring (one) |
Fastening set K-25 for 1/2 Mini PCI express card
|
[/accesories]

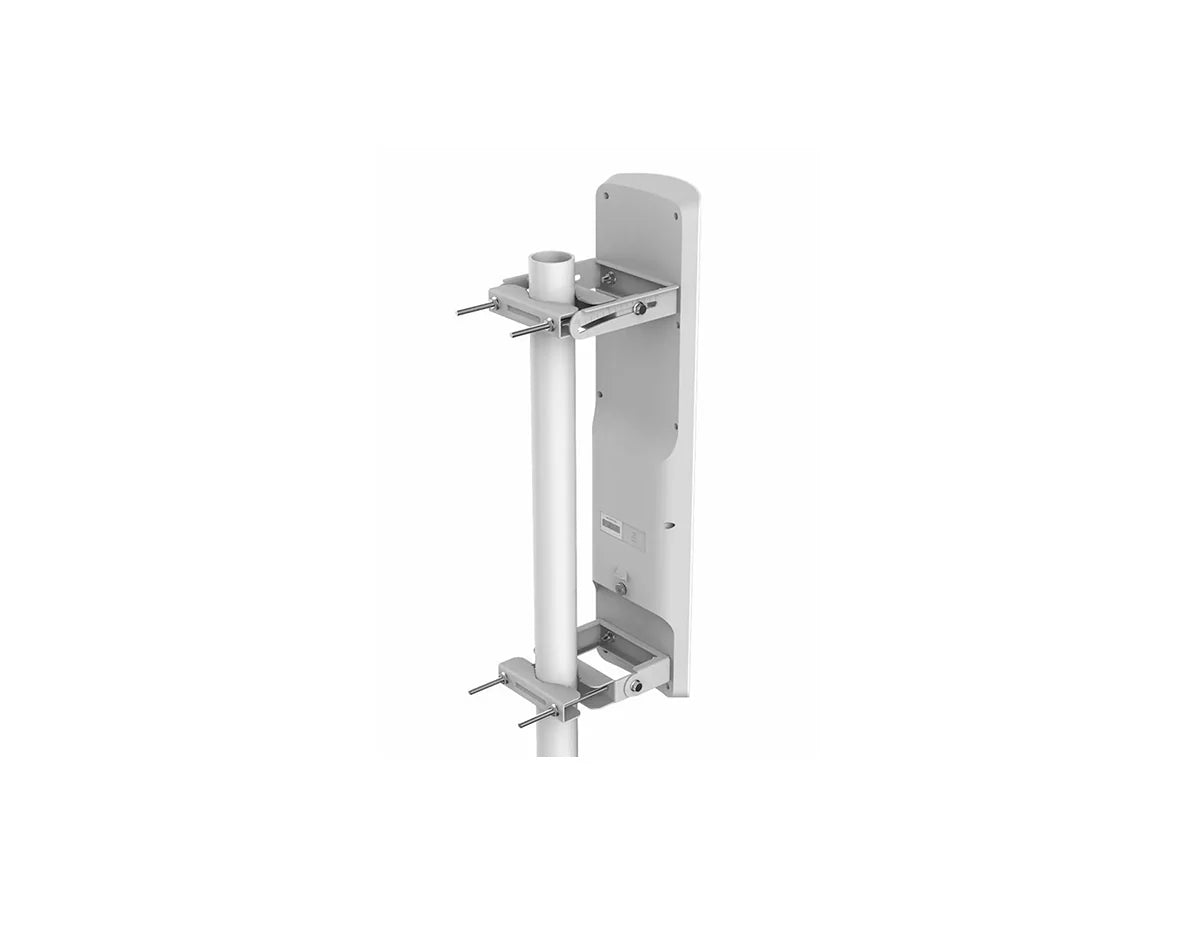

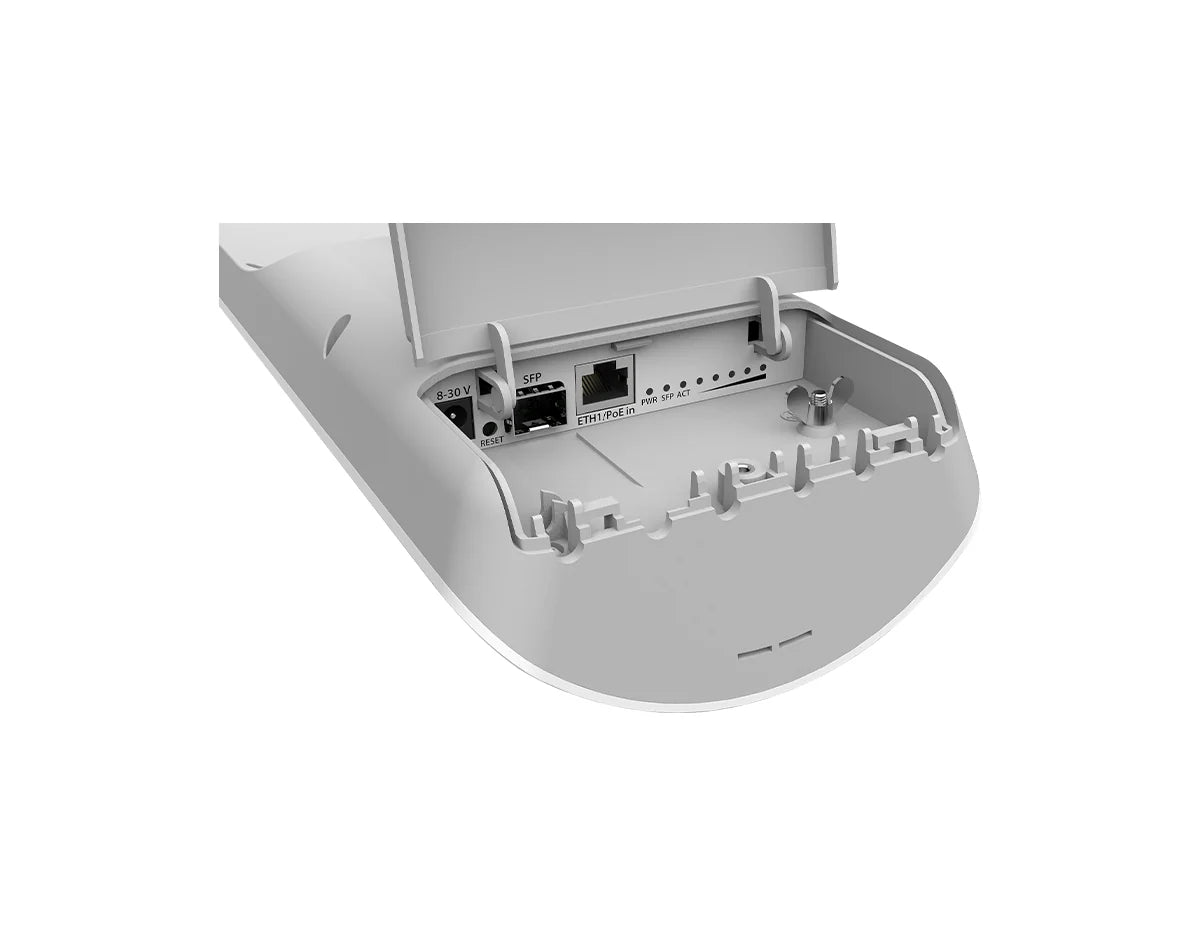

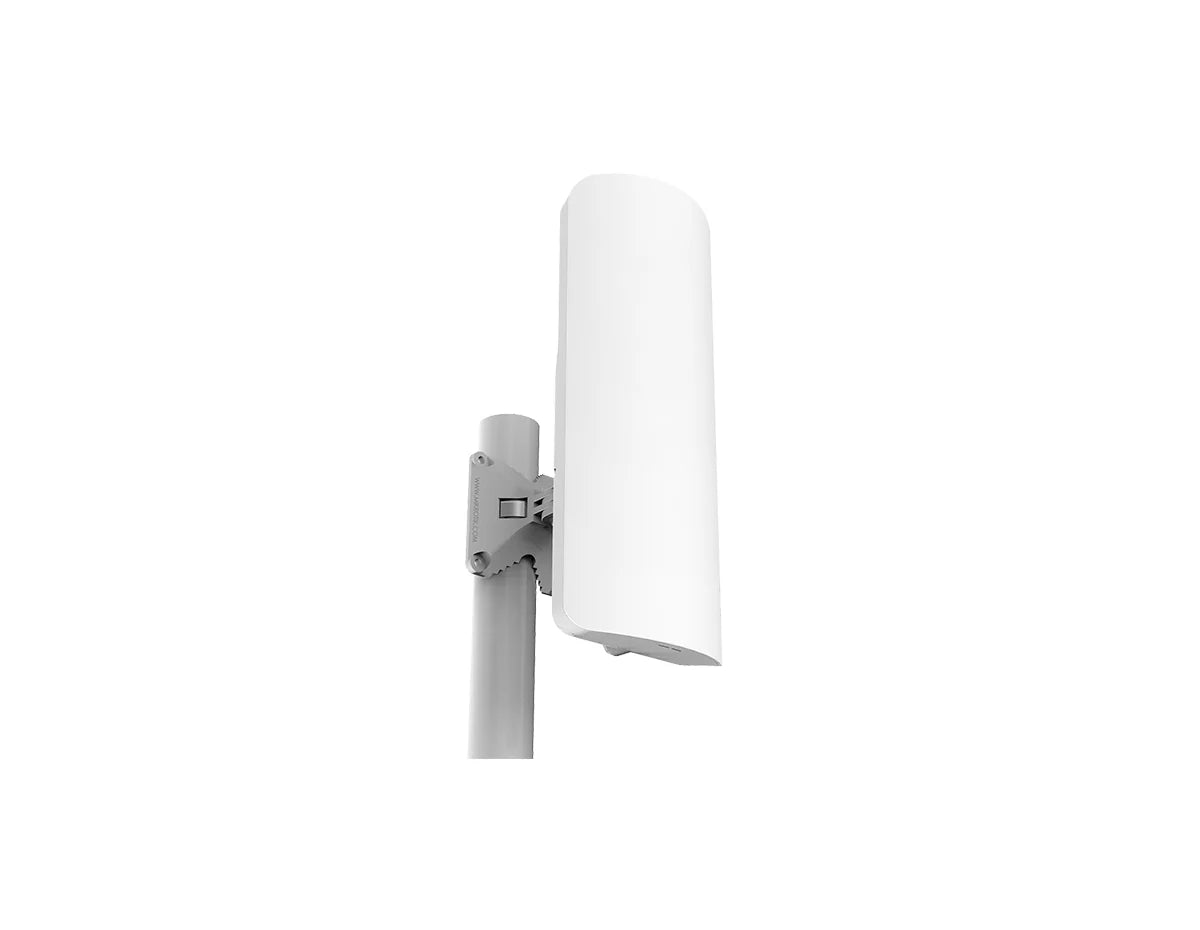

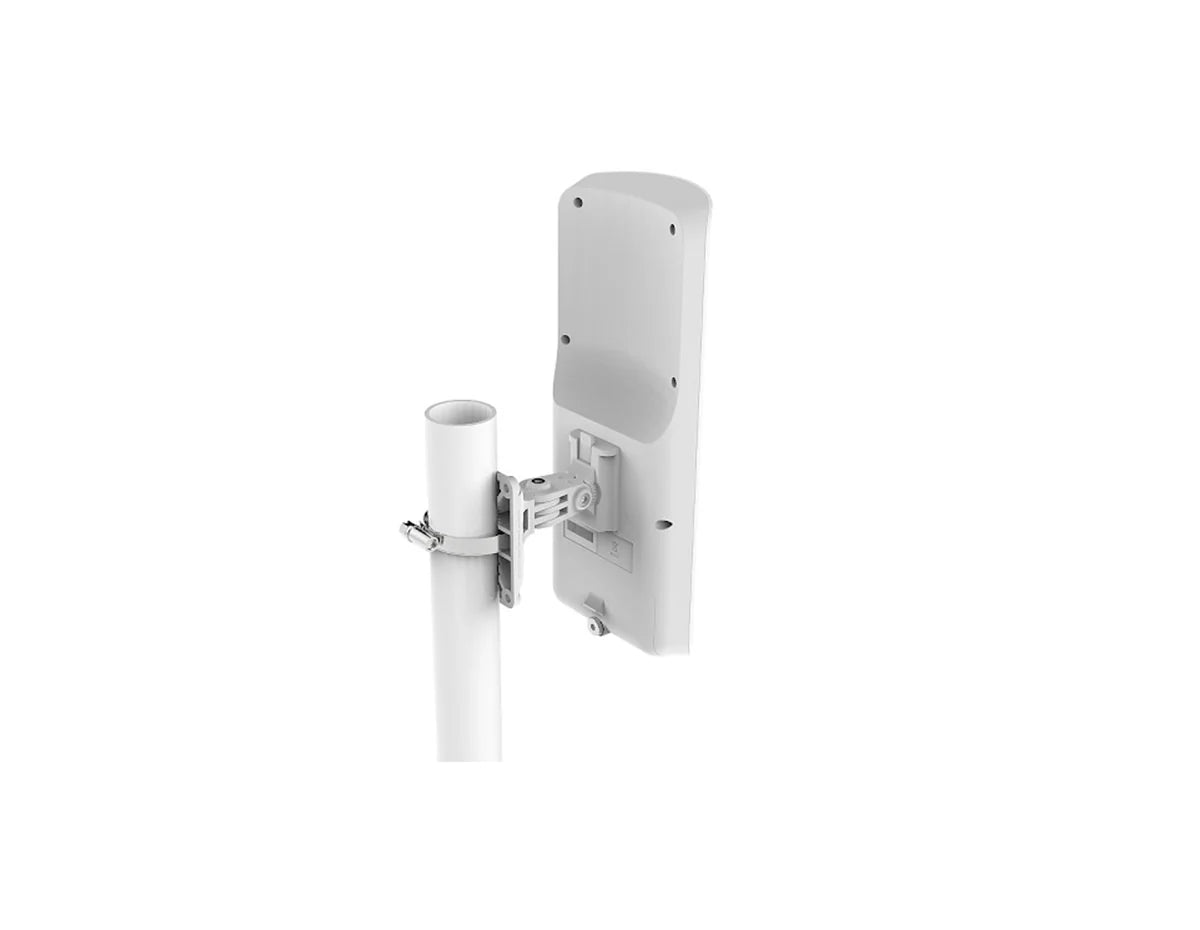

MikroTik RB921GS-5HPacD-15S-US Antenna
The RB921GS-5HPacD-15S-US is fully equipped and operational, with all necessary components included. It is equipped with a high-speed 720 MHz CPU and features an integrated 802.11 ac/a/n wireless device capable of delivering up to 31 dBm output power. The RB921GS-5HPacD-15S-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock cannot be removed due to country regulations.
Quick Specs:
-
1x 10/100/1000 Ethernet Ports
-
1x 1G SFP Port uplink
-
QCA9557, 1 core, 720 MHz CPU
-
PoE-in: Passive PoE
Please see the related tabs for the RB921GS-5HPacD-15S-US datasheet and compatible accessories.
