[properties]

Properties	MikroTik RB750UPR2
Description	5 x Ethernet with PoE output for four ports, USB, 650MHz CPU, 64MB RAM, RouterOS L4
Product Family	hEX Series
Product Type	Ethernet Router
Ports
10/100 Ethernet ports	5
Number of USB ports	1 USB 3.0 type A
Extras	Current Monitor PCB temperature monitor Voltage Monitor
Dimensions	113x89x28mm
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	8-30 V
Max power consumption	51 W
Max power consumption without attachments	3 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	8-30 V
PoE-out ports	Ether2-Ether5
PoE out	Passive PoE
Max out per port output (input 18-30 V)	1 A
Max total out (A)	2 A

[/properties][specifications]

Specifications	RB750UPR2
Memory	64 MB
NAND Storage size	16 MB
CPU	QCA9531 650 MHz
CPU core count	1
Switch chip model	QCA9531
OS	RouterOS level 4 license
MTBF	Approximately 100.000 hours at 25C
Temperature	-40°C to 70°C tested
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

[/specifications][accesories]

Accessories

24V 2.5A power adapter

[/accesories]

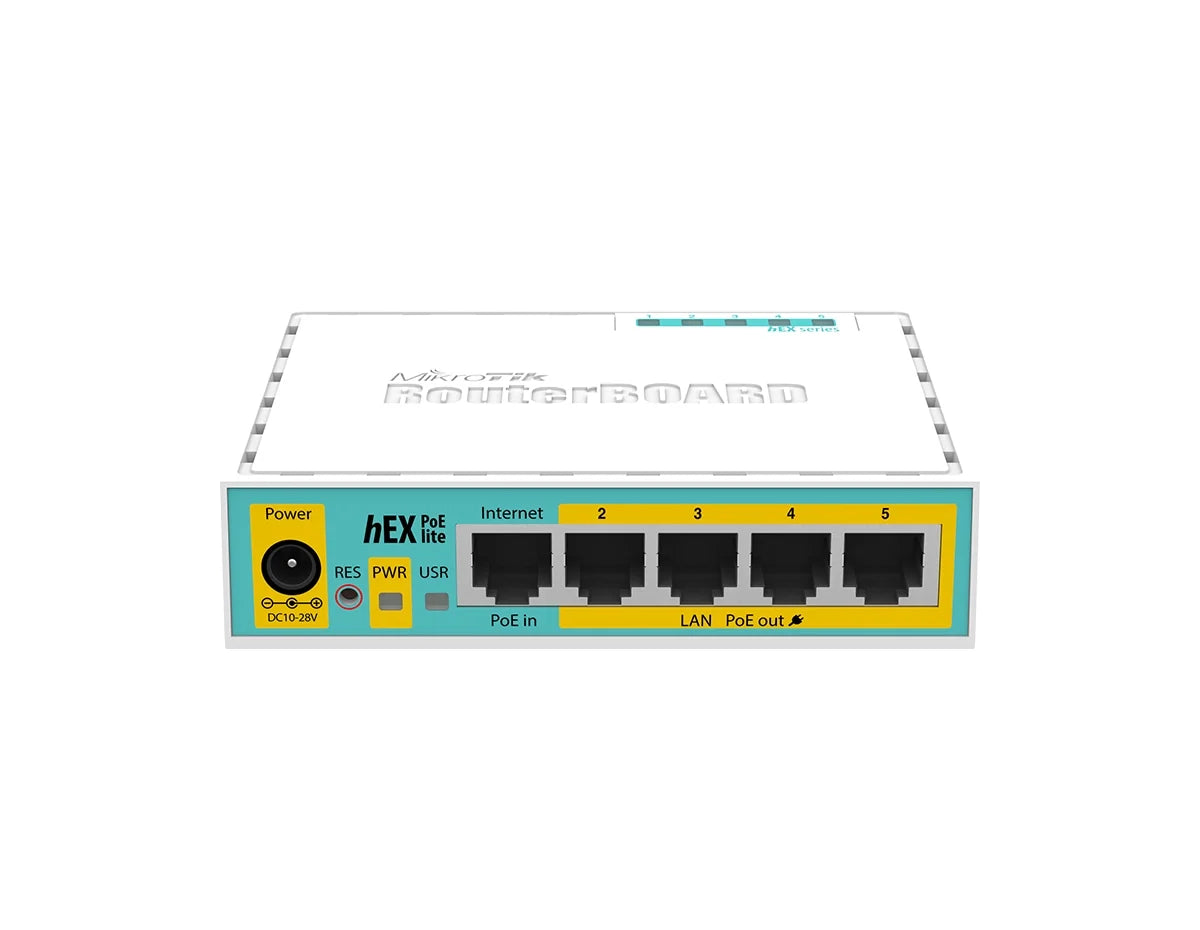

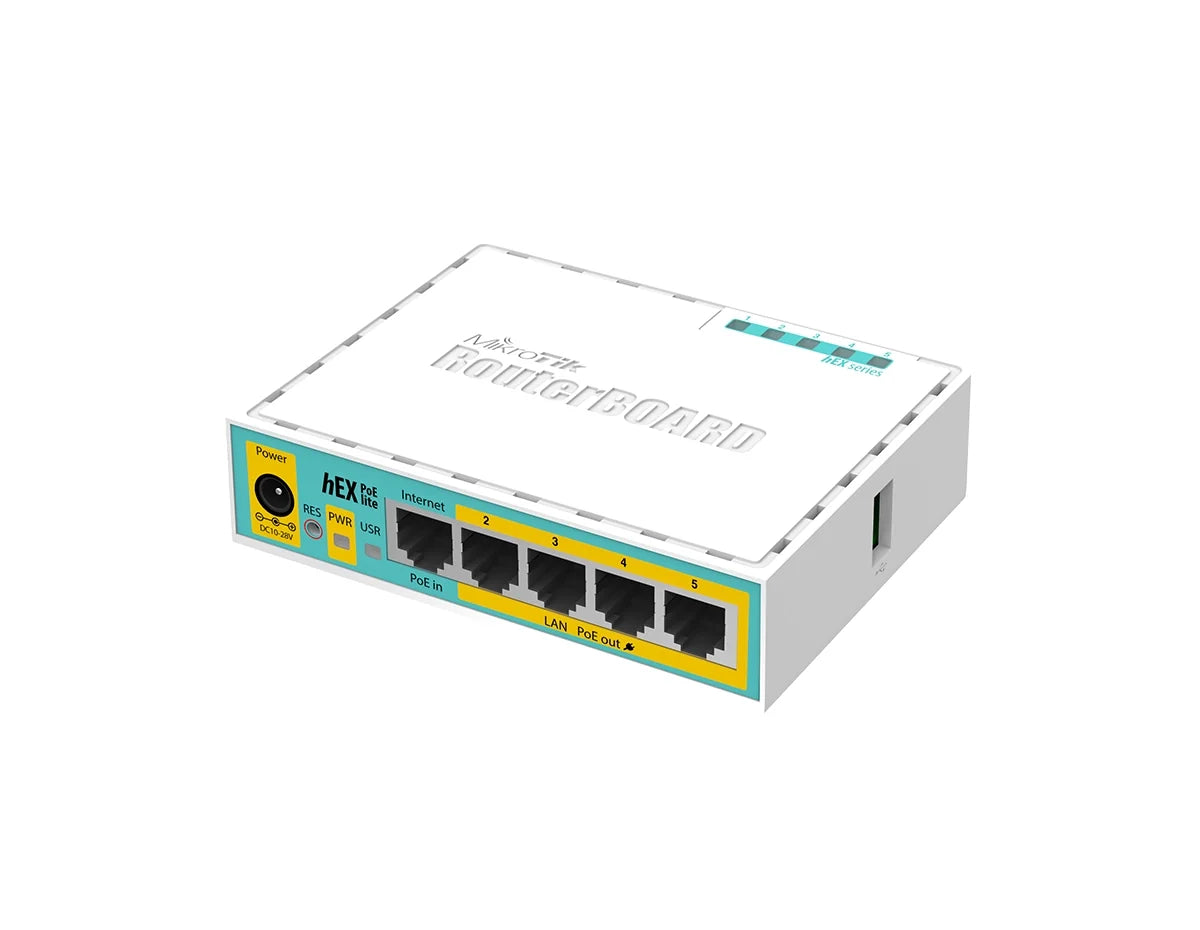

MikroTik RB750UPr2 Router

The RB750UPr2 is a compact five-port Ethernet router housed in a plastic casing, featuring a USB 2.0 port and PoE output. Ports 2 through 5 have the capability to supply power to other PoE compatible devices at the same voltage as the unit. This product offers affordability, ease of use, and a small form factor. Its sleek design allows for seamless integration into any small office or home office (SOHO) environment.

Quick Specs:

• 5x 10/100 Ethernet Ports
• PoE-out: Passive PoE
• PoE-out ports: Ether2-Ether5
• QCA9531, 1 core, 650 MHz CPU

Please see the related tabs for the RB750UPr2 datasheet and compatible accessories.
