[shortdesc]
- MikroTik Router, 1 Gbps Throughput, Quad-Core CPU, Versatile Connectivity
[/shortdesc]
[properties]
| Properties |
RB5009UPr+S+IN |
| Description |
RB5009UPr+S+IN is a RB5009 Series router with PoE-in and PoE-out on all ports. Perfect for small and medium ISPs. 2.5 Gigabit Ethernet & 10 Gigabit SFP+, numerous powering options. |
| Product Family |
RB5000 Series |
| Product Type |
Ethernet Router |
| 10/100/1000 Ethernet ports |
7 |
| 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
| 2.5G Ethernet ports |
1 |
| Number of 2.5G Ethernet ports with Reverse PoE (PoE-in) |
1 |
| SFP+ ports |
1 |
| Number of USB ports |
1 USB 3.0 type A |
| Extras |
CPU temperature monitor
Current Monitor
PCB temperature monitor
Voltage Monitor |
| Number of DC inputs |
3 (PoE-IN, 2-pin terminal, DC jack) |
| DC jack input Voltage |
24-57 V |
| 2-pin terminal input Voltage |
24-57 V |
| Max power consumption |
150 W |
| Max power consumption without attachments |
15 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at (ether1), Mode B (ether2-ether8) |
| PoE in input Voltage |
24-57 V |
| PoE-out ports |
Ether1-Ether8 |
| PoE out |
802.3af/at |
| Max out per port output (input 18-30 V) |
640 mA |
| Max out per port output (input 30-57 V) |
420 mA |
| Max total out (A) |
2.59 A |
| Total output current |
2.28 |
| Total output power |
130 |
[/properties][specifications]
| Specifications |
RB5009UG+S+IN |
| Architecture |
ARM 64bit |
| Memory |
1 GB |
| NAND Storage size |
1 GB |
| CPU |
88F7040 350-1400 (auto) MHz |
| CPU core count |
4 |
| Switch chip model |
88E6393 |
| OS |
RouterOS v7 level 5 license |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 60°C tested |
| Certification |
CE, EAC, ROHS |
| IP |
20 |
[/specifications][accesories]
| Included Accessories |
Connector Plug
IEC Cord
K-55 screw kit
48V2A96W |
[/accesories]

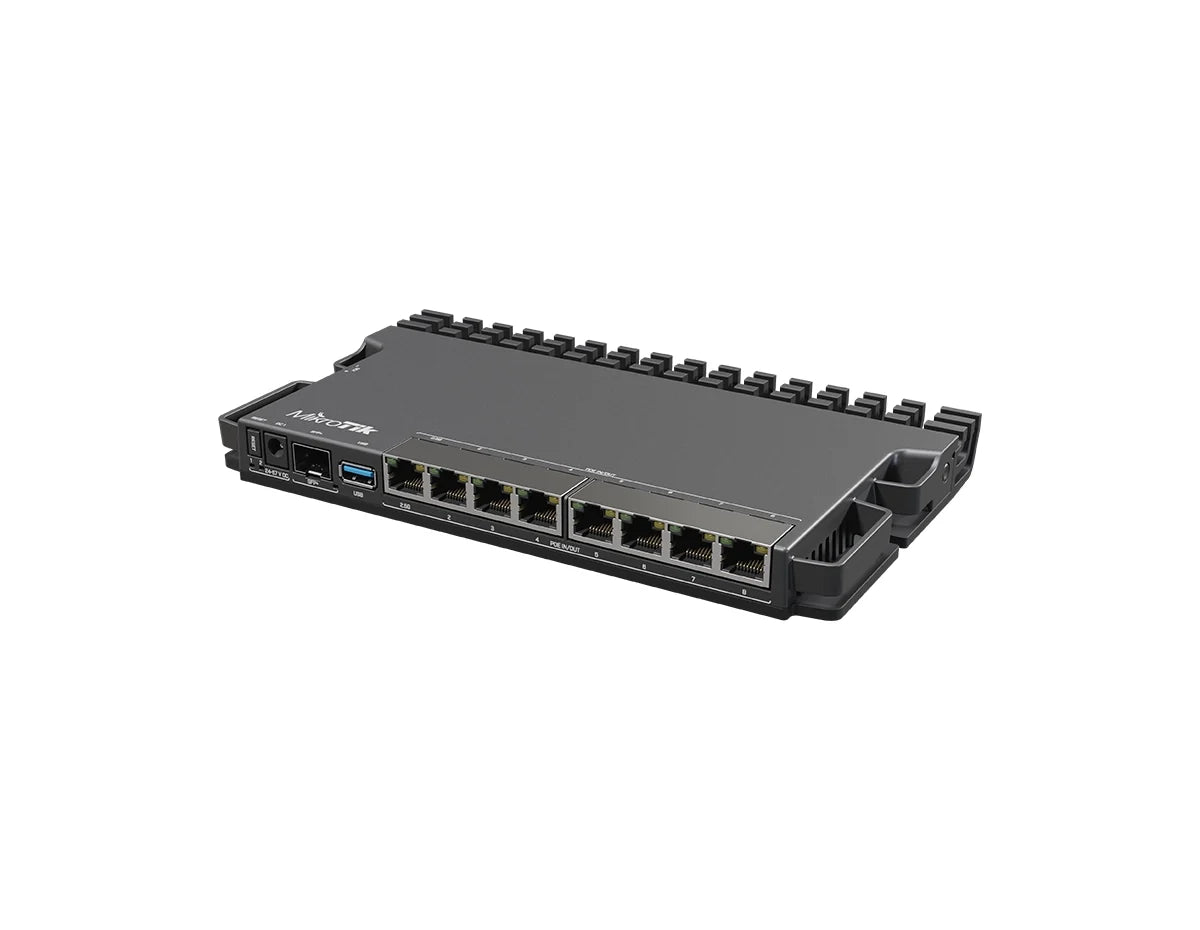

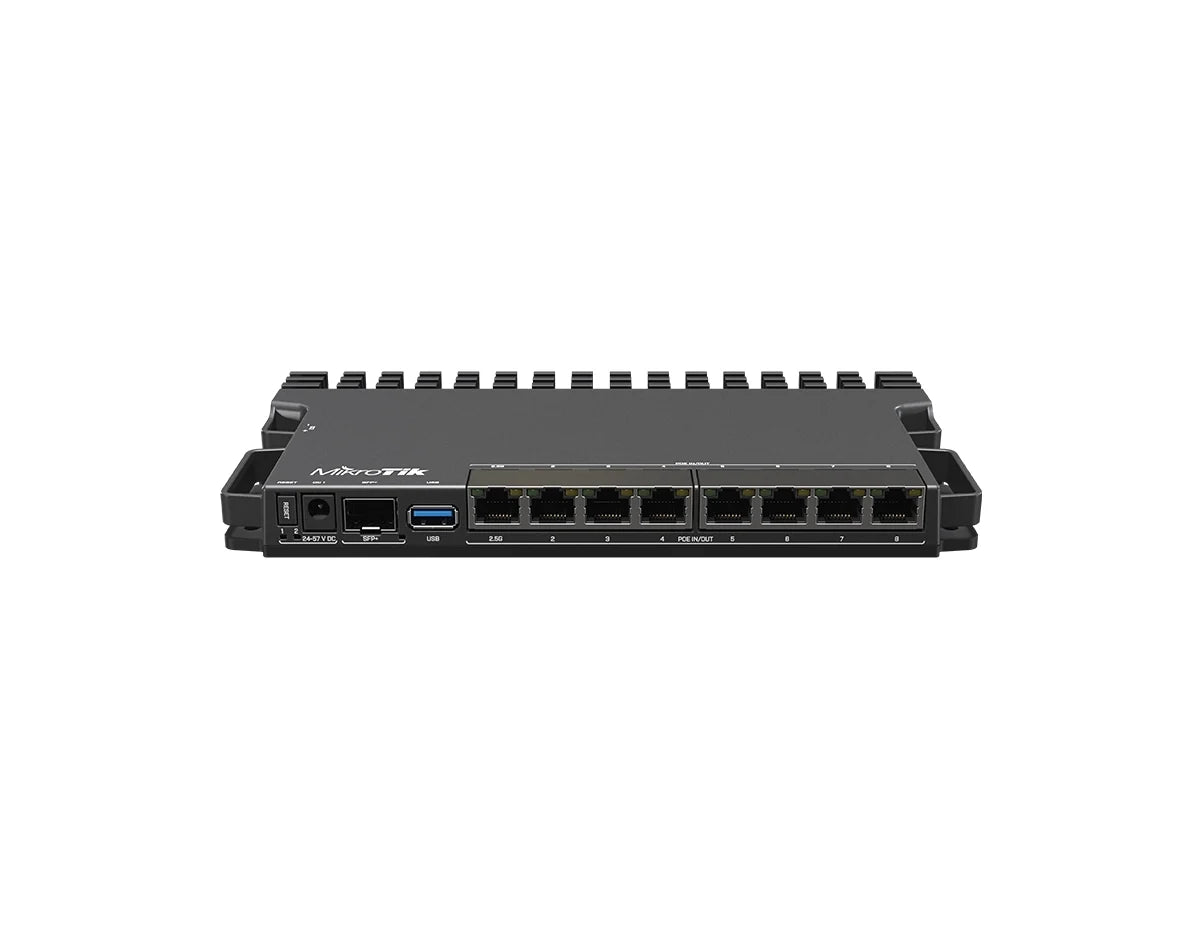

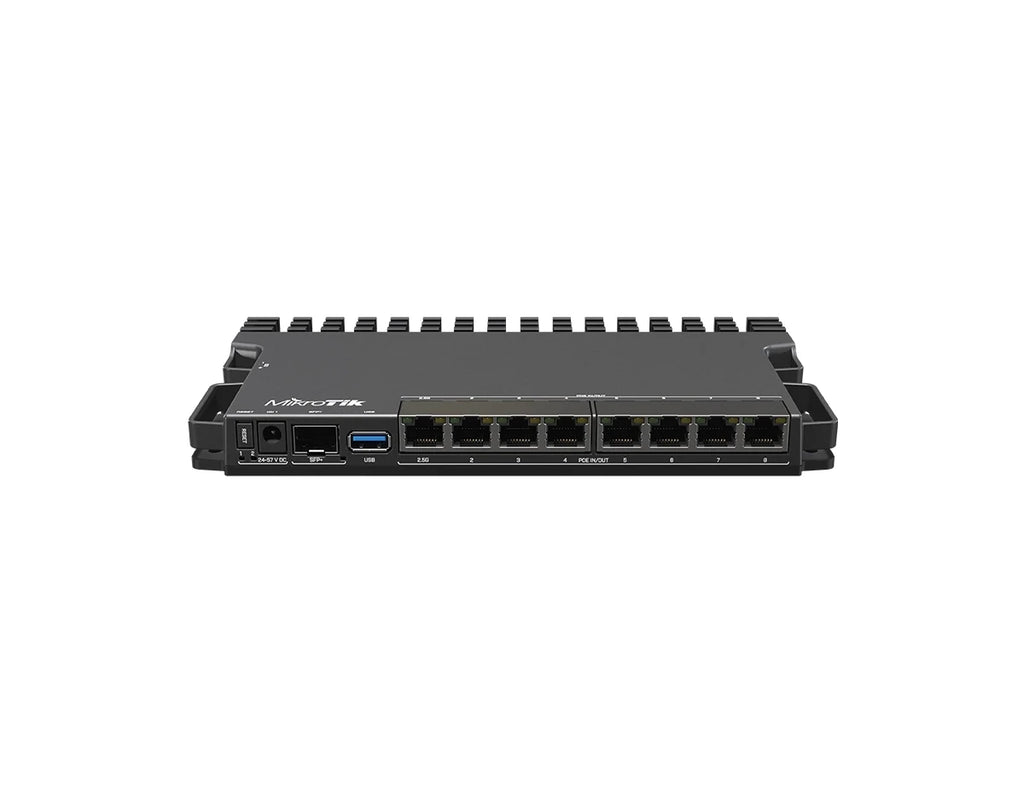

MikroTik RB5009UPr+S+IN Router
The RB5009UPr+S+IN presents a selection of efficient and space-saving routers tailored to meet diverse networking requirements. This product has numerous Gigabit Ethernet ports, a 2.5 Gigabit Ethernet port, and a 10G SFP+ cage to facilitate fiber connectivity. One of the critical features of this product is that it has PoE-in and PoE-out on all 8 Ethernet ports.
Quick Specs:
- 7x 10/100/1000 Ethernet Ports with reverse PoE (PoE-in)
- 1x 2.5G Ethernet Port with reverse PoE (PoE-in)
- 1 SFP+ Ports
- PoE-out ports: Ether1-Ether8
Please see the related tabs for the RB5009UPr+S+IN datasheet and compatible accessories.
