Properties	MikroTik RB4011IGS+RM
Description	Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage and desktop case with rack ears
Product Family	RB4011 Series
Product Type	Ethernet Router
Ports
10/100/1000 Ethernet ports	10
SFP+	1
Serial console port	1 RJ45
Extras	PCB temperature monitor Voltage Monitor
Dimensions	228 x 120 x 30 mm
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	12-57 V
Max power consumption	33 W
Max power consumption without attachments	18 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	18-57 V
PoE-out ports	Ether10
PoE out	Passive PoE up to 57V
Max out per port output (input 18-30 V)	600 mA
Max out per port output (input 30-57 V)	420 mA
Max total out (A)	600 mA

[/properties][specifications]

Specifications	RB4011IGS+RM
Memory	1 GB
NAND Storage size	512 MB
CPU	AL21400 auto (533 - 1900) MHz
CPU core count	4
Switch chip model	RTL8367SB
OS	RouterOS v7 level 5 license
MTBF	Approximately 200.000 hours at 25C
Temperature	-40°C to 70°C tested
Performance test results
Bridging
1518 byte
none (fast path)	kpps: 806.4 Mbps: 9,792.9
25 bridge filter rules	kpps: 806.4 Mbps: 9,792.9
512 byte
none (fast path)	kpps: 2,312.9 Mbps: 9,473.6
25 bridge filter rules	kpps: 1,037.4 Mbps: 4,249.2
64 byte
none (fast path)	kpps: 5,509.7 Mbps: 2,821.0
25 bridge filter rules	kpps: 1,153.2 Mbps: 590.4
Routing
1518 byte
none (fast path)	kpps: 806.4 Mbps: 9,792.9
25 simple queues	kpps: 806.4 Mbps: 9,792.9
25 ip filter rules	kpps: 593.7 Mbps: 7,209.9
512 byte
none (fast path)	kpps: 1,923.3 Mbps: 7,877.8
25 simple queues	kpps: 1,046.6 Mbps: 4,286.9
25 ip filter rules	kpps: 625.2 Mbps: 2,560.8
64 byte
none (fast path)	kpps: 5092,3 Mbps: 2,607.3
25 simple queues	kpps: 960.3 Mbps: 491.7
25 ip filter rules	kpps: 564.6 Mbps: 289.1
IPsec test results
Mode	IPsec throughput
Single tunnel
1400 byte
AES-128-CBC + SHA1	kpps: 140.8 Mbps: 1577
512 byte
AES-128-CBC + SHA1	kpps: 141.2 Mbps: 578.4
64 byte
AES-128-CBC + SHA1	kpps: 139.9 Mbps: 71.6
256 tunnels
1400 byte
AES-128-CBC + SHA1	kpps: 192.7 Mbps: 2158.2
AES-128-CBC + SHA256	kpps: 192.4 Mbps: 2154.9
AES-256-CBC + SHA1	kpps: 180.0 Mbps: 2016.0
AES-256-CBC + SHA256	kpps: 180.0 Mbps: 2016.0
AES-128-GCM	kpps: 192.7 Mbps: 2158.2
512 byte
AES-128-CBC + SHA1	kpps: 200.5 Mbps: 821.2
AES-128-CBC + SHA256	kpps: 200.5 Mbps: 821.2
AES-256-CBC + SHA1	kpps: 188.2 Mbps: 770.9
AES-256-CBC + SHA256	kpps: 188.2 Mbps: 770.9
	kpps: 202.2 Mbps: 828.2
64 byte
AES-128-CBC + SHA1	kpps: 203.4 Mbps: 104.1
AES-128-CBC + SHA256	kpps: 203.4 Mbps: 104.1
AES-256-CBC + SHA1	kpps: 190.3 Mbps: 97.4
AES-256-CBC + SHA256	kpps: 190.3 Mbps: 97.4
AES-128-GCM	kpps: 203.4 Mbps: 104.1
Certification & Approvals
Certification	CE, EAC, ROHS
IP	IP20

[/specifications][accesories]

Accessories

24V 1.5A power adapter 4011 ears K-60 kit

[/accesories]

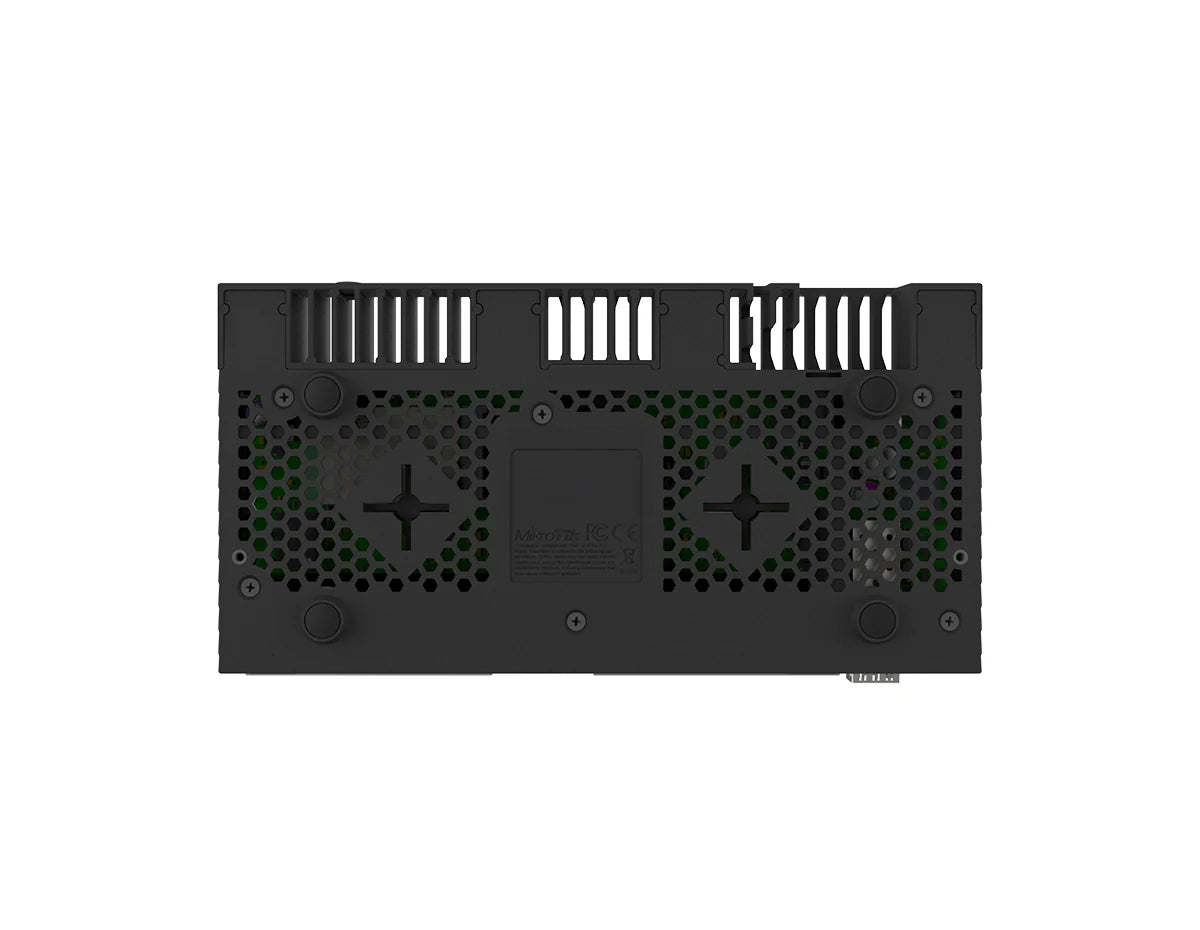

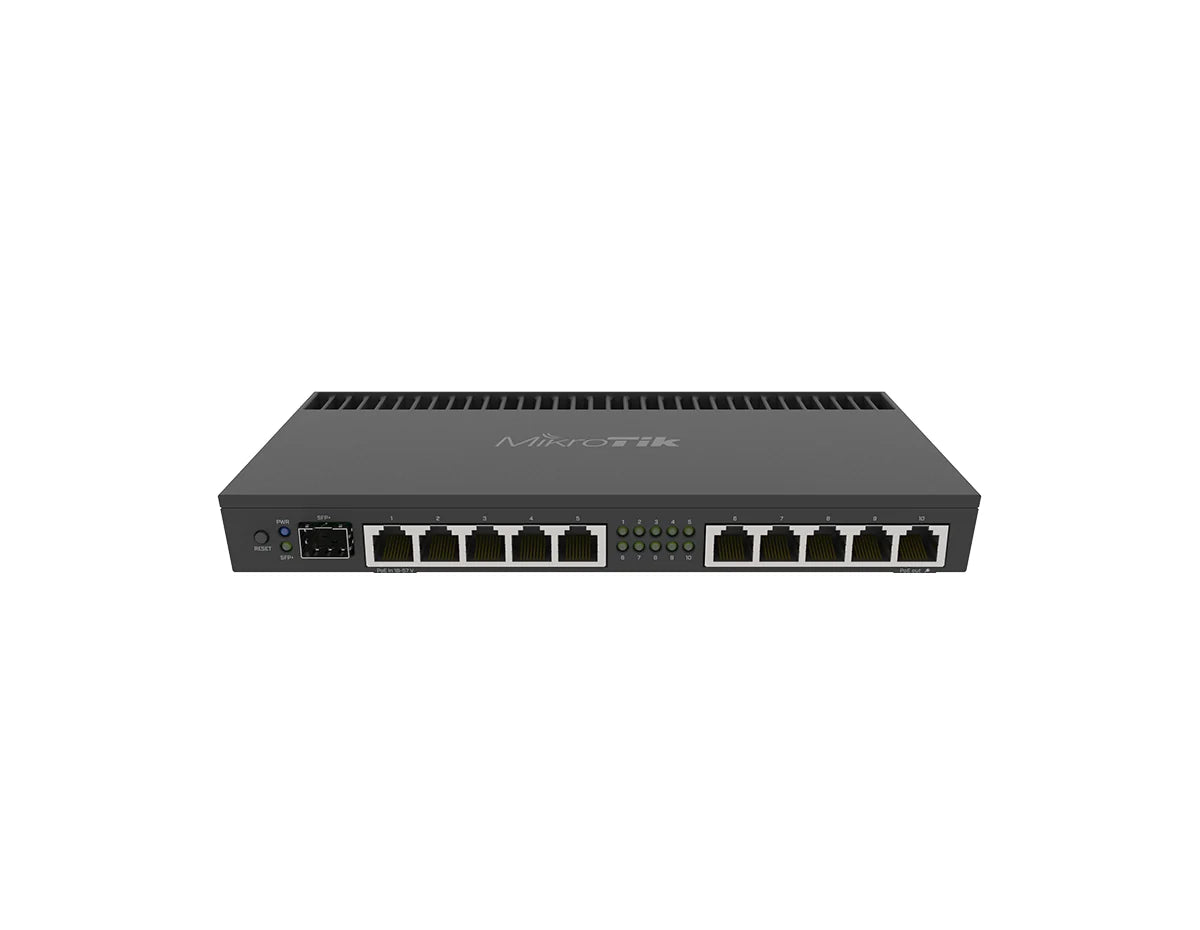

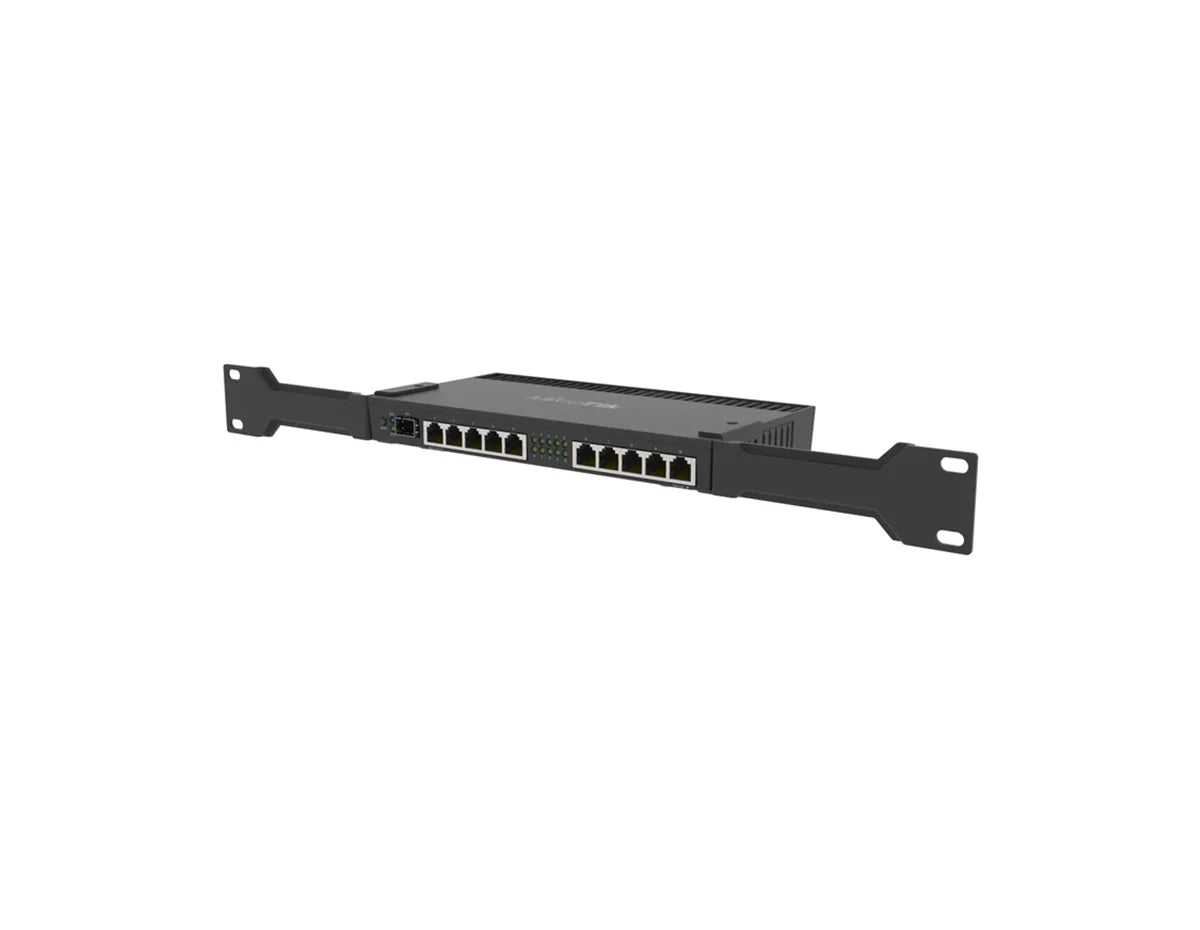

MikroTik RB4011iGS+RM Router

The RB4011iGS+RM is equipped with the AL21400 chipset, featuring a sturdy quad-core processor running at 1400 MHz. This substantial processing capacity results in a network router adept at efficiently and swiftly managing intricate operations. It is ideal for data-heavy networks. It has a compact design and a solid metal enclosure which makes your hardware more durable.

Quick Specs:

• 10x 10/100/1000 Ethernet Ports
• 1 SFP+ Ports
• PoE in (port1), 18-57V
• PoE out (port10) up to 57V
• PCB temperature monitor

Please see the related tabs for the RB4011iGS+RM datasheet and compatible accessories.
