[shortdesc]
- 1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5
[/shortdesc]
[properties]
| Properties |
MikroTik RB3011UIAS-RM |
| Description |
1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5 |
| Product Family |
RB3011 Series |
| Product Type |
Ethernet Router |
| Ports |
| 10/100 Ethernet ports |
10 |
| SFP |
1 |
| Serial console port |
1 RJ45 |
| Number of USB ports |
1 USB 3.0 type A |
| Extras |
PCB temperature monitor
Voltage Monitor
Beeper |
| Dimensions |
443 x 92 x 44 mm |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-30 V |
| Max power consumption |
30 W |
| Max power consumption without attachments |
10 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
| PoE-out ports |
Ether10 |
| PoE out |
Passive PoE |
| Max out per port output (input 18-30 V) |
600 mA |
| Max total out (A) |
600 mA |
[/properties][specifications]
| Specifications |
RB3011UIAS-RM |
| Memory |
1 GB |
| NAND Storage size |
128 MB |
| CPU |
IPQ-8064 1.4 GHz |
| CPU core count |
2 |
| Switch chip model |
QCA8337 |
| OS |
RouterOS level 5 license |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-20°C to 70°C tested |
| Performance test results |
| Bridging |
|
| 1518 byte |
|
| none (fast path) |
kpps: 325.0
Mbps: 3,946.8 |
| 25 bridge filter rules |
kpps: 325.0
Mbps: 3,946.8 |
| 512 byte |
|
| none (fast path) |
kpps: 939.8
Mbps: 3,849.4 |
| 25 bridge filter rules |
kpps: 384.2
Mbps: 1,573.7 |
| 64 byte |
|
| none (fast path) |
kpps: 1,530.2
Mbps: 783.5 |
| 25 bridge filter rules |
kpps: 348.6
Mbps: 178.5 |
| Routing |
|
| 1518 byte |
|
| none (fast path) |
kpps: 325.0
Mbps: 3,946.8 |
| 25 simple queues |
kpps: 325.0
Mbps: 3,946.8 |
| 25 ip filter rules |
kpps: 202.0
Mbps: 2,453.1 |
| 512 byte |
|
| none (fast path) |
kpps: 939.8
Mbps: 3,849.4 |
| 25 simple queues |
kpps: 419.6
Mbps: 1,718.7 |
| 25 ip filter rules |
kpps: 204.1
Mbps: 836.0 |
| 64 byte |
|
| none (fast path) |
kpps: 1,437.6
Mbps: 736.1 |
| 25 simple queues |
kpps: 419.7
Mbps: 214.9 |
| 25 ip filter rules |
kpps: 188.4
Mbps: 96.5 |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
24V 1.2A power adapter
Rack ears
K-19 fastening set |
[/accesories]

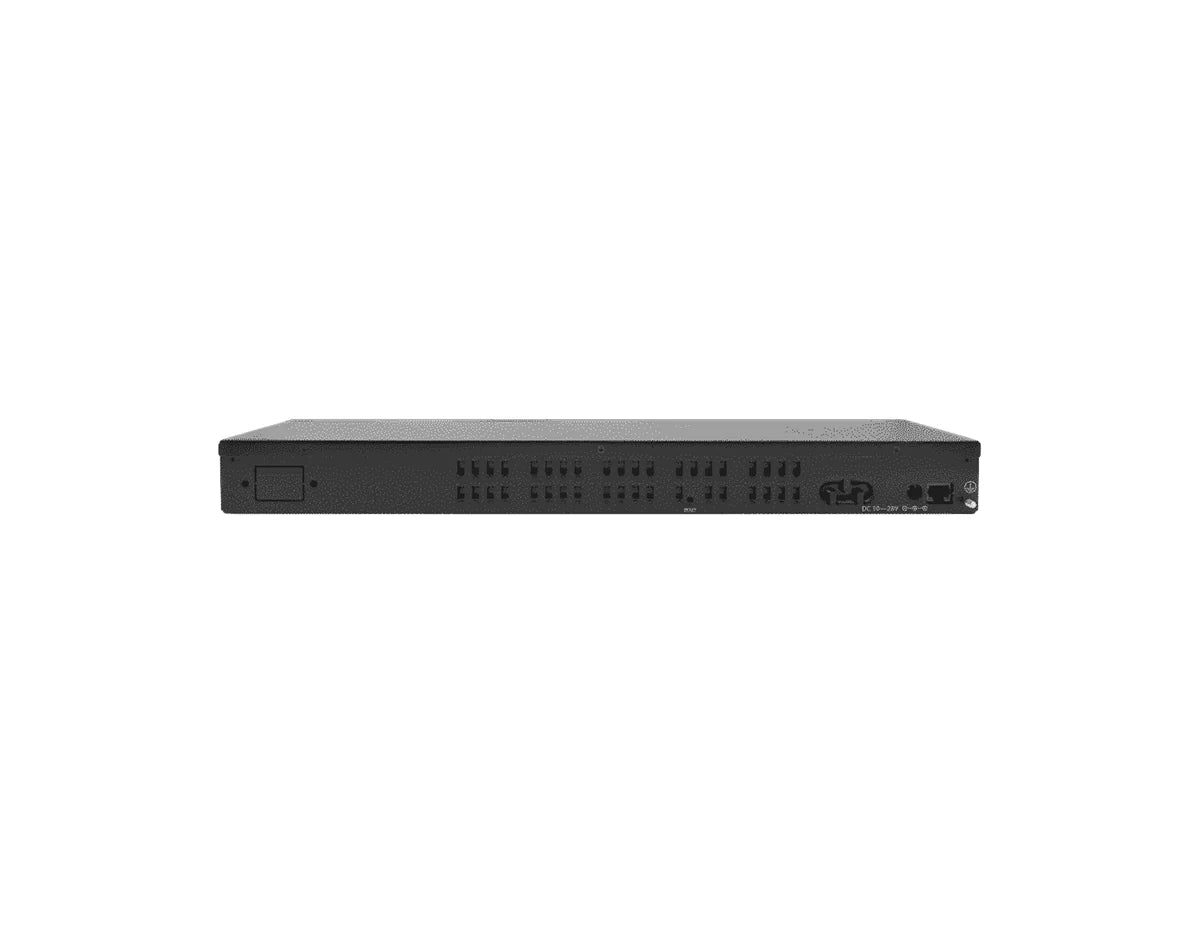

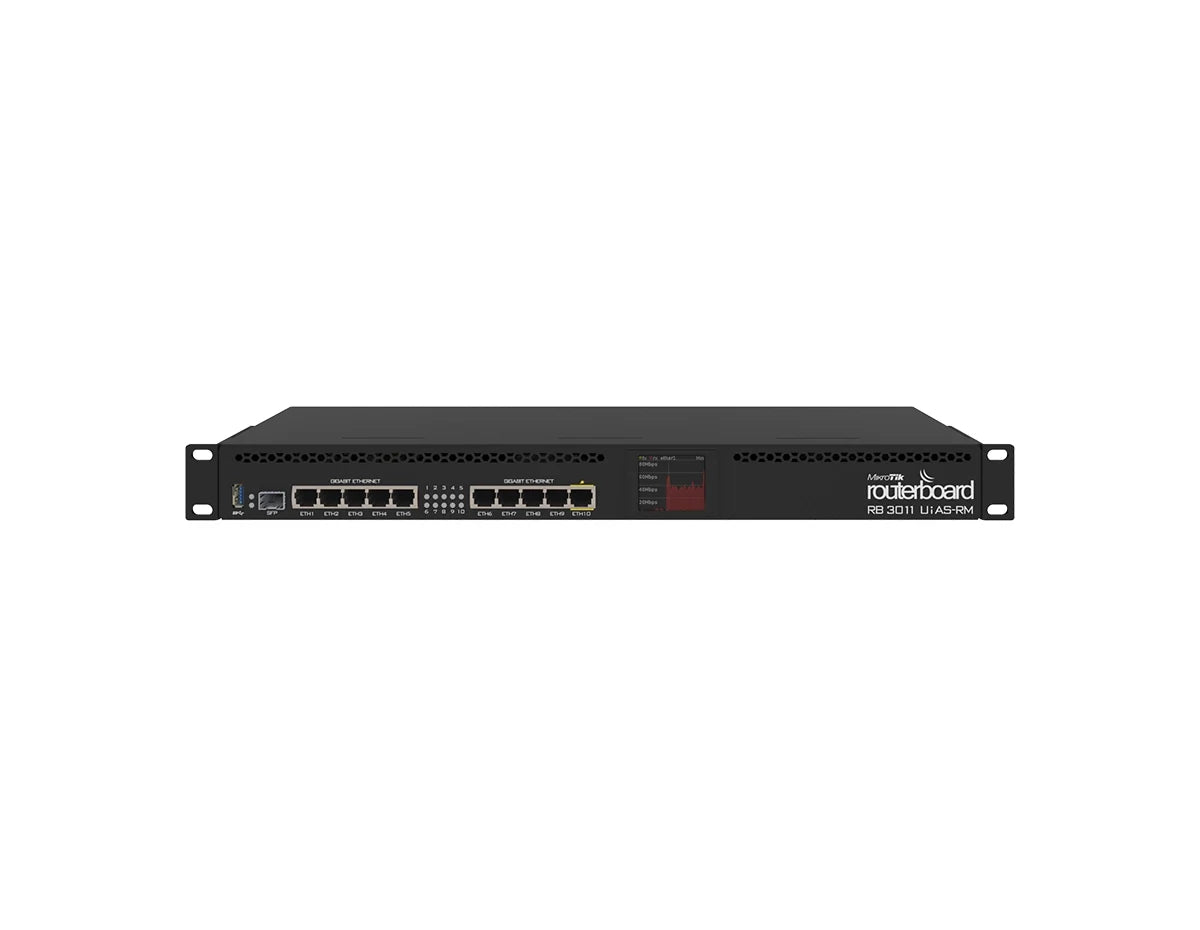

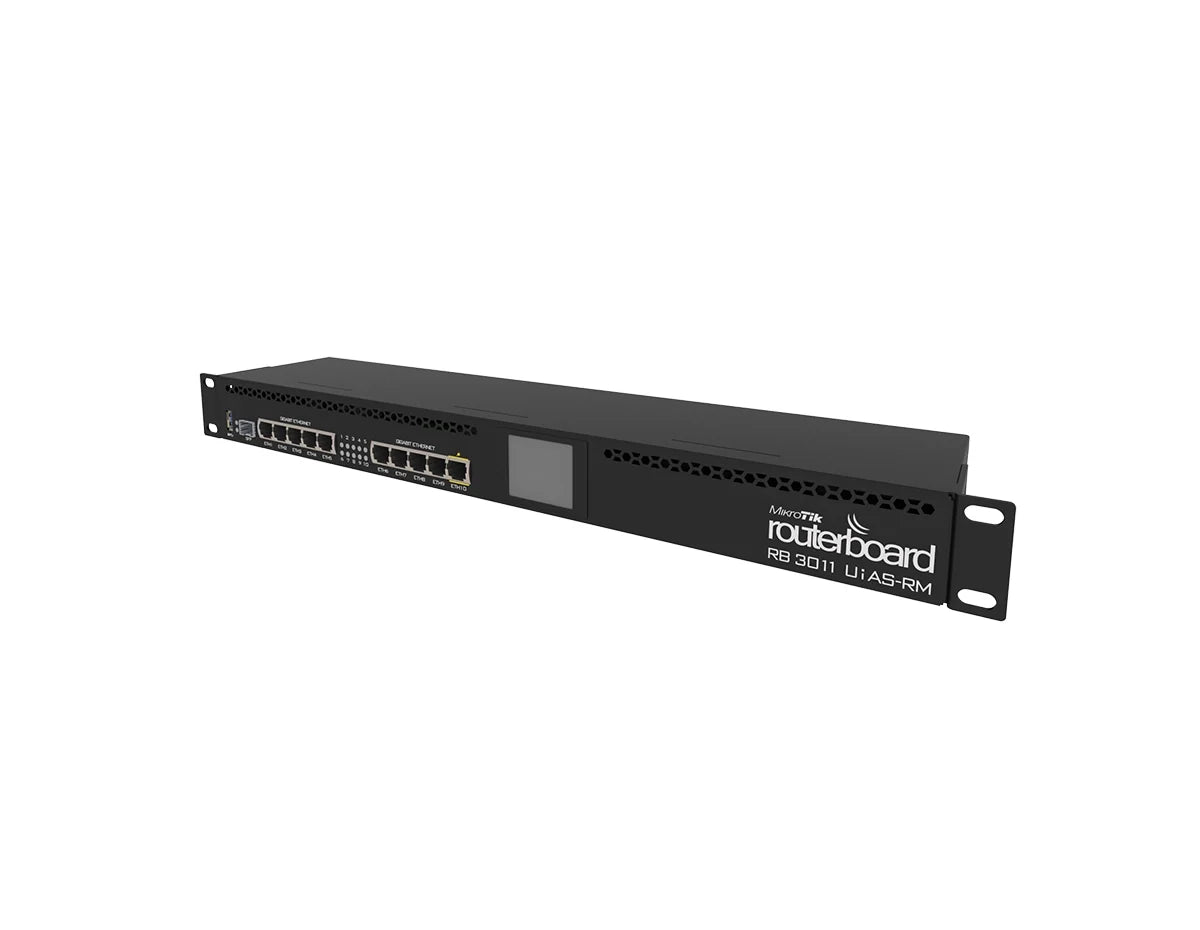

MikroTik RB3011UiAS-RM Router
The RB3011UiAS-RM is a high-performance device specifically designed to provide exceptional connectivity. It is equipped with an ARM architecture CPU known for its efficiency and adaptability. Housed in a 1U rackmount case, it occupies minimal rack space, making it suitable for space-efficient installations. Additionally, it features a touch-sensitive LCD panel for real-time monitoring and quick configuration adjustments. For users who prefer traditional command-line access, the device also includes a serial console port and PoE output on the last Ethernet port to enhance network flexibility.
Quick Specs:
-
10x 10/100/1000 Ethernet Ports
-
1 SFP port uplink
-
PoE-out ports: Ether10
-
PoE-out: Passive PoE
Please see the related tabs for the RB3011UiAS-RM datasheet and compatible accessories.
