[shortdesc]
- Dual-band 802.11ax Wi-Fi 6 radios, Up to 20 km wireless range, Gigabit Ethernet with PoE-in, 2.5G SFP port support
[/shortdesc]
[properties]
| Product code |
L22UGS-5HaxD2HaxD-15S |
| Architecture |
ARM |
| CPU |
IPQ-5010 |
| CPU core count |
2 |
| CPU nominal frequency |
800 MHz |
| RouterOS license |
4 |
| Operating System |
RouterOS v7 |
| Size of RAM |
256 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 200'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| Suggested price |
$179.00 |
[/properties]
[specifications]
| Details |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
12-28 V |
| Max power consumption |
21 W |
| Max power consumption without attachments |
11 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
18-28 V |
|
Wireless specifications |
|
| Details |
| Wireless 2.4 GHz Max data rate |
574 Mbit/s |
| Wireless 2.4 GHz number of chains |
2 |
| Wireless 2.4 GHz standards |
802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz |
12 |
| Wireless 2.4 GHz chip model |
IPQ-5010 |
| Wireless 2.4 GHz generation |
Wi-Fi 6 |
| Wireless 5 GHz Max data rate |
2400 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz |
15 |
| Wireless 5 GHz chip model |
QCN-6102 |
| Wireless 5 GHz generation |
Wi-Fi 6 |
|
Ethernet |
|
| Details |
| 10/100/1000 Ethernet ports |
1 |
|
Fiber |
|
| Details |
| SFP ports |
1 (2.5G supported) |
|
Peripherals |
|
| Details |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1.5 |
|
Other |
|
| Details |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Beeper |
|
[/specifications]
[accesories]
| Included parts |
| 24V 1.2A power adapter |
| Gigabit PoE injector |
| Hose clamp 1 |
| QMP |
| K-41 fastening set |
[/accesories]

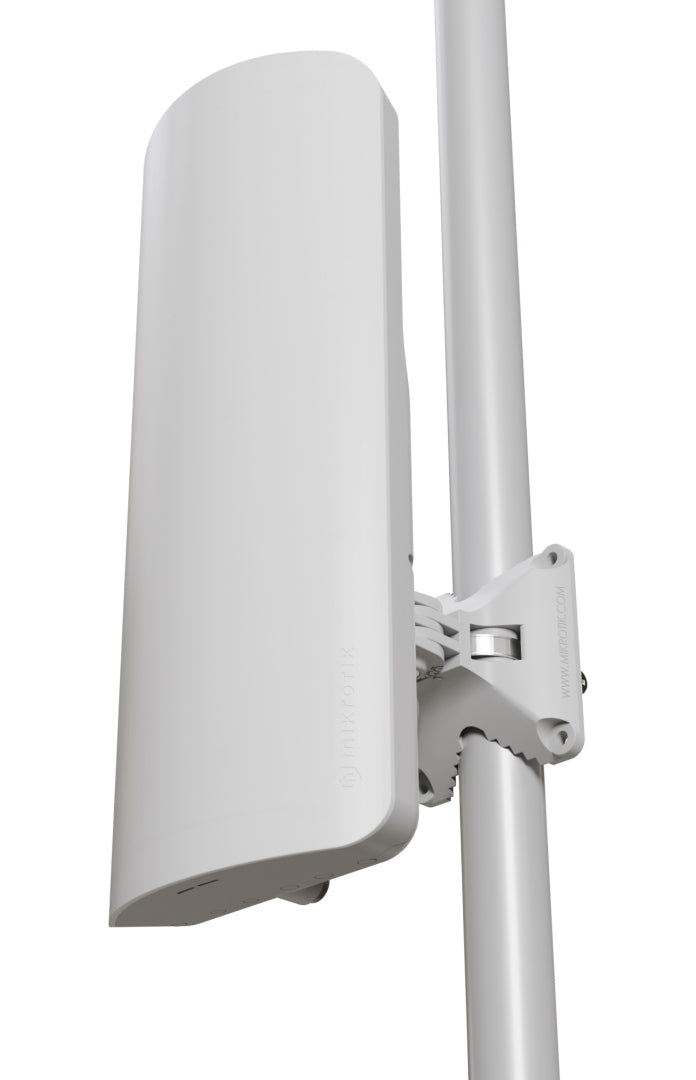

MikroTik mANTBox ax 15s
The MikroTik mANTBox ax 15s is a high-performance outdoor wireless access point designed for modern outdoor network needs, offering robust connectivity for environments such as camps, stadiums, and parks. With dual-band 802.11ax Wi-Fi 6 radios, this access point ensures a significant upgrade in speed, security, and reliability for your outdoor network setups.
Product Highlights
- Dual-band 802.11ax Wi-Fi 6 radios
- Dual-core ARM CPU
- Up to 20 km wireless range
- Gigabit Ethernet with PoE-in
- 2.5G SFP port support
- Durable, weatherproof enclosure
- Seamless roaming and energy-efficient features
Features
- Modern dual-core ARM CPU for enhanced processing power
- Dual-chain 2.4/5 GHz Wi-Fi 6 with support for up to 128 concurrent clients per interface
- Weatherproof and durable enclosure for reliable outdoor performance
- Integrated Gigabit Ethernet port with PoE-in and a 2.5G SFP port for fast uplinks
- Advanced security with WPA3 encryption and management frame protection
- Energy-efficient design with Target Wake Time (TWT) support
Specifications
| Category |
Specifications |
| Product Code |
L22UGS-5HaxD2HaxD-15S-US |
| CPU |
Dual-Core IPQ-5010 800 MHz |
| RAM |
256 MB |
| Storage |
128 MB NAND |
| Wireless Interface |
2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Antenna Gain |
2.4 GHz - 12 dBi, 5 GHz - 15 dBi |
| Ethernet Ports |
1 x 1G Ethernet |
| SFP Ports |
1 x 1G SFP (2.5G supported) |
| USB Port |
1 x USB 2.0 port type A |
| Power Input |
18-28V (PoE-In), 12-28V (DC jack) |
| Max Power Consumption |
21 W |
| Operating Temperature |
-40°C to +70°C |
| Dimensions |
349 x 140 x 82 mm |
