[shortdesc] Outdoor 5 GHz flat-panel CPE/AP with integrated 24 dBi antenna, dual-chain 802.11a/n (Wi-Fi 4), up to 300 Mbit/s (5 GHz), 1× Gigabit Ethernet, Passive PoE-in (8–28 V), IP54 enclosure, RouterOS Level 4 [/shortdesc]
[properties]
| Model |
MikroTik QRT 5 |
| Manufacturer Part Number |
RB911G-5HPnD-QRT-US |
| Product Code |
RB911G-5HPnD-QRT |
| Device Type |
Outdoor 5 GHz AP/Backbone/CPE (flat panel antenna with integrated RouterBOARD) |
| Wireless Standards |
802.11a/n (Wi-Fi 4) |
| Wireless Configuration |
Dual-chain (2x2) |
| Max 5 GHz Data Rate |
300 Mbit/s |
| Antenna |
Integrated flat panel, 24 dBi (5 GHz) |
| Ethernet |
1× 10/100/1000 Gigabit Ethernet |
| Power Input |
Passive PoE-in, 8–28 V |
| Max Power Consumption |
12 W |
| Enclosure Rating |
IP54 |
| US Model Frequency Lock |
Factory locked for 5170–5250 MHz and 5725–5835 MHz |
| Operating Temperature |
Tested ambient temperature: -40°C to 70°C |
| Dimensions |
309 × 320 × 50 mm |
| Certifications |
CE, EAC, RoHS |
[/properties]
[specifications]
| Architecture |
MIPSBE |
| CPU |
AR9342 |
| CPU Core Count |
1 |
| CPU Nominal Frequency |
600 MHz |
| RAM |
64 MB |
| Storage |
128 MB |
| Storage Type |
NAND |
| Operating System |
RouterOS (preinstalled) |
| RouterOS License |
Level 4 |
| Cooling |
Passive |
| Wireless Chip Model |
AR9342 |
| PCB Temperature Monitor |
Yes |
| Voltage Monitor |
Yes |
| Beeper |
Yes |
| MTBF |
Approximately 200,000 hours at 25°C |
| Wireless TX/RX (6Mbit/s) |
30 dBm / -96 dBm |
| Wireless TX/RX (54Mbit/s) |
27 dBm / -78 dBm |
| Wireless TX/RX (MCS0) |
30 dBm / -96 dBm |
| Wireless TX/RX (MCS7) |
26 dBm / -75 dBm |
| EU Compliance (where applicable) |
Radio Equipment Directive (RED) 2014/53/EU; RoHS Directive 2011/65/EU (incl. EU 2015/863) |
[/specifications]
[accesories]
| Included |
QRT antenna mount, U bolts, U mast clamp, K-QRT screw kit, 24 V 0.8 A power adapter, Gigabit PoE injector |
[/accesories]

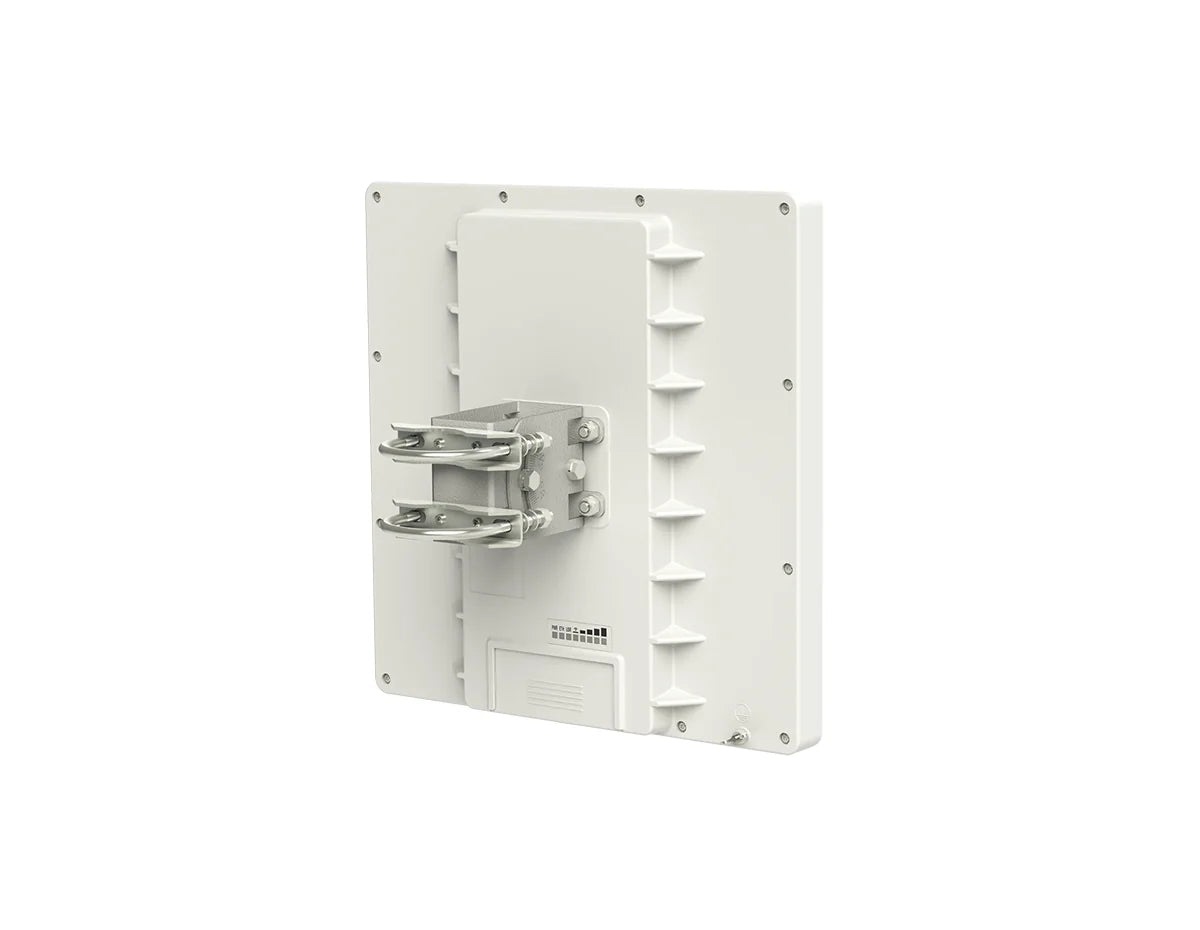

RB911G-5HPnD-QRT-US (MikroTik QRT 5) Outdoor 5 GHz Flat Panel CPE/AP
The MikroTik QRT 5 is built for outdoor deployments where a compact, high-gain integrated antenna and stable RouterOS performance matter. With a dual-chain 5 GHz radio and a Gigabit Ethernet port, it is well suited for point-to-point links, last-mile CPE, and backhaul scenarios where you want fast installation and consistent connectivity.
The RB911G-5HPnD-QRT-US variant is factory locked to specific frequency ranges to meet regional requirements. RouterOS comes preinstalled and licensed, so the device is ready to configure and deploy immediately.
Key Features
- Rugged outdoor flat panel design with IP54 protection
- Dual-chain 5 GHz 802.11a/n radio for flexible AP/CPE/backhaul roles
- Integrated 24 dBi antenna for long-range directional links
- Gigabit Ethernet uplink to maximize wireless backhaul throughput
- Passive PoE power for simple single-cable outdoor installations
- Monitoring features including voltage and PCB temperature sensors
Technical Specifications Summary
- Wireless: 5 GHz 802.11a/n (Wi-Fi 4), dual-chain (2x2), up to 300 Mbit/s
- Antenna gain: 24 dBi integrated flat panel (5 GHz)
- US frequency lock: 5170–5250 MHz and 5725–5835 MHz (factory locked)
- Ethernet: 1× 10/100/1000 Gigabit Ethernet port
- Power: Passive PoE-in, 8–28 V; maximum power consumption 12 W
- CPU/RAM/Storage: AR9342 (1 core, 600 MHz), 64 MB RAM, 128 MB NAND
- Environmental: IP54 enclosure; tested ambient temperature -40°C to 70°C
- Physical: 309 × 320 × 50 mm
- RF performance (selected): 30 dBm / -96 dBm at 6Mbit/s; 27 dBm / -78 dBm at 54Mbit/s; 26 dBm / -75 dBm at MCS7
- Certifications: CE, EAC, RoHS
