- Dual-polarization 5Ghz 19dBi 120 degree beamwidth antenna with two RP-SMA connectors
[/shortdesc],
[properties]
| Product Name |
MikroTik MTAS-5G-19D120 Antenna |
| Product Description |
Dual-polarization 5 GHz 19 dBi 120-degree beamwidth sector antenna with two RP-SMA connectors. |
| Compatibility |
BaseBox, NetBox, NetMetal, and other outdoor wireless devices. |
| Frequency Range |
5.17 – 5.825 GHz |
| Gain |
19 dBi |
| Polarization |
Vertical and horizontal |
| Beamwidth (Azimuth) |
120° |
| Beamwidth (Elevation) |
5° |
| Front-to-Back Ratio |
>30 dB |
| Cross Polarization |
>30 dB |
| Port-to-Port Isolation |
>40 dB |
| VSWR |
1.43 (typical), 1.8 (maximum) |
| Connector Type |
2 x RP-SMA |
| Mounting |
Metallic U-bolt type mounts |
| Dimensions (W x H x D) |
152 x 598 x 78 mm |
| Weight |
1,270 g |
| Operating Temperature Range |
-40°C to 70°C |
[/properties]
[specifications]
| Product Code |
MTAS-5G-19D120 |
| Antenna Type |
Sector |
| Frequency Range |
5.17 – 5.825 GHz |
| Gain |
19 dBi |
| Polarization |
Dual (vertical and horizontal) |
| 3 dB Beamwidth (Azimuth) |
120° |
| 3 dB Beamwidth (Elevation) |
5° |
| Front-to-Back Ratio |
>30 dB |
| Cross Polarization |
>30 dB |
| Port-to-Port Isolation |
>40 dB |
| VSWR |
1.43 (typical), 1.8 (maximum) |
| Connector Type |
2 x RP-SMA |
| Mounting |
Metallic U-bolt type mounts |
| Dimensions (W x H x D) |
152 x 598 x 78 mm |
| Weight |
1,270 g |
| Operating Temperature Range |
-40°C to 70°C |
[/specifications]The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal, or any other outdoor wireless device.

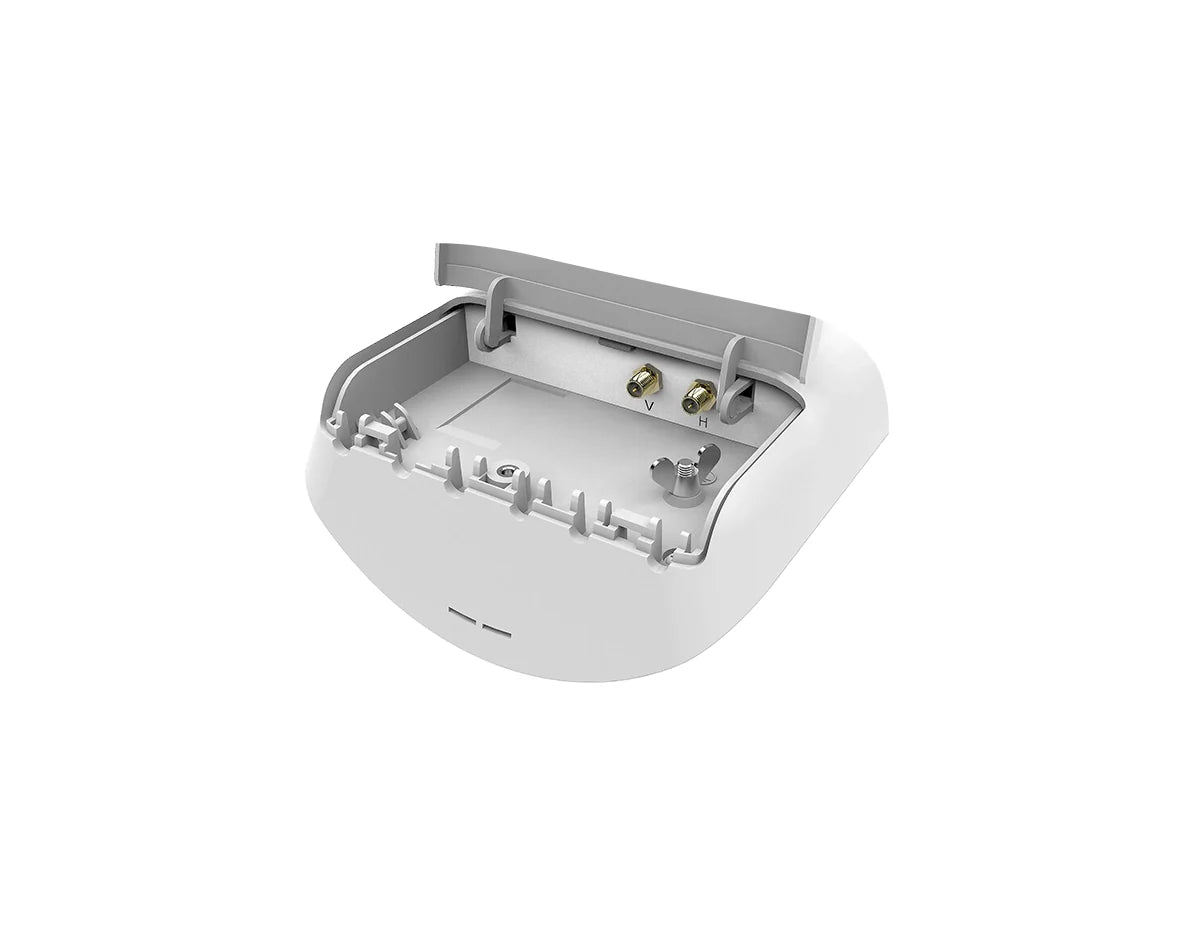

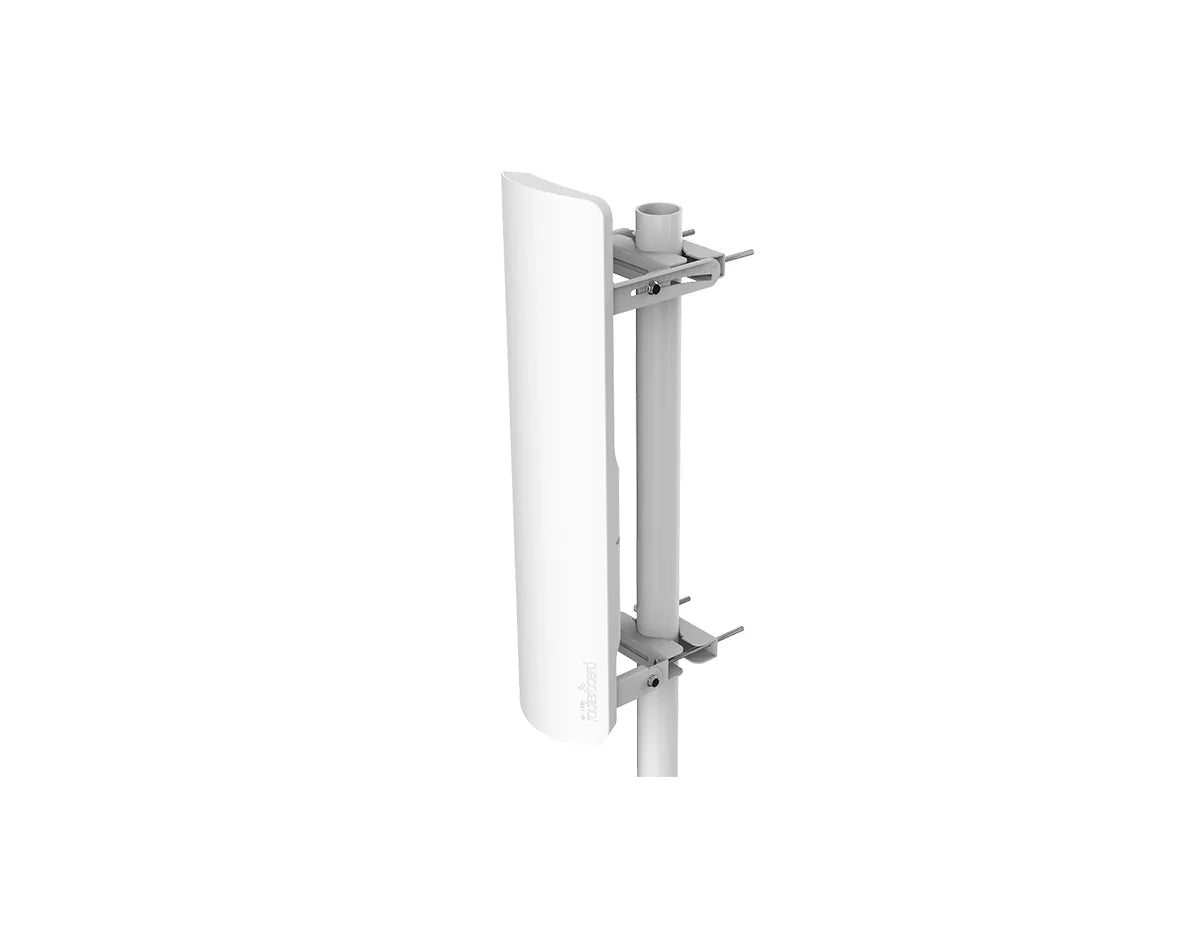

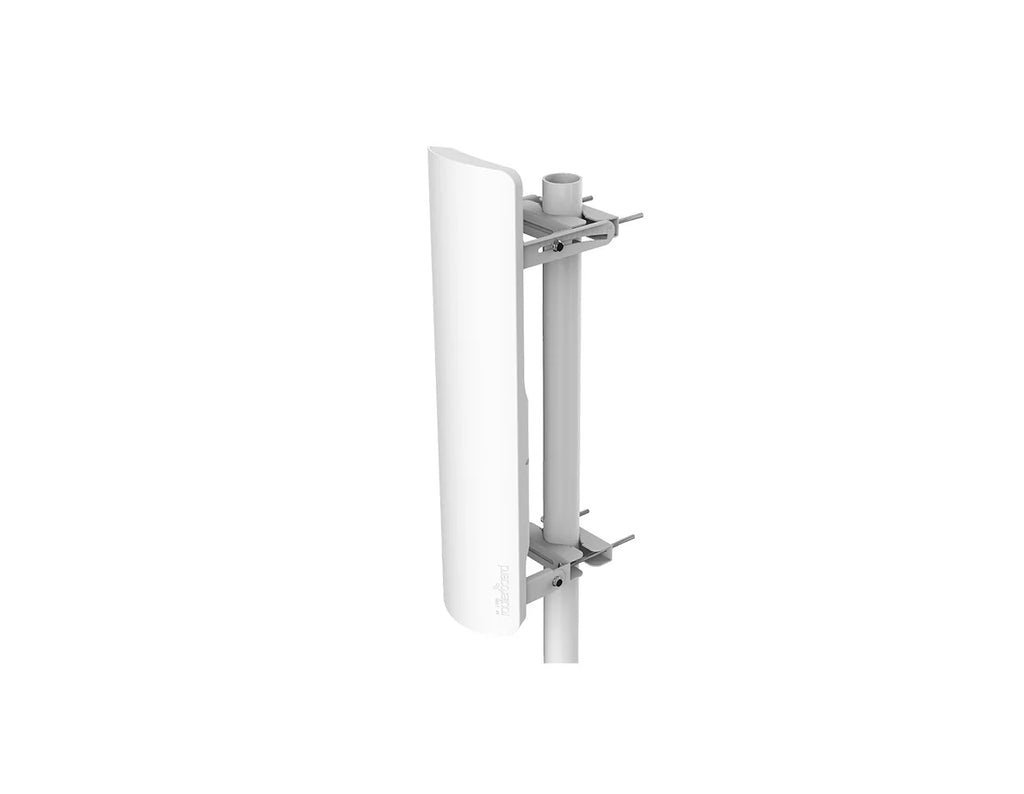

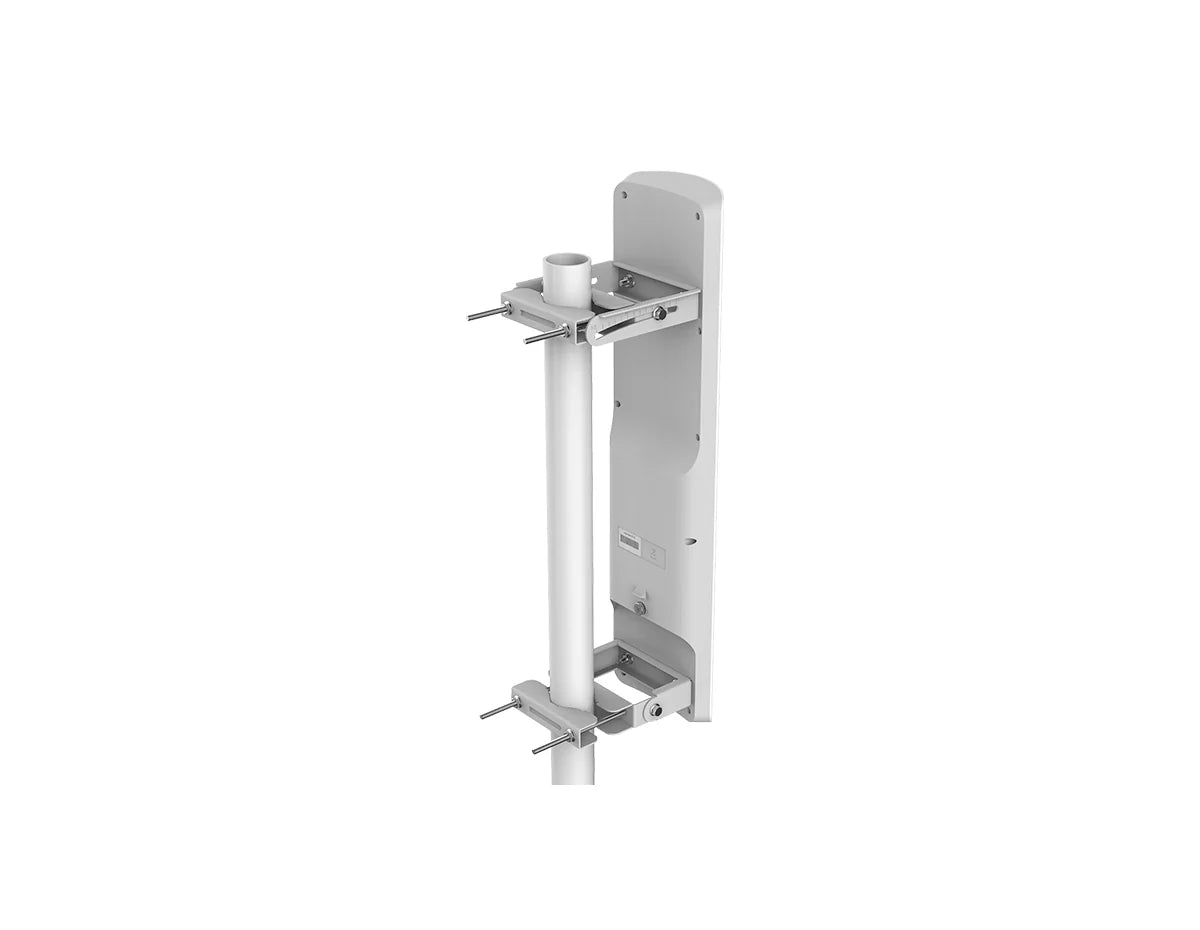

The mANT is a dual-polarization 19dBi 120-degree beamwidth antenna with two RP-SMA connectors. It comes with metallic U bolt type mounts
