[shortdesc]wireless bridge, long range, outdoor, directional antenna, 5GHz. [/shortdesc]
[properties]
| Properties |
RBLDF-5nD-US |
| Description |
Discover the Mikrotik LDF 5 RBLDF-5nD-US, an outdoor wireless system featuring 5 GHz frequency and a powerful integrated antenna. Experience reliable long-range connectivity for your network with this top-tier solution.
|
| Product Family |
LDF 5 Series
|
| Product Type |
Outdoor Wireless System |
| 10/100 Ethernet ports |
1 |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
6 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
| Dimensions |
84mm x 84mm x 115mm |
[/properties][specifications]
| Specifications |
RBLDF-5nD-US |
| Architecture |
MIPSBE |
| CPU |
AR9344 |
| CPU core count |
1 |
| CPU nominal frequency |
600 MHz |
| Dimensions |
84x84x115mm |
| RouterOS license |
3 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| Wireless 5 GHz Max data rate |
300 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n |
| Antenna gain dBi for 5 GHz |
9 |
| Wireless 5 GHz chip model |
AR9344 |
| Wireless 5 GHz generation |
Wi-Fi 4 |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
| Included in package |
24V 0.38A power adapter
PoE Injector
|
[/accesories]

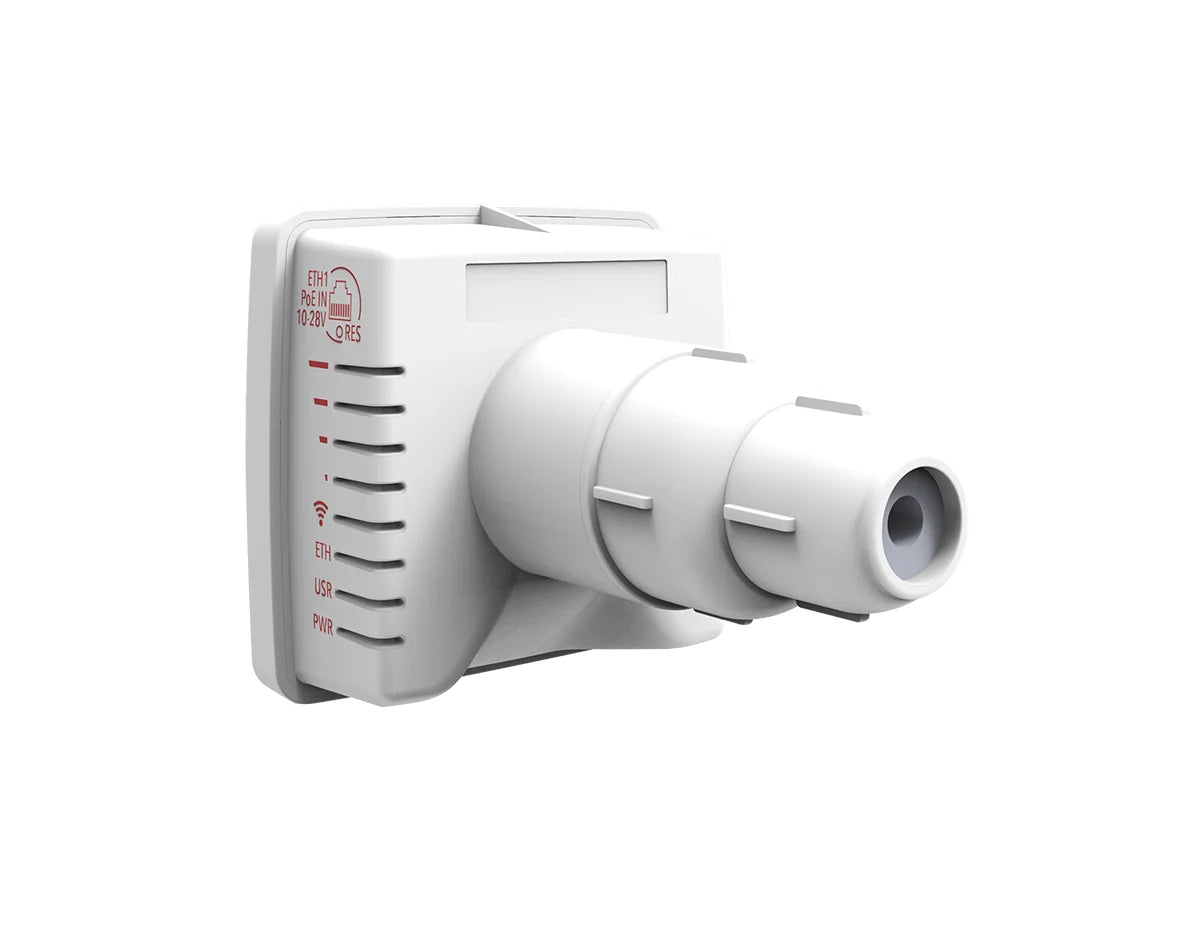

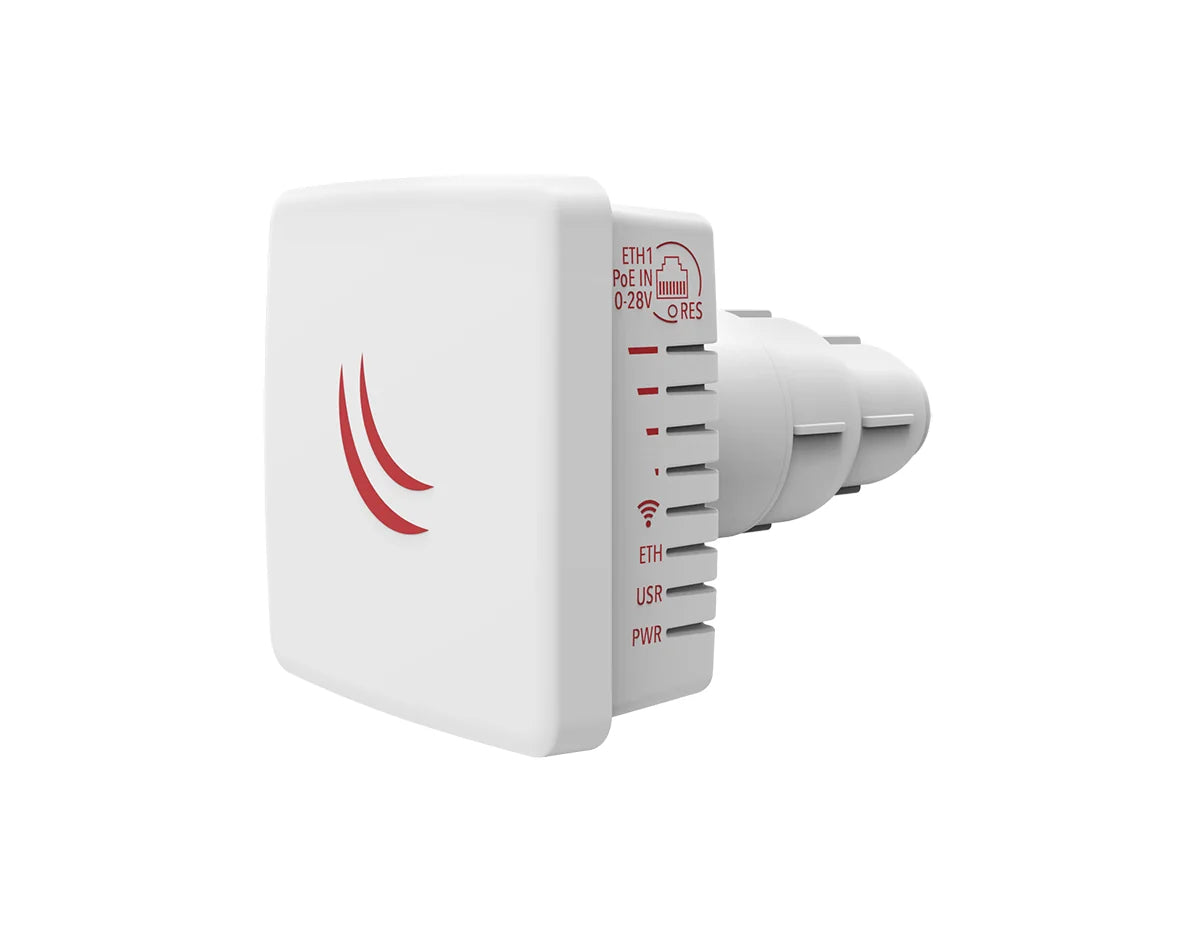

MikroTik RBLDF-5ND-US Outdoor Wireless System

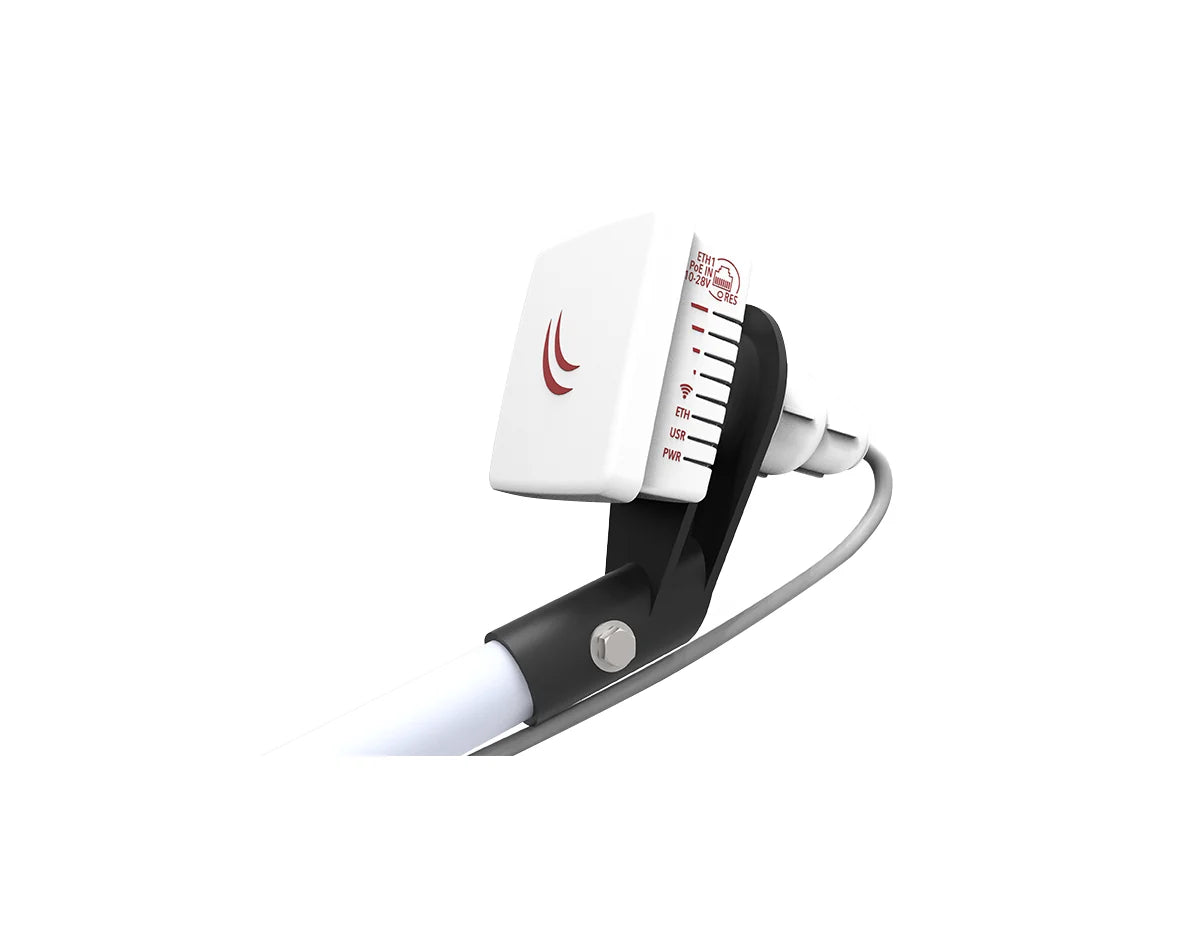

The RBLDF-5nD is an outdoor wireless device featuring an integrated antenna, designed for installation on satellite offset dish antennas. The dish functions as a reflector, enhancing signal strength. The RBLDF-5nD-US is furnished with a Gigabit port and is compatible with 802.11ac for improved data throughput. The RBLDF-5nD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed due to country regulations.
Quick Specs:
-
1x 10/100 Ethernet Ports
-
AR9344, 1 core, 600 MHz CPU
-
PoE-in: Passive PoE
-
64 MB RAM
Please see the related tabs for the RBLDF-5nD-US datasheet and compatible accessories.
