[shortdesc]
- 5x Ethernet, Small plastic case, 850MHz CPU, 64MB RAM, Most affordable MPLS router, RouterOS L4
[/shortdesc]
[properties]
| Properties |
MikroTik hEX lite RB750R2 |
| Description |
5x Ethernet, Small plastic case, 850MHz CPU, 64MB RAM, Most affordable MPLS router, RouterOS L4 |
| Product Family |
hEX Series |
| Product Type |
Ethernet Router |
| Ports |
| 10/100 Ethernet ports |
5 |
| Dimensions |
113x89x28mm |
| Weight without packaging and cables |
129g |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
6-30 V |
| Max power consumption |
2 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
6-30 V |
[/properties][specifications]
| Specifications |
RB750R2 |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9533 850 MHz |
| CPU core count |
1 |
| Switch chip model |
QCA9533 |
| OS |
RouterOS level 4 license |
| MTBF |
Approximately 100.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, FCC, EAC, ROHS |
| IP |
IP20 |
| Bridging |
64 byte: 396 Mbps
1518 byte: 986 Mbps
1400 byte: 986 Mbps |
| Routing |
64 byte: 373 Mbps
1518 byte: 986 Mbps
1400 byte: 986 Mbps |
| AES-128 |
64 byte: 9 Mbps
1518 byte: 52 Mbps
1400 byte: 50 Mbps |
[/specifications][accesories]
| Accessories |
24V 0.38A power adapter |
[/accesories]

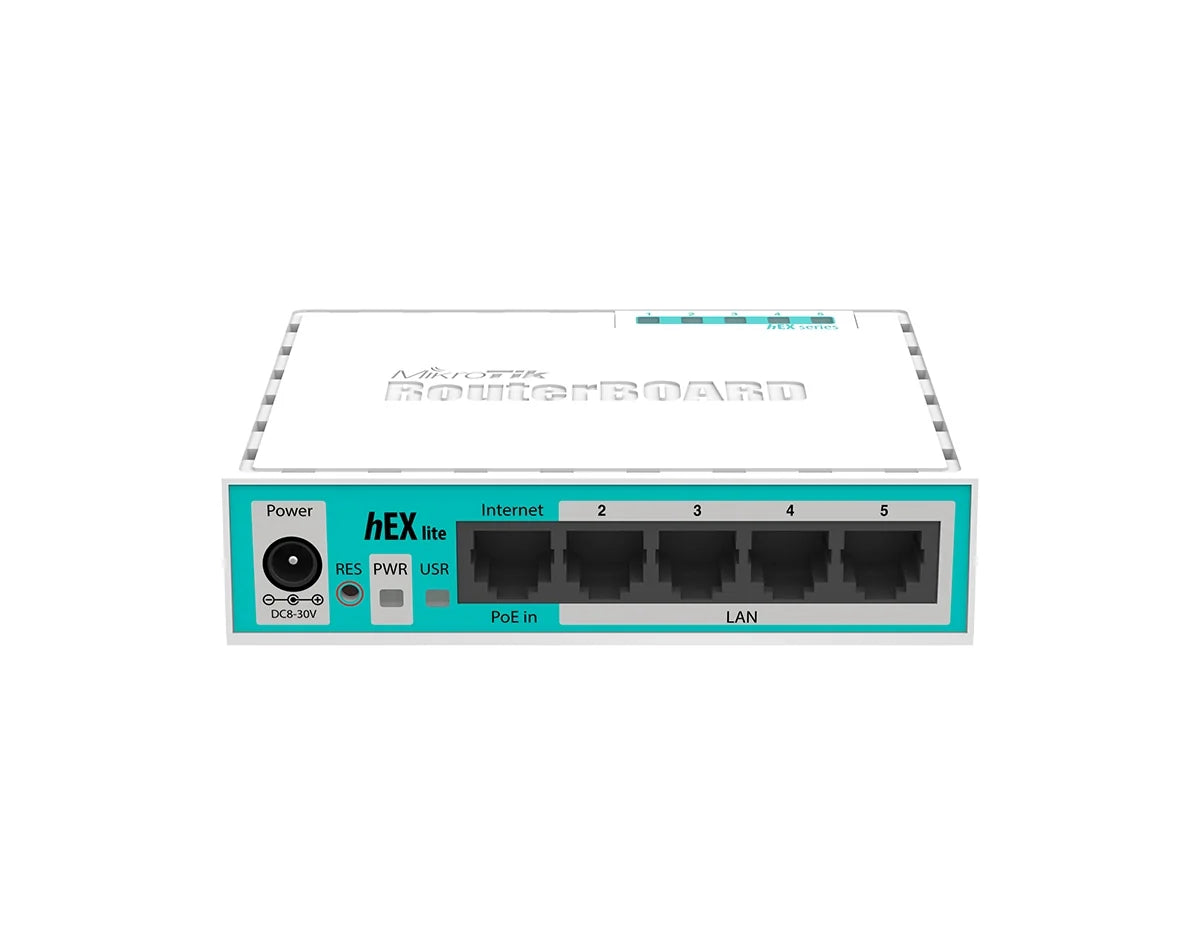

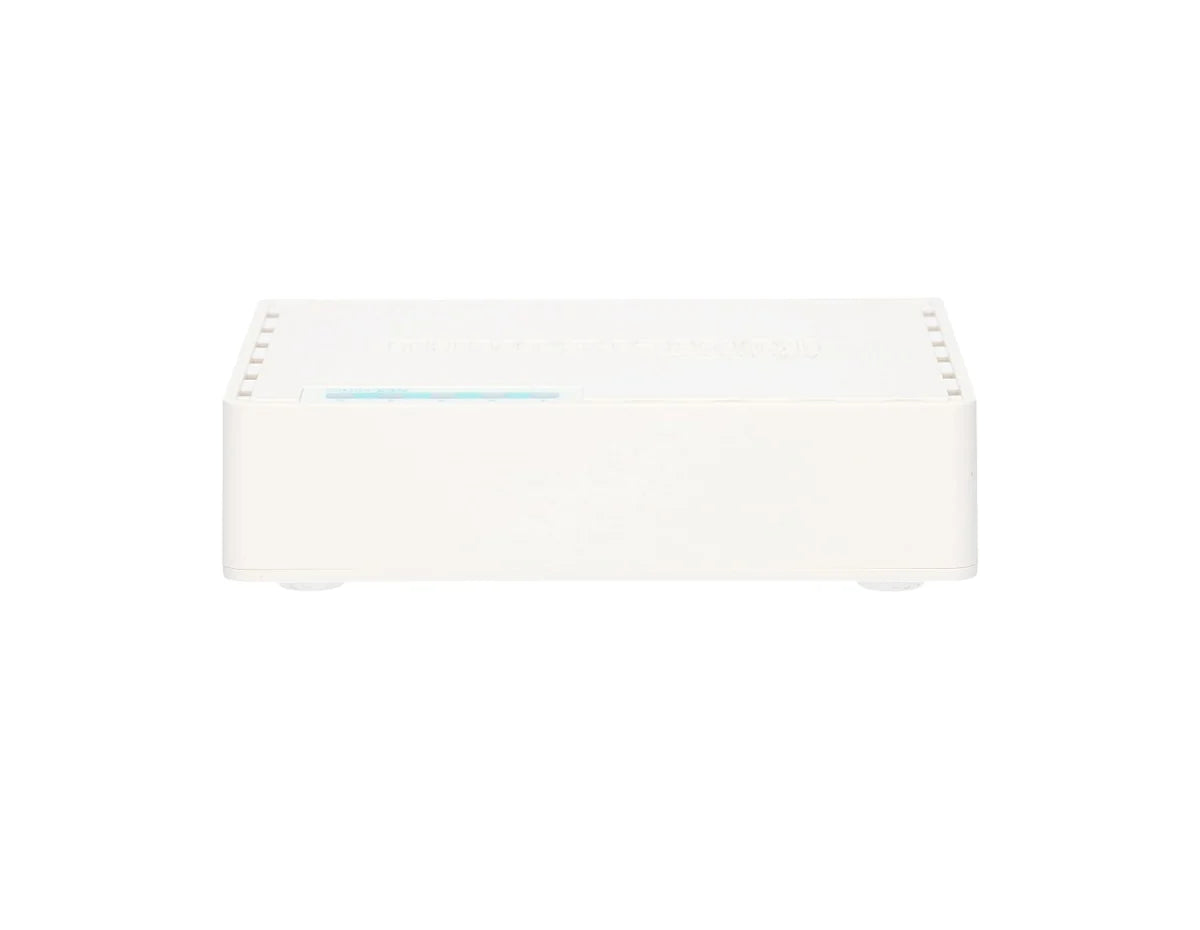

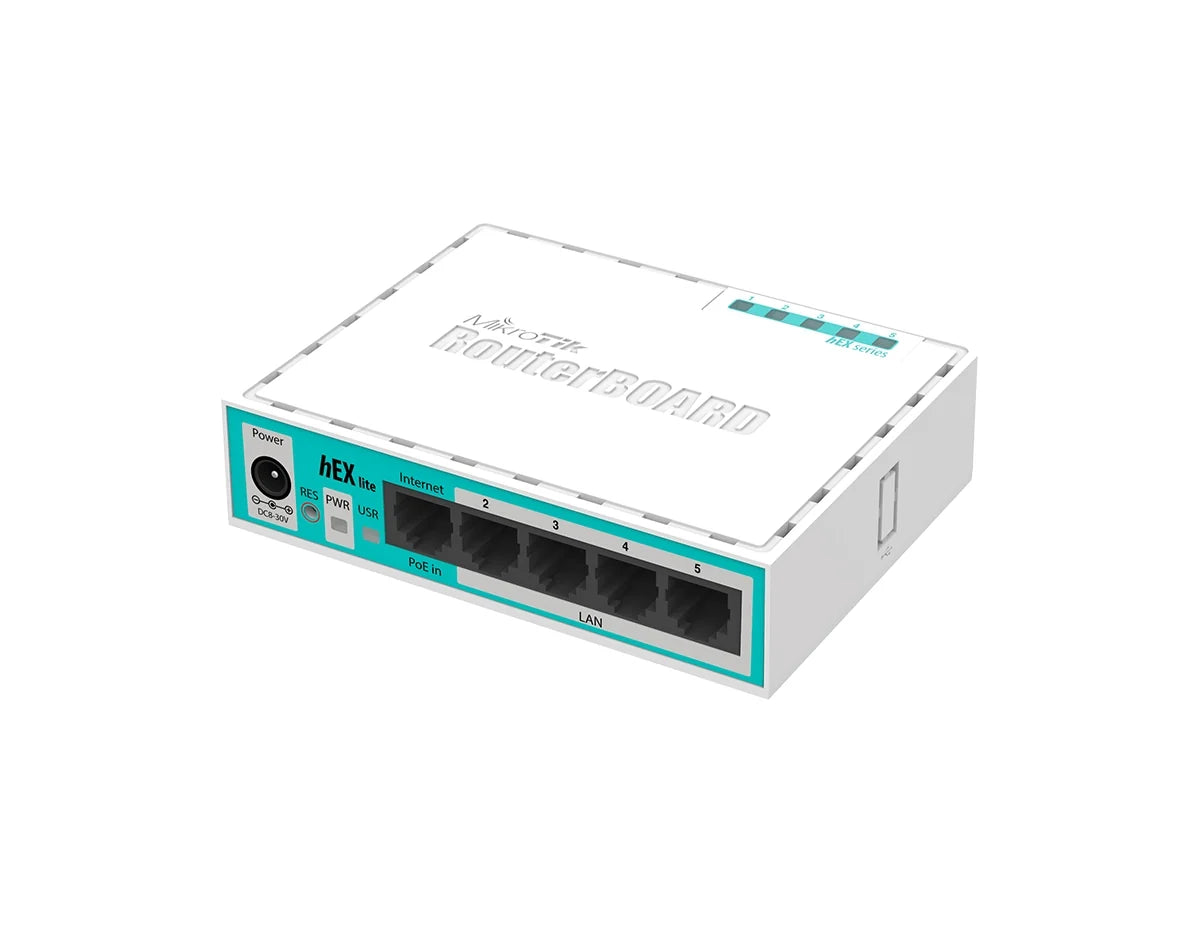

MikroTik RB750R2 Router
The RB750R2 is a compact five-port ethernet router housed in an attractive plastic enclosure. It is specifically engineered for use in home and small office environments. Powered by a 650 MHz chipset and featuring a single core, the RB750R2 provides robust processing capabilities for efficiently managing diverse networking responsibilities. With 64 MB of RAM, it ensures consistent and uninterrupted performance, delivering a seamless networking experience for users across different usage scenarios.
Quick Specs:
-
5x 10/100 Ethernet Port
-
QCA9533, 1 core, 850 MHz CPU
-
PoE in: Passive PoE
-
64 MB RAM
Please see the related tabs for the RB941-2ND datasheet and compatible accessories.
