| Properties |

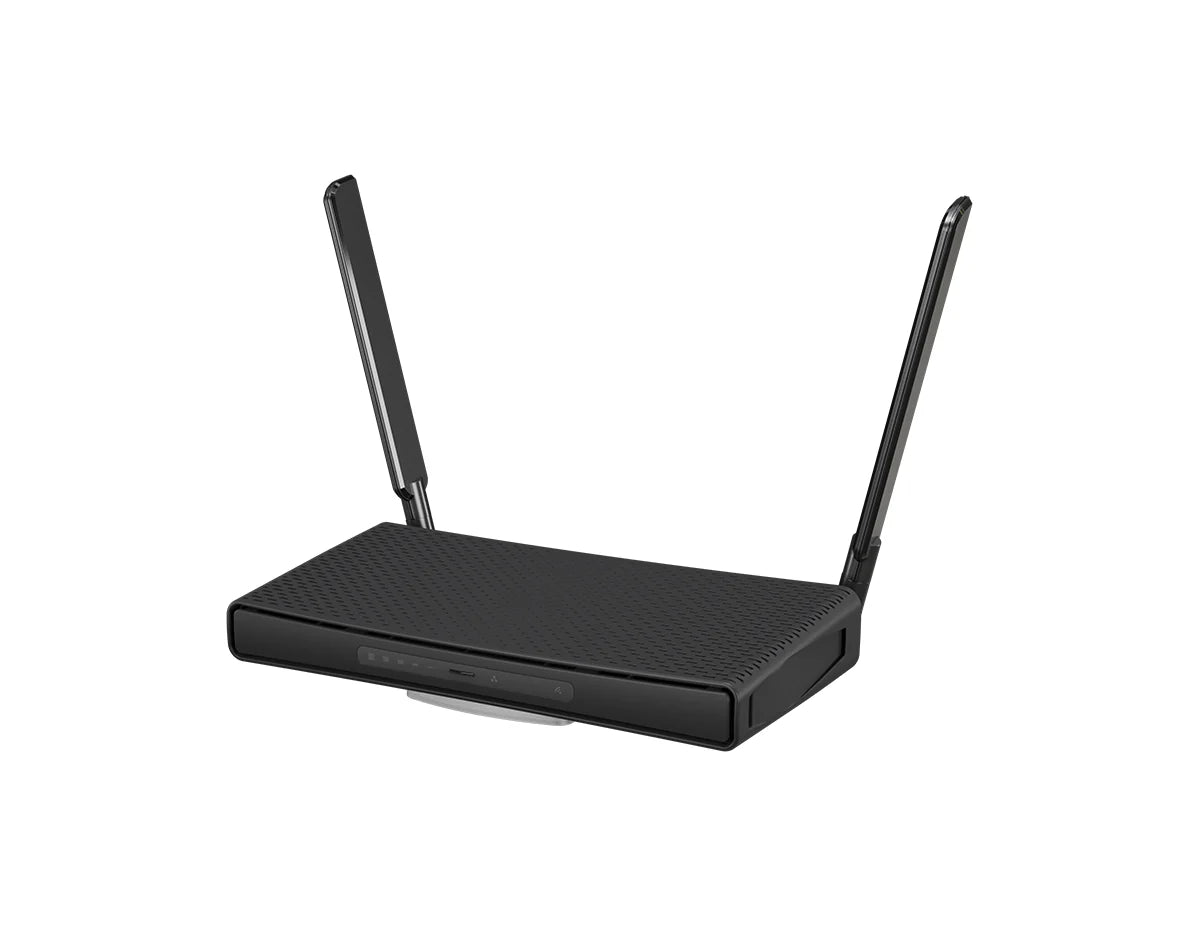

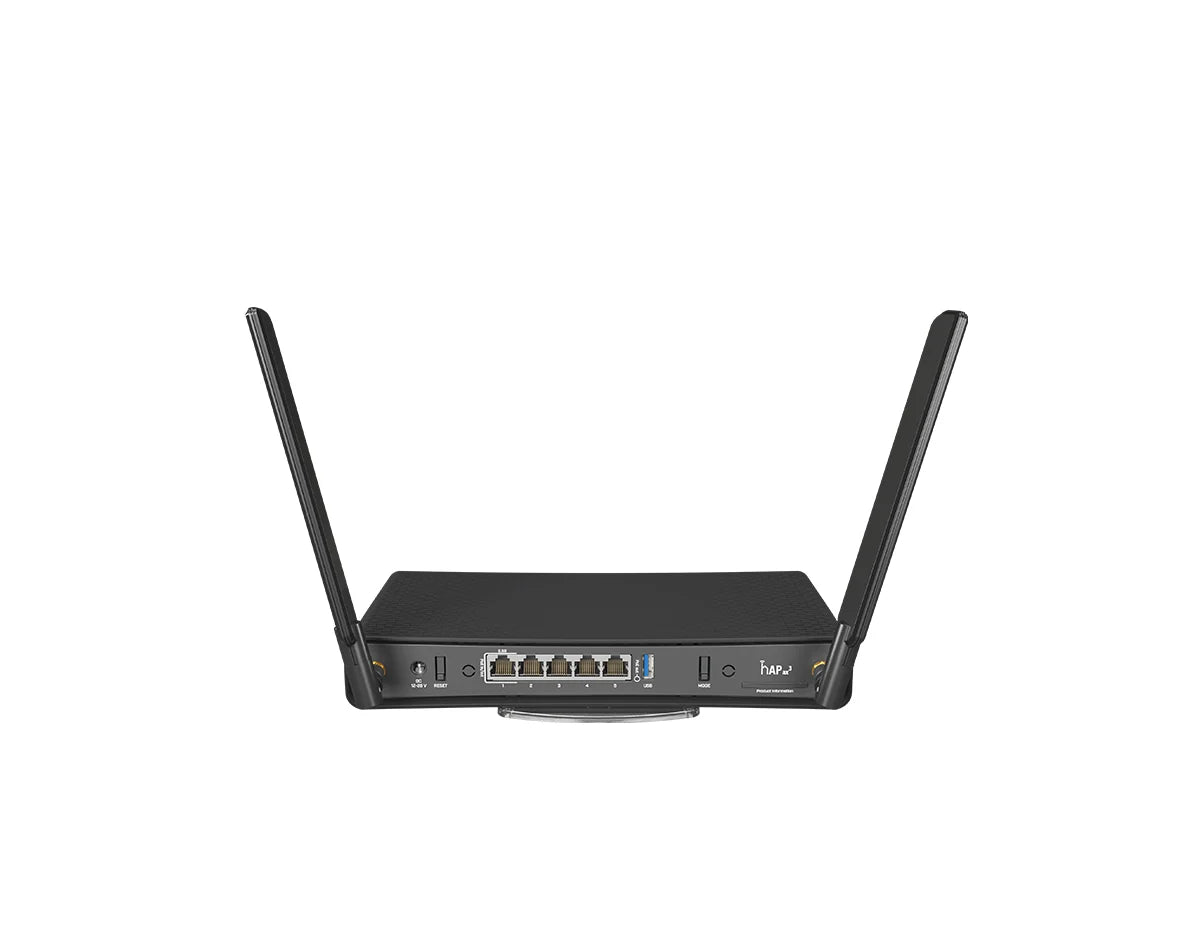

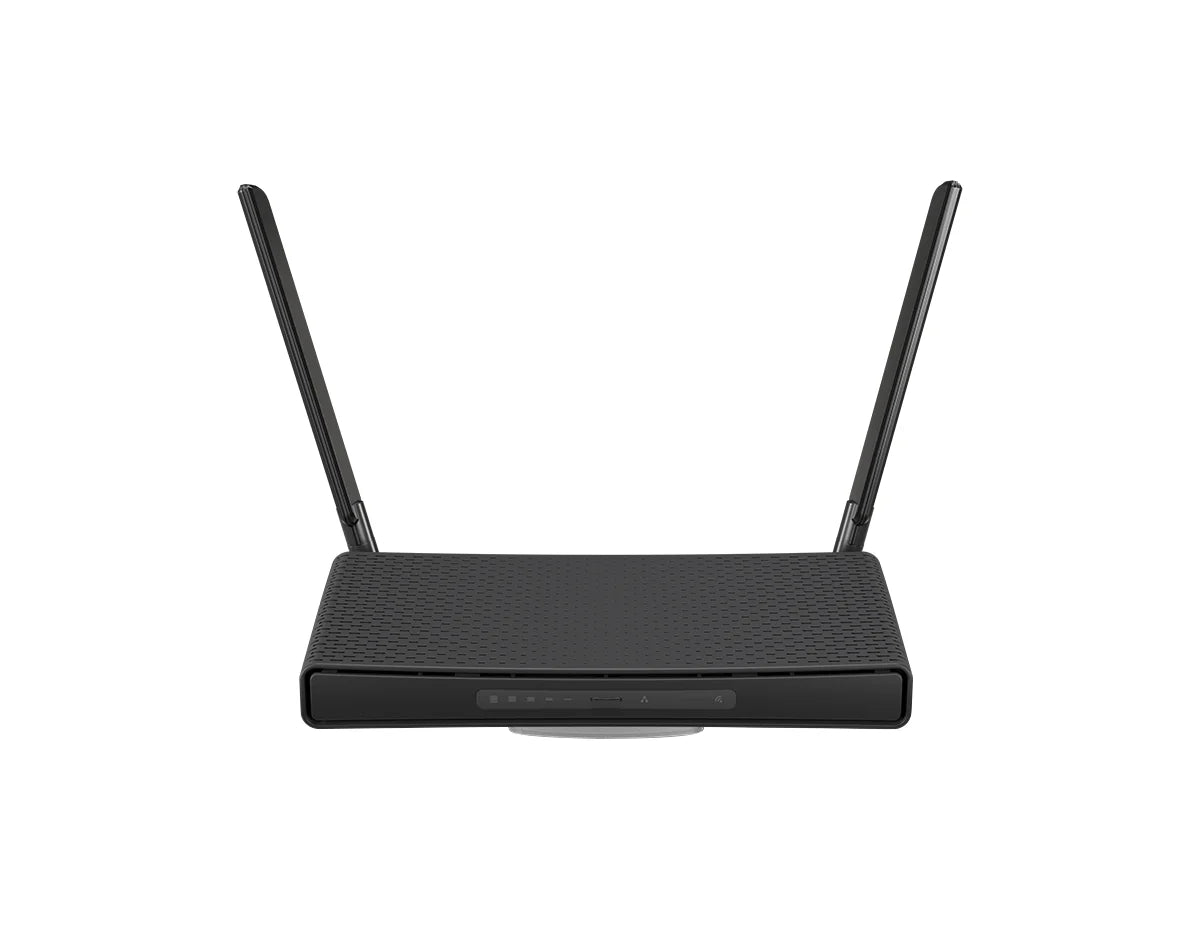

MikroTik hAP ax3 (C53UiG+5HPaxD2HPaxD-US) |
| Description |
A powerful home access point with AX wireless technology for high-speed, secure connectivity. Featuring a quad-core ARM CPU, 1GB RAM + 128 MB NAND memory, and advanced RouterOS v7 updates including WPA3 encryption support, hAP ax3 ensures smooth browsing, streaming, and gaming. With up to 40% higher speed in the 5 GHz spectrum and 4x Gigabit Ethernet ports plus an ultra-fast 2.5 Gigabit port, it's the ultimate choice for your home network. |
| Product Family |
MikroTik hAP ax3 |
| Product Type |
Router |
| Included parts |
24 V 1.5 A power adapter
Fastening set
HGO indoor antenna kit
Case base |
[/properties] [specifications]
| Specifications |
| Product code |
C53UiG+5HPaxD2HPaxD-US |
| CPU |
Quad-Core IPQ-6010 1.8 GHz |
| CPU architecture |
ARM 64bit |
| Size of RAM |
1 GB |
| Storage |
128 MB, NAND |
| Number of 1G Ethernet ports |
4 |
| Number of 2.5G |
Ethernet ports 1 (supports PoE-in/out) |
| USB |
1 USB 3 type A |
| Switch chip model |
IPQ-6010 |
| Wireless interface model |
QCN-5022 (2.4 GHz), QCN-5052 (5 GHz) |
| Wireless |
2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
| Wireless antenna max gain |
2.4 GHz (3.3 dBi), 5 GHz (5.5 dBi) |
| Dimensions |
251 x 130 x 39 mm |
| Operating system |
RouterOS, License level 6 |
| Operating temperature |
(-40°C to +70°C) |
| Powering |
| Number of DC inputs |
2 (PoE-in, DC jack) |
| PoE-in input Voltage |
18-28 V |
| DC jack input Voltage |
12-28 V |
| PoE-out |
Passive PoE Ether1, max out per port output (input < 30 V): 0.625 A |
| PoE-out total output power |
15 W |
| Power adapter nominal voltage |
24 V |
| Power adapter nominal current |
1.5 A |
| Max power consumption (without attachments) |
15 W |
| Max power consumption |
38 W |
| Wireless specifications |
| 1MBit/s |
Tx (dBm): 27
Rx (dBm): -100 |
| 11MBit/s |
Tx (dBm): 27
Rx (dBm): -94 |
| 6MBit/s |
Tx (dBm): 29
Rx (dBm): -96 |
| 54MBit/s |
Tx (dBm): 27
Rx (dBm): -80 |
| MCS0 |
Tx (dBm): 29
Rx (dBm): -96 |
| MCS7 |
Tx (dBm): 26
Rx (dBm): -75 |
| MCS9 |
Tx (dBm): 24
Rx (dBm): - 70 |
| MCS11 |
Tx (dBm): 22
Rx (dBm): -67 |
[/specifications] [accesories] [/accesories]
MikroTik's hAP ax router series comprises a selection of home Wi-Fi routers that incorporate Wi-Fi 6 technology. Tailored for use in small residences, apartments, and small-scale office environments, this series presents a variety of models to address diverse requirements. These routers have robust wireless chips that deliver enhanced speed and signal strength across both the 2.4 and 5 GHz frequency bands. Additionally, they feature contemporary CPUs, generous memory capacity, and multiple Ethernet ports, guaranteeing seamless and dependable connectivity for various activities.
Quick Specs:
- IPQ-6010, 4 core, (864-1800) MHz CPU
- 1GB RAM
- 4x 10/100/1000 Ethernet Ports (1x 1G Ethernet port with PoE-out)
- 1x 2.5G Ethernet Port
Please see the related tabs for the C53UiG+5HPaxD2HPaxD-US datasheet and compatible accessories.
