[shortdesc]
- Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain
[/shortdesc]
[properties]
| Properties |
MikroTik DynaDish 5 Access Point RBDYNADISHG-5HACD-US |
| Description |
Dual chain 5GHz 802.11a/n/ac QCA9892, 128MB RAM, 720 MHz CPU, 25dBi antenna gain |
| Product Family |
DynaDish Series |
| Product Type |
Access Point |
| Features |
• ideal for long distance point-to-point links
• 5 GHz dual chain board integrated into 25 dBi
dish antenna with 8 degree beam width
• 720 Mhz CPU 300 MHz DDR2
• One Gigabit Ethernet port |
| 10/100/1000 Ethernet ports |
1 |
| Extras |
PCB temperature monitor
Voltage Monitor
Beeper |
| Dimensions |
Ø 404mm, height 175mm (without mount) |
| Number of DC inputs |
1 (PoE-IN) |
| Max power consumption |
9 W |
| Cooling type |
Passive |
| PoE in |
802.3af/at |
| PoE in input Voltage |
11-60 V |
[/properties][specifications]
| Specifications |
RBDYNADISHG-5HACD-US |
| Memory |
128 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9557 720 MHz |
| CPU core count |
1 |
| OS |
RouterOS level 3 license |
| Wireless capabilities |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Antenna gain dBi for 5 GHz |
25 |
| Wireless 5 GHz chip model |
QCA9892 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| Wireless specifications |
| 5 GHz |
|
| 6MBit/s |
Transmit (dBm): 31
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 28
Receive Sensitivity: -81 |
| MCS0 |
Transmit (dBm): 30
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 27
Receive Sensitivity: -77 |
| MCS9 |
Transmit (dBm): 22
Receive Sensitivity: -72 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
| Accessories |
| 24V 0.8A power adapter |
| Dynadish mount |
| Gigabit PoE injector |
| U bolt kit |
[/accesories]

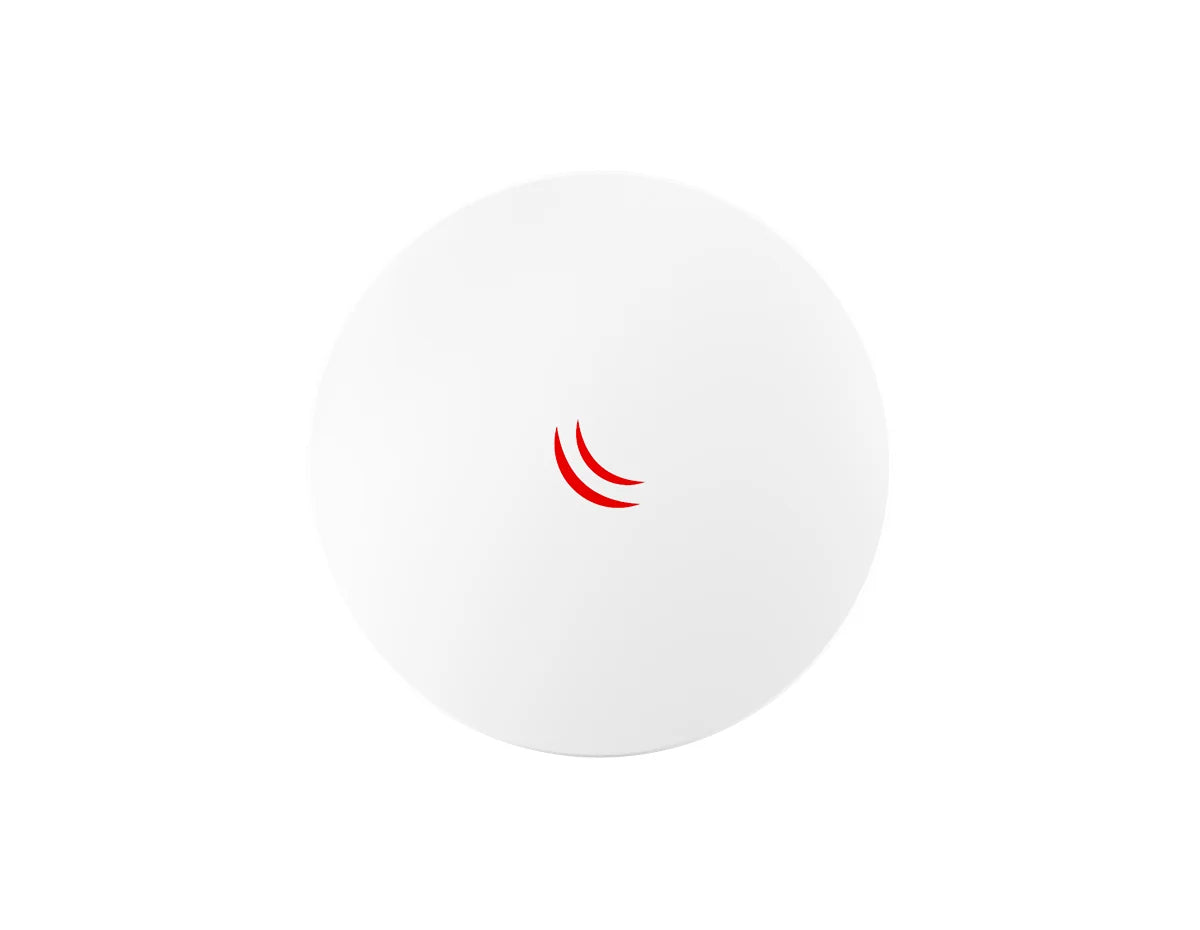

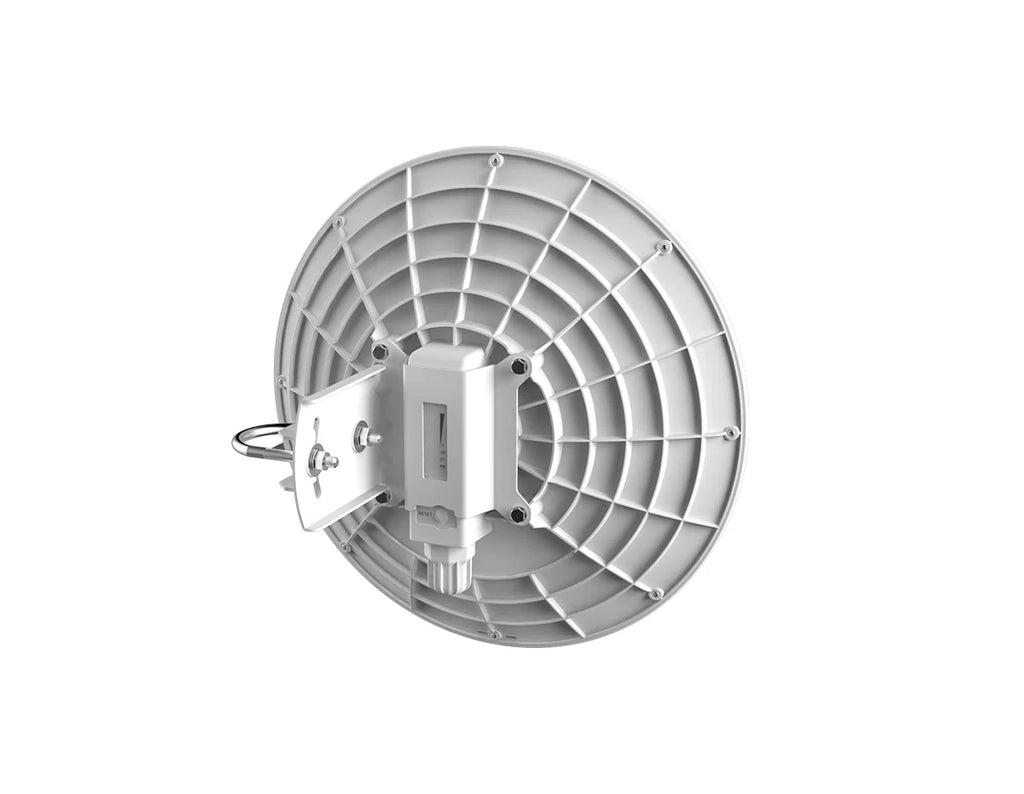

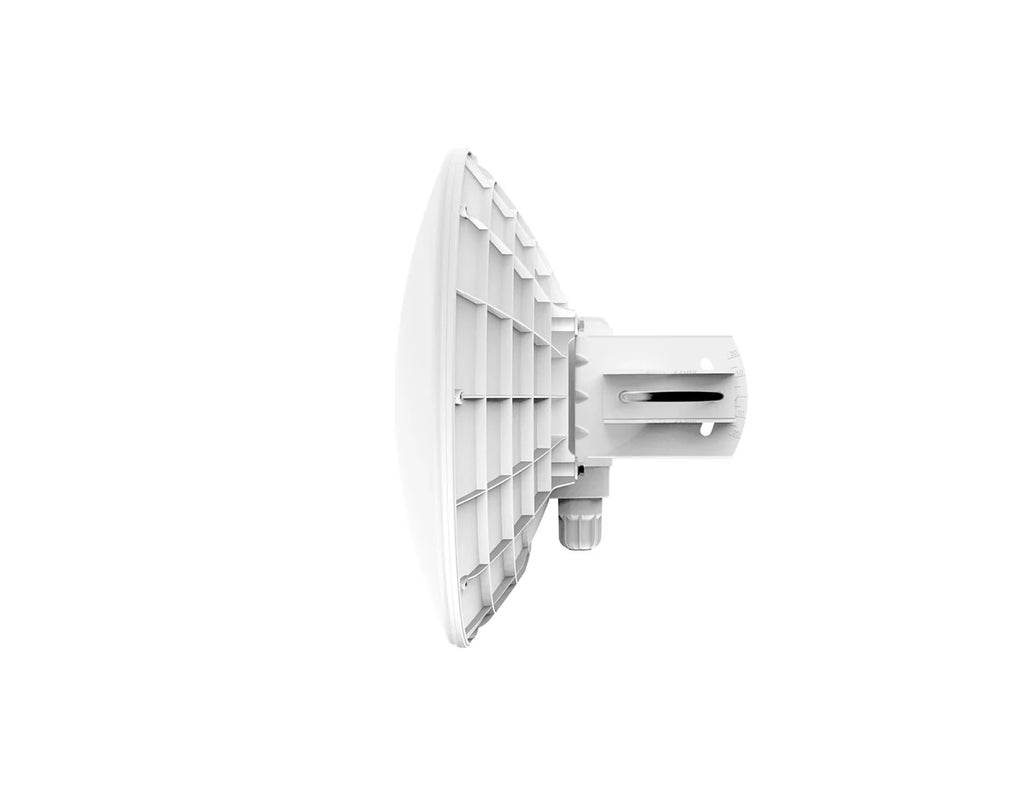

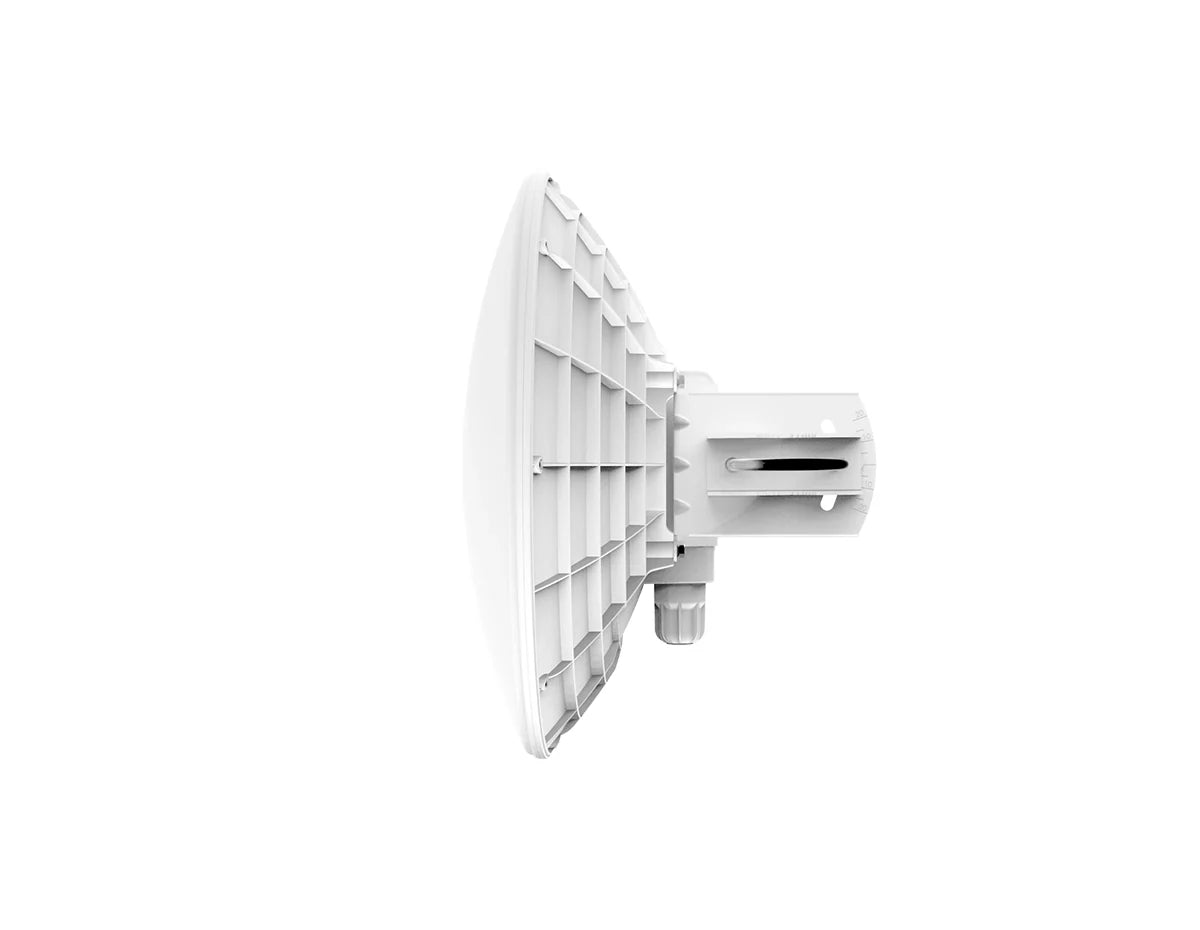

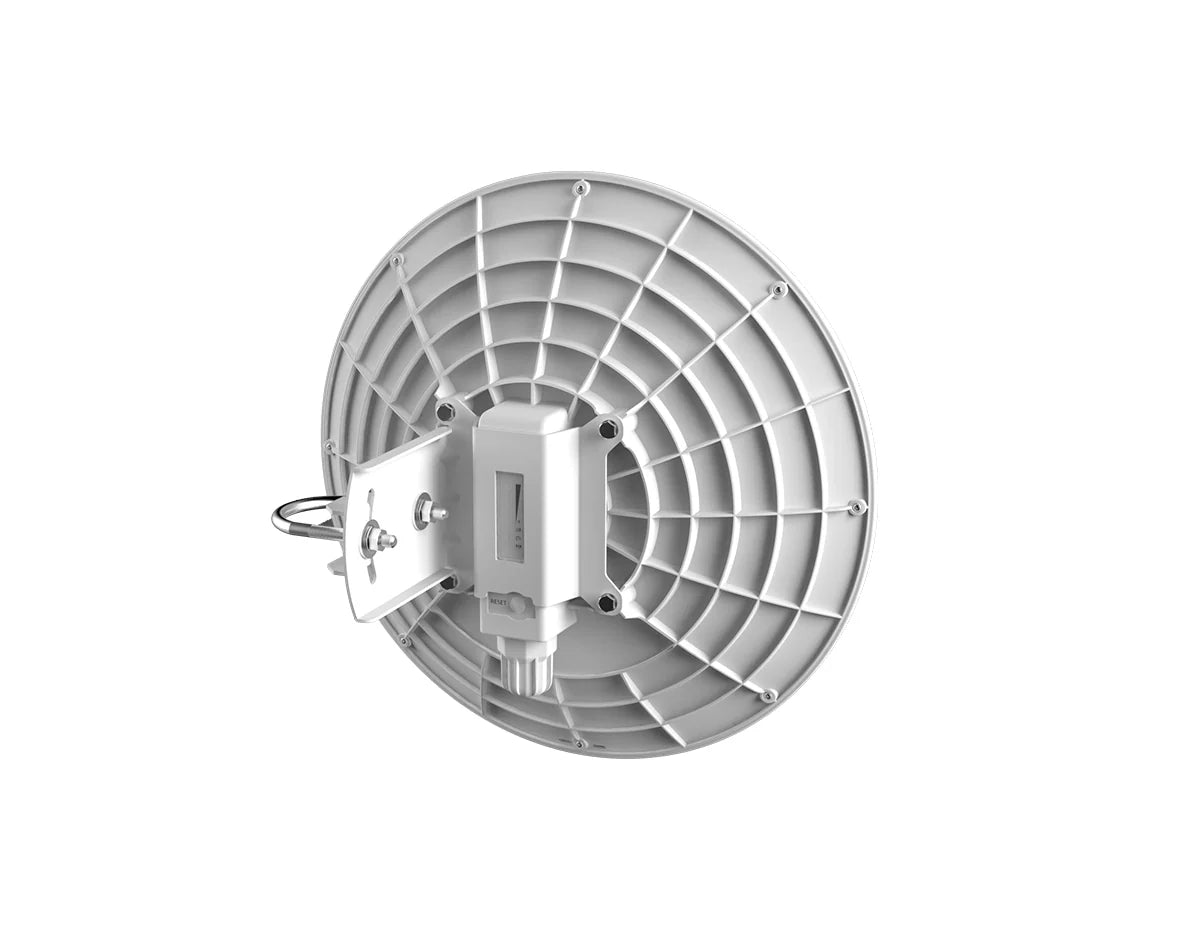

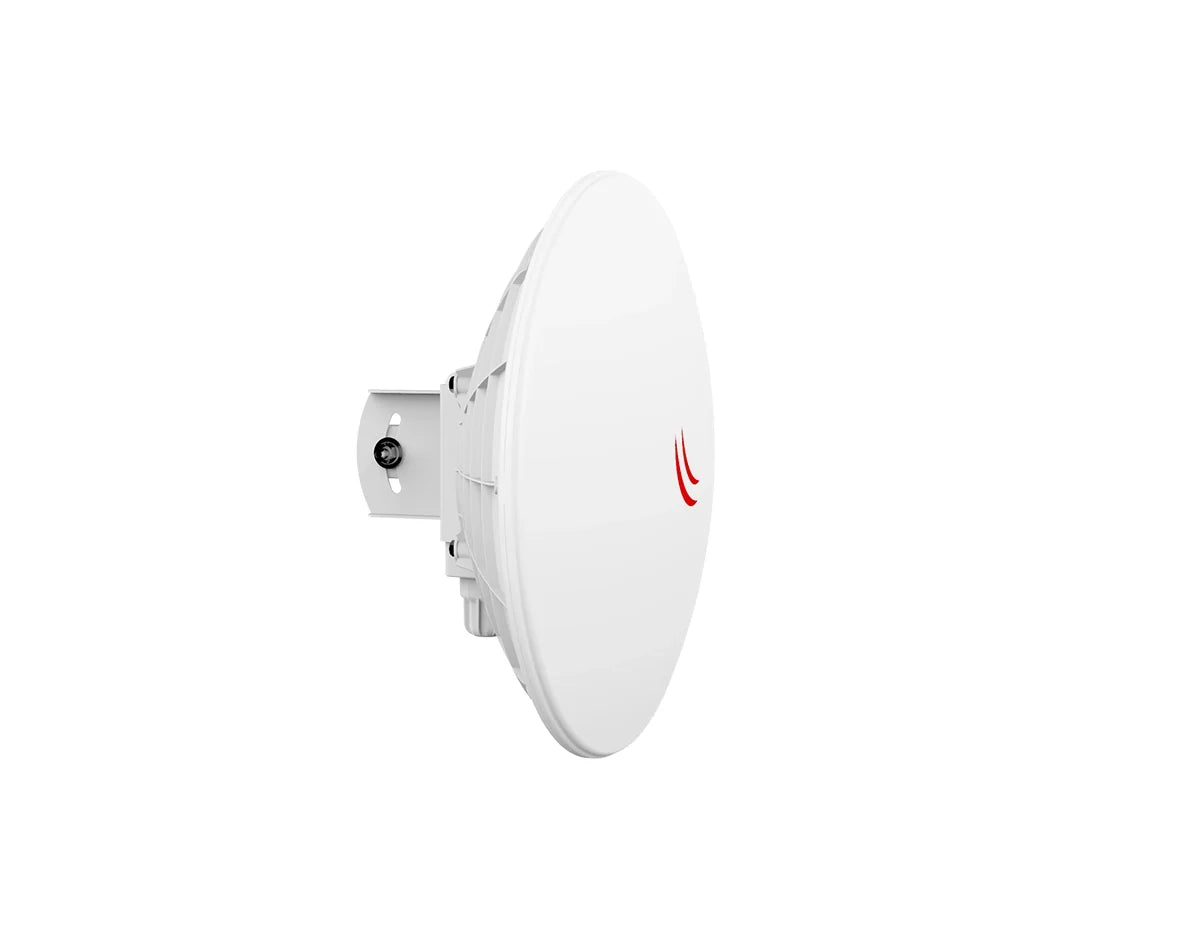

The DynaDish 5 is a new 802.11ac outdoor device with an integrated 25dBi antenna. Compact in it's design, it is a simple and completely integrated product with everything you need to quickly install a reliable point to point link.
The DynaDish 5 is powered by a new 720MHz CPU from Qualcomm.
