[shortdesc] Network Switch, Mikrotik CSS610-1Gi-7R-2S+OUT, 7x Gigabit Ethernet, 2x SFP+, SwOS, Outdoor [/shortdesc]
[properties]
| Properties |
MikroTik CSS610-1Gi-7R-2S+OUT |
| Description |
An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports. |
| Product Family |
CSS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100/1000 Ethernet ports |
8 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) |
7 |
| Number of 1G Ethernet ports with PoE-out |
1 |
| SFP+ ports |
2 |
| Dimensions |
304 x 212 x 71 mm |
| Number of DC inputs |
3 (2-pin terminal, DC jack, PoE-IN) |
| DC jack input Voltage |
12-57 V |
| 2-pin terminal input Voltage |
12-57 V |
| Max power consumption |
29 W |
| Max power consumption without attachments |
7 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
12-57 V |
| PoE-out ports |
Ether8 |
| PoE out |
Passive PoE |
| Max out per port output (input 18-30 V) |
600 mA |
| Max out per port output (input 30-57 V) |
450 mA |
[/properties][specifications]
| Specifications |
CSS610-1Gi-7R-2S+OUT |
| Flash Storage size |
64 KB |
| Switch chip model |
88E6193X |
| OS |
SwitchOS Lite |
| Non-Blocking throughput |
28 Gbps |
| Switching capacity |
56 Gbps |
| Forwarding rate |
41.7 Mpps |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP54 |
[/specifications][accesories]
| Accessories |
| Hose clamp 2 |
|
| K-66 fastening set |
|
[/accesories]

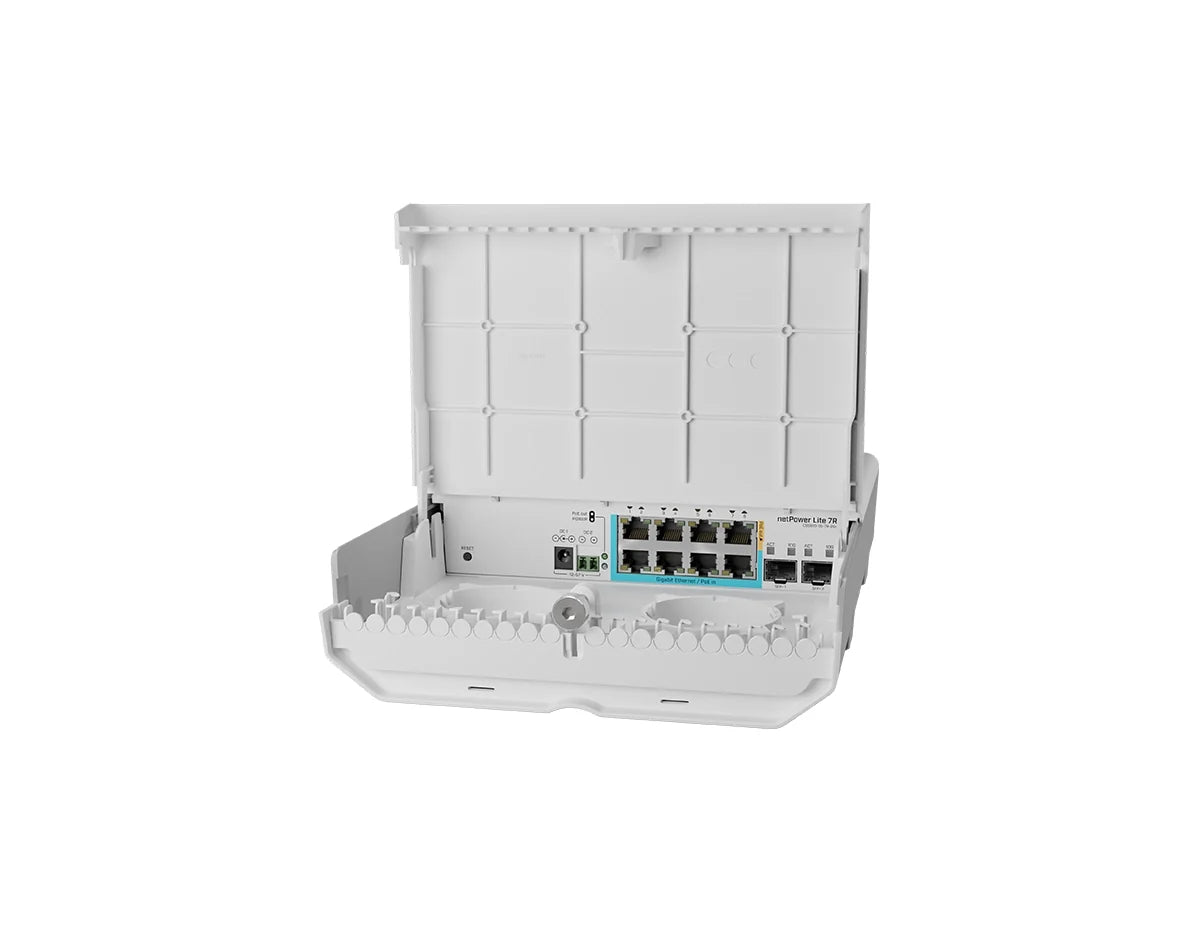

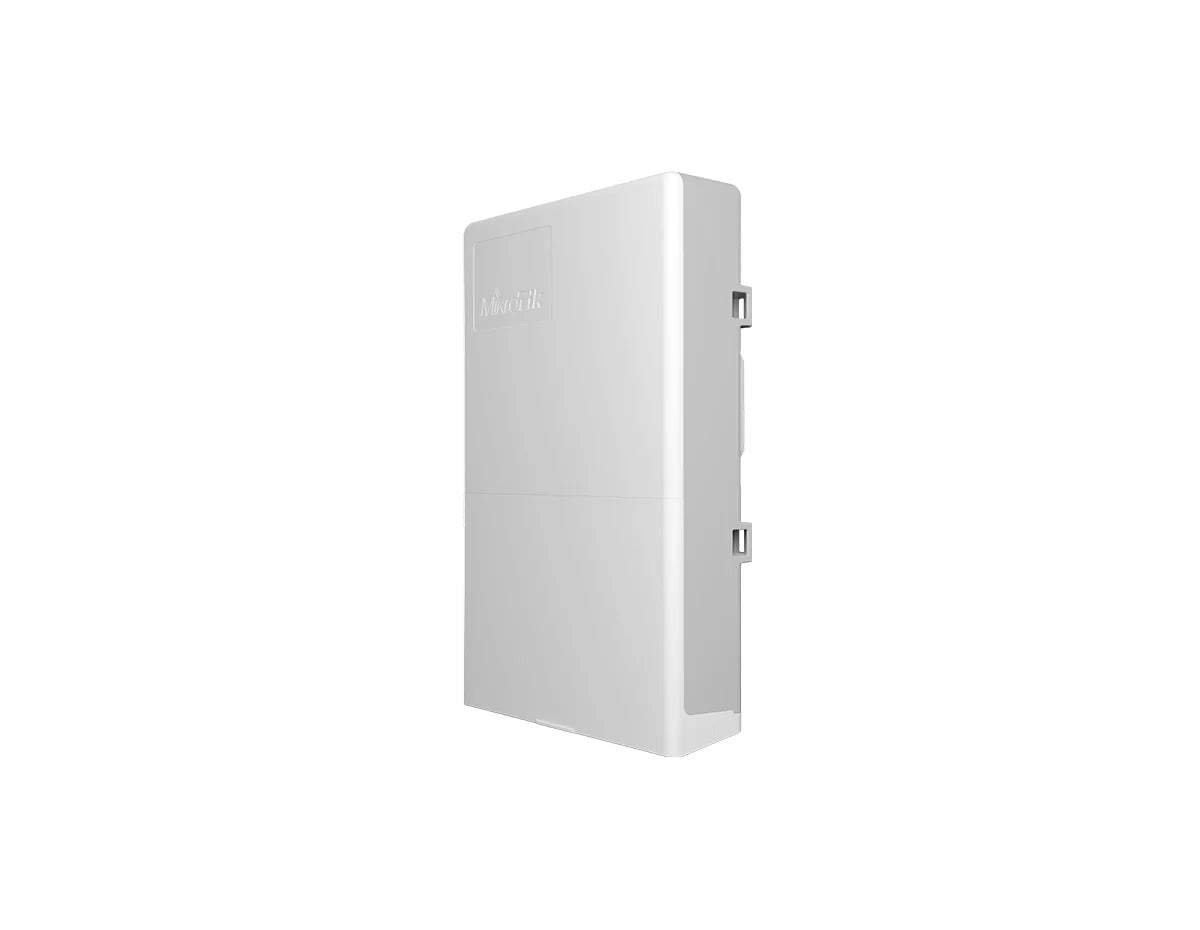

MikroTik CSS610-1GI-7R-2S+OUT Switch
The CSS610-1Gi-7R-2S+OUT SwOS Powered Switch is specifically engineered for outdoor deployment, providing a flexible and robust networking solution. It is equipped with 7 Gigabit Ethernet ports and 2 SFP+ ports, this switch delivers high-speed connectivity for a wide range of network devices.
Quick Specs:
-
8x 1G Ethernet ports (7x 1G Reverse PoE / 1x 1G Ethernet port with PoE-out)
-
2x 10G SFP+ ports uplink
-
PoE in: Passive PoE
-
PoE-out ports: Ether8
Please see the related tabs for the CSS610-1Gi-7R-2S+OUT datasheet and compatible accessories.
