[shortdesc] Outdoor IP66 switch, 3x Gigabit Ethernet, 3x 10G SFP+, PoE in and out, DC outputs, SwOS managed [/shortdesc]
[properties]
| Model |
CSS606-1G-2GI-3S+OUT (GPERx6) |
| Product Type |
Outdoor Ethernet Switch |
| Ethernet Ports |
3x Gigabit Ethernet |
| SFP+ Ports |
3x 10G SFP+ |
| Switch Chip |
88E6193X |
| Operating System |
SwOS |
| Enclosure Rating |
IP66 |
| Dimensions |
406 x 116 x 76 mm |
| Operating Temperature |
-40°C to +70°C |
| Power Consumption (Idle) |
6 W (without attachments) |
| Maximum Power Consumption |
160 W |
[/properties]
[specifications]
| PoE-In |
802.3bt |
| PoE-In Voltage |
42-57 V |
| DC Input Voltage |
12-57 V (2-pin screw terminal) |
| PoE-Out |
Passive PoE up to 57 V (Ether2, Ether3) |
| Max Output per Port (Input < 30 V) |
1.2 A |
| Max Output per Port (Input > 30 V) |
0.625 A |
| Max Total PoE-Out |
2.4 A |
| DC-Out Ports |
3x DC outputs (DC1-DC3) |
| Max Total DC-Out |
3.6 A |
| DC Inputs |
2 (PoE-In and 2-pin screw terminal) |
[/specifications]
[accesories]
| Included |
Fastening set; Hose clamp |
[/accesories]

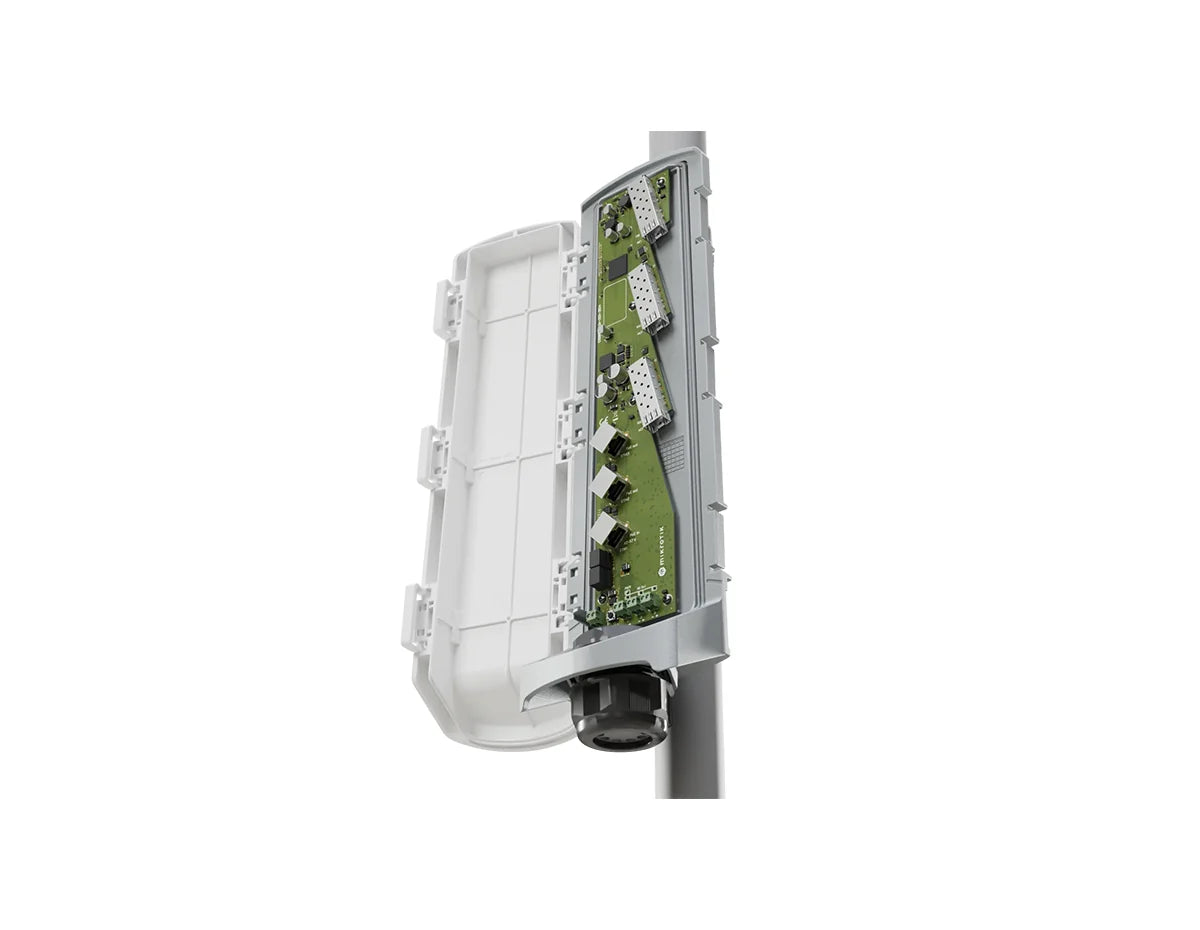

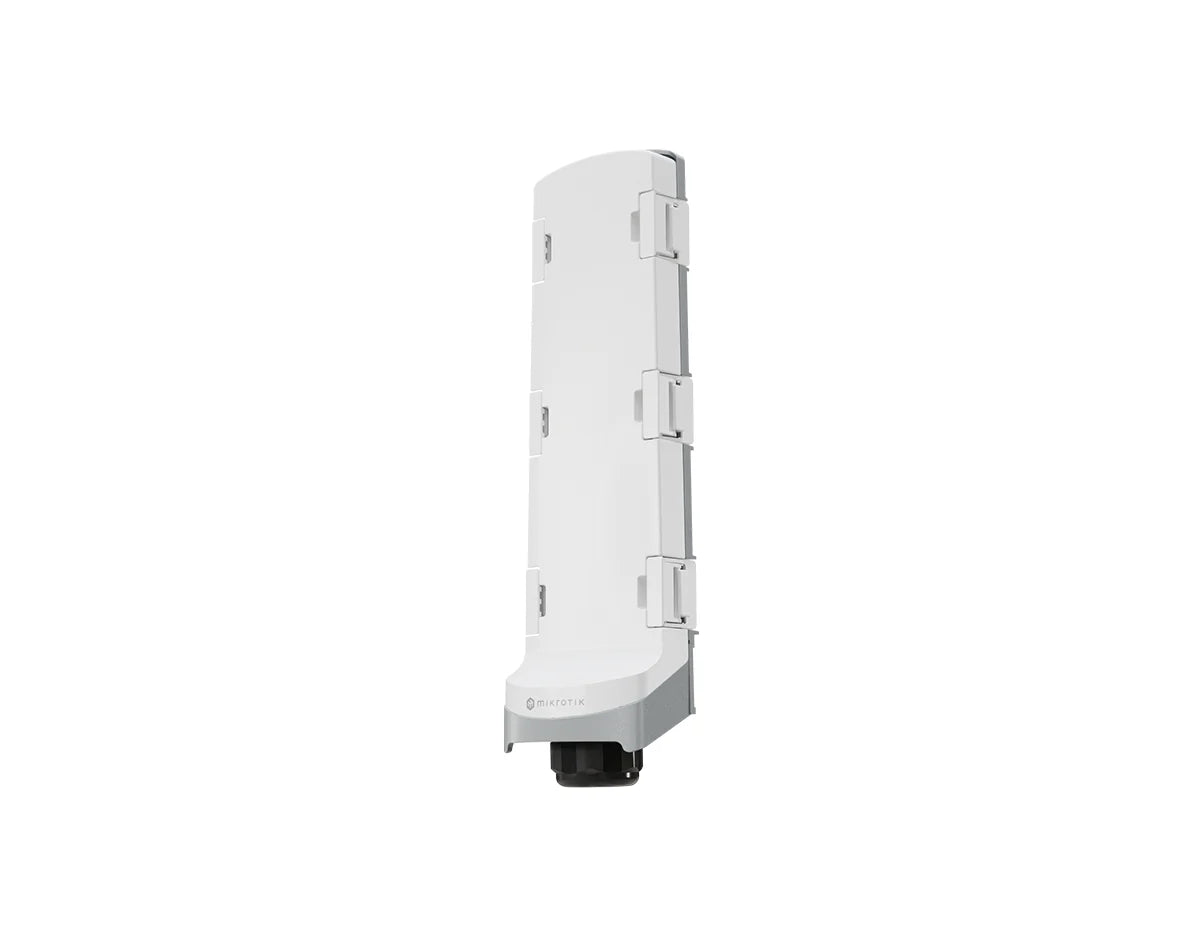

Extend Power and Fiber Anywhere with One Rugged Device
The MikroTik GPERx6 (CSS606-1G-2GI-3S+OUT) is purpose-built for outdoor and long-distance deployments where power and data must travel together reliably. Designed for harsh environments, it combines high-speed fiber switching, flexible power distribution, and an IP66-rated enclosure to simplify complex edge installations.
Using hybrid fiber and copper cabling, the GPERx6 delivers high-speed uplinks and centralized power over distances of up to 1 to 2 kilometers. At the remote endpoint, it intelligently separates fiber, PoE, and DC power to support access points, switches, IoT devices, and specialized hardware.
Key Benefits & Features
-
Hybrid fiber and power distribution: Transmit high-speed data over fiber while delivering DC power over copper within a single cable run.
-
Flexible power outputs: Supports PoE-in, dual PoE-out ports, a 2-pin DC terminal, and three dedicated DC-out ports for non-PoE devices.
-
High-speed fiber connectivity: Three 10G SFP+ ports powered by a dedicated 10G switch chip ensure reliable long-distance uplinks.
-
Rugged outdoor enclosure: IP66-certified housing protects against dust, water, heat, and freezing conditions.
-
Efficient Layer 2 management: Runs MikroTik SwOS for simple and stable switch configuration.
Ideal Use Cases
- Outdoor perimeter surveillance networks
- Campus and industrial park fiber extensions
- Remote wireless access point backhaul
- IoT and sensor deployments without PoE support
- Solar-powered or off-grid edge installations
Power Long Distance Networks with Confidence
Order today and simplify outdoor fiber and power deployments with MikroTik GPERx6.
