[shortdesc]
- Two 100 Gigabit QSFP28 Ports
- Eight 25 Gigabit SFP28 Ports
- 100 Mbps RJ45 Management Port
- Dual Hot-Swap Power Supplies
- Multiple Power Options (PoE-in, DC jack, 2-pin terminal)
- Wide range of Networking Features
[/shortdesc]
[properties]
| Properties |
MikroTik CRS510-8XS-2XQ-IN |
| Description |
A versatile 100 Gigabit switch that offers speed, value, and diverse connectivity options. 2x 100 Gigabit QSFP28 ports, 8x 25 Gigabit SFP28 ports, dual hot-swap power supplies. |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100 Ethernet ports |
1 |
| Number of 25G SFP28 ports |
8 |
| Number of 100G QSFP28 ports |
2 |
| Serial console port |
1 RJ45 |
| Extras |
CPU temperature monitor
PCB temperature monitor
Voltage Monitor |
| Dimensions |
320 x 185 x 44 mm |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Number of DC inputs |
3 (2-pin terminal, DC jack, PoE-IN) |
| DC jack input Voltage |
36-57 V |
| 2-pin terminal input Voltage |
36-57 V |
| Frequency (Hz) |
47-63 |
| Max power consumption |
45 W |
| Max power consumption without attachments |
27 W |
| Cooling type |
2 fans |
| PoE in |
802.3 bt |
| PoE in input Voltage |
42.5-57 V |
[/properties]
[specifications]
| Specifications |
CRS510-8XS-2XQ-IN |
| Memory |
128 MB |
| Flash Storage size |
32 MB |
| CPU |
QCA9531 650 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX4310 |
| OS |
RouterOS (v7 only), level 5 license |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications]
[accesories]
| Accessories |
| IEC cord |
|
| K-54 kit |
|
| Rack ears for CRS510 |
|
[/accesories]

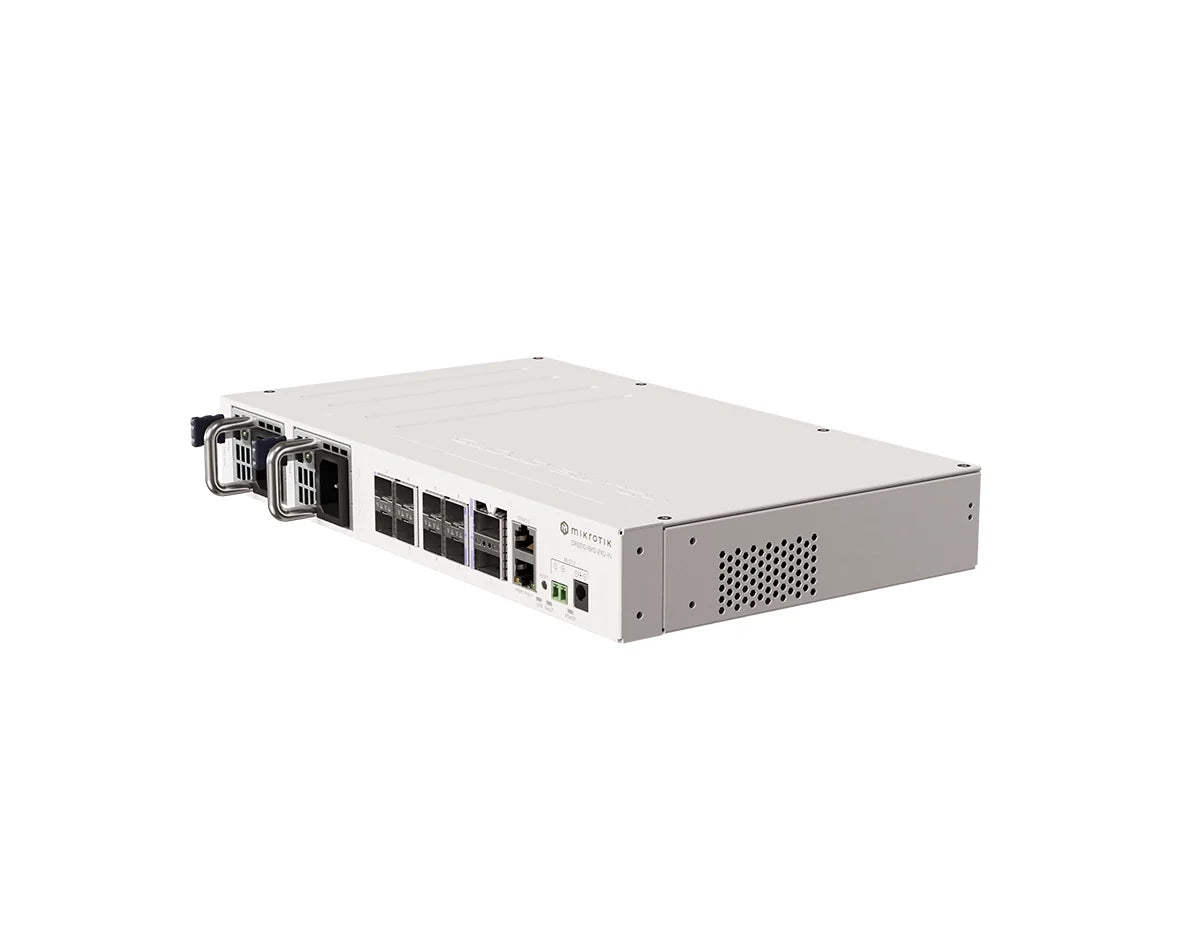

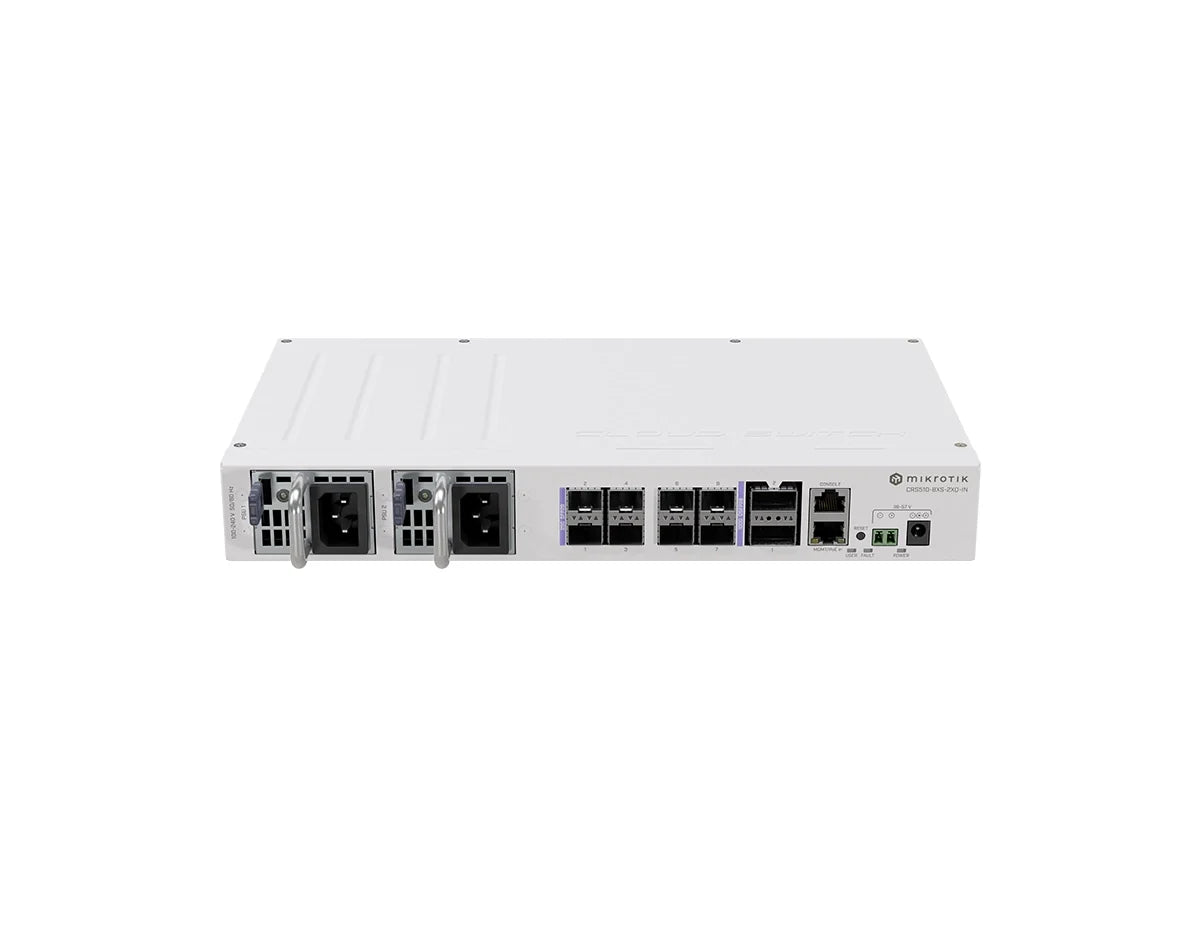

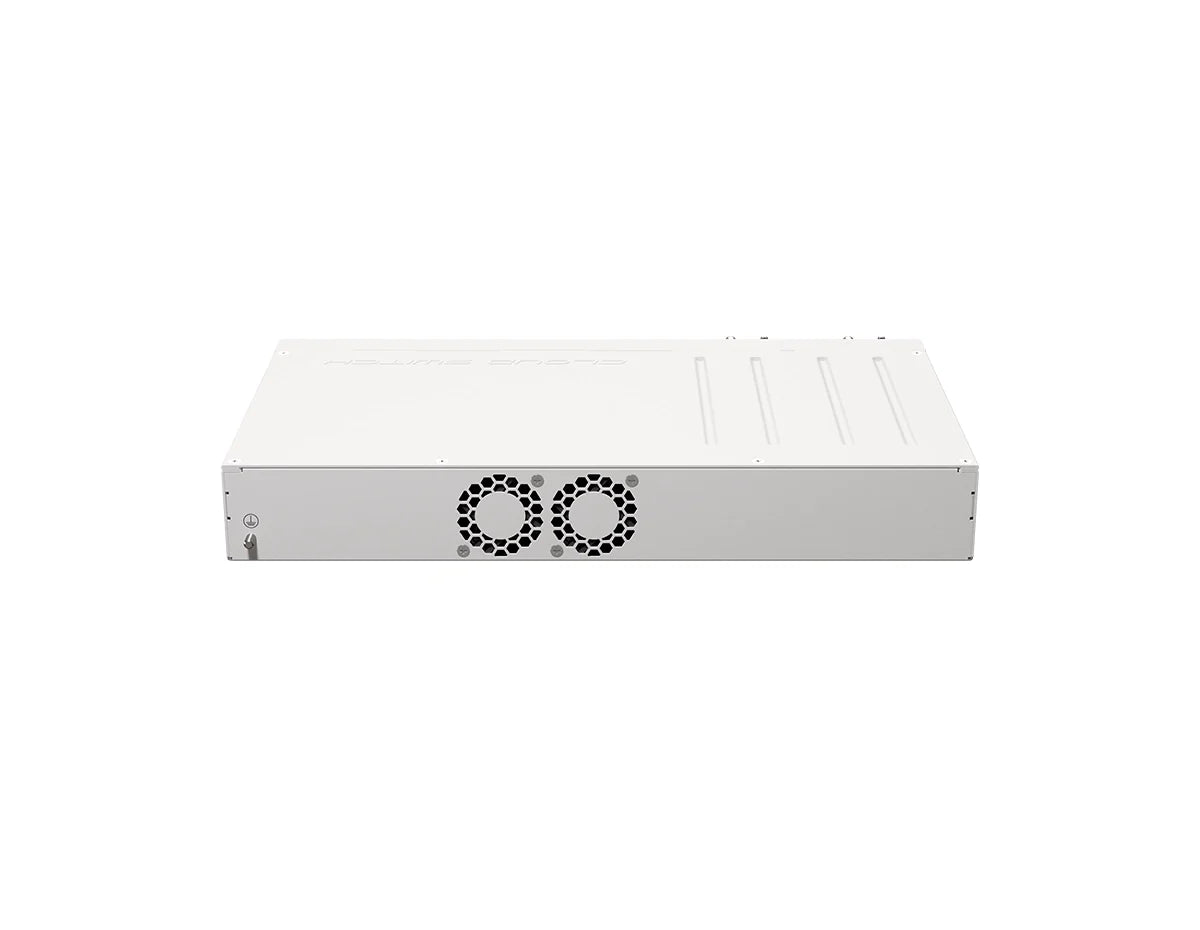

MikroTik CRS510-8XS-2XQ-IN Switch
The CRS510-8XS-2XQ-IN is specifically engineered to meet the requirements of contemporary, high-capacity networking environments, including extensive corporate networks and ISP infrastructures. Featuring two 100 Gigabit QSFP28 ports, it enables users to efficiently handle data-intensive operations such as large-scale data backups, real-time analytics, and high-definition content delivery.
Quick Specs:
- 8x 25G SFP28 Ports
- 2x 100G QSFP28 Ports
- 1x 10/100 Ethernet Port
- Dual Hot-Swap Power Supplies
Please see the related tabs for the CRS510-8XS-2XQ-IN datasheet and compatible accessories.
