[shortdesc]
- Ultra-fast 100 Gigabit QSFP28 Ports
- IP66 Weatherproof Enclosure
- Silent, Fanless Operation
- Dual Boot System (RouterOS or SwOS)
- Power Redundancy (DC jack, 2-pin terminal, 802.3bt PoE-in)
- Outdoor
[/shortdesc]
[properties]
| Properties |
MikroTik CRS504-4XQ-OUT |
| Description |
Your most affordable, compact, energy-efficient doorway to the world of 100 Gigabit networking. This switch is the next step in upgrading existing 10 or 25 Gigabit networks. Multiple powering options, dual hot-swap power supplies |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100 Ethernet ports |
1 |
| 100G QSFP+ |
4 |
| Serial console port |
1 RJ45 |
| Extras |
CPU temperature monitor
PCB temperature monitor
Voltage Monitor |
| Dimensions |
320 x 185 x 44 mm |
| Number of AC inputs |
2 |
| AC input range |
100-240 |
| Number of DC inputs |
3 (DC jack, PoE-IN, 2-pin terminal) |
| DC jack input Voltage |
36-57 V |
| 2-pin terminal input Voltage |
36-57 V |
| Frequency (Hz) |
47-63 |
| Max power consumption |
41 W |
| Max power consumption without attachments |
25 W |
| Cooling type |
2 fans |
| PoE in input Voltage |
43-57 V Passive poe or 802.3bt Class 6 |
[/properties][specifications]
| Specifications |
CRS504-4XQ-OUT |
| Memory |
64 MB |
| Flash Storage size |
16 MB |
| CPU |
QCA9531 650 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX4310 |
| OS |
RouterOS (v7 only) |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP66 |
[/specifications][accesories]
| Accessories |
| 48 V 0.95 A power adapter |
|
| Hose clamp 2 |
|
| Screw set |
|
| Gigabit PoE injector |
|
| Fastening set |
|
[/accesories]

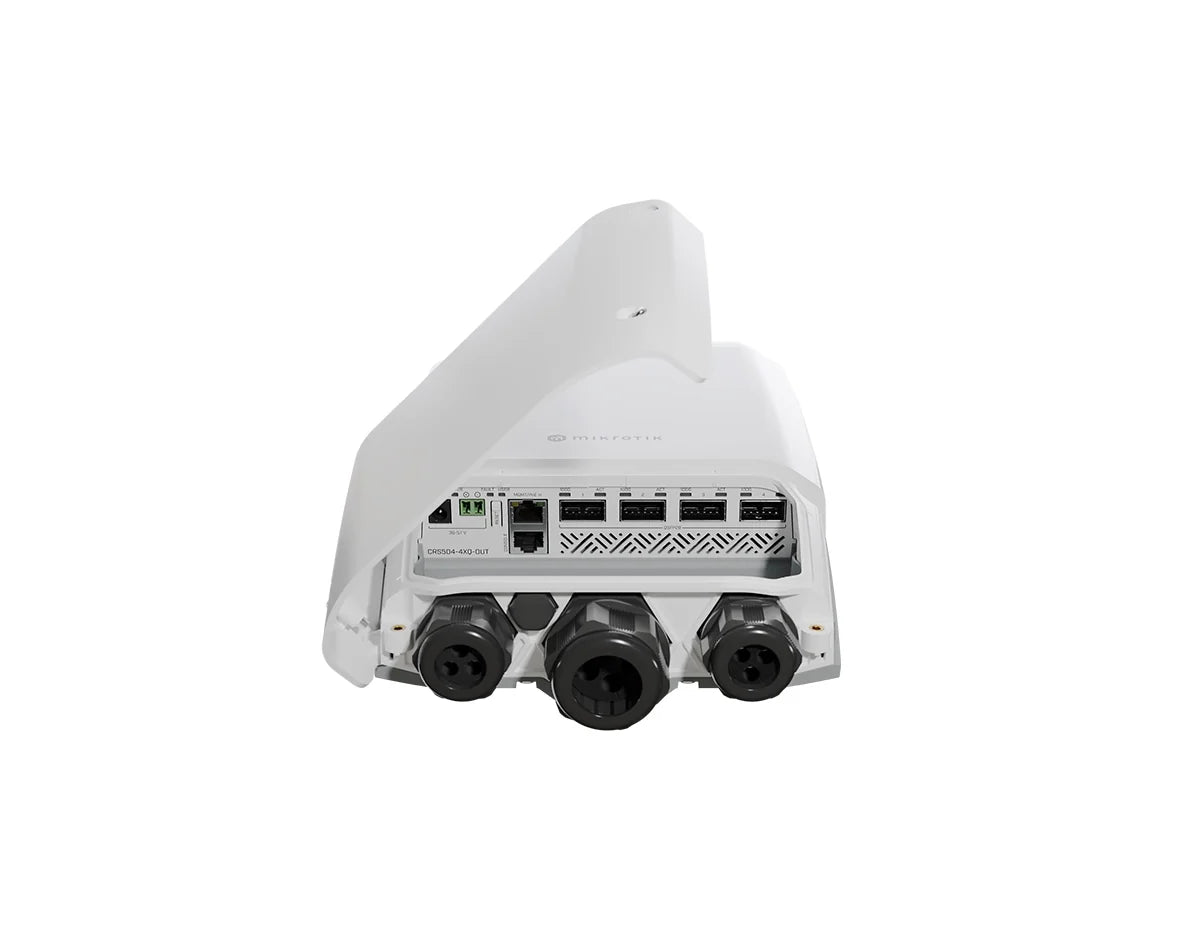

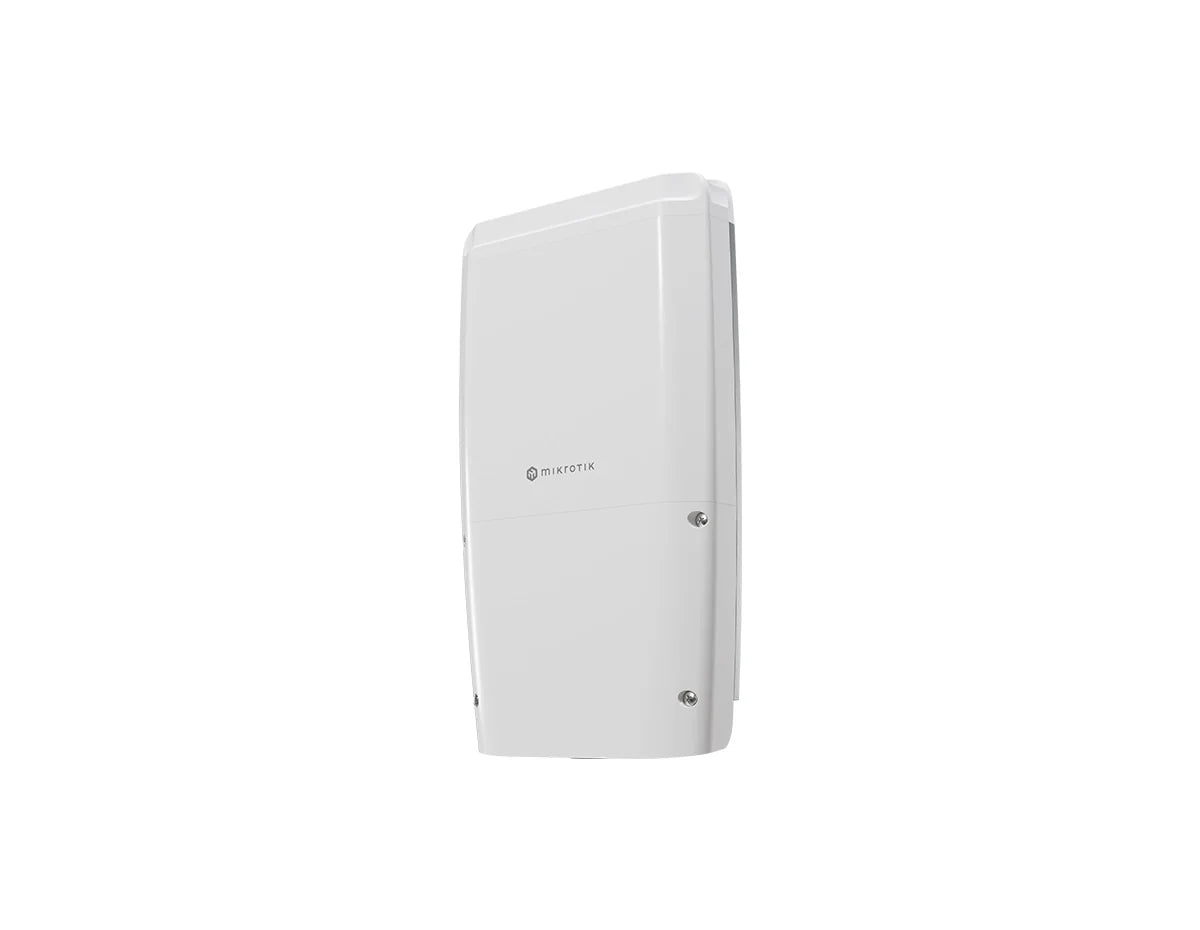

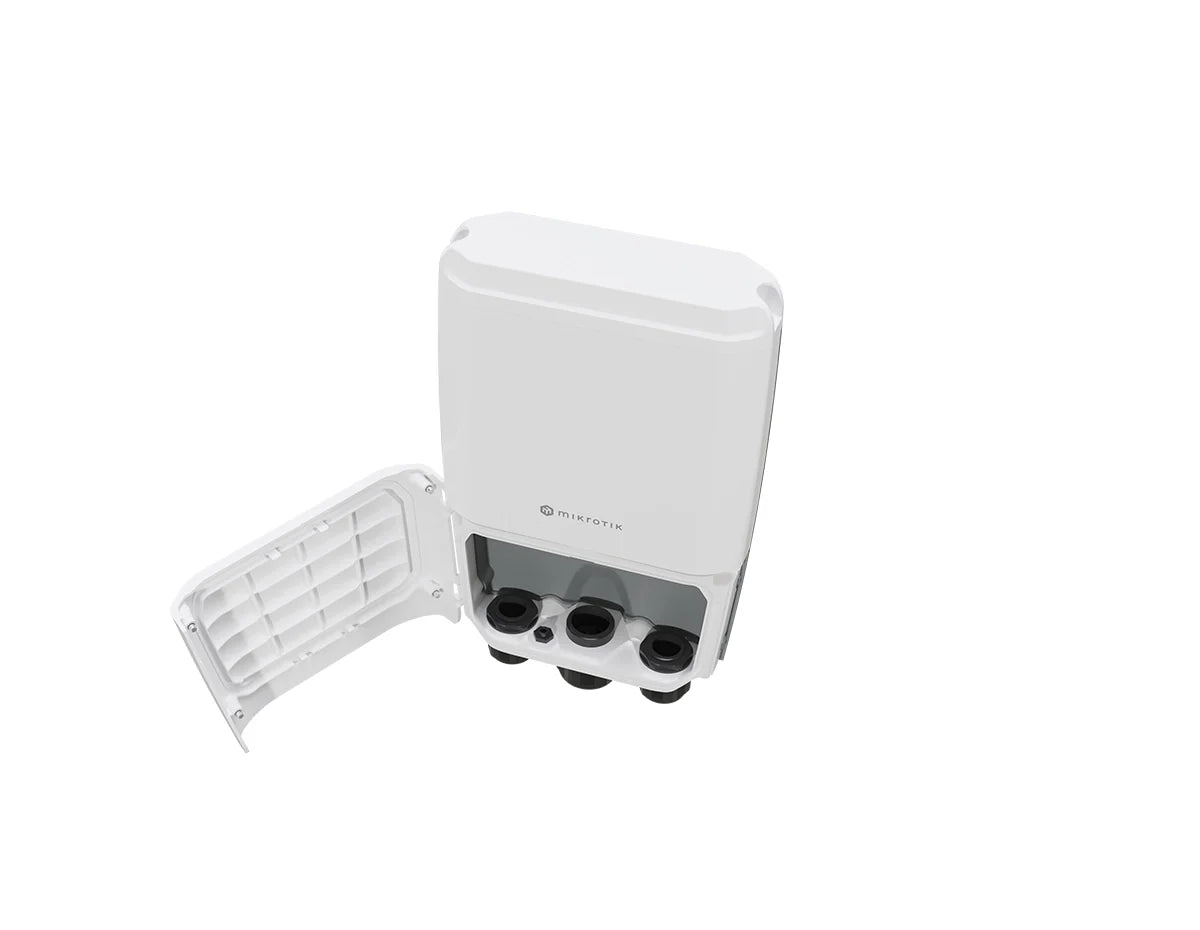

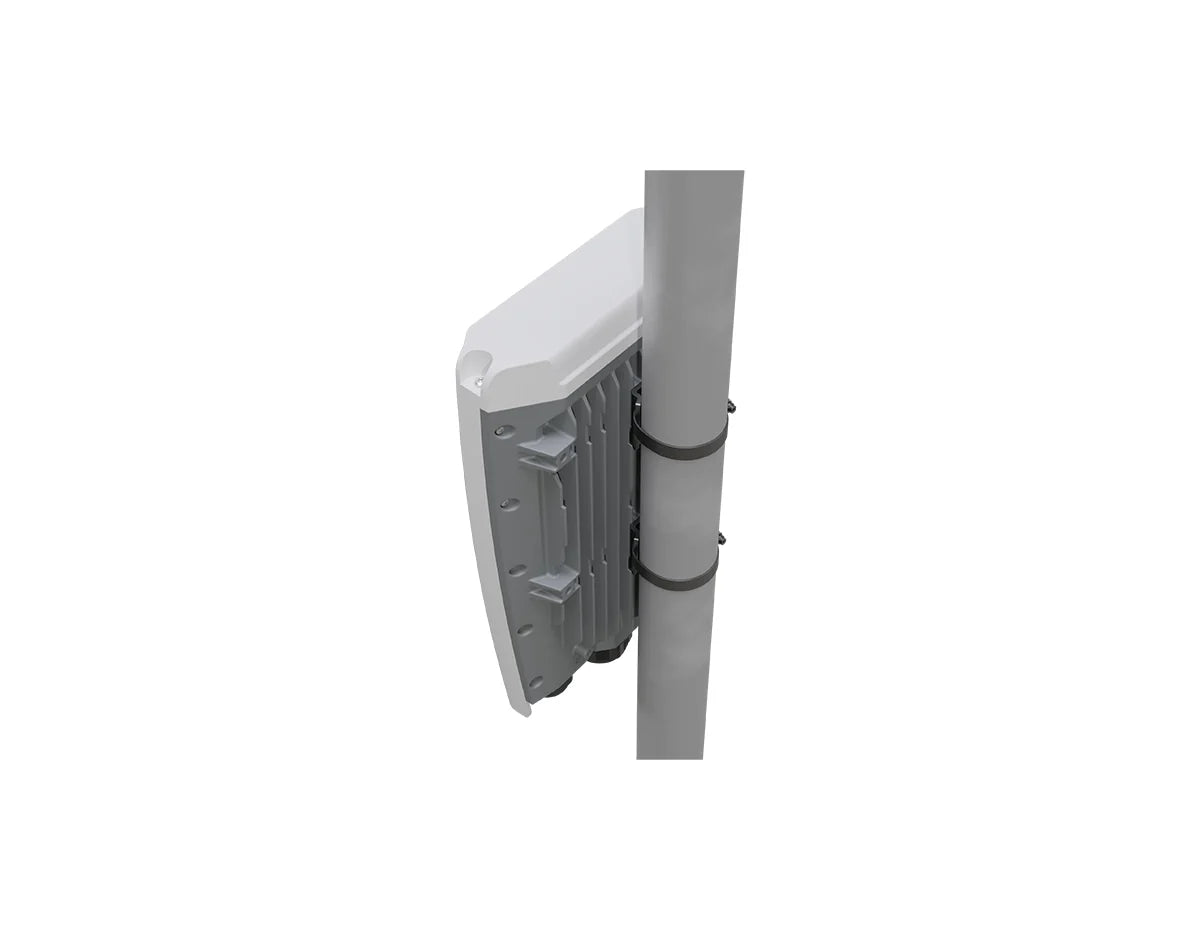

MikroTik CRS504-4XQ-OUT Switch
The MikroTik CRS504-4XQ-OUT switch offers 100 Gigabit connectivity suitable for outdoor environments, catering to both remote and urban settings. This high-speed connectivity is essential for industries requiring fast data transfers for real-time monitoring and video conferencing. It is housed in a durable IP66-rated weatherproof enclosure, the switch is impervious to dust and capable of withstanding strong jets of water from any direction. It is well-suited for use in extreme heat or heavy rain, ensuring a stable connection.
Quick Specs:
-
1x 10/100/1000 Ethernet Port
-
4x 100G QSFP28 uplink ports
-
QCA9531, 1 core, 650MHz
-
128MB RAM
Please see the related tabs for the CRS504-4XQ-OUT datasheet and compatible accessories.
