[shortdesc]
- 24 Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS)
[/shortdesc]
[properties]
| Properties |
MikroTik CRS326-24G-2S+RM |
| Description |
24 Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS) |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100/1000 Ethernet ports |
24 |
| SFP+ |
2 |
| Serial console port |
1 RJ45 |
| Dimensions |
443 x 144 x 44 mm |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-30 V |
| Max power consumption |
24 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
[/properties][specifications]
| Specifications |
CRS326-24G-2S+RM |
| Memory |
512 MB |
| Flash Storage size |
16 MB |
| CPU |
98DX3236A1 800 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX3236 |
| OS |
RouterOS / SwitchOS |
| Features |
Non-blocking Layer 2 switching capacity
16K host table
IEEE 802.1Q VLAN
Supports up to 4K VLANs
Port isolation
Port security
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol
Access Control List
MikroTik neighbor discovery
SNMP v1
Web-based GUI |
| Ethernet test results |
| Bridging |
|
| 64 byte |
|
| none (fast path) |
kpps: 449
Mbps: 229.9 |
| 25 bridge filter rules |
kpps: 104,5
Mbps: 53.5 |
| 512 byte |
|
| none (fast path) |
kpps: 273,5
Mbps: 1120.3 |
| 25 bridge filter rules |
kpps: 104.6
Mbps: 428.4 |
| 1518 byte |
|
| none (fast path) |
kpps: 104,3
Mbps: 1266.6 |
| 25 bridge filter rules |
kpps: 104
Mbps: 1263.0 |
| Routing |
|
| 64 byte |
|
| none (fast path) |
kpps: 343.5
Mbps: 175.9 |
| 25 simple queues |
kpps: 137,4
Mbps: 70.3 |
| 25 ip filter rules |
kpps: 65,8
Mbps: 33.7 |
| 512 byte |
|
| none (fast path) |
kpps: 273,9
Mbps: 1121.9 |
| 25 simple queues |
kpps: 136,9
Mbps: 560.7 |
| 25 ip filter rules |
kpps: 65,9
Mbps: 269.9 |
| 1518 byte |
|
| none (fast path) |
kpps: 104,3
Mbps: 1266.6 |
| 25 simple queues |
kpps: 104,3
Mbps: 1266.6 |
| 25 ip filter rules |
kpps: 64,8
Mbps: 786.9 |
| Switching results |
| 64 byte |
| Non blocking Layer 2 throughput |
kpps: 65,476.2
Mbps: 33,523.8 |
| Non blocking Layer 2 capacity |
kpps: 65,476.2
Mbps: 67,047.6 |
| Non blocking Layer 1 throughput |
kpps: 65,476.2
Mbps: 44,000.0 |
| Non blocking Layer 1 capacity |
kpps: 65,476.2
Mbps: 88,000.0 |
| 512 byte |
| Non blocking Layer 2 throughput |
kpps: 10,338.3
Mbps: 42,345.9 |
| Non blocking Layer 2 capacity |
kpps: 10,338.3
Mbps: 84,691.7 |
| Non blocking Layer 1 throughput |
kpps: 10,338.3
Mbps: 44,000.0 |
| Non blocking Layer 1 capacity |
kpps: 10,338.3
Mbps: 88,000.0 |
| 1518 byte |
| Non blocking Layer 2 throughput |
kpps: 3,576.1
Mbps: 43,427.8 |
| Non blocking Layer 2 capacity |
kpps: 3,576.1
Mbps: 86,855.7 |
| Non blocking Layer 1 throughput |
kpps: 3,576.1
Mbps: 44,000.0 |
| Non blocking Layer 1 capacity |
kpps: 3,576.1
Mbps: 88,000.0 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 60°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| 24 V 1.2 A power adapter |
| Rack ears |
| Screw set |
[/accesories]

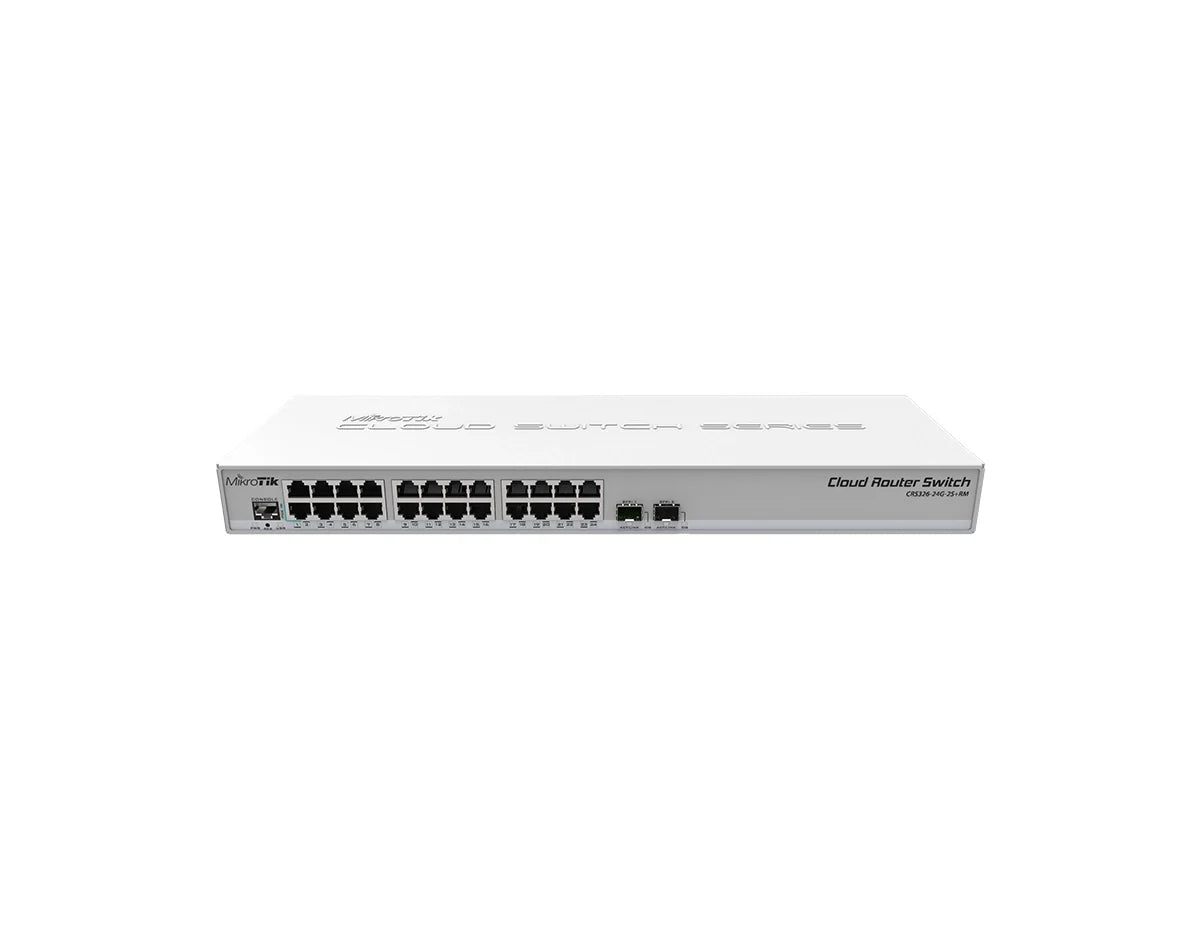

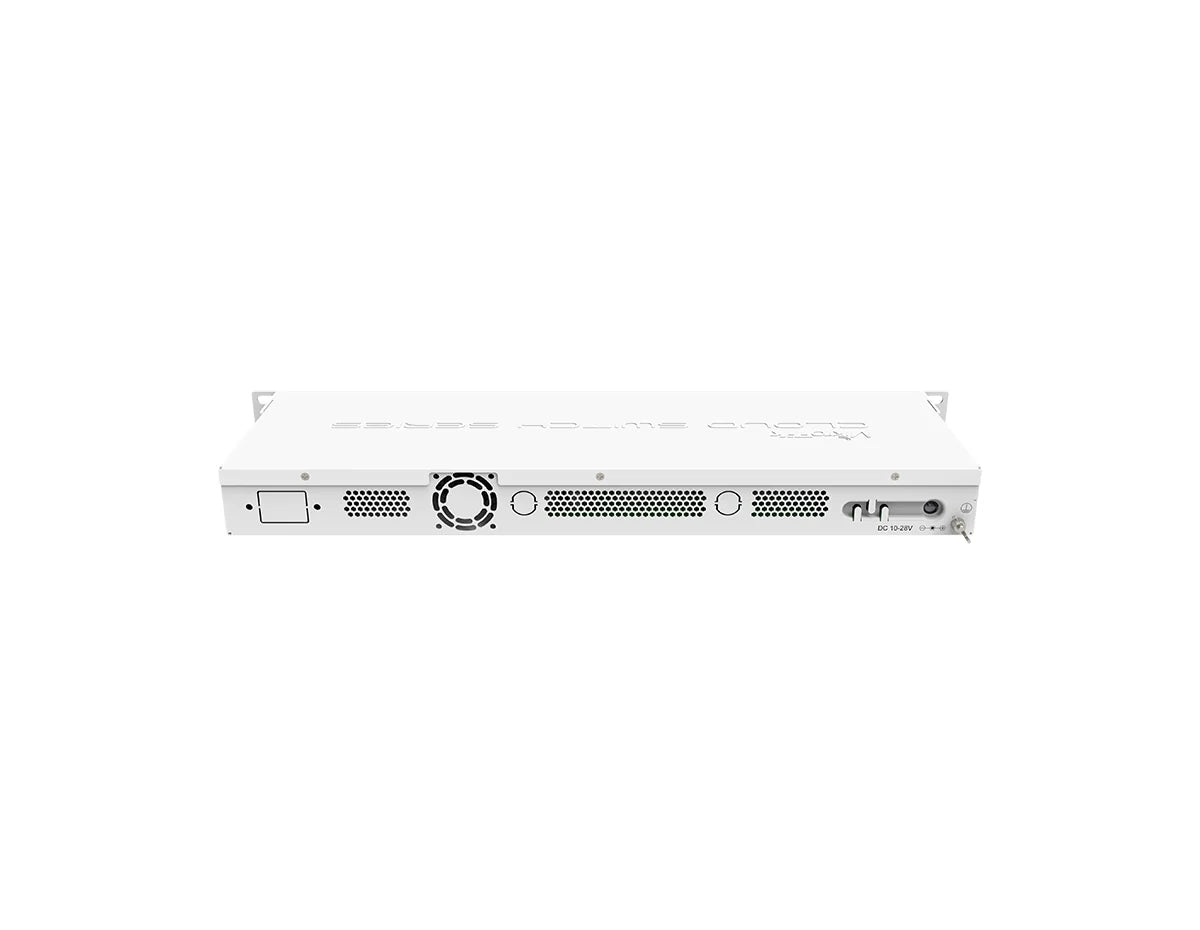

MikroTik CRS326-24G-2S+RM Switch
The CRS326-24G-2S+RM provides a distinctive dual boot functionality, enabling users to select between the RouterOS and SwOS operating systems. This feature allows for the flexibility to utilize the simplified switch-specific functions of SwOS or the comprehensive features of RouterOS, catering to the specific networking needs of the user. This exceptional switch is equipped with 24 Gigabit ports and 2 high-speed SFP+ cages, all housed in a compact 1U rackmount case.
Quick Specs:
- 24x 10/100/1000 Gigabit Ethernet ports
- 2 SFP+ Ports
- Non-blocking layer 2 switching capacity
Please see the related tabs for the CRS326-24G-2S+RM datasheet and compatible accessories.
