- 24 Gigabit ports, 2 SFP+ cages, and a desktop case - server room power for your home!
[/shortdesc]
[properties]
| Properties |
MikroTik CRS326-24G-2S+IN |
| Description |
24 Gigabit ports, 2 SFP+ cages, and a desktop case - server room power for your home! |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100/1000 Ethernet ports |
24 |
| SFP+ |
2 |
| Serial console port |
1 RJ45 |
| Dimensions |
285 x 144 x 44 mm |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
10-30 V |
| Max power consumption |
21 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
10-30 V |
[/properties][specifications]
| Specifications |
CRS326-24G-2S+IN |
| Memory |
512 MB |
| Flash Storage size |
16 MB |
| CPU |
98DX3236 800 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX3236 |
| OS |
RouterOS / SwitchOS |
| Ethernet test results |
| Bridging |
|
| 64 byte |
|
| none (fast path) |
kpps: 449
Mbps: 229.9 |
| 25 bridge filter rules |
kpps: 104,5
Mbps: 53.5 |
| 512 byte |
|
| none (fast path) |
kpps: 273,5
Mbps: 1120.3 |
| 25 bridge filter rules |
kpps: 104.6
Mbps: 428.4 |
| 1518 byte |
|
| none (fast path) |
kpps: 104,3
Mbps: 1266.6 |
| 25 bridge filter rules |
kpps: 104
Mbps: 1263.0 |
| Routing |
|
| 64 byte |
|
| none (fast path) |
kpps: 343.5
Mbps: 175.9 |
| 25 simple queues |
kpps: 137,4
Mbps: 70.3 |
| 25 ip filter rules |
kpps: 65,8
Mbps: 33.7 |
| 512 byte |
|
| none (fast path) |
kpps: 273,9
Mbps: 1121.9 |
| 25 simple queues |
kpps: 136,9
Mbps: 560.7 |
| 25 ip filter rules |
kpps: 65,9
Mbps: 269.9 |
| 1518 byte |
|
| none (fast path) |
kpps: 104,3
Mbps: 1266.6 |
| 25 simple queues |
kpps: 104,3
Mbps: 1266.6 |
| 25 ip filter rules |
kpps: 64,8
Mbps: 786.9 |
| Switching results |
| 64 byte |
| Non blocking Layer 2 throughput |
kpps: 65,476.2
Mbps: 33,523.8 |
| Non blocking Layer 2 capacity |
kpps: 65,476.2
Mbps: 67,047.6 |
| Non blocking Layer 1 throughput |
kpps: 65,476.2
Mbps: 44,000.0 |
| Non blocking Layer 1 capacity |
kpps: 65,476.2
Mbps: 88,000.0 |
| 512 byte |
| Non blocking Layer 2 throughput |
kpps: 10,338.3
Mbps: 42,345.9 |
| Non blocking Layer 2 capacity |
kpps: 10,338.3
Mbps: 84,691.7 |
| Non blocking Layer 1 throughput |
kpps: 10,338.3
Mbps: 44,000.0 |
| Non blocking Layer 1 capacity |
kpps: 10,338.3
Mbps: 88,000.0 |
| 1518 byte |
| Non blocking Layer 2 throughput |
kpps: 3,576.1
Mbps: 43,427.8 |
| Non blocking Layer 2 capacity |
kpps: 3,576.1
Mbps: 86,855.7 |
| Non blocking Layer 1 throughput |
kpps: 3,576.1
Mbps: 44,000.0 |
| Non blocking Layer 1 capacity |
kpps: 3,576.1
Mbps: 88,000.0 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 60°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| 24 V 1.2 A power adapter |
[/accesories]

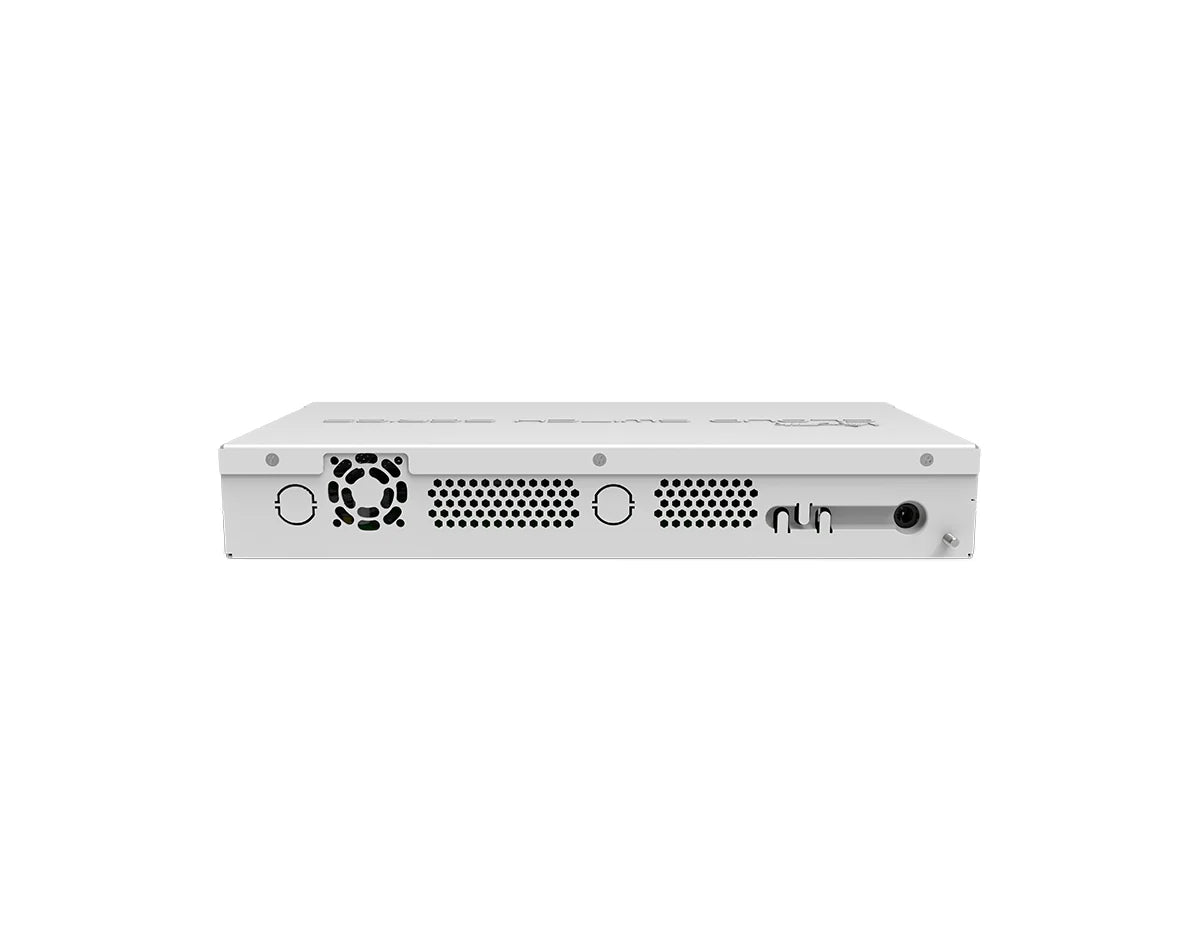

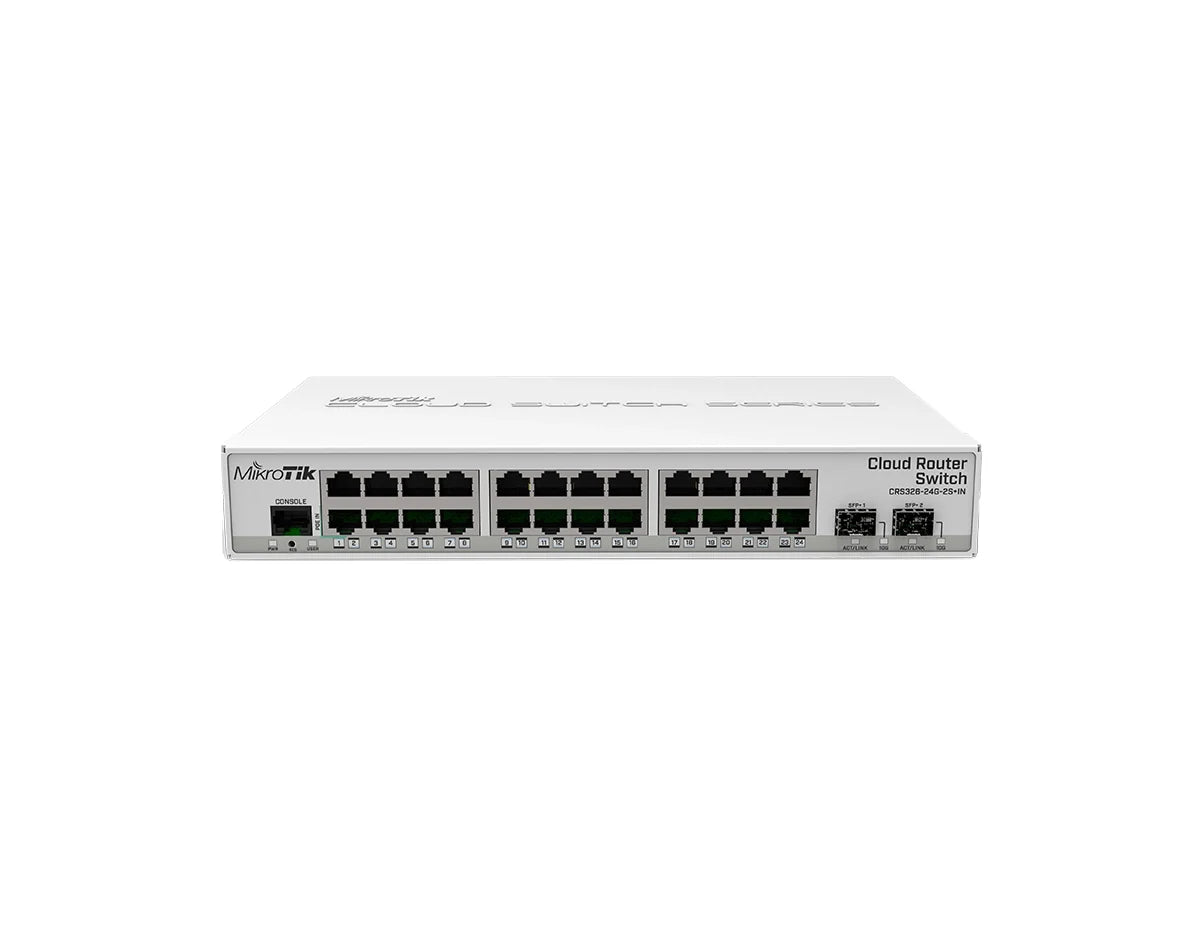

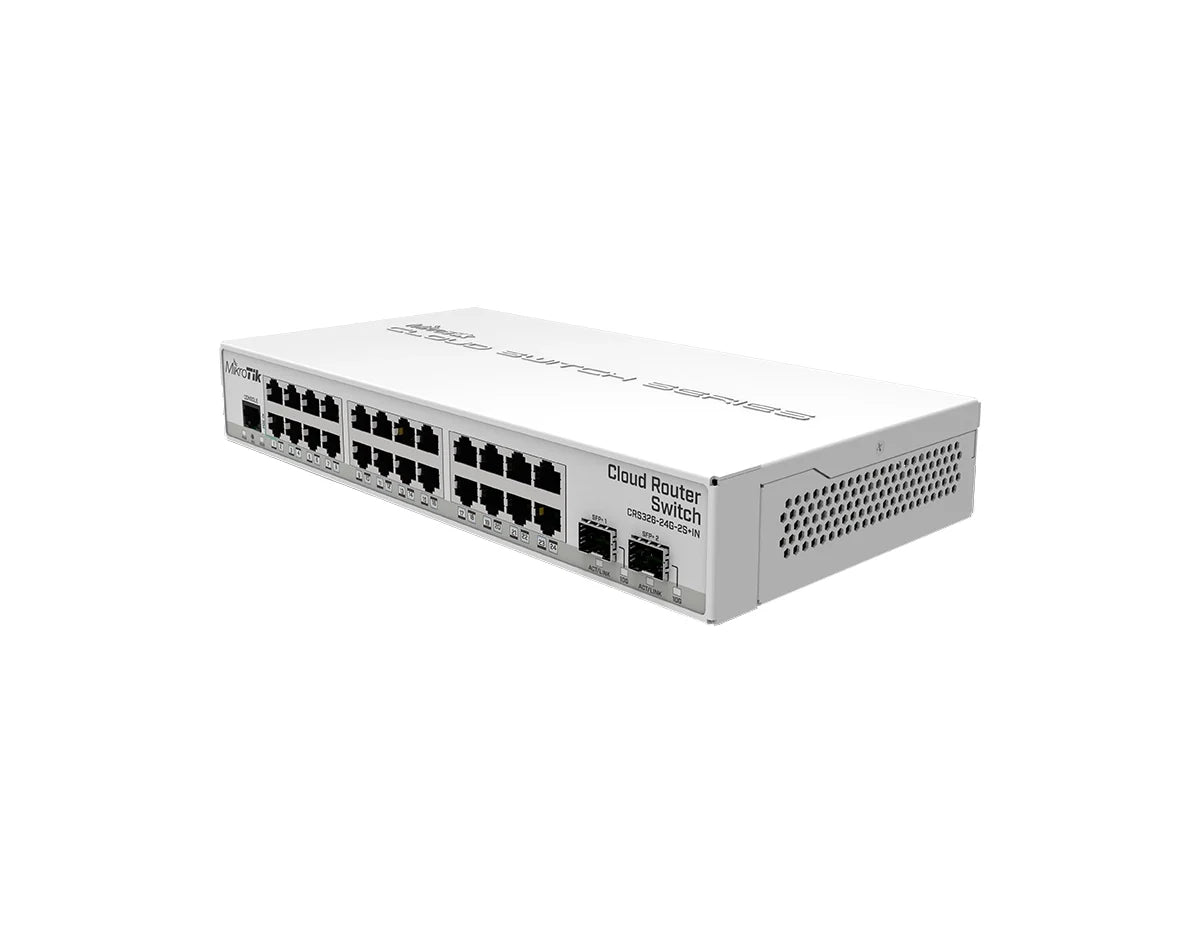

MikroTik CRS326-24G-2S+IN Switch
The CRS326-24G-2S+IN features 24 Gigabit Ethernet ports, two 10G SFP+ cages, 512 MB of RAM, and a capable built-in CPU suitable for managing fundamental home user requirements, including firewall, NAT, and limited VPN functionality. The CRS326-24G-2S+IN offers the dual boot option that allows you to use either the lightweight SwOS or the advanced RouterOS.
Quick Specs:
-
24x 10/100/1000 Ethernet Ports
-
2x 10G SFP+ ports uplink
-
512 MB DDR3 RAM
-
RouterOS / SwitchOS
Please see the related tabs for the CRS326-24G-2S+IN datasheet and compatible accessories.
