[shortdesc]
- A remarkable outdoor switch for setting up an optical 10G network that can even perform some light routing. The spiritual successor to the beloved FiberBox. Gigabit Ethernet, SFP/SFP+, PoE.
[/shortdesc]
[properties]
| Properties |
MikroTik CRS310-1G-5S-4S+OUT |
| Description |
A remarkable outdoor switch for setting up an optical 10G network that can even perform some light routing. The spiritual successor to the beloved FiberBox. Gigabit Ethernet, SFP/SFP+, PoE |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100/1000 Ethernet ports |
1 |
| SFP ports |
5 |
| SFP+ ports |
4 |
| Serial port |
1 RJ45 |
| Extras |
CPU temperature monitor
PCB temperature monitor
Voltage Monitor |
| Dimensions |
200 x 166 x 45 mm |
| Number of DC inputs |
2 (PoE-in, DC jack) |
| DC jack input Voltage |
18-57 V |
| Max power consumption |
16.3 W |
| PoE in input Voltage |
18-57 V |
| Power adapter nominal voltage |
24 V |
| Power adapter nominal current |
1.2 A |
[/properties][specifications]
| Specifications |
CRS310-1G-5S-4S+OUT |
| Memory |
256 MB |
| Flash Storage size |
16 MB |
| CPU |
98DX226S 800 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX226S |
| OS |
RouterOS, License level 5 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Switching results |
| 1518 byte |
| Non blocking Layer 2 throughput |
kpps: 3,738.6
Mbps: 45,401.8 |
| Non blocking Layer 2 capacity |
kpps: 3,738.6
Mbps: 90,803.6 |
| Non blocking Layer 1 throughput |
kpps: 3,738.6
Mbps: 46,000.0 |
| Non blocking Layer 1 capacity |
kpps: 3,738.6
Mbps: 92,000.0 |
| 512 byte |
| Non blocking Layer 2 throughput |
kpps: 10,808.3
Mbps: 44,270.7 |
| Non blocking Layer 2 capacity |
kpps: 10,808.3
Mbps: 88,541.4 |
| Non blocking Layer 1 throughput |
kpps: 10,808.3
Mbps: 46,000.0 |
| Non blocking Layer 1 capacity |
kpps: 10,808.3
Mbps: 92,000.0 |
| 64 byte |
| Non blocking Layer 2 throughput |
kpps: 68,452.4
Mbps: 35,047.6 |
| Non blocking Layer 2 capacity |
kpps: 68,452.4
Mbps: 70,095.2 |
| Non blocking Layer 1 throughput |
kpps: 68,452.4
Mbps: 46,000.0 |
| Non blocking Layer 1 capacity |
kpps: 68,452.4
Mbps: 92,000.0 |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| 48 V 0.95 A power adapter |
| Gigabit PoE injector |

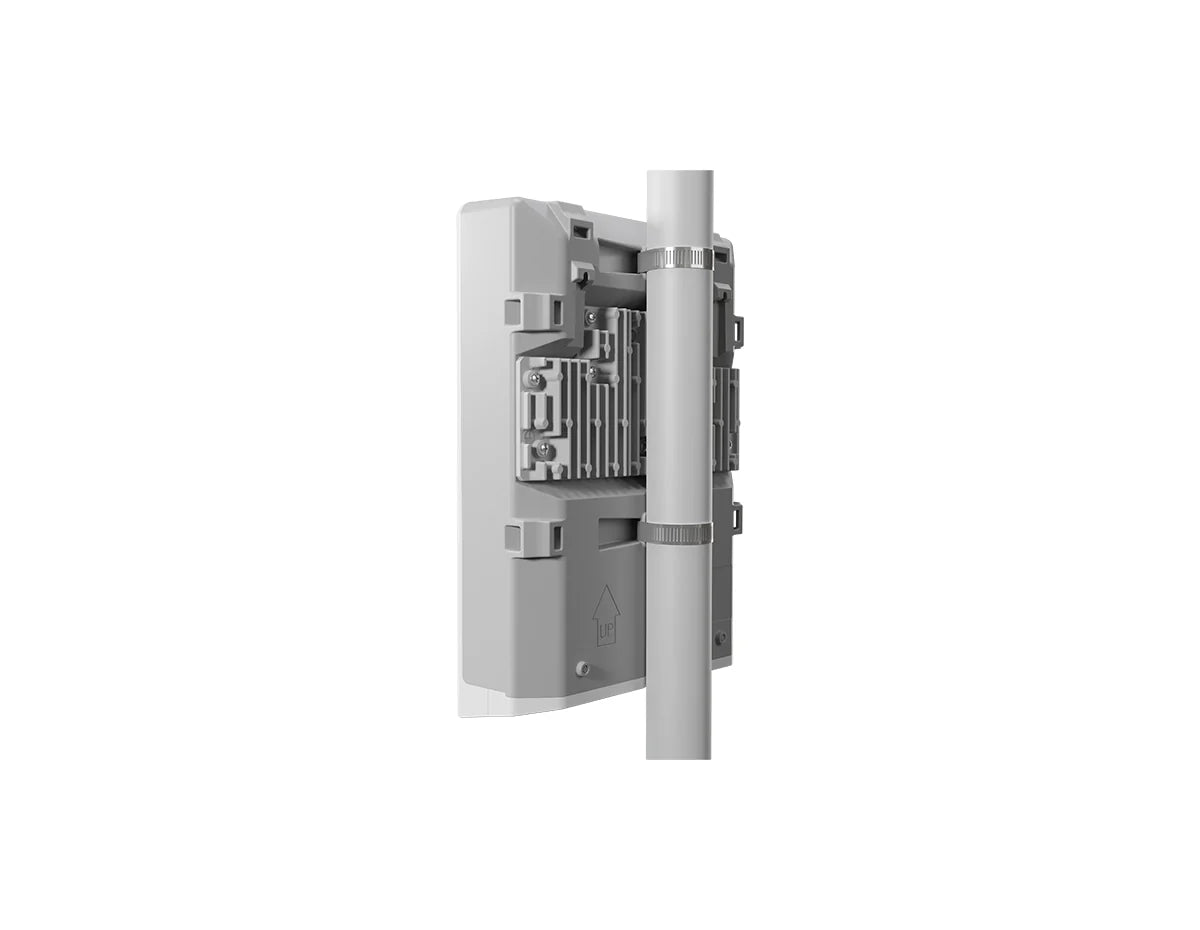

| K-66 fastening set |
| Hose clamp x 2 |
[/accesories]

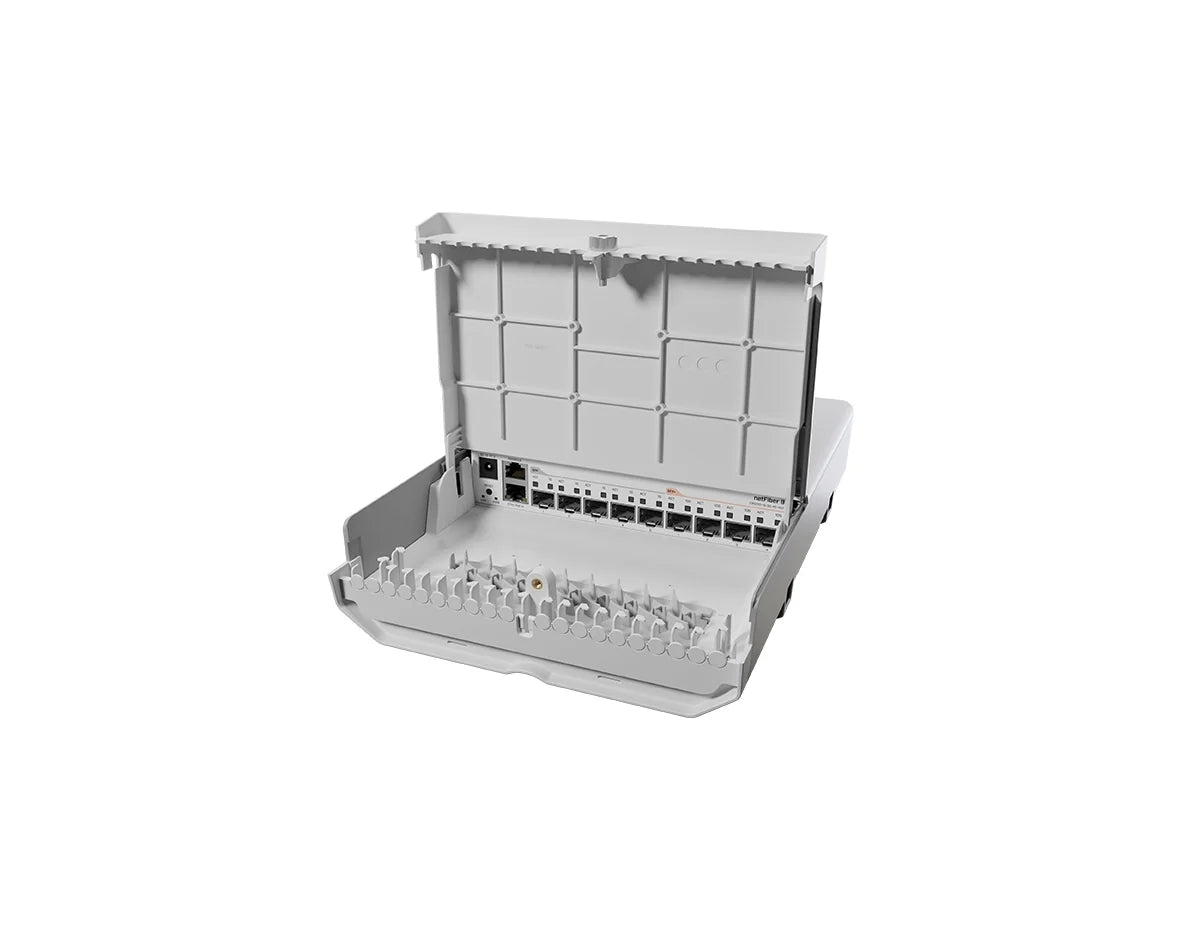

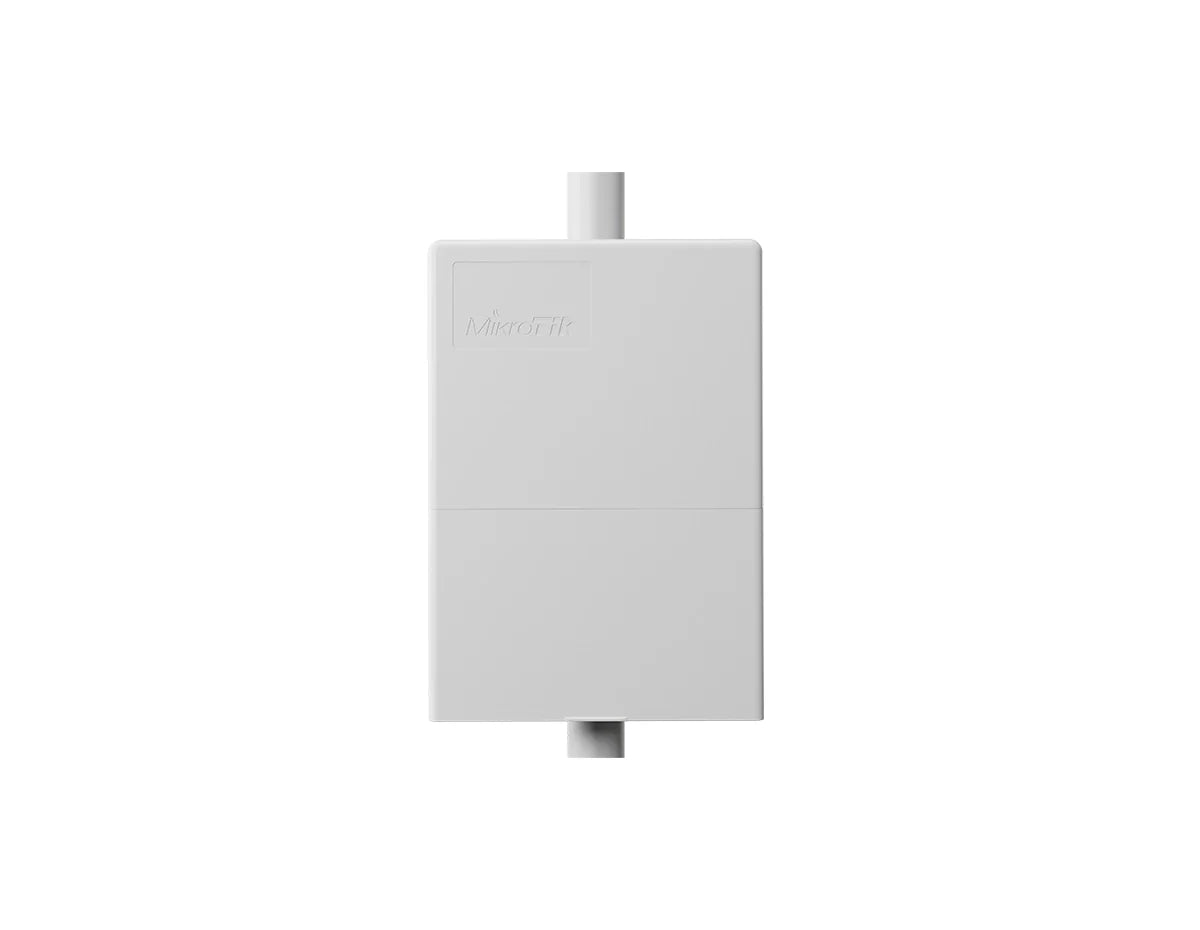

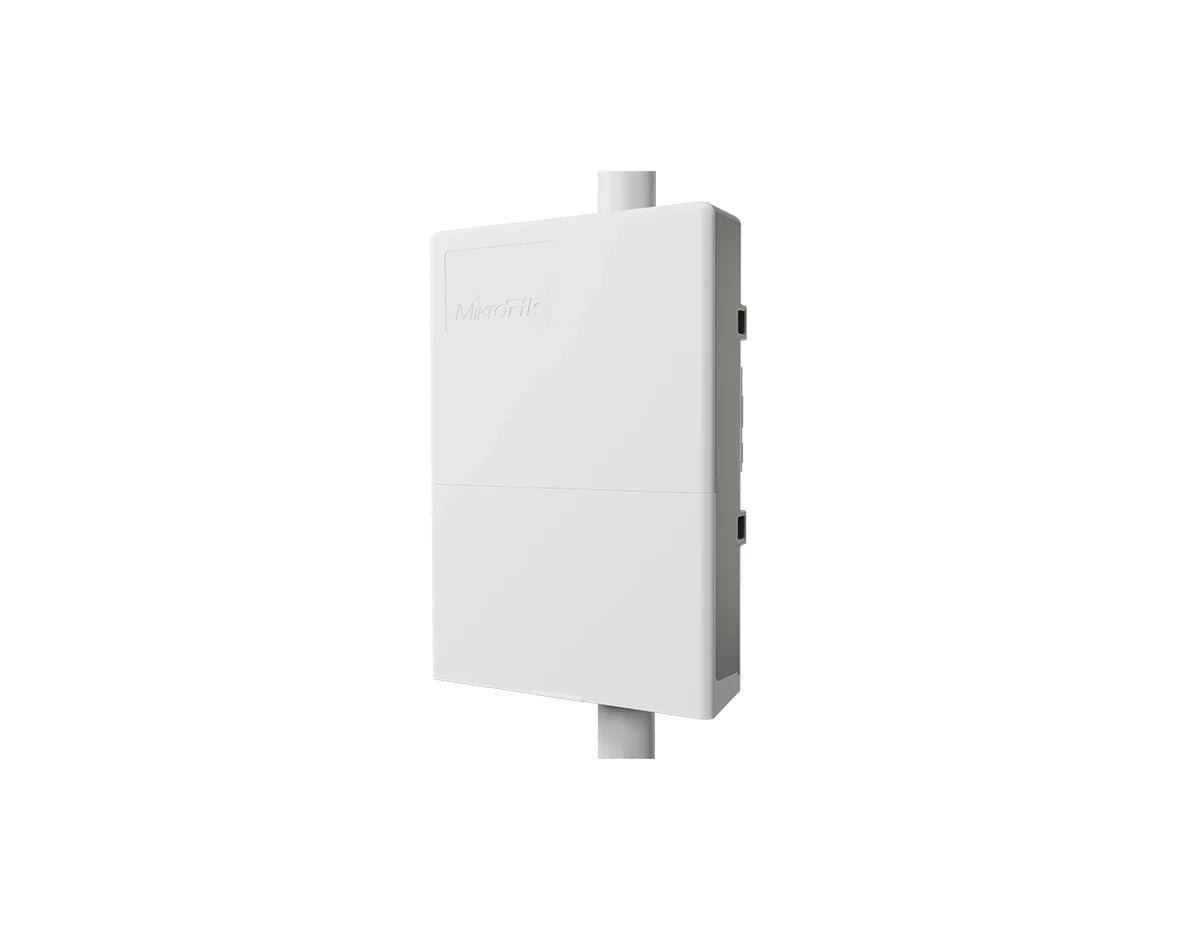

MikroTik CRS310-1G-5S-4S+OUT Switch
The CRS310-1G-5S-4S+OUT is a robust outdoor switch equipped with SFP, SFP+, and Gigabit Ethernet capabilities. It is powered by a potent ARM v7 CPU, 256 MB of RAM, 4x 10G SFP+ ports, and an advanced Marvell switch chip designed to handle heavy workloads. The Gigabit Ethernet port serves not only for management purposes but also provides a direct connection to the switch chip, enabling full gigabit speed. Additionally, this port supports PoE-in, offering an alternative power source for locations with limited access to a DC jack.
Quick Specs:
-
1x 10/100/100 Ethernet Port
-
5x 1G SFP ports uplink
-
4x 10G SFP+ ports uplink
-
Multiple Powering Options
Please see the related tabs for the CRS310-1G-5S-4S+OUT datasheet and compatible accessories.
