[shortdesc]
- 10 Gigabit fiber connectivity way over 100 meters - for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget!
[/shortdesc]
[properties]
| Properties |
MikroTik CRS310-1G-5S-4S+IN |
| Description |
10 Gigabit fiber connectivity way over 100 meters - for small offices or ISPs. Hardware offloaded VLAN-filtering and even some L3 routing on a budget! |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100/1000 Ethernet ports |
1 |
| SFP ports |
5 |
| SFP+ ports |
4 |
| Serial port |
1 RJ45 |
| Extras |
CPU temperature monitor
PCB temperature monitor
Voltage Monitor |
| Dimensions |
200 x 166 x 45 mm |
| Number of DC inputs |
2 (PoE-in, DC jack) |
| DC jack input Voltage |
18-57 V |
| Max power consumption |
20 W/ 8 W (without attachements) |
| PoE in input Voltage |
18-57 V |
| Power adapter nominal voltage |
24 V |
| Power adapter nominal current |
1.2 A |
[/properties][specifications]
| Specifications |
CRS310-1G-5S-4S+IN |
| Memory |
256 MB |
| Flash Storage size |
16 MB |
| CPU |
98DX226S 800 MHz |
| CPU core count |
1 |
| Switch chip model |
98DX226S |
| OS |
RouterOS, License level 5 |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| Power adapter 24 V 1.2 A |
| K-48 fastening set |
| Rack ears |
[/accesories]

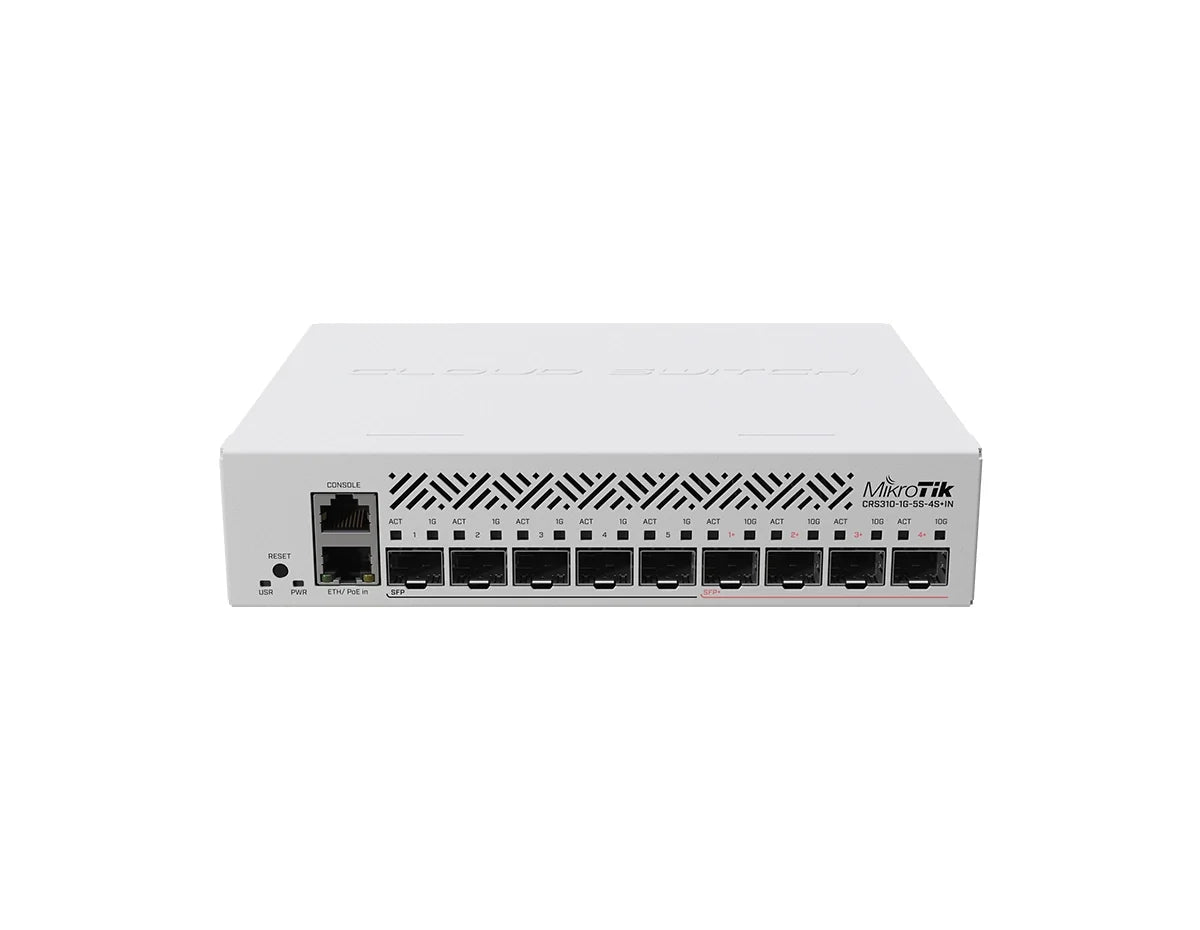

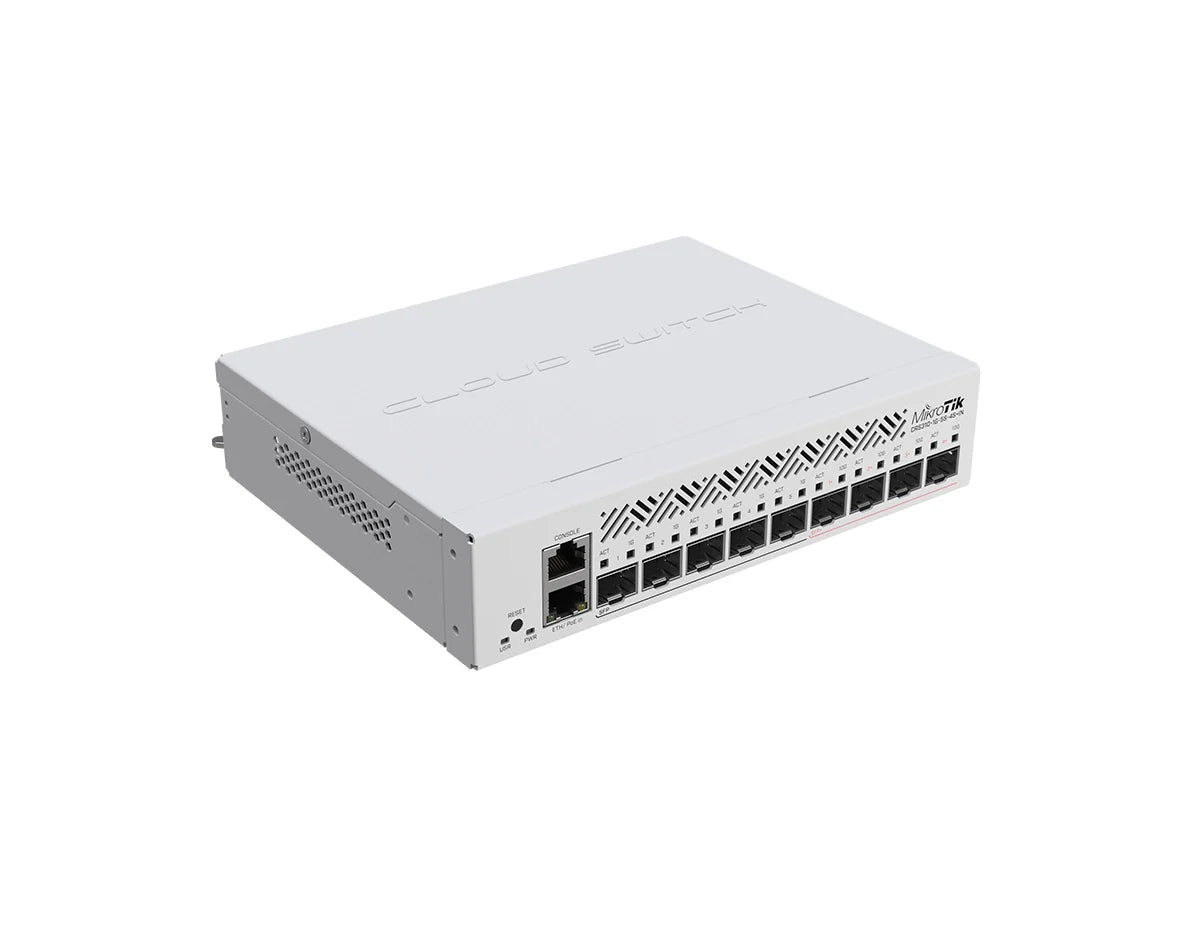

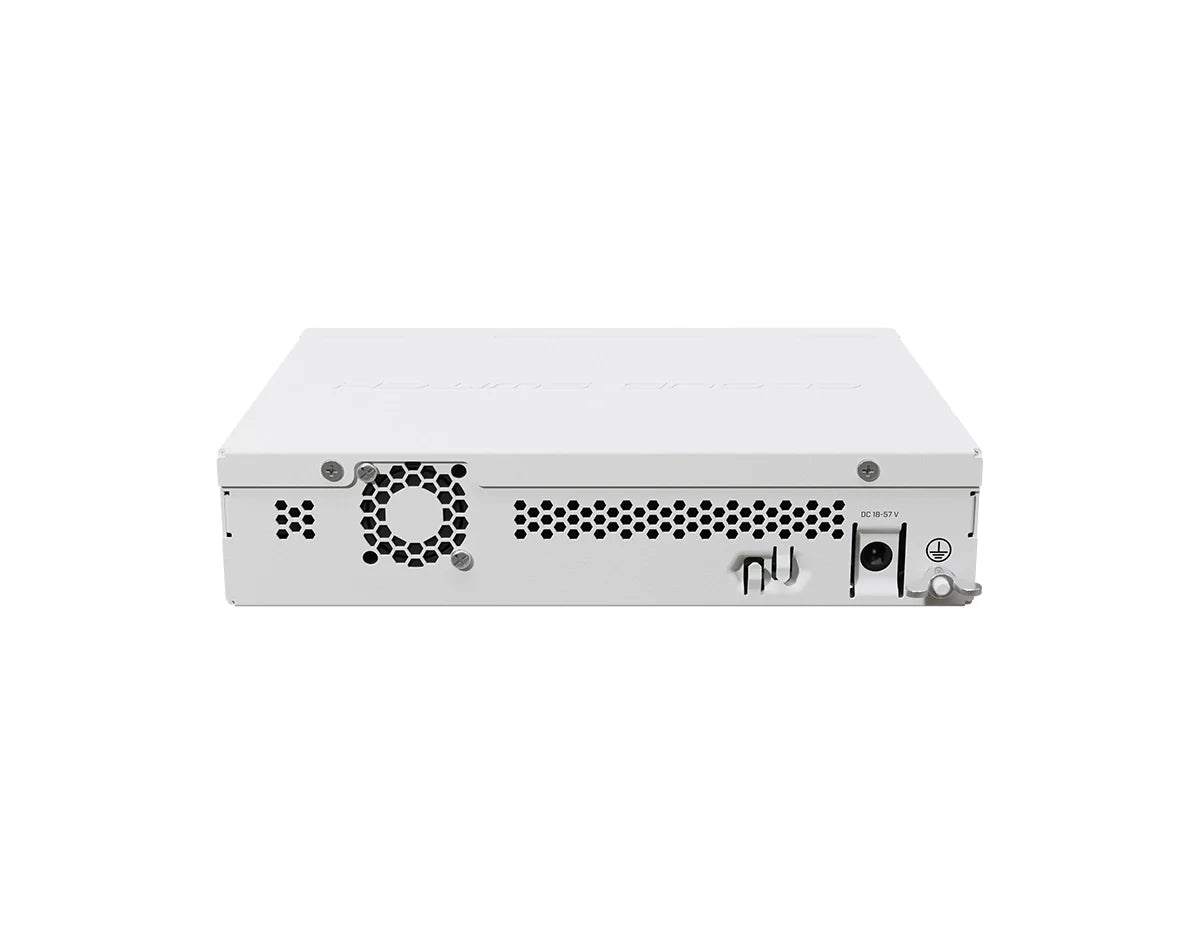

MikroTik CRS310-1G-5S-4S+IN Switch
The CRS310-1G-5S-4S+IN is ideal for small office environments and internet service providers seeking to enhance their high-speed connectivity. Derived from the dependable and widely-used netFiber 9 series, this optical fiber model offers additional capabilities. It delivers rapid and reliable 10 Gigabit fiber connections that can extend over distances exceeding 100 meters. This switch can be installed in a standard 1U rack for the purpose of maintaining organizational efficiency.
Quick Specs:
- 1x 1 Gigabit Ethernet ports
- 4x 10G SFP+ ports
- 5x 1G SFP port
- 802.3af/at PoE input
Please see the related tabs for the CRS310-1G-5S-4S+IN datasheet and compatible accessories.
