- Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports
[/shortdesc]
[properties]
| Properties |
MikroTik CRS309-1G-8S+IN |
| Description |
Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports |
| Product Family |
CRS Series |
| Product Type |
Ethernet Switch |
| Ports |
| 10/100/1000 Ethernet ports |
1 |
| 10G SFP+ ports |
8 |
| Serial port |
RS232 |
| Extras |
CPU temperature monitor, Beeper |
| Dimensions |
272 x 191 x 44 mm |
| PoE in |
Yes, Passive POE and 802.3af/at compliant |
| Number of DC inputs |
1 |
| DC jack input Voltage |
12 - 57 V |
| Cooling type |
Passive |
| Max power consumption |
23 W / 17 W (without attachemnts) |
| PoE in input Voltage |
18-57 V |
[/properties][specifications]
| Specifications |
CRS309-1G-8S+IN |
| Memory |
512 MB |
| Flash Storage size |
16 MB |
| CPU |
98DX3236 800 MHz |
| CPU core count |
2 |
| Switch chip model |
98DX8208 |
| OS |
RouterOS / SwitchOS |
| MTBF |
Approximately 200.000 hours at 25C |
| Temperature |
-40°C to 70°C tested |
| Certification & Approvals |
| Certification |
CE, EAC, ROHS |
| IP |
IP20 |
[/specifications][accesories]
| Accessories |
| Power adapter 24 V 1.2 A |
| Screw kit |
| Rack ears |
[/accesories]

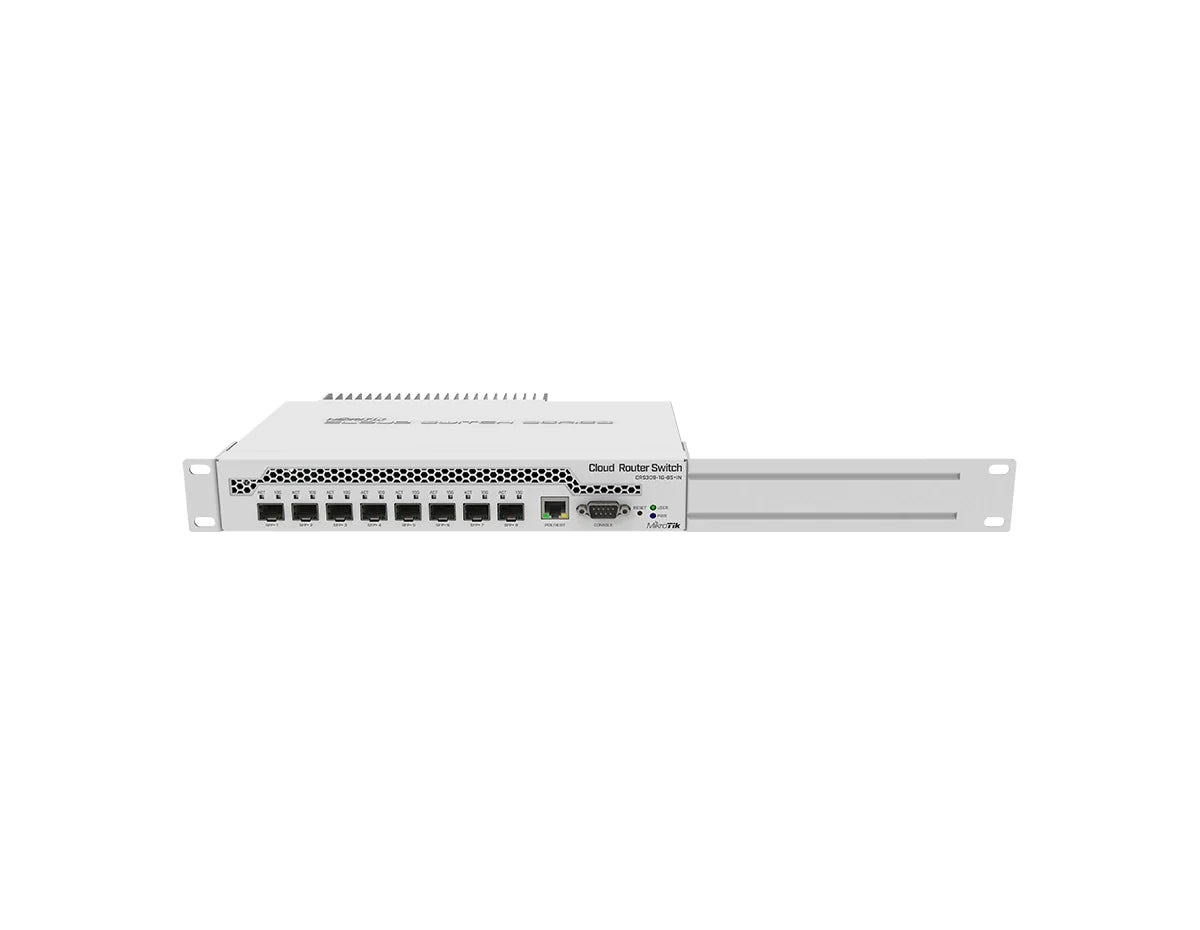

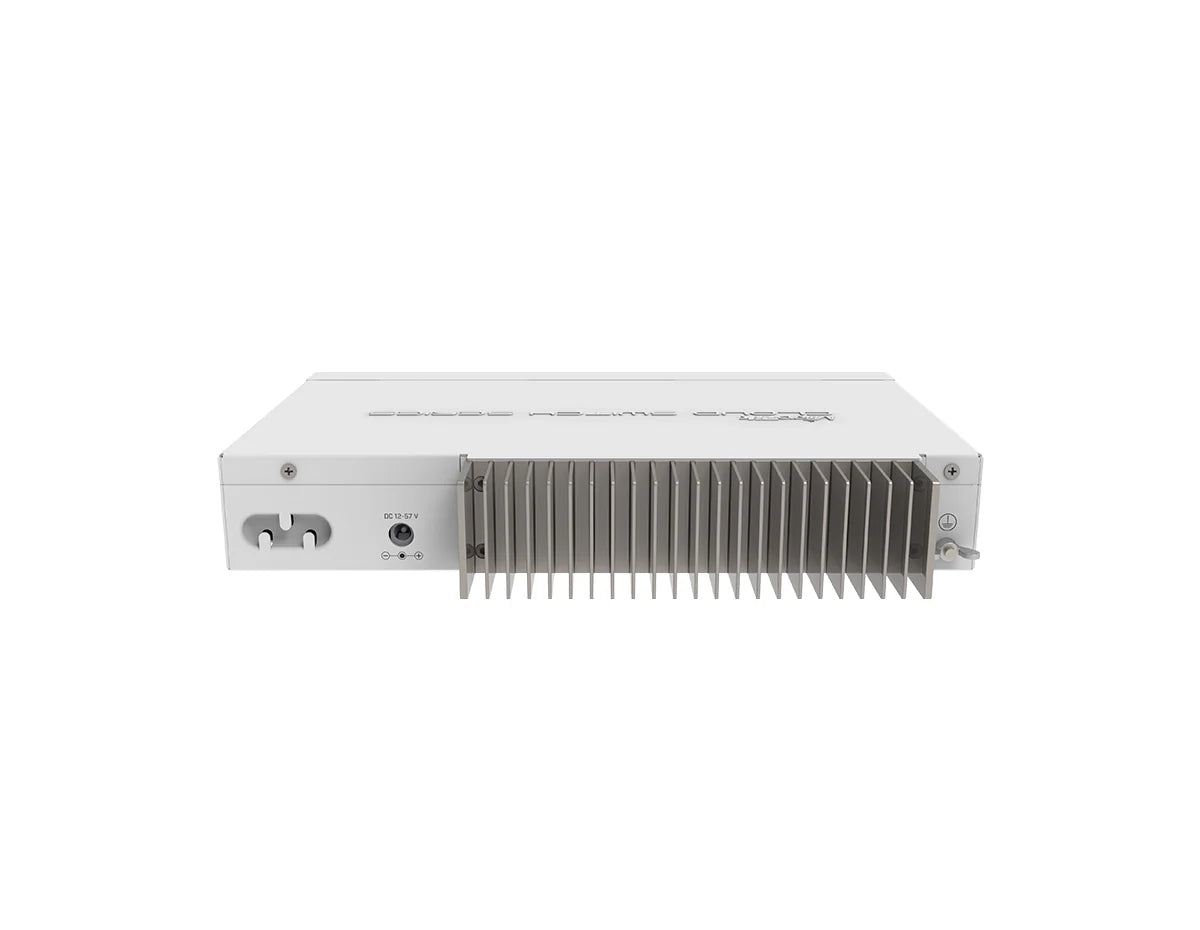

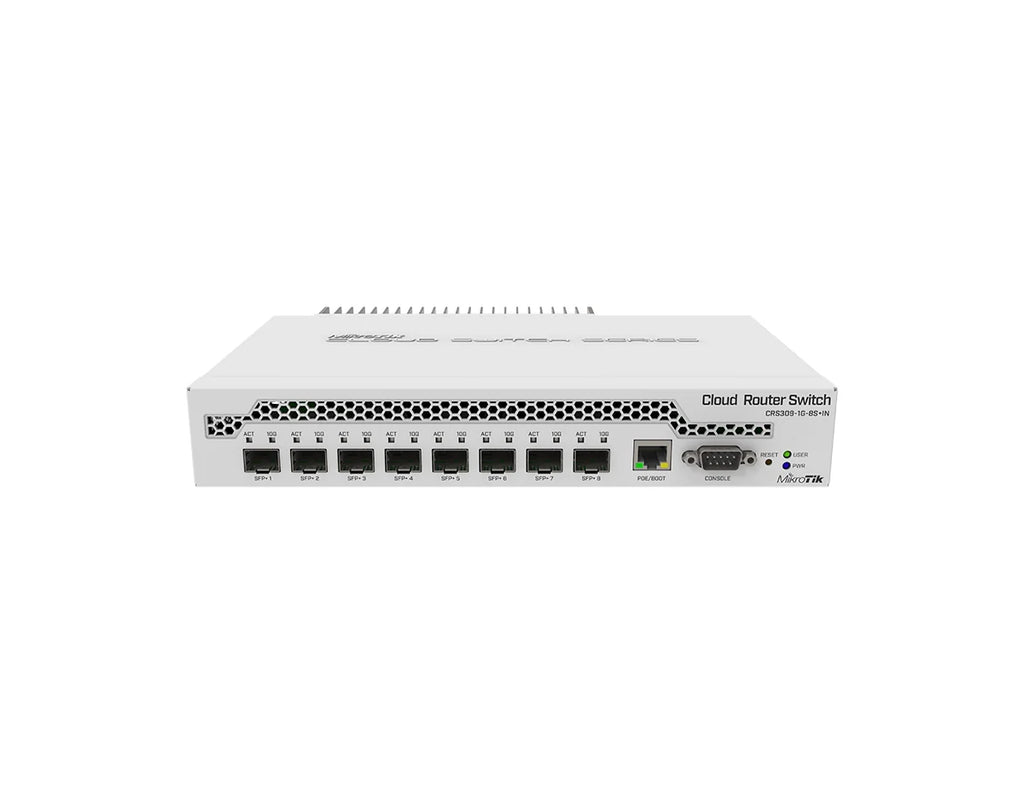

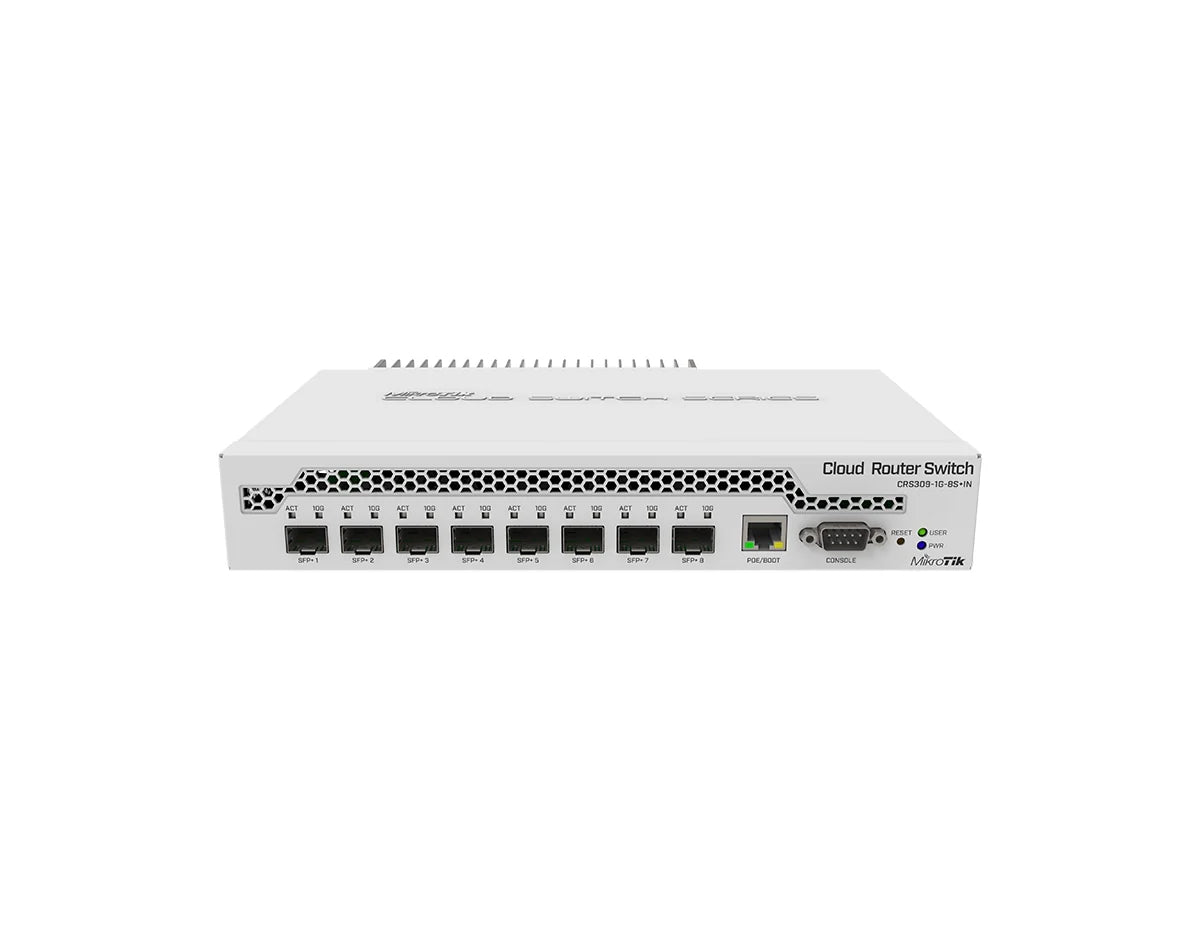

MikroTik CRS309-1G-8S+IN Switch
The CRS309-1G-8S+IN is a highly efficient networking switch with a small form factor. It is equipped with eight SFP+ slots, allowing for the installation of 10 Gbit modules in each slot. This configuration enables a total switching capacity of 162 Gbps and a non-blocking throughput of 81 Gbps. The device is equipped with a dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal, and supports dual boot functionality, allowing users to select their preferred operating system between RouterOS and SwOS.
Quick Specs:
- 1 Gigabit Ethernet ports
- 8x 10G SFP ports
- Passive PoE and 802.3 af/at compliant
Please see the related tabs for the CRS309-1G-8S+ datasheet and compatible accessories.
