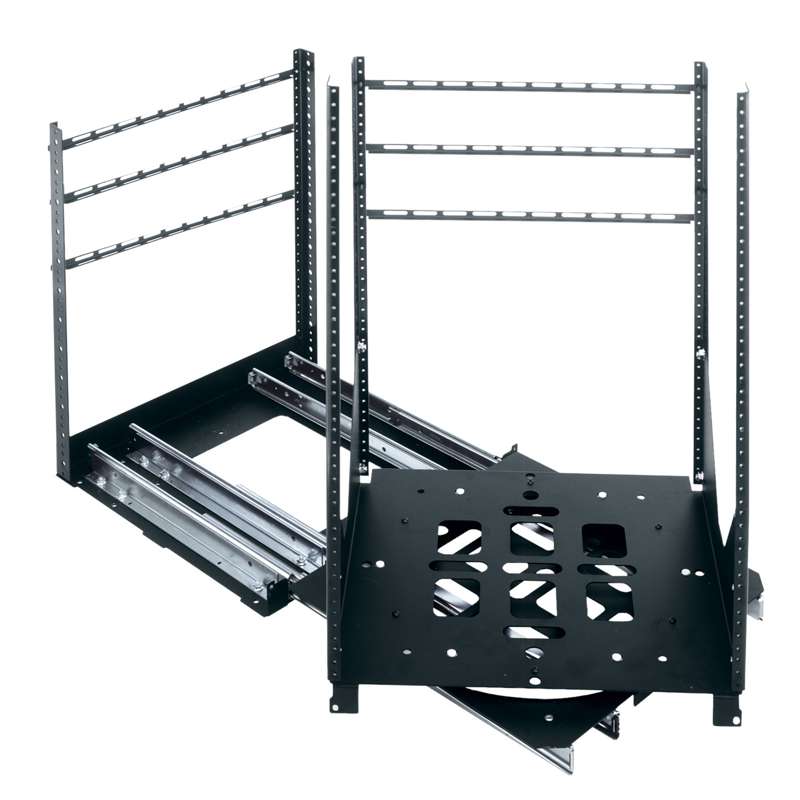

SRSR Series Slide Out Rotating Rail System Rack - SRSR-4-13

Specify an SRSR for easy rear access to equipment connections in millwork, cabinets and flush in-wall installations. Available with a 19” or 23” useable depth, the SRSR system extends and rotates 90º in either direction, making it ideal for smaller systems.

Features:

• Removable rack frame: Allows in-shop integration and on-site installation of equipment
• Locks in the extended position: Simplified equipment integration
• Rotating equipment bay: Locks in place at 0º, 60º and 90º for easy installation and servicing
• Self-centering mounting base: Makes it simple to align system within cabinet opening
• Rear cable support: Works in conjunction with rear rackrail for effective cable management
• Standard front and rear 10-32 threaded rackrail: Marked spaces

Dimensions & Measurements:

• Depth: 19.14
• Height: 25.75
• Rack Units: 13 RU
• Shipping Weight: 70.2 lbs (31.8 kg)
• Usable Depth: 17.25
• Usable Height: 22.75
• Weight Capacity: 250 lbs (113.4 kg)
• Width: 19.13

Characteristics & Features:

• Federal Ops Country of Origin: USA
• Finish: Flat Black Powder Coat
• Rack Rail Type: 10-32
• Rack Type: In-Cabinet

Certifications & Warranties:

• Certifications: TAA
