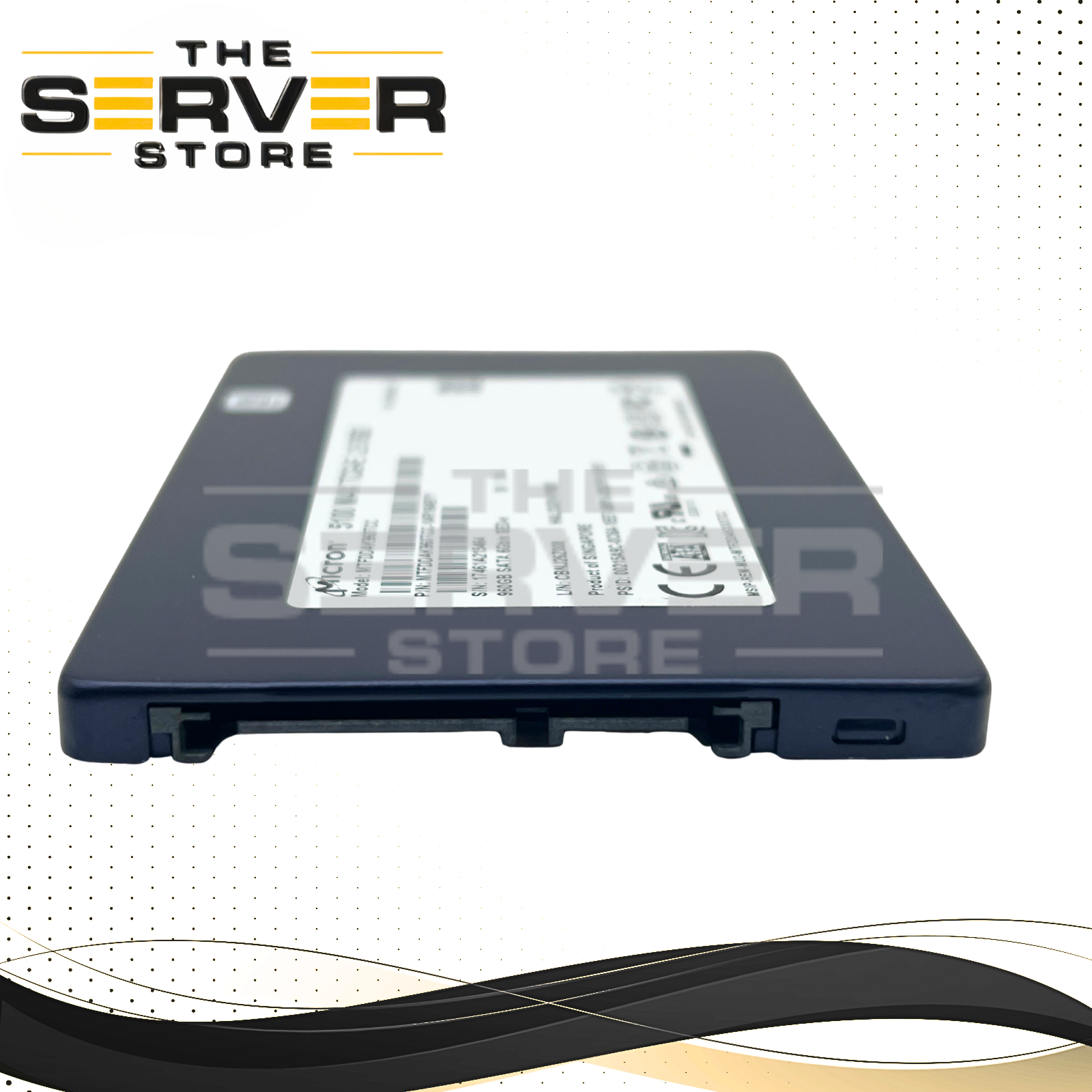

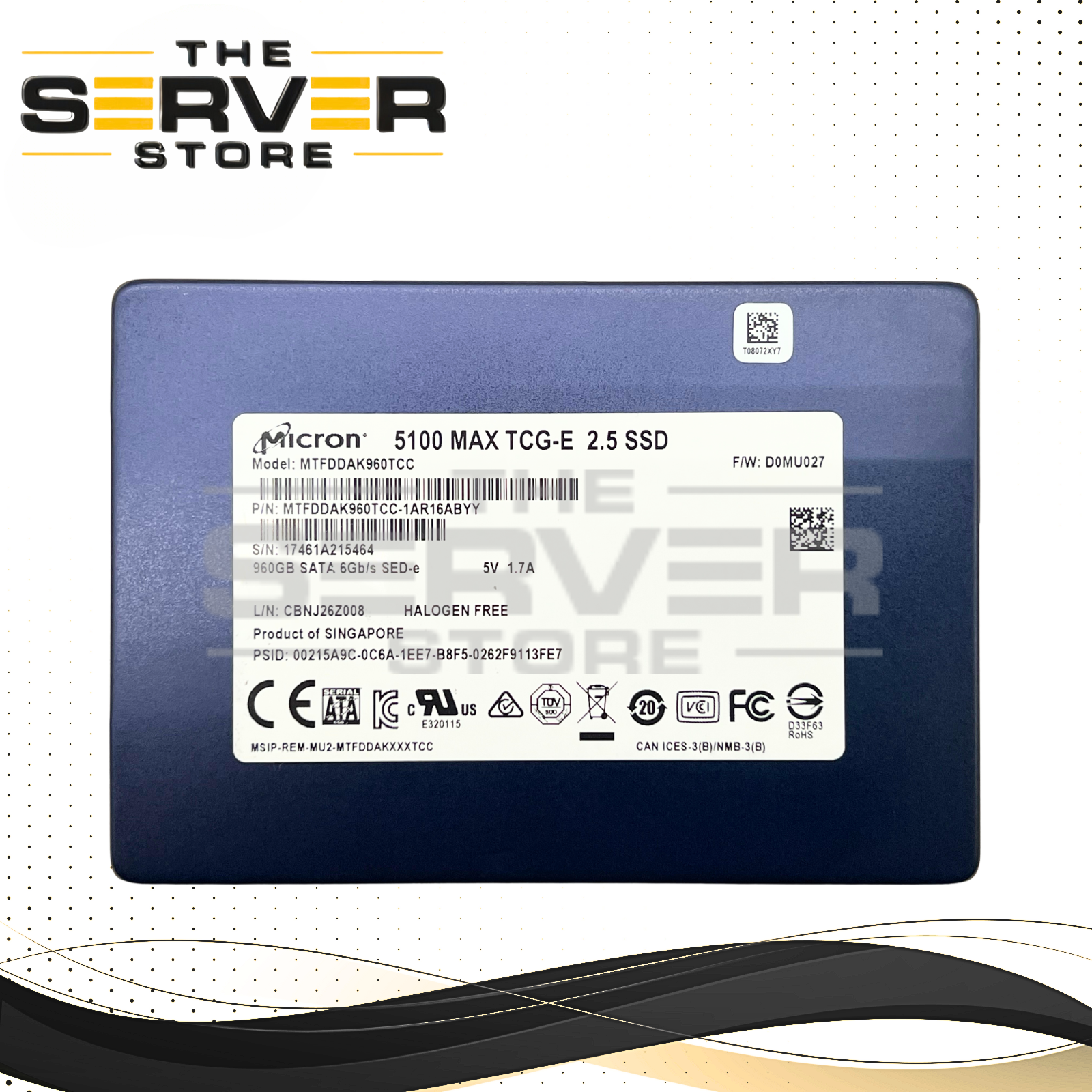

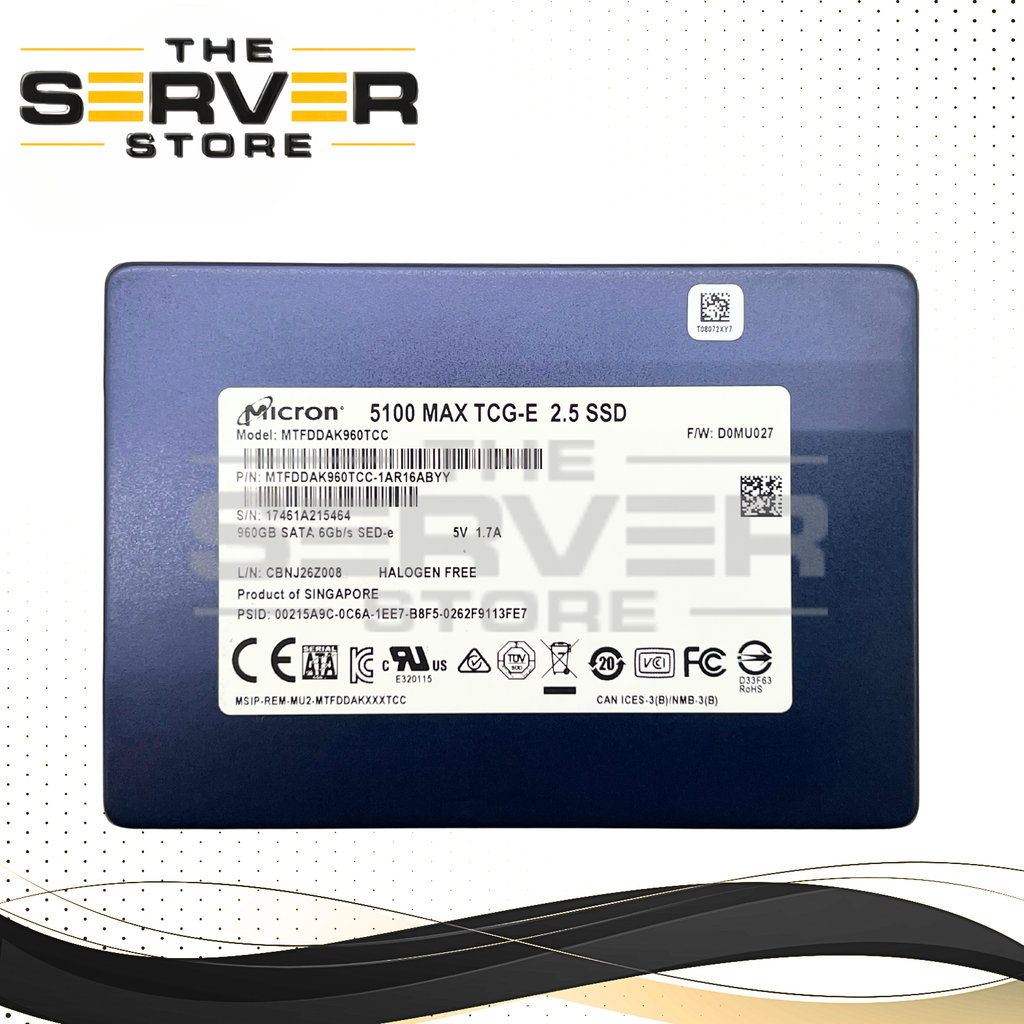

Micron 960GB SATA 6Gb/s MU SFF 2.5" SSD 5100 MAX Series MTFDDAK960TCC

The Micron 5100 MAX 960GB (Model: MTFDDAK960TCC) is a high-endurance, write-optimized enterprise SATA SSD built for demanding data center workloads. As part of Micron’s 5100 MAX series, this drive utilizes advanced 3D eTLC NAND technology and delivers an industry-leading 5 Drive Writes Per Day (DWPD) rating, making it ideal for write-intensive applications such as databases, virtualization, logging, and analytics environments.

Engineered for consistent steady-state performance, strong reliability metrics, and integrated power-loss protection, the 5100 MAX series is designed to meet enterprise-grade performance and endurance requirements.

---

Performance Specifications

• Sequential Read (128KB): Up to 540 MB/s

• Sequential Write (128KB): Up to 520 MB/s

• Random Read (4KB): Up to 93,000 IOPS

• Random Write (4KB): Up to 74,000 IOPS

• Latency (99.9% QoS): ~500µs (Read & Write)

Optimized for mixed and write-heavy workloads with steady-state enterprise performance tuning.

---

Endurance & Reliability

• Drive Writes Per Day (DWPD): 5 DWPD

• Total Bytes Written (TBW): Up to 8,800 TB (8.8 PB)
  (Some configurations may list 4,400 TB depending on firmware over-provisioning.)

• MTTF (Mean Time To Failure): 3.0 million device hours

• UBER: <1 sector per 10¹⁷ bits read

The “MAX” designation represents the highest endurance tier within the Micron 5100 product family.

---

Physical & Electrical Specifications

• Form Factor: 2.5-inch Small Form Factor (7mm height)

• Interface: SATA 6Gb/s (SATA III)

• NAND Type: Micron 3D eTLC (Enterprise Triple-Level Cell)

• Active Power Consumption: <5.0W

• Idle Power Consumption: ~2.5W

• Operating Temperature: 0°C to 70°C

---

Security & Advanced Features

• Power-Loss Protection (PLP): Integrated capacitors protect in-flight and at-rest data during unexpected power loss

• Encryption: Hardware-based AES 256-bit encryption

• Compliance Options: TCG Enterprise and FIPS 140-2 Level 2 validated models available

• FlexPro Architecture: Adjustable capacity provisioning to increase endurance or performance based on workload requirements

---

Related Part Numbers

• MTFDDAK960TCC

• MTFDDAK960TCC-1AR16ABYY

---

The Micron 5100 MAX 960GB (MTFDDAK960TCC / MTFDDAK960TCC-1AR16ABYY) is a premium enterprise SATA SSD delivering high endurance, strong write performance, and robust data protection—perfect for mission-critical, write-intensive data center environments.
