Description

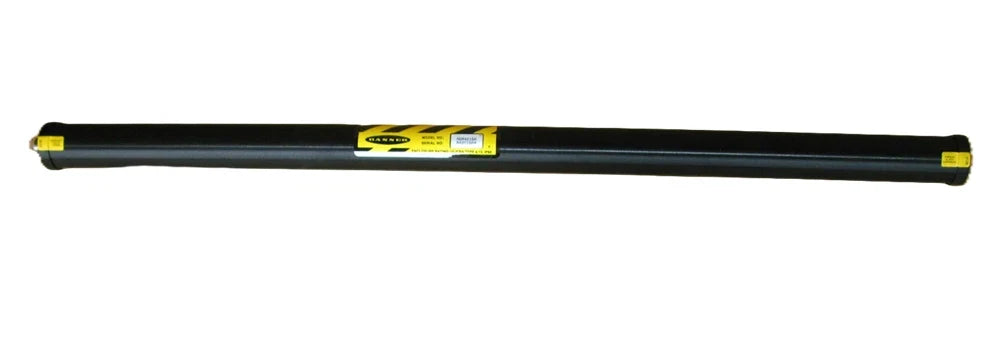

The Banner Engineering MGR4216A is a machine and perimeter guarding receiver and transmitter set designed to provide reliable safety detection across industrial access points. This system monitors a defined protective field to detect object intrusion with consistent response performance. It is engineered for use in automated machinery environments where personnel protection and operational continuity are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Industrial Safety & Machine Guarding |
| Part Number |
MGR4216A |
| Subcategory |
Machine & Perimeter Guarding Systems |
| Product Type |
Safety Light Curtain Receiver and Transmitter |
| Minimum Object Sensitivity |
1.50 in (38 mm), No Blanking |
| Height of Defined Area |
42 in (1067 mm) |
| Response Time |
40 ms |
| Enclosure Rating |
Type 4, 13 |
| IP Rating |
IP65 |
| Mounting Dimension L1 |
47.8 in (1214 mm) |
| Mounting Dimension L2 |
45.7 in (1161 mm) |
| Operating Environment |
Industrial |
| System Configuration |
Receiver and Transmitter Pair |
| Weight |
11 lbs |
Information About MGR4216A
The MGR4216A is part of Banner Engineering’s machine guarding safety light curtain series, designed for perimeter and access point protection in industrial facilities. It features a rugged housing with an environmental enclosure suitable for washdown and harsh operating conditions. The system integrates both receiver and transmitter units to establish a continuous protective field compatible with standard industrial safety control architectures. It is commonly used in manufacturing, material handling, and automated production cells where defined-area intrusion detection is required.
Key Features:
- Defined Area Protection: Establishes a monitored safety field across a 42-inch protective height to detect object intrusion.
- Minimum Object Sensitivity: Detects objects as small as 1.50 inches without blanking for consistent coverage.
- Fast Response Time: Provides a 40 ms response time to support rapid machine stop functions.
- Integrated Receiver and Transmitter: Supplied as a matched set to ensure alignment accuracy and system reliability.
- Industrial Enclosure Rating: Rated Type 4, 13 and IP65 for protection against dust, water, and industrial contaminants.
- Extended Mounting Length: Designed with mounting dimensions suitable for stable perimeter and access-point installation.
- Safety Application Ready: Suitable for machine guarding and perimeter protection in automated environments.
The MGR4216A delivers the reliability and precision required for industrial machine guarding and perimeter safety applications.
