Description
🚨 Protect Your Lab from Invisible Gas Hazards Before They Become Violations
The Methane (CH4) Fixed Gas Detection System with Remote Sensor (MSC2) is an industrial-grade flammable gas detector designed for continuous methane leak monitoring in high-risk environments.
This system combines advanced gas sensor technology with real-time gas detection to protect personnel and facilities from combustible gas hazards.
Built for industrial applications, this fixed gas monitoring system uses a remote gas detection sensor to identify methane leaks at the source, enabling fast response, alarm activation, and system integration with ventilation or shutdown controls.
Features
-
Continuous Methane Leak Detection (CH4 Monitoring)
-
Remote Sensor for Hazard-Zone Detection
-
Industrial-Grade Fixed Gas Detection System
-
Configurable Alarm System (Audio/Visual + Relays)
-
Flexible Multi-Gas Platform (MSC2 Controller)
-
BMS & PLC Integration Ready (Modbus / DGC-06)
-
Reliable Power Options for Any Facility
- Rugged IP65 Enclosure for Industrial Use

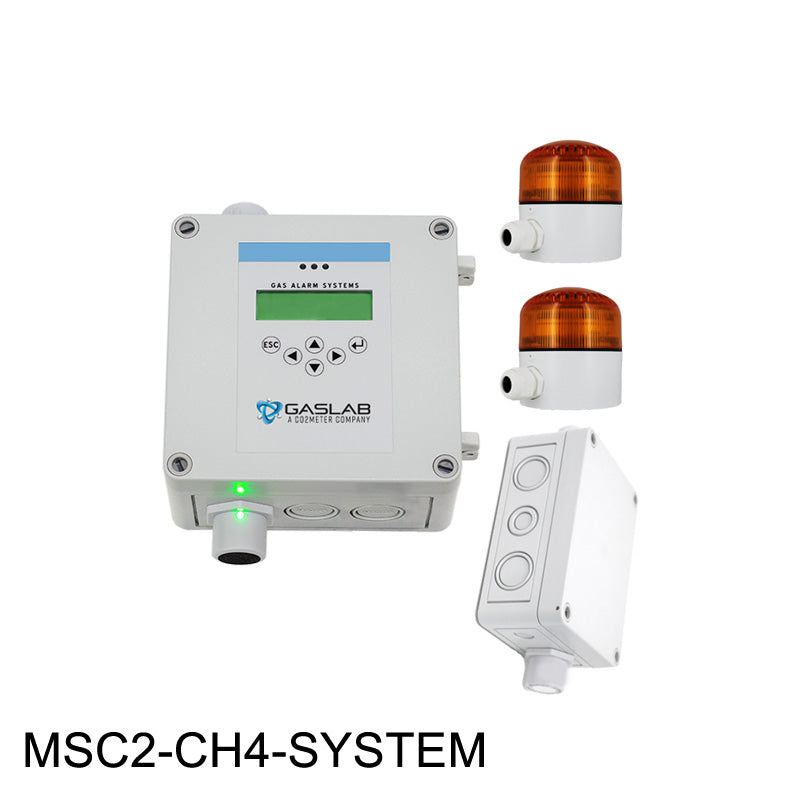

📦 What’s Included?
- MSC2 Fixed Gas Detection Controller (Main Display Unit)
- (1) Remote Methane (CH4) Gas Sensor
- (2) Audible & Visual Horn/Strobe Alarms
- Pre-Configured Alarm Relays (3 Outputs)
- Power Supply Compatibility (100–240 VAC / 24 VDC)
- Wall-Mount Hardware & Installation Kit
- User Manual & Quick Start Guide
Specifications
- Measurement Range: 0–100% LEL
- Gas Type: Methane (CH4)
- Housing Type C/E:Â Polycarbonate
- Installation:Â Wall Mounted
- Knockouts for Cable Entry:Â Standard 6x M20/25
- Ingress Protection:Â IP65
-
Temperature Range: -13°F to 140°F (-25°C to 60°C)
- Humidity Range:Â 15-95% RH non-condensing
- Storage Temperature: -4°F to 149°F (-20°C to 65°C)
- Power Supply: 100-240 VAC or 24VDC
- Power Consumption:Â 24 VDC | Max. 60 mA (1.5 VA), w/ sensor, w/o WAO
- Alarm Relay (3):Â 5 A Dry Contact Configurable
- Transistor Output (2): 24 V DC/0.1 A
- Analog Input (2/3): 4-20mA, overload and short-circuit proof, input resistance 130 proportional, overload and short-circuit proof, load ≤ 500 4–20 mA = measuring range
-
Analog Output Signal (1):
- 2.4–< 4 mA = tolerable under range
- 20–21.2 mA = tolerable over rangeÂ
- ≥ 21,2 mA= error over range
- ≤ 2,0 mA = fault
- Controller Dimensions: 5.12 x 5.12 x 2.95 in. (130 x 130 x 75 mm)
- Controller Weight: 1.32 lbs. (0.6 kg)
Comparison Chart
| Feature | CO2Meter | Others |
|---|---|---|
| Custom Configurations | ✅ | Limited |
| Direct Expert Support | ✅ | Distributor only |
| Turnkey Compliance Focus | ✅ | Partial |
| Modular Multi-Gas | ✅ | ✅ |
