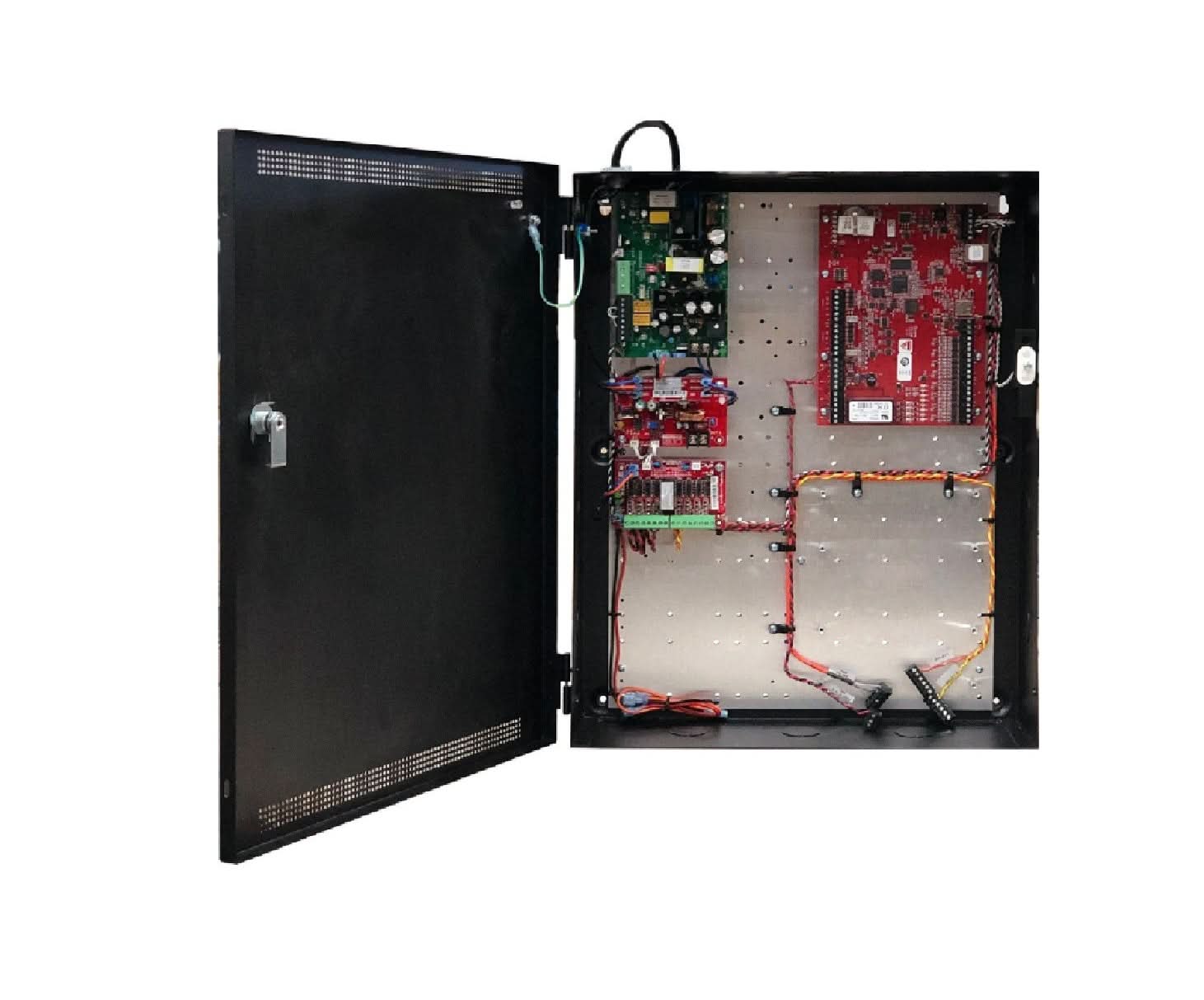

The ADC-AC-LP1502-PSE Door Controller & Power Kit comes with a Door Controller pre-wired to a 12/24V DC dual-voltage power supply and can support two supervised readers and Can manage up to 34 readers when used with the ADC-AC-MR50 and ADC-AC-MR52 expansion modules. This self-contained kit can provide power for a complete 1 or 2 Door access control system



Specifications

Model Number:  ADC-AC-LP1502-PSE

Brand:  Mercury

Alt Part Number(s):  ADC-AC-LP1502-PSE

Product Type:  Door Controller Kit



Technical Description

Brand:  ‎Mercury

Model:  ‎ ADC-AC-LP1502-PSE

Supported Doors:  2 doors standard, expandable to 4 doors in enclosure

Maximum Readers:  Up to 34 readers with expansion modules

Controller Input Power:  12–24 VDC, 500 mA max

Reader Outputs:  300 mA max per reader

Reader Inputs:  2 dedicated reader inputs

Expansion Bus:  1 × RS-485

Programmable Inputs:  8

Tamper Input:  1

Relay Outputs:  4

Battery Charging:  0.7 A or 1.6 A selectable

Auxiliary Output:  1.5 A
