[properties]
| Properties |

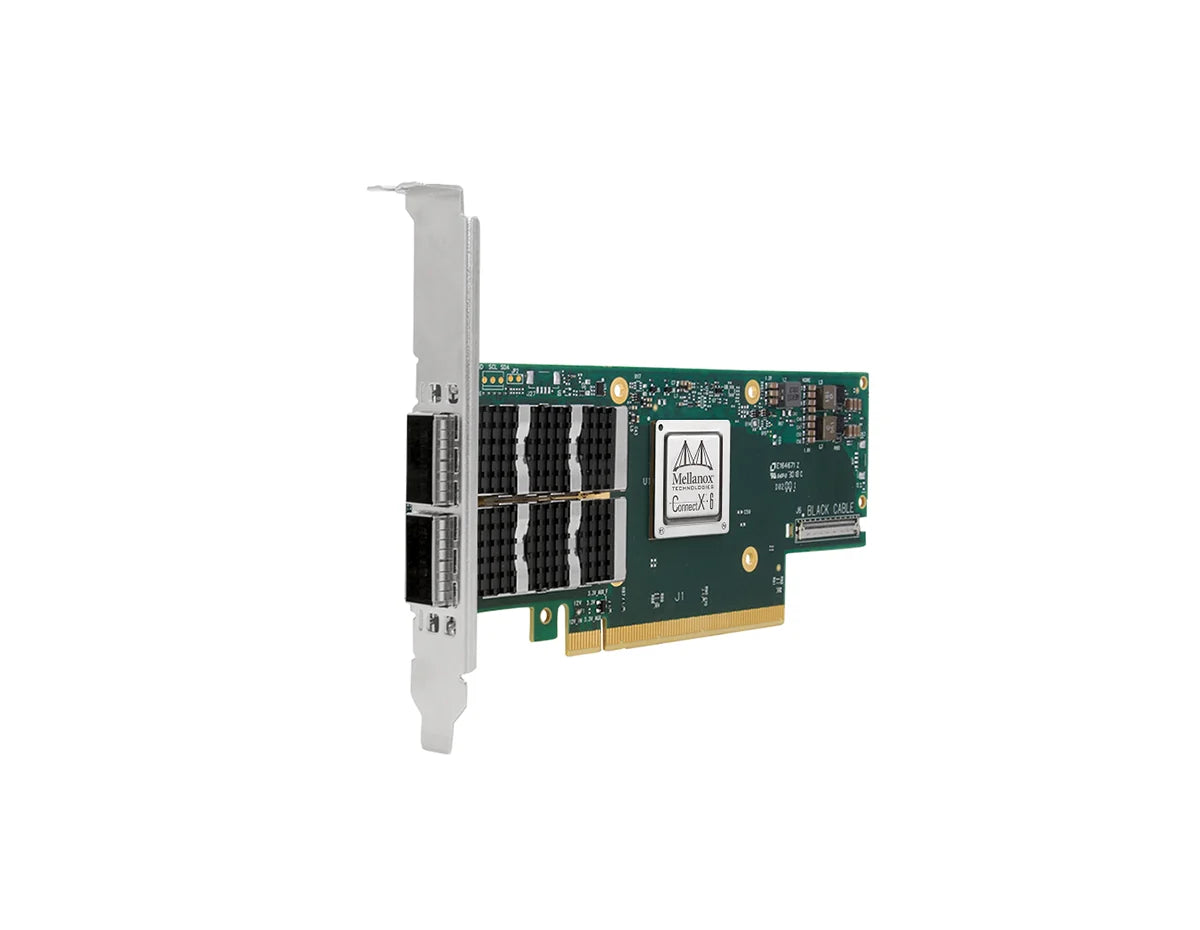

Mellanox MCX653106A-ECAT-SP ConnectX-6 VPI Adapter Card |
| Description |
The Mellanox MCX653106A-ECAT-SP: ConnectX-6 VPI card with HDR100 EDR InfiniBand and 100GbE Ethernet connectivity, low latency (<600ns), and high processing capability (215 million messages/sec). Ideal for data center applications, offering efficiency and scalability enhancements. |
| Product Family |
Mellanox Adapter Card |
| Product Type |
Adapter Card |
[/properties] [specifications]
| Specifications |
Mellanox MCX653106A-ECAT-SP ConnectX-6 VPI Adapter Card |
| Capacity |
100Gigabit Ethernet Card |
| Interfaces/Ports |
| Host Interface |
PCI Express 4.0 x16 |
| Total Number Of Ports |
2 |
| I/O Expansions |
| Expansion Slot Type |
QSFP56 |
| Media & Performance |
| Media Type Supported |
Optical Fiber |
| Network & Communication |
| Network Technology |
100GBase-X
50GBase-X
40GBase-X
25GBase-X
10GBase-X |
| Physical Characteristics |
| Form Factor |
Standup |
| Miscellaneous |
| Environmentally Friendly |
Yes |
| Environmental Certification |
Hazard Assessment of Perfluorooctane Sulfonate (PFOS) |
[/specifications]
Mellanox MCX653106A-ECAT-SP ConnectX-6 VPI Adapter Card
The Mellanox MCX653106A-ECAT-SP is a member of the ConnectX-6 family. The ConnectX-6 VPI cards offer dual ports of HDR100 EDR InfiniBand and 100GbE Ethernet connectivity, with a latency of less than 600ns and the ability to process 215 million messages per second. These features make the cards a highly efficient and adaptable solution for addressing the increasing requirements of data center applications. In addition to retaining the innovative characteristics of previous iterations, the ConnectX-6 cards incorporate several enhancements to enhance their performance and scalability.
Quick Specs:
- Up to 200Gb/s connectivity per port
- Sub 0.6usec latency
- FIPS capable
- PCIe Gen 3.0 and Gen 4.0 support
Please see the related tabs for the MCX653106A-ECAT-SP datasheet and compatible accessories.
