ConnectX-6 Dx EN Adapter Card OCP3.0 100GbE with Host Management Dual-Port QSFP56 PCIe 4.0 x16 No Crypto Thumbscrew Pull Tab Bracket [/shortdesc]
[properties]
| Product Name |
Mellanox MCX623436AN-CDAB Adapter Card |
| Description |
Small form factor SmartNIC optimized for cybersecurity, virtualization, and data-intensive applications |
| Product Family |
ConnectX-6 Dx Ethernet Adapter Cards |
| Product Type |
Network Adapter Card |
| Interface |
PCIe Gen 3.0 / 4.0 x16 |
| Network Connector Type |
Dual-port QSFP56 |
| Ethernet Data Rate |
Supports 10/25/40/50/100 Gb/s |
| Dimensions |
Small Form Factor (SFF) OCP 3.0, 4.52 in. x 2.99 in (115.00mm x 76.00mm) |
| Retention Mechanism |
Thumbscrew (Pull Tab) Bracket |
| Compliance |
RoHS Compliant |
| IC Part Number |
MT28928A0-XCCFCE |
| Host Management |
Supported |
| Device ID |
PF: 4125, VF: 4126 |
| Latency |
Sub 0.8 µsec |
[/properties]
[specifications]
| Protocol Support |
PAM4/NRZ technology for high-speed Ethernet up to 100Gbps |
| Key Features |
Non-crypto, Hardware Root-of-Trust, Secure Firmware Update |
| Message Rate |
Up to 215 million packets per second (Mpps) |
| Supported Architectures |
x86, Power, and Arm |
| Environmental Specifications |
Operational Temperature: 0°C to 55°C, Storage Temperature: -40°C to 70°C |
| Cooling |
Passive |
| Compliance Standards |
CE, FCC, UL |
| Management Features |
Programmable pipeline for flexible network flow adaptation |
| Supported Environments |
Cybersecurity, SDN/NFV, big data, machine learning, and storage infrastructures |
| Power Consumption |
Typical: 18.5W |
[/specifications]

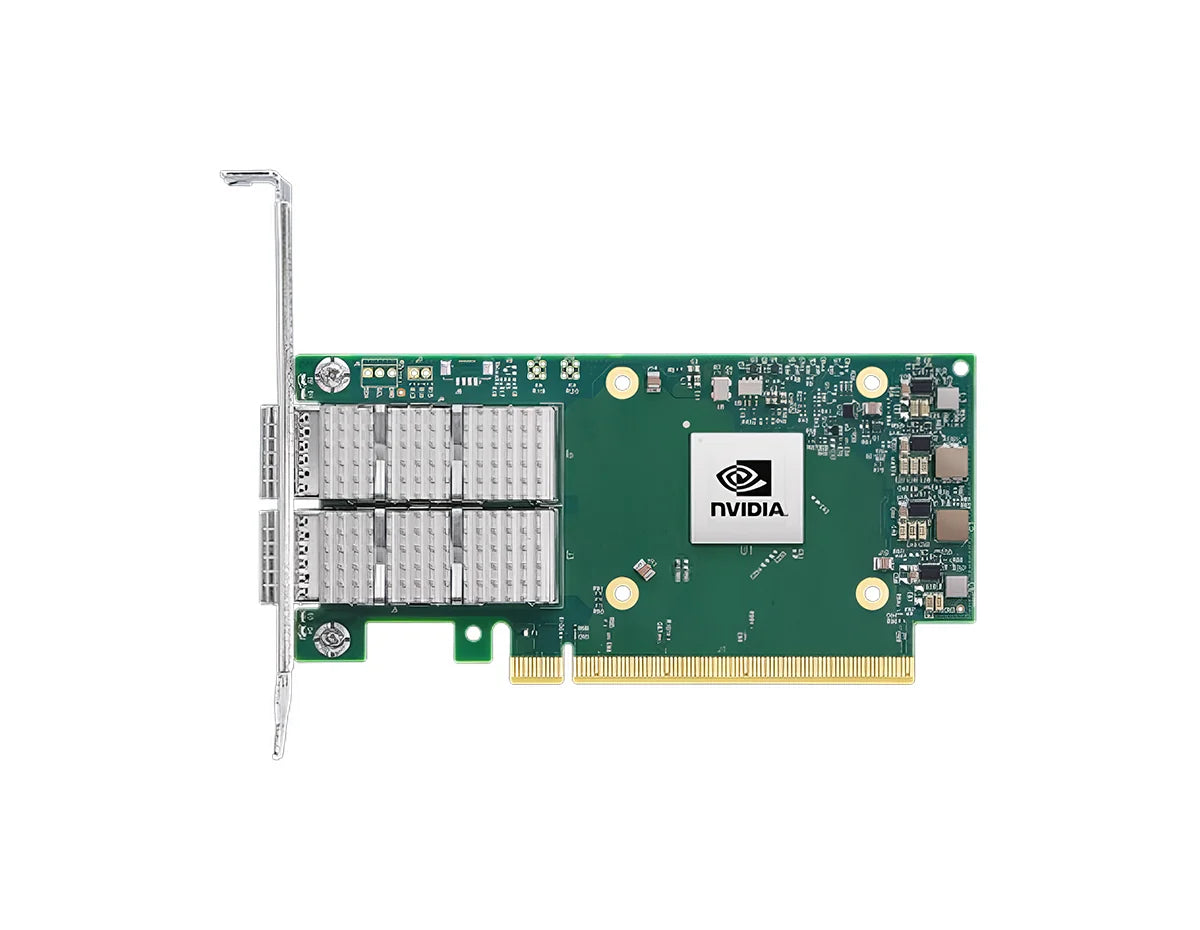

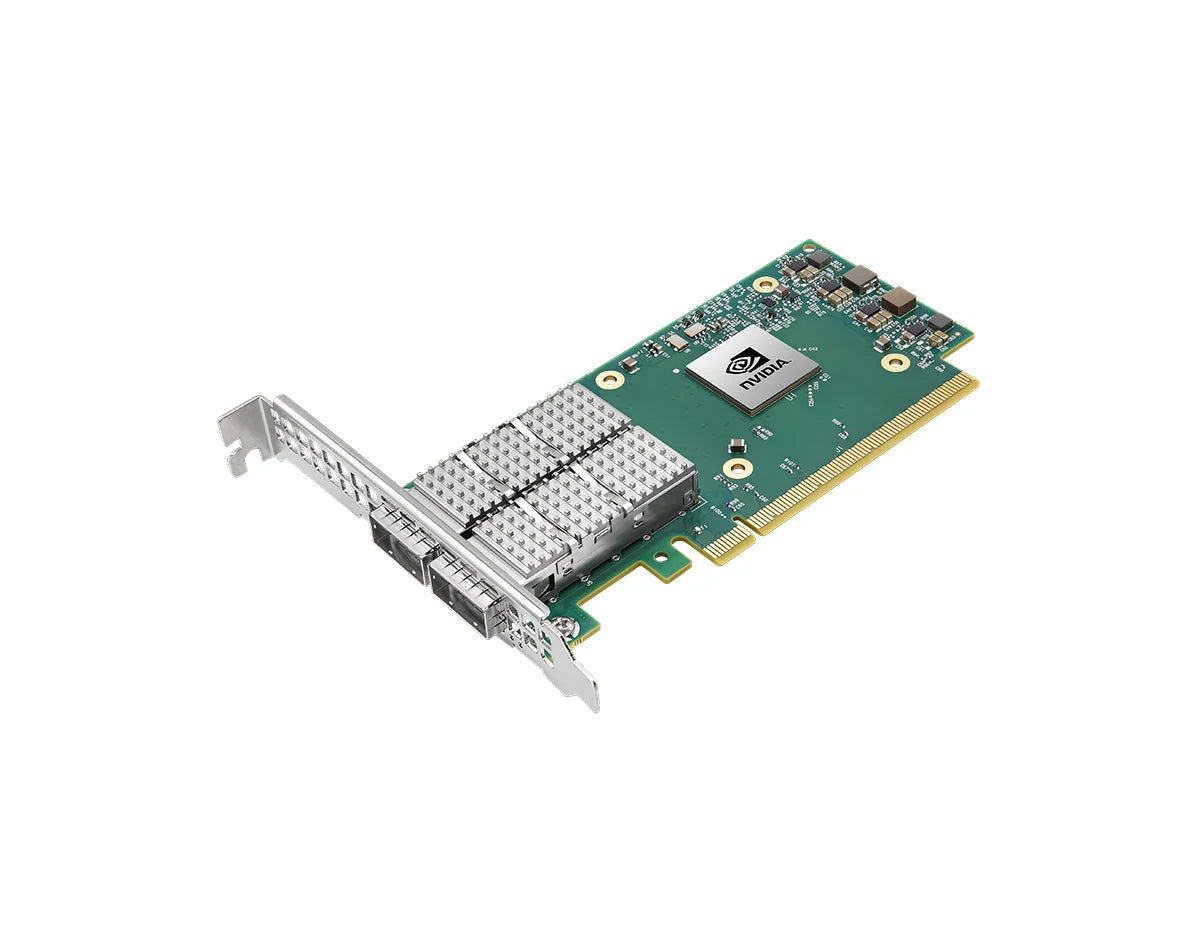

Mellanox MCX623436AN-CDAB Adapter Card
The MCX623436AN-CDAB is a small form factor SmartNIC card that excels in cybersecurity, virtualization, SDN/NFV, big data, machine learning, and storage infrastructures. It utilizes PAM4/NRZ technology and supports up to 100 Gbps Ethernet speed. It implements Hardware Root-of-Trust and secure firmware update capabilities. It also features a programmable pipeline for adapting to new network flows.
Key Features:
- Non-crypto
- Message rate: 215 Mpps
- Sub 0.8 usec latency
- Supports x86, Power, and Arm architectures
