- 5 EN, PCIe 3.0 x16, Network adapter, 100 Gigabit QSFP28 x 2
[properties]
| Product Name |
Mellanox MCX516A-CCAT Network Adapter |
| Product Description |
The Mellanox MCX516A-CCAT is a high-performance Ethernet adapter designed to deliver exceptional networking capabilities. It features dual 100Gb/s Ethernet ports, providing less than 700 nanoseconds latency and high message rates. Ideal for data centers and demanding applications, it supports NVMe over fabric offloads for enhanced performance and scalability. |
| Product Family |
Mellanox ConnectX-5 Series |
| Product Type |
Network Adapter Card |
| Connector |
Dual QSFP28 (copper and optical) |
| Data Rate |
Ethernet: 1/10/25/40/50/100 Gb/s |
| PCI Express Gen 3.0 |
SERDES @ 8.0GT/s, 16 lanes (2.0 and 1.1 compatible) |
| Voltage |
12V |
| Maximum Current |
100 mA |
| Typical Power (Passive Cable) |
16.2 W |
| Maximum Power (Passive Cable) |
19.0 W |
| Maximum Power (Active 1.5W Cable) |
22.3 W |
| Maximum Power (Active 2.5W Cable) |
24.6 W |
[/properties]
[specifications]
| Size |
2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile |
| Message Rate |
Less than 700 nanoseconds latency |
| Sub 0.8 µs Latency |
Yes |
| Supported Architectures |
x86, Power, Arm |
| Airflow (Passive Cable) |
350 LFM |
| Airflow (Active 1.5W Cable) |
500 LFM |
| Airflow (Active 2.5W Cable) |
600 LFM |
| Airflow (Active 3.5W Cable) |
650 LFM |
| Airflow (Active 5W Cable) |
1300 LFM |
| Operating Temperature |
Operational: 0°C to 55°C, Non-operational: -40°C to 70°C |
| Humidity |
Operational: 10% to 85% relative humidity, Non-operational: 10% to 90% relative humidity |
| Altitude (Operational) |
3050 m |
| Regulatory Compliance |
Safety: CB / cTUVus / CE, EMC: CE / FCC / VCCI / ICES / RCM, RoHS: RoHS-R6 |
[/specifications]

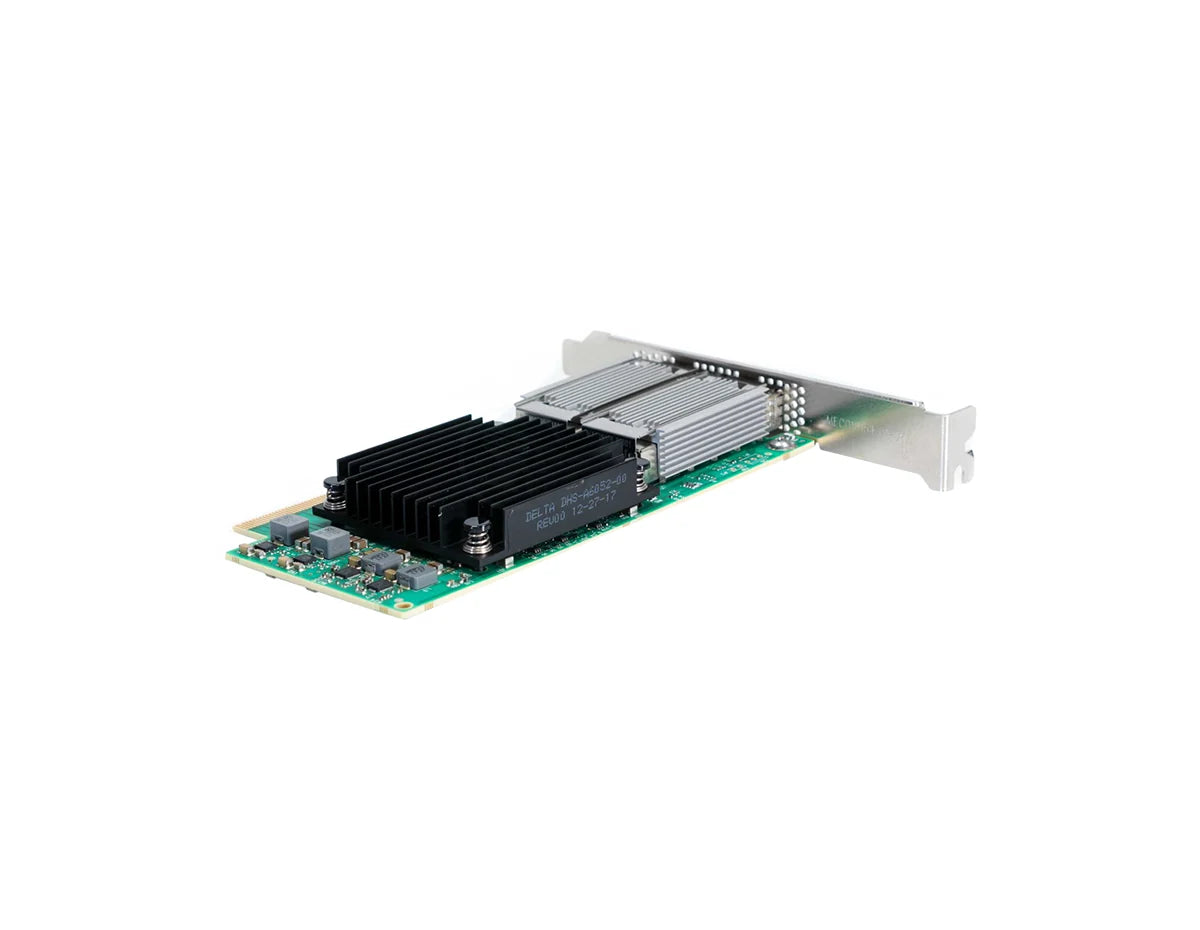

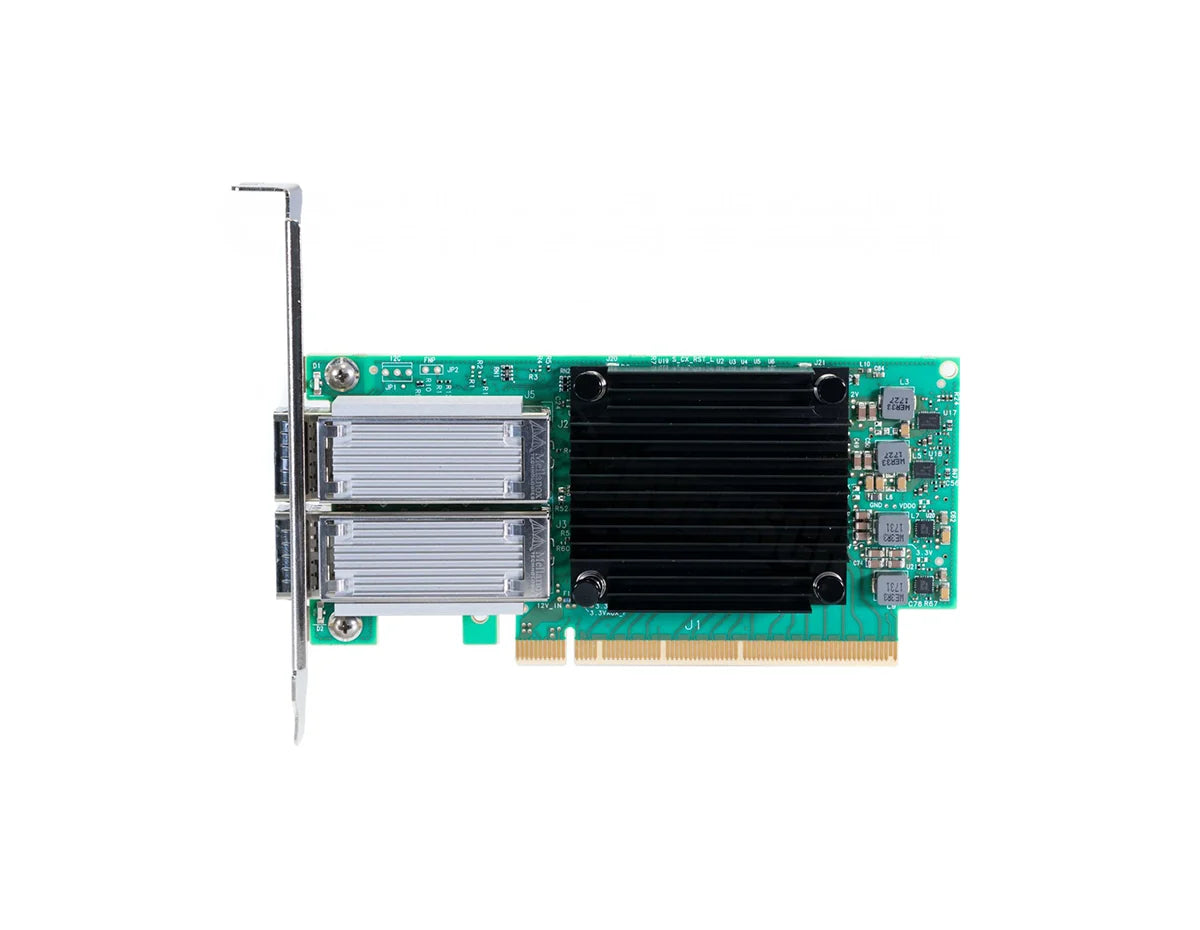

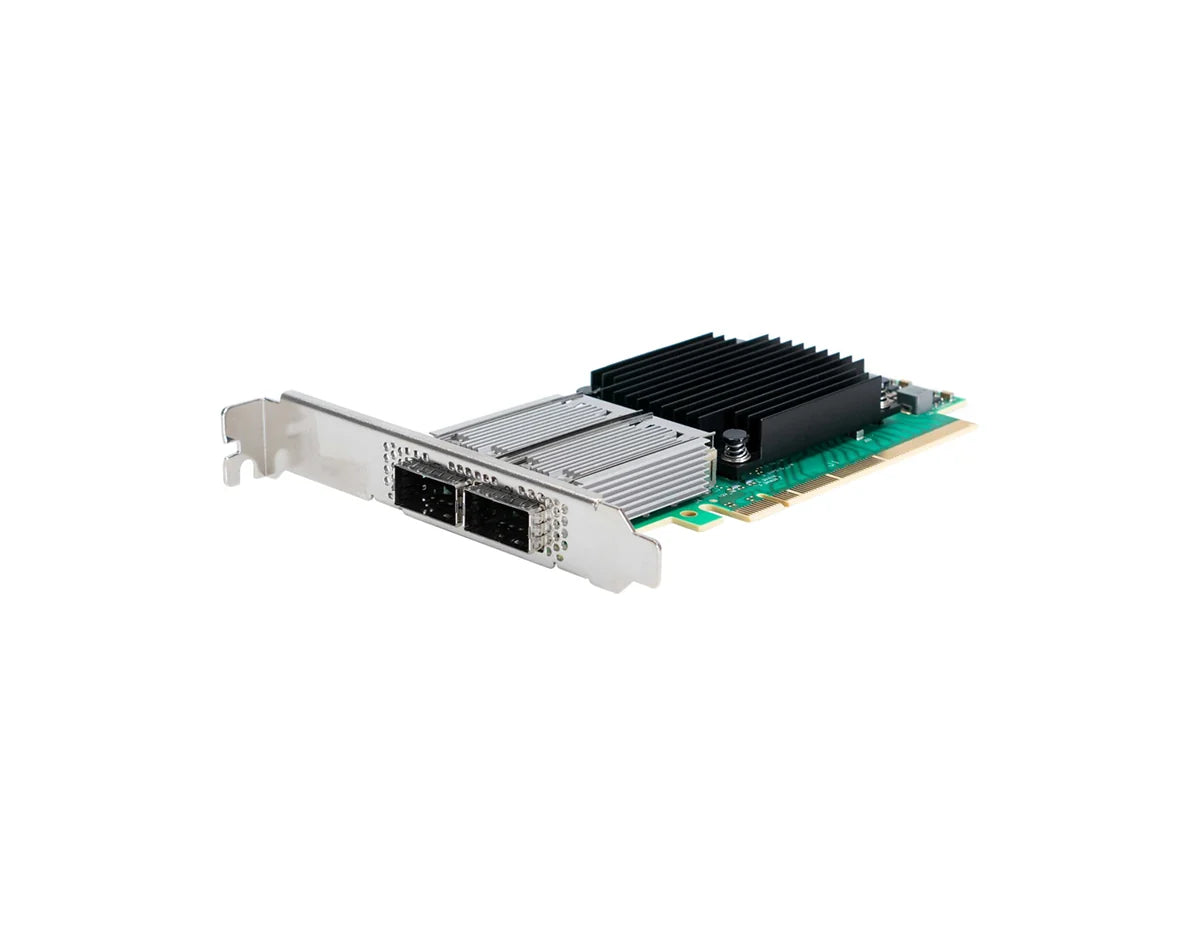

Mellanox MCX516A-CCAT Network Adapter
The Mellanox MCX516-CCAT is a member of the ConnectX-5 Ethernet Adapter Cards family. This product is designed to deliver high bandwidth and low latency for modern data centers. The MCX516-CCAT provides dual 100Gb/s Ethernet ports, less than 700 nanoseconds latency, and a high message rate, offering superior performance and adaptability for highly demanding applications and industries.
Quick Specs:
-
16x PCIe 3.0
-
Dual-port QSFP28
-
Tall Bracket
-
NVMe over fabric offloads
Please see the related tabs for the MCX516-CCAT datasheet and compatible accessories.
