Description

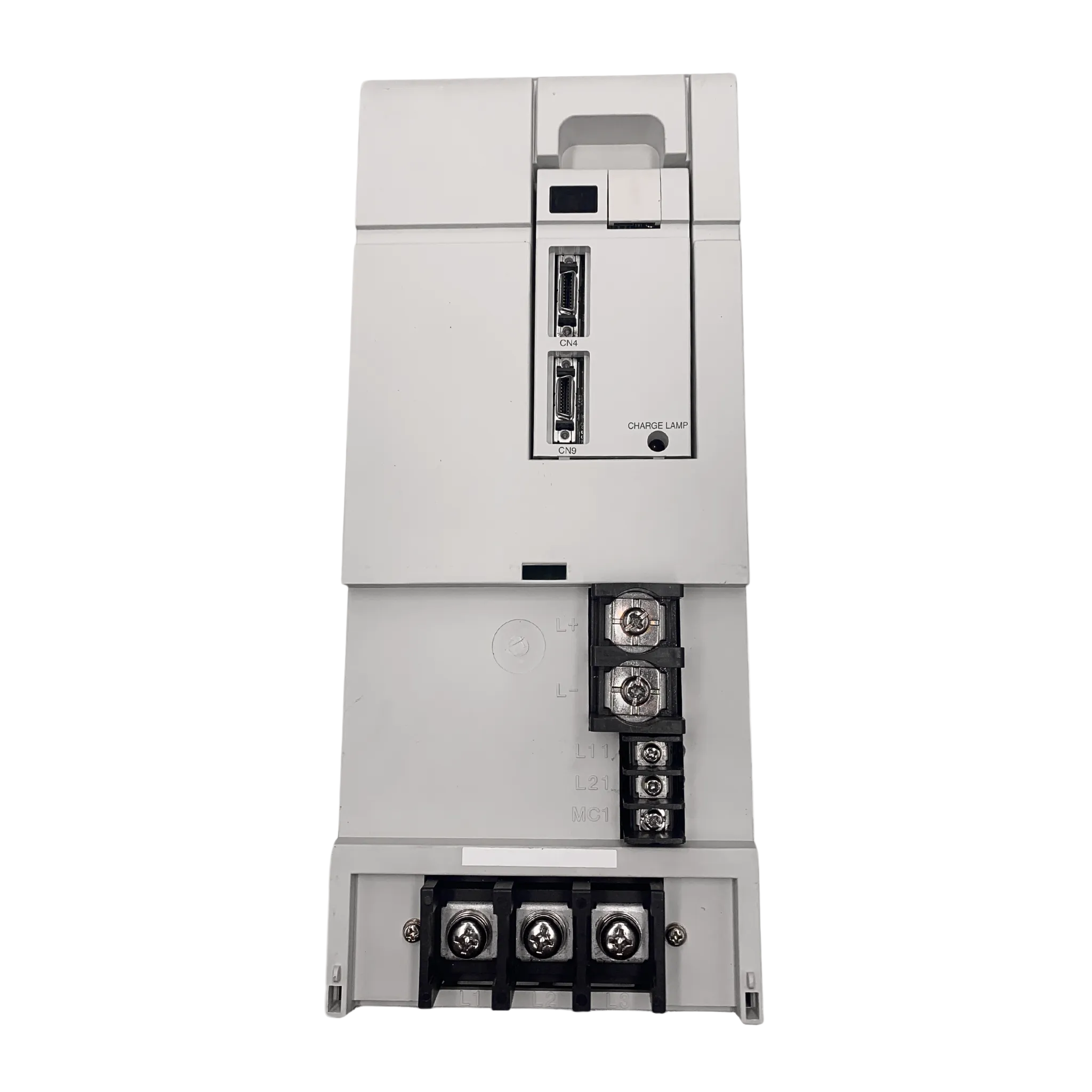

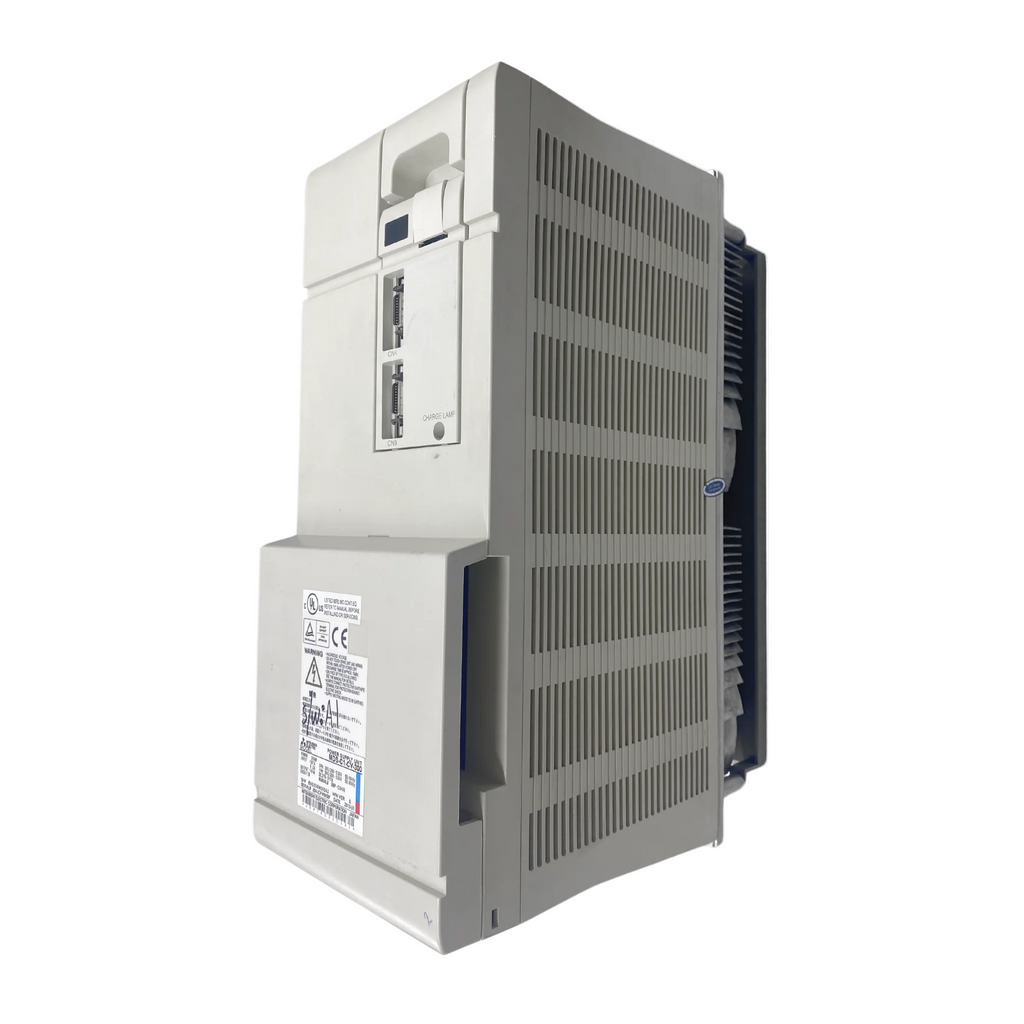

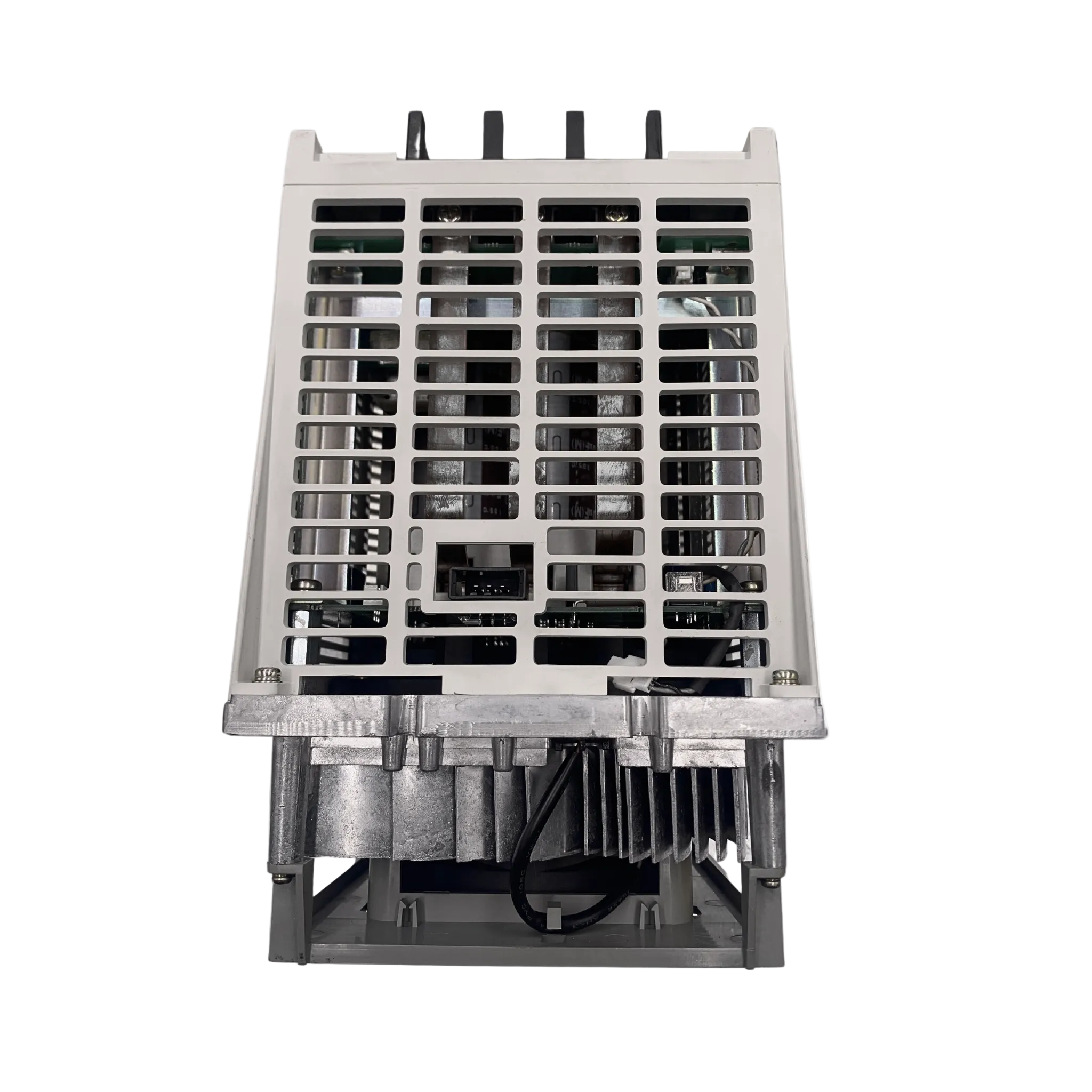

The Mitsubishi MDS-C1-CV-300 servo driver is a high-capacity AC servo converter designed to supply regulated DC power for CNC and multi-axis servo systems. With a rated output of 30 kW, it delivers stable voltage and current to support demanding industrial motion control applications. This unit is commonly used as a servo power supply within Mitsubishi MDS servo drive architectures.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Mitsubishi |
| Category |
Motion Control |
| Part Number |
MDS-C1-CV-300 |
| Subcategory |
Servo Drivers |
| Product Line |
MDS Servo Drives |
| Product Type |
AC Servo Converter / Power Supply Unit |
| Rated Output Power |
30.0 kW |
| Input Voltage |
200–230 VAC |
| Input Phase |
3-Phase |
| Input Current |
107 A |
| Rated Output Voltage |
DC 270–311 V |
| Output Current |
144 A |
| Cooling Method |
Integrated Cooling Fan |
| Noise Level |
< 55 dB |
| Application |
CNC and industrial servo systems |
| Compliance |
Meets European Safety Standards |
| Weight |
13.06 lbs (5.93 kg) |
Information About MDS-C1-CV-300
The MDS-C1-CV-300 is part of Mitsubishi Electric’s MDS Servo Drives product line, engineered for high-performance CNC and automation systems. It functions as a servo power supply unit, converting three-phase AC input into controlled DC output for downstream servo amplifiers. The unit incorporates an integrated cooling fan to maintain thermal stability during continuous high-load operation. Designed to meet European safety standards, it is suitable for industrial environments requiring reliable, high-power motion control infrastructure.
Key Features:
- High-Power Servo Converter: Provides 30.0 kW rated output for CNC and multi-axis servo systems.
- Three-Phase AC Input: Operates on 200–230 VAC three-phase power for industrial compatibility.
- Regulated DC Output: Supplies DC 270–311 V to connected servo amplifiers.
- High Output Current Capacity: Delivers up to 144 A for demanding motion control loads.
- Integrated Cooling Fan: Ensures effective heat dissipation during continuous operation.
- Low Operating Noise: Rated below 55 dB for reduced acoustic impact in control cabinets.
- CNC System Integration: Designed for use within Mitsubishi MDS-based CNC architectures.
The MDS-C1-CV-300 delivers the reliability and precision required for high-power CNC servo power supply and industrial motion control systems.
