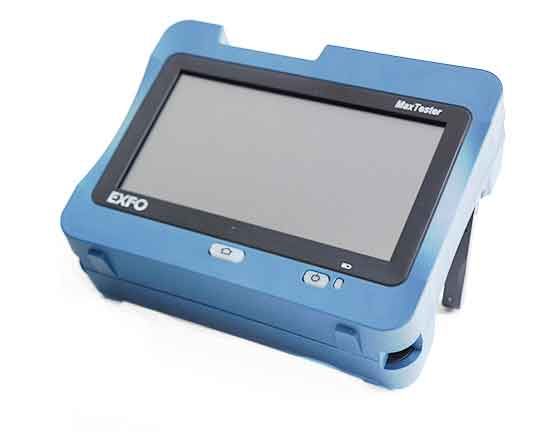

EXFO MAX‑945 Fiber Certifier – OLTS with VFL, Optical Power Meter, Wi‑Fi/Bluetooth, SC/APC + SC/UPC Adapters

The EXFO MAX‑945 is a powerful, full-featured Optical Loss Test Set (OLTS) designed for Tier‑1 fiber certification. It includes a built-in Visual Fault Locator (VFL), a high-precision optical power meter, and advanced connectivity via Wi‑Fi and Bluetooth. Engineered for speed and accuracy, it supports both APC and UPC connector types with swappable SC adapters, making it ideal for field technicians working in enterprise, data center, or telecom environments.

Key Features:

• Dual-wavelength loss testing: 1310 nm and 1550 nm for single-mode fiber

• FasTesT™ mode performs bidirectional loss, ORL, and length testing in under 5 seconds

• Integrated Visual Fault Locator (VFL) for fault detection up to ~5 km

• Optical power meter for precise signal and loss measurements

• Wi‑Fi and Bluetooth enabled for wireless data transfer and cloud sync

• Includes EA APC connector, with swappable SC/APC and SC/UPC adapters

• 7” touchscreen interface with intuitive controls

• Semi-rigid carrying case and North American power cordset included

• Onboard PDF report generation; supports EXFO FastReporter 2 software

Applications:

• Tier‑1 certification and troubleshooting of single-mode fiber networks

• Optical loss and return loss measurement in field environments

• Visual inspection and continuity checks during installation or repair

Technical Specifications:

• Wavelengths: 1310 nm / 1550 nm

• Connector Interface: EA APC (default), includes SC/APC and SC/UPC adapters

• VFL: 650 nm laser, Class 2

• Optical Power Meter: Built-in, calibrated for precision testing

• Connectivity: Wi‑Fi and Bluetooth

• Display: 7” touchscreen

• Power Supply: North American cordset (120 VAC / 60 Hz)

• Carrying Case: Semi-rigid included

• Reporting: Onboard PDF export, FastReporter 2 compatible

• Language: English manual included

Notes:

• Reference-grade test cords and inspection probes sold separately

• SKU: MAX945ICERTQ1QUADEAEAEUI91EIEUI91VFLGP10089
