Description

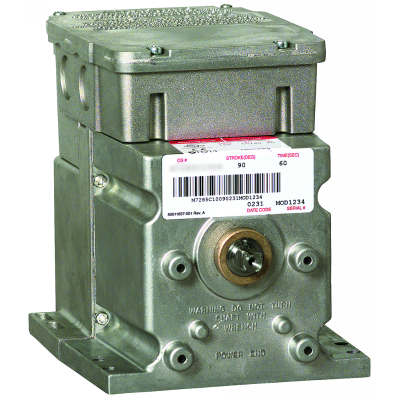

The Honeywell M9175D1014 is a 24V spring-return actuator motor designed for valve and damper control in HVAC and flame safety applications. This medium-torque actuator provides reliable performance with an oil-immersed motor and gear train for extended service life. Featuring an adjustable stroke and dual-ended shaft, it ensures precise operation in demanding industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Flame Safety Products |
| Part Number |
M9175D1014 |
| Subcategory |
Valve Actuator |
| Voltage |
24V AC, 50/60 Hz |
| Torque |
25 lb-in (2.8 N·m) |
| Stroke |
Adjustable 90° to 160° |
| Motor Rotation |
Counterclockwise to closed on power loss |
| Control Type |
Series 90 proportioning control circuit |
| Timing |
30 sec (90° stroke) / 60 sec (160° stroke) |
| Shaft Type |
Dual-ended, 3/8 in (9.5 mm) square |
| Housing |
NEMA 3 weather-protected, die-cast aluminum |
| Ambient Temperature Range |
-40°F to 150°F (-40°C to 66°C) |
| Wiring Connections |
Quick-connect terminals |
| Auxiliary Switch Support |
Yes, factory or field installed |
| UL Listing |
File No. E4436 |
| CSA Certification |
LR1620 |
| Weight |
12.03 lbs |
Information About M9175D1014
The M9175D1014 is part of Honeywell’s Modutrol® IV Series 90 actuators, built for controlling valves and dampers in commercial, industrial, and safety-related systems. It delivers a torque of 25 lb-in and operates on a Series 90 proportioning control circuit. This actuator features a dual-ended shaft, adjustable stroke from 90° to 160°, and an integral spring-return mechanism that drives the motor to the closed position upon power loss. Designed for high reliability, it includes weather-protected housing and compatibility with multiple auxiliary switches and control modules.
Key Features:
- Adjustable Stroke: Configurable from 90° to 160° for versatile applications.
- Spring-Return Mechanism: Automatically closes valve or damper when power is interrupted.
- Medium Torque Output: 25 lb-in for dependable operation in HVAC and safety systems.
- Oil-Immersed Motor and Gear Train: Ensures smooth operation and extended lifespan.
- Dual-Ended Shaft: Enhances installation flexibility for various linkage configurations.
- Weather-Protected Housing: NEMA 3 enclosure provides durability in harsh environments.
- Quick-Connect Terminals: Standard connections for ease of installation.
- Auxiliary Switch Compatibility: Supports factory or field-added switches for extended control.
The M9175D1014 delivers the reliability and precision required for valve and damper actuation in safety-critical environments.
