Description

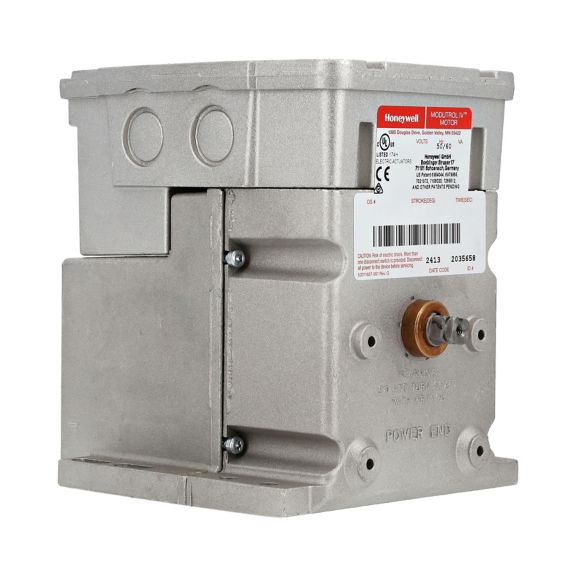

The Honeywell M9164D1009 is a foot-mounted, non-spring return Modutrol IV electric actuator designed for proportional control in HVAC systems. Powered by 24 VAC, it provides adjustable stroke control with a torque output of up to 60 lb-in and supports upgradeability to Series 70 functionality.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
|
| Part Number |
M9164D1009 |
| Subcategory |
Valve Actuator |
| Series |
Modutrol IV |
| Voltage |
24 VAC |
Frequency
|
50/60 Hz |
| Torque |
60 lb-in
|
| Timing |
30 / 60 second |
| Stroke |
Adjustable 90° to 160° (asymmetrical) |
| Control Signal |
Proportional, 135 ohm |
| Fail-Safe Mode |
Non-Spring Return |
| Mounting |
Foot-mounted |
| Dimensions |
6 7/16" H × 5 1/2" W × 8 3/4" D |
| Operating Temperature Range |
-40°F to 150°F |
| Weight |
6.00 lbs
|
Information About M9164D1009
The M9164D1009 is part of Honeywell’s Modutrol IV actuator series and is built for use in commercial and industrial ventilation, heating, and cooling systems. The actuator features a 24 VAC power supply, operates at 50/60 Hz, and delivers a torque of up to 60 lb-in for reliable damper or valve positioning. It supports proportional control using a 135-ohm input signal and includes an adjustable stroke range from 90° to 160°, enabling precise airflow or fluid regulation. The unit’s dual-ended square shaft allows flexible mechanical linkage, while quick-connect terminals simplify electrical wiring. Although it lacks native feedback, it can be equipped with external auxiliary switches and upgraded to Series 70 control with optional interface modules.
Key Features:
- Proportional Control: Accepts 135-ohm signal for smooth modulation.
- Adjustable Stroke: Configurable between 90° and 160° to meet system requirements.
- Non-Spring Return: Maintains position on power loss, suitable for applications not requiring fail-safe return.
- High Torque Output: Provides up to 60 lb-in for reliable operation in heavy-duty systems.
- Series 70 Upgradeable: Can be upgraded with interface modules for Series 70 compatibility.
- Compact, Rugged Design: Measures 6 7/16" H × 5 1/2" W × 8 3/4" D and built to withstand -40°F to 150°F.
- Dual-Ended Shaft: .375 in square shaft supports flexible installation in damper or valve linkages.
- Quick Connect Terminals: Simplify field wiring and commissioning.
The M9164D1009 actuator delivers dependable motorized control with flexible installation options and upgrade potential for enhanced automation.
