Description

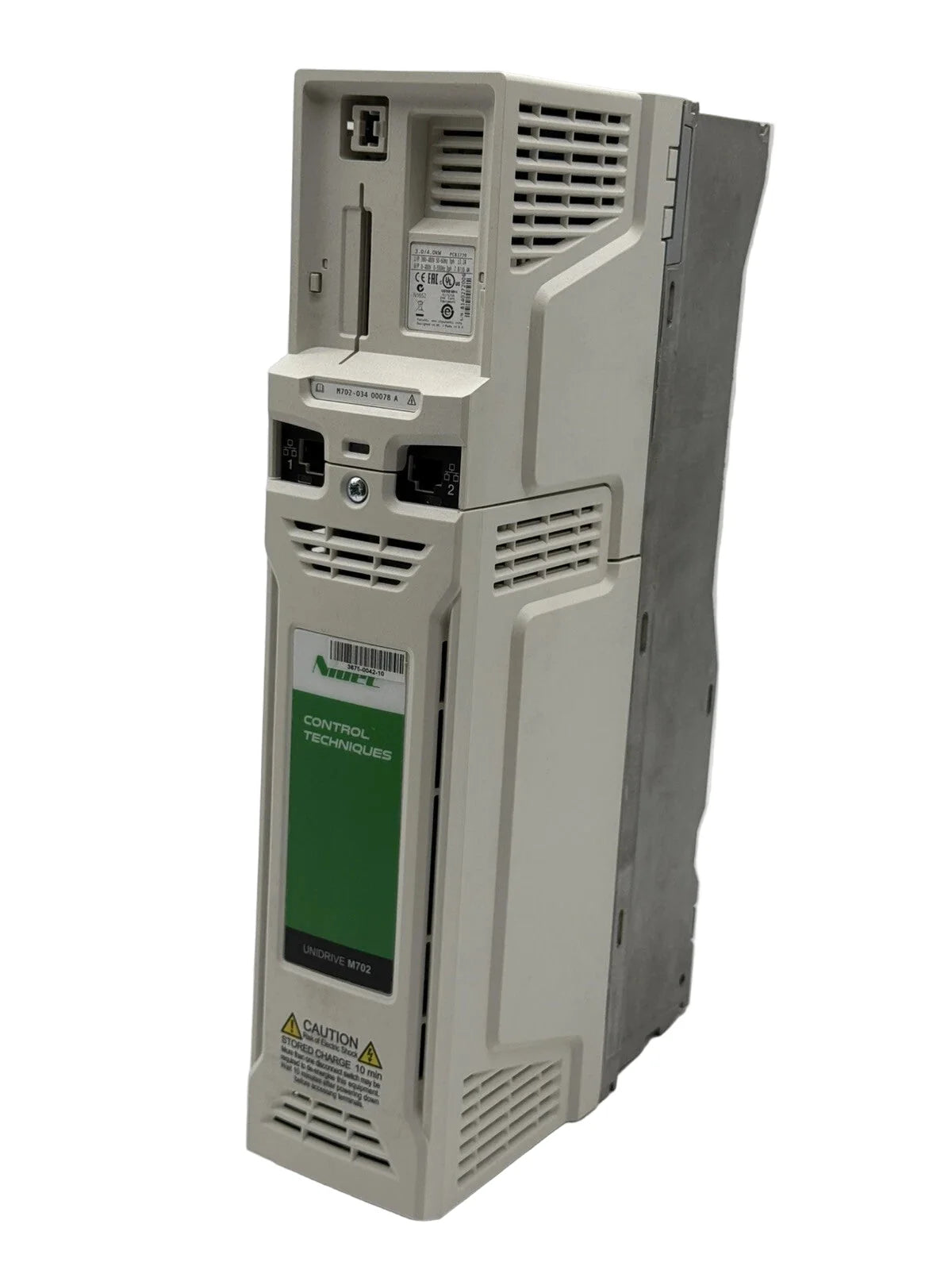

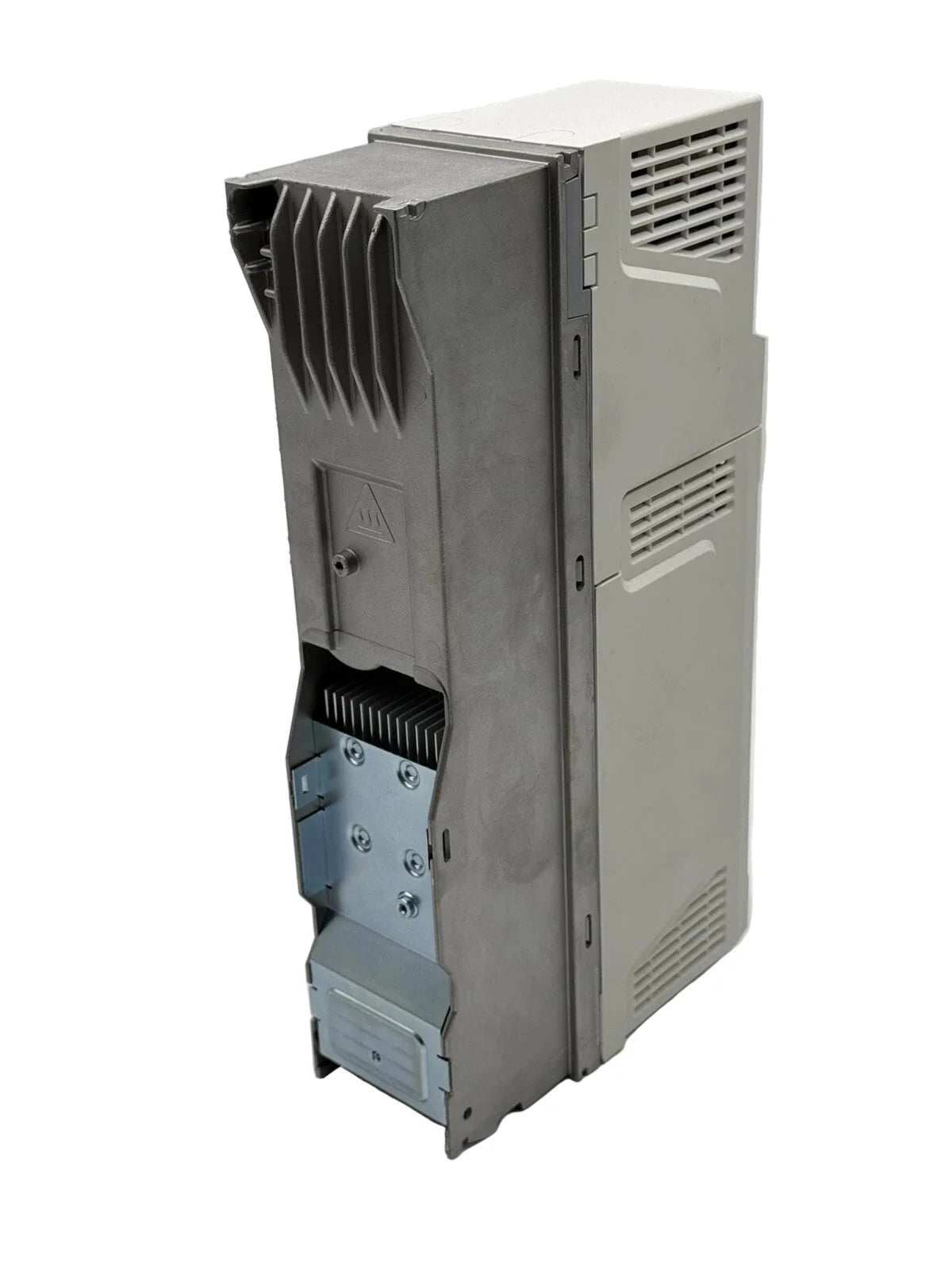

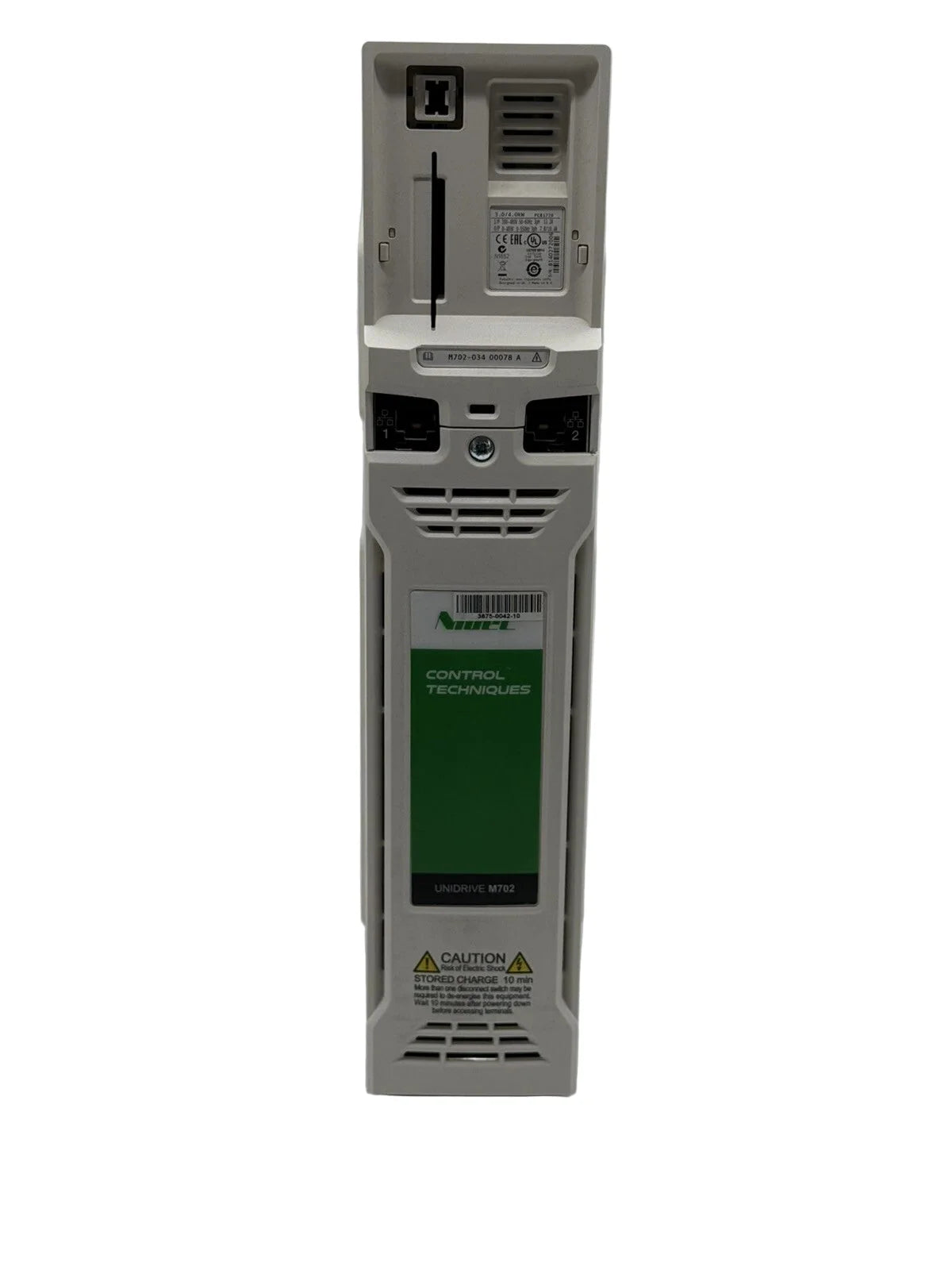

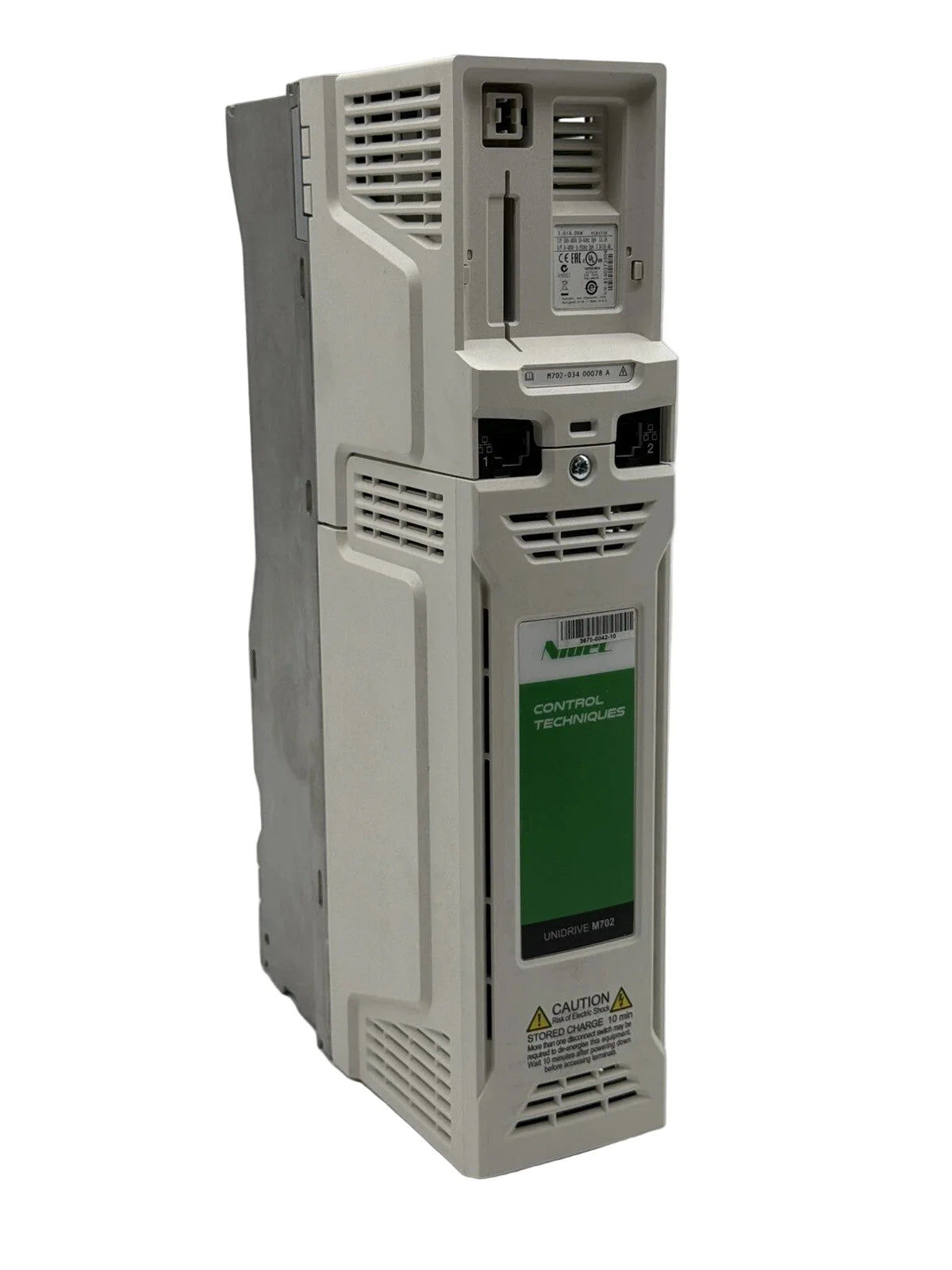

The Emerson M702-034 is a universal AC and servo drive designed to deliver flexible motion and speed control for a wide range of industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Emerson |
| Category |
Industrial Automation |
| Part Number |
M702-034 |
| Subcategory |
Industrial Automation |
| Type |
Universal AC and Servo Drive |
| Communication |
Ethernet Fieldbus Communications |
| Safety Features |
Dual Channel Safe Torque Off (STO) Input |
| Connections |
Ethernet, 2 × STO |
| Frame Size |
03 |
| Voltage Rating |
400 V (380–480 V ±10%) |
| Current Rating |
Heavy Duty Rating ×10: 25 |
| Power Format |
AC In / AC Out (with Internal Choke) |
| Weight |
12 lbs |
Information About M702-034
The M702-034 00025 A is part of Emerson’s Unidrive M702 universal AC/servo drive series, developed to deliver high-performance motion and speed control across a wide range of three-phase motor types—including induction, servo, and permanent magnet models. Equipped with dual-channel Safe Torque Off (STO) inputs and onboard real-time Ethernet (IEEE 1588), it offers robust safety and highly accurate drive-to-drive synchronization for advanced industrial applications. Designed for heavy-duty use, the M702-034 provides superior open- and closed-loop control with feature-rich modularity, including support for encoder feedback, motion control, onboard PLC, and optional I/O and fieldbus modules. Compact yet powerful, it operates within a 380–480 VAC ±10% range and delivers strong performance capabilities, making it an excellent choice for legacy system upgrades and modern automation environments.
Key Features:
- Model / MPN: M702-034 00025 A
- Type: Universal AC & Servo Drive / Unidrive M702 Series
- Communication: Real-time Ethernet fieldbus (IEEE 1588)
- Safety Features: Dual-channel Safe Torque Off (STO) inputs
- Input Voltage: 380–480 V AC (±10%)
- Application Capability: Open/closed-loop control of induction, permanent magnet, and servo motors
- Functional Modules: Support for motion control, encoder feedback, onboard PLC, optional I/O and fieldbus modules
- Drive Format: AC input with AC output and internal choke
The Emerson M702-034 Universal AC & Servo Drive provides flexible, safe, and high-precision motion control in a compact and modular package—optimally suited for modern machine automation and system retrofits.
