Description

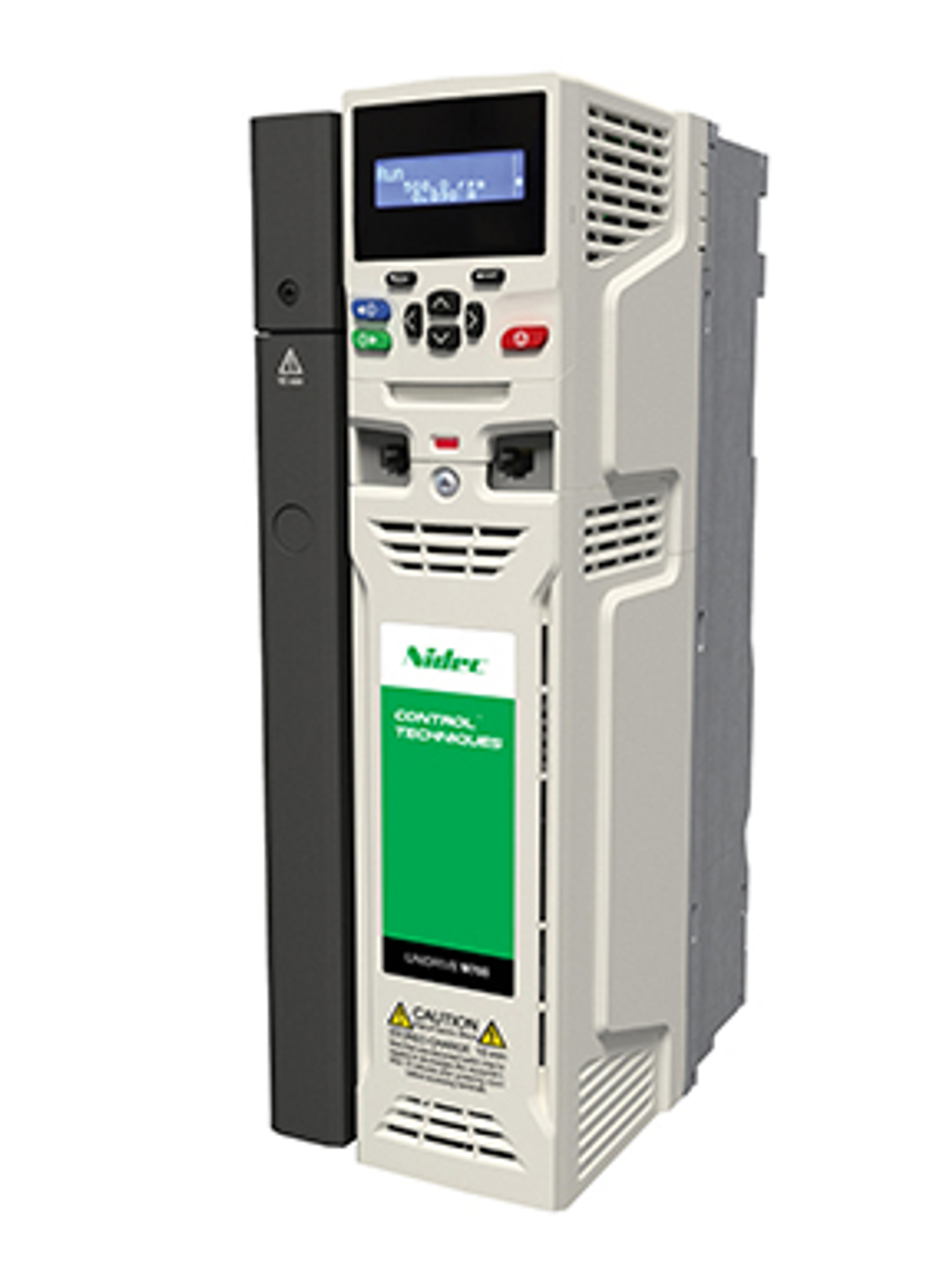

The Control Techniques M700-06200440A is a high-performance servo drive from the Unidrive M700 series, designed for precise motion control in automation systems. It provides advanced motor control, high-speed networking, and flexible configuration options for demanding industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Control Techniques |
| Category |
Industrial Automation |
| Part Number |
M700-06200440A |
| Subcategory |
Servo Drive |
| Series |
Unidrive M700 |
| Drive Type |
AC servo drive / universal motion controller |
| Rated Power |
4.4 kW |
| Rated Current |
6.2 A |
| Input Voltage |
380–480 V AC, 3-phase |
| Input Frequency |
50/60 Hz |
| Motor Compatibility |
Servo and induction motors |
| Control Modes |
Vector, servo, and regenerative control |
| Communication |
EtherCAT, Ethernet/IP, Modbus TCP (series dependent) |
| Feedback Support |
High-resolution encoders, SinCos, SSI, EnDat |
| Overload Capacity |
200% for short-term peak demand |
| Cooling Method |
Forced air cooling |
| Protection Features |
Overvoltage, undervoltage, short-circuit, thermal protection |
| Mounting Style |
Panel/cabinet installation |
| Operating Temperature |
0 °C to +40 °C |
| Enclosure Rating |
IP20 (standard) |
| Weight |
Approx. 6.5 kg |
Information About M700-06200440A
The M700-06200440A is part of Control Techniques’ Unidrive M700 family, which is engineered to deliver superior servo and induction motor control. It integrates advanced motion functions, EtherCAT connectivity, and high-resolution feedback support for precise positioning. Built for compatibility with a wide range of servo motors, the drive is suitable for robotics, packaging, and high-speed automation. Its modular design and scalable power ratings ensure adaptability to varied system requirements while maintaining reliability in continuous operation.
Key Features:
- Unidrive M700 Series: High-performance servo drive platform for advanced automation.
- Versatile Motor Control: Supports both servo and induction motors with precision control.
- EtherCAT Communication: Provides high-speed networking for synchronized motion.
- Advanced Feedback Support: Compatible with high-resolution encoders for accurate positioning.
- Integrated Motion Functions: Includes onboard motion control features for complex applications.
- Scalable Power Range: Modular ratings allow easy adaptation to system requirements.
- Energy Efficient: Optimized power electronics reduce operational energy use.
- Industrial Reliability: Designed for continuous duty in demanding automation environments.
The M700-06200440A delivers the reliability and precision required for high-performance servo and motion control applications.
