Description

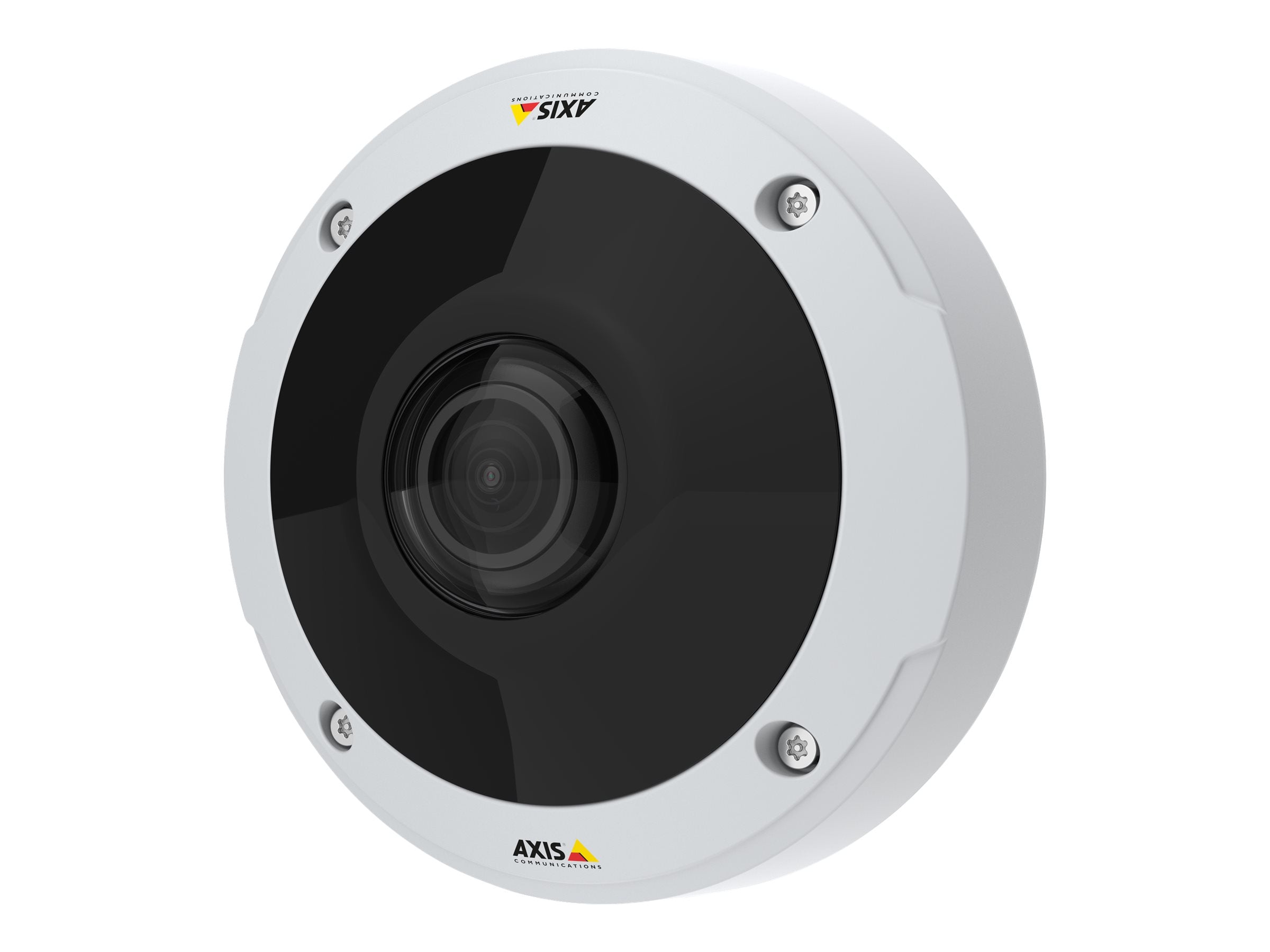

The Axis M3058-PLVE is a 12 MP fixed dome network camera offering 360° panoramic surveillance with exceptional image quality and integrated IR illumination. Engineered for both indoor and outdoor use, it features Forensic WDR, Lightfinder, and vandal-resistant construction for reliable performance in demanding environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Axis |
| Category |
|
| Part Number |
M3058-PLVE |
| Subcategory |
Network Cameras |
| Image Sensor |
1/1.7" Progressive Scan RGB CMOS |
| Resolution |
Up to 2992 × 2992 pixels (12 MP) |
| Lens |
Fixed, 1.3 mm, f/2.2 |
| Field of View |
181° horizontal and vertical |
| Night Vision Range |
Up to 15 m (49 ft) with IR (850 nm) |
| Minimum Illumination |
Color: 0.19 lux, B/W: 0.04 lux, 0 lux with IR |
| Shutter Speed |
1/22,500 s to 2 s |
| Mount Type |
Ceiling or wall mount |
| Durability Rating |
IK10 (vandal-resistant), IP66 (weatherproof) |
| Operating Temperature |
-40 °C to 50 °C (-40 °F to 122 °F) |
| Humidity Range |
10–100% RH |
| Power Supply |
PoE (Power over Ethernet) |
| Compression Formats |
Zipstream (H.264), MPEG-4, Motion JPEG |
| Connectivity |
Wired, HDMI 1.4b, RJ45, RSB |
| Protocols Supported |
IPv4/IPv6, HTTPS, RTSP, SRTP, TLS, SNMP, NTP, etc. |
| Digital Features |
Motion detection, privacy masking, digital zoom |
| Weight |
Approx. 1.6 lbs (0.73 kg) |
| Dimensions (H x D) |
66 mm × 149 mm (2.6 in × 5.9 in) |
Information About M3058-PLVE
The M3058-PLVE belongs to Axis’ M30 series and is equipped with a 1/1.7" RGB CMOS sensor capable of delivering up to 2992 × 2992 resolution. With a 1.3 mm fixed lens and OptimizedIR, it provides full 360° fisheye coverage and excellent night vision up to 15 meters (49 ft). Its discreet IK10- and IP66-rated housing supports ceiling or wall mounting, while features like Zipstream compression, PoE power, ONVIF support, and factory-focused optics ensure streamlined installation and integration into any IP surveillance infrastructure. The camera supports both panoramic and dewarped views for flexible monitoring and video analytics.
Key Features:
- 12 MP Panoramic Imaging: Offers 360° fisheye surveillance with up to 2992 × 2992 resolution.
- OptimizedIR Illumination: Provides night vision up to 15 meters with 850 nm IR LEDs.
- Lightfinder Technology: Enables full-color video in low-light environments with minimal noise.
- Forensic WDR: Preserves detail in high-contrast lighting for accurate post-event analysis.
- Rugged Design: IP66 and IK10 ratings ensure weatherproof and vandal-resistant performance.
- Flexible Mounting: Supports ceiling and wall installation with optional black repaintable skin.
- Efficient Compression: Zipstream, H.264, MPEG-4, and JPEG minimize bandwidth and storage use.
- Secure Network Protocols: Supports HTTPS, SRTP, TLS, SSH, and more for secure video transmission.
The M3058-PLVE delivers high-performance panoramic surveillance with advanced image processing and robust environmental protection.
