Description

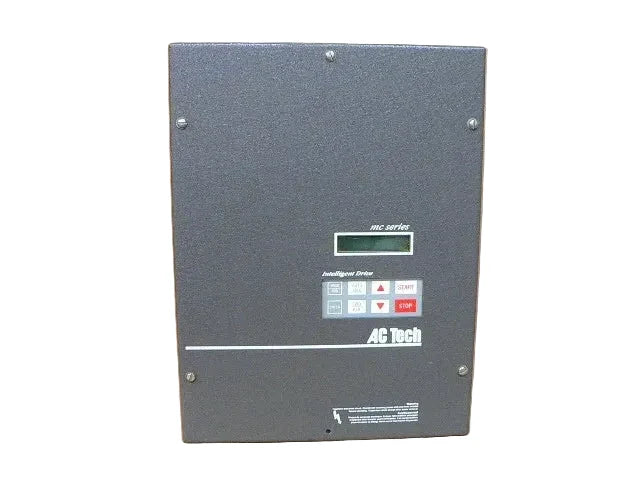

The Lenze M15150C is an M1000 Series AC inverter drive designed for variable speed control of three-phase industrial motors. Rated at 11 kW (15 HP), it operates on 480–590 VAC input at 50/60 Hz and delivers controlled three-phase output for demanding applications. Housed in a NEMA 4 water- and dust-tight enclosure, this drive is engineered for reliable performance in harsh industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lenze (AC Tech) |
| Category |
Drives & Motor Controls |
| Part Number |
M15150C |
| Subcategory |
Variable Frequency Drives |
| Series |
M1000 / MC Series |
| Product Type |
AC Inverter Drive (Variable Speed) |
| Rated Power |
11 kW |
| Horsepower Rating |
15 HP |
| Input Voltage |
480–590 VAC (540–600 VAC typical) |
| Output Voltage |
Up to 600 VAC |
| Input Frequency |
50/60 Hz |
| Rated Current |
19.3 A |
| Output Current |
16.9 A |
| Input Phase |
3 Phase |
| Output Phase |
3 Phase |
| Enclosure Type |
NEMA 4 (Water/Dust Tight) |
| Cooling Method |
Fan Cooled |
| Weight |
32 lbs (Approx. 14.5 kg) |
Information About M15150C
The M15150C is part of the Lenze AC Tech M1000/MC Series, developed for robust motor speed regulation in industrial facilities. It accepts a three-phase input voltage range of approximately 540–600 VAC and provides up to 600 VAC output for high-voltage motor systems. With a rated current of 19.3 A and output current of 16.9 A, the unit supports stable operation under continuous-duty conditions. The NEMA 4 enclosure and fan cooling system ensure protection against dust and water ingress while maintaining thermal stability.
Key Features:
- 11 kW / 15 HP Rating: Suitable for medium- to high-power industrial motor applications.
- 480–590 VAC Input Range: Designed for high-voltage three-phase systems.
- Three-Phase Operation: Balanced input and output phase configuration.
- NEMA 4 Enclosure: Water- and dust-tight housing for harsh environments.
- Variable Speed Control: Adjustable frequency output for precise motor regulation.
- 19.3 A Rated Current: Supports reliable power handling under load.
- Fan Cooling System: Ensures efficient heat dissipation during continuous operation.
- 50/60 Hz Compatibility: Suitable for standard industrial frequency supplies.
The M15150C delivers the reliability and precision required for heavy-duty variable speed motor control in industrial environments.
