Description

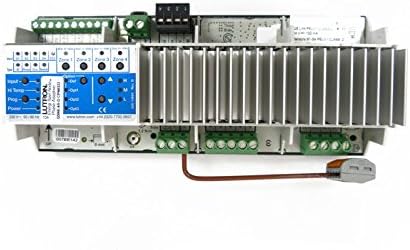

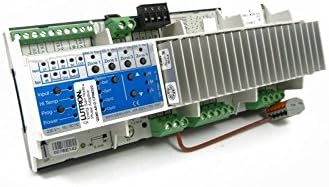

The Lutron LQSE-4A-D is a 4-zone Adaptive Power Module engineered for DIN rail installation in HomeWorks QS systems. It supports 230 V 50/60 Hz operation and provides up to 10 A total output switching capacity. Designed for robust lighting control, this module is ideal for centralized, panel-based integration.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
LQSE-4A-D |
| Subcategory |
Relay Modules |
| System Compatibility |
HomeWorks QS |
| Zones Controlled |
4 independent relay outputs |
| Input Voltage |
230 V AC, 50/60 Hz |
| Total Load Capacity |
10 A |
| Mounting Type |
DIN rail, 12 modules (216 mm wide) |
| Enclosure Requirement |
IP20 or higher, panel-mounted |
| Control Type |
Relay-based switching (non-dimming) |
| User Interface |
Buttons and LED indicators (service access only) |
| Audible Relay Feedback |
Yes |
| Dimensions |
9 x 4 x 3 inches (approx.) |
| Color |
White |
| Certifications |
CE, UL (model dependent), RoHS |
| Installation Notes |
Access only by certified electrician |
| Batteries Required |
No |
| Weight |
~1.5 lb |
Information About LQSE-4A-D
The LQSE-4A-D is part of Lutron’s DIN rail-mounted Adaptive Power Module lineup used in advanced lighting control panels. With four internal relays, it provides flexible switching for non-dimmable loads such as LED drivers and ballasts. This unit is 12 DIN modules (216 mm) wide and requires IP20-rated enclosures for proper installation. Onboard buttons and LEDs support programming and diagnostics; access must be performed by certified electricians per local electrical codes.
Key Features:
- 4-Zone Output: Controls four switched lighting circuits independently.
- High Voltage Support: Operates at 230 V AC, 50/60 Hz.
- DIN Rail Mounting: Standardized size (12 DIN modules) for easy integration.
- Load Capacity: Rated for 10 A total switching capacity across all zones.
- Diagnostic Interface: Onboard LEDs and buttons for programming and troubleshooting.
- Internal Relay Switching: Mechanical relay-based switching with audible feedback.
- Safe Installation: Designed for IP20+ panels, with safety restrictions on access.
- System Compatibility: Integrates with Lutron HomeWorks QS for distributed lighting control.
The LQSE-4A-D provides reliable zone-based switching for high-voltage centralized lighting control systems.
