Description

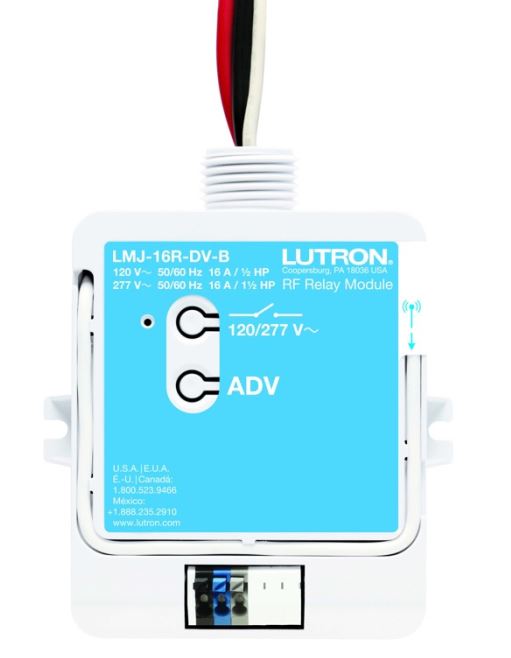

The Lutron LMJ-16R-DV-B RF Relay Module with Softswitch is a radio frequency-controlled relay module designed for wireless lighting control in Lutron systems. Operating at 120/277 VAC, 50/60 Hz, it provides reliable on/off switching for up to 16 A of connected load, using Clear Connect RF technology for dependable wireless performance.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Lutron |
| Category |
Lighting Control |
| Part Number |
LMJ-16R-DV-B |
| Subcategory |
Relay Modules |
| Type |
RF Relay Module with Softswitch® |
| System Compatibility |
Vive, RadioRA 2, HomeWorks QS |
| Communication Protocol |
Clear Connect RF |
| Voltage Rating |
120/277 VAC, 50/60 Hz |
| Load Rating |
16 A maximum |
| Control Interface |
0–10 V analog (60 mA source/sink capability) |
| Switch Type |
Relay (Softswitch® technology) |
| Mounting Type |
½" (21 mm) knockout in junction box |
| Trim Settings |
Adjustable high- and low-end trims |
| Plenum Rated |
Yes, NEC® 300.22(C)(3) compliant |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Relative Humidity |
<90% non-condensing |
| Material |
Durable plastic and metal enclosure |
| Application |
Lighting and load control for RF-enabled systems |
| Certifications |
UL Listed, FCC Compliant, NOM Certified |
| Dimensions |
4.4 in L × 2.8 in W × 1.5 in H (approx.) |
| Power Frequency |
50/60 Hz |
| Weight |
0.45 lb (approx.) |
Information About LMJ-16R-DV-B
The LMJ-16R-DV-B is part of Lutron’s PowPak and Clear Connect RF device family, developed for seamless integration into lighting control networks such as Vive, RadioRA 2, and HomeWorks QS. It utilizes Softswitch® technology to extend relay life by eliminating inrush current, ensuring quiet and durable switching. The module can be installed in a junction box via a ½" knockout and supports plenum-rated applications per NEC® 300.22(C)(3). Its built-in 0–10 V control link can source or sink up to 60 mA, enabling dimming control of compatible third-party fixtures while maintaining precise and efficient operation.
Key Features:
- RF Wireless Operation: Uses Lutron Clear Connect RF for secure, interference-free communication.
- High Load Capacity: Switches up to 16 A of line voltage for lighting or motor loads.
- Softswitch® Technology: Extends relay life and reduces inrush current for long-term reliability.
- 0–10 V Control Interface: Automatically sources or sinks up to 60 mA for third-party dimmable fixtures.
- Flexible Mounting: Installs easily through a standard ½" (21 mm) knockout in junction boxes.
- Wide Voltage Range: Operates on 120–277 VAC at 50/60 Hz for versatile application.
- Configurable Trim Settings: Adjustable high- and low-end trims for customized control.
- Plenum Rated: Meets NEC® 300.22(C)(3) for installation in air-handling spaces.
The LMJ-16R-DV-B delivers the reliability and precision required for advanced wireless switching and dimming control in commercial and residential lighting systems.
