Description

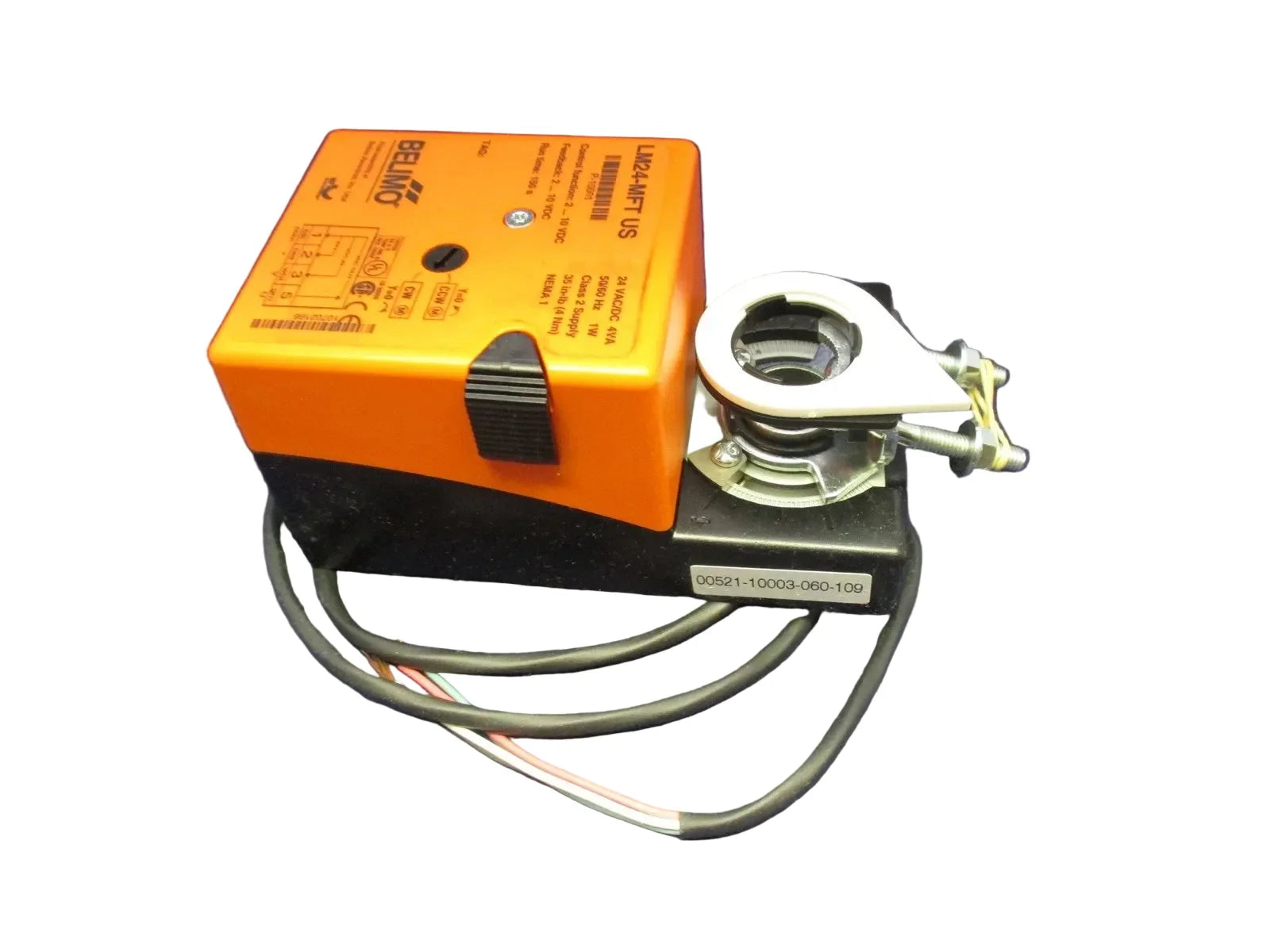

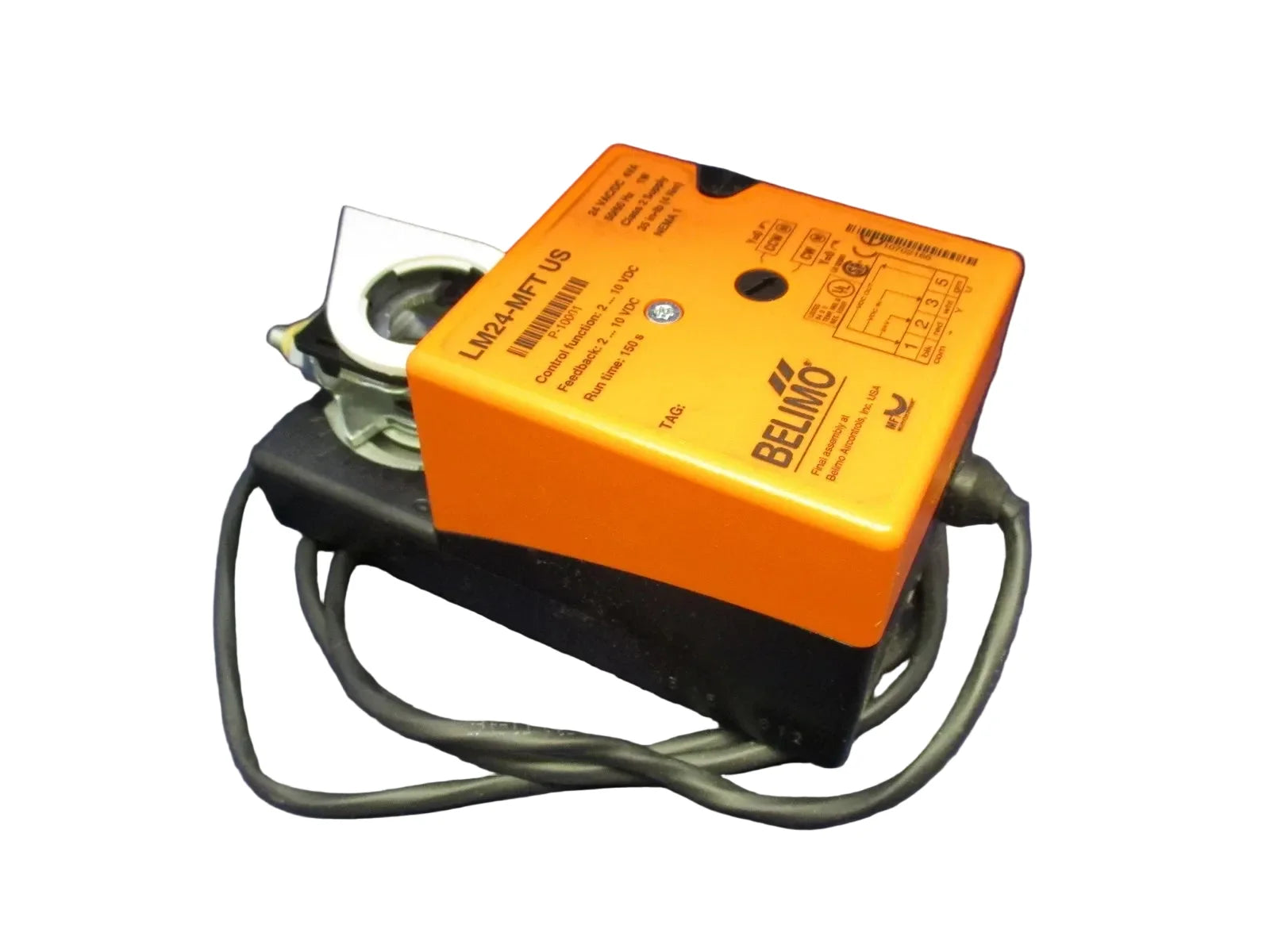

The Belimo LM24-MFT US is a compact damper actuator designed for precise modulating control in HVAC air handling systems. Operating on 24 VAC/DC power with MFT functionality, it delivers 35 in-lb torque for accurate damper positioning.

Technical Specifications

Information About LM24-MFT US

The LM24-MFT US is part of Belimo’s compact damper actuator family designed for flexible modulating airflow control. It features Belimo’s MFT (Multifunction Technology), allowing the actuator to be configured for multiple voltage control signals to match different building automation requirements. The actuator provides smooth and stable operation for small to medium-sized dampers where precise positioning is required. Its lightweight design and low power demand make it suitable for space-constrained HVAC installations.

Key Features

• 35 in-lb Torque Output: Provides reliable force for accurate positioning of small HVAC dampers under normal operating loads.
• MFT Multifunction Technology: Supports configurable control inputs, allowing adaptation to various 0–10 V or 2–10 V control strategies.
• 24 VAC/DC Power Supply: Compatible with standard low-voltage HVAC control systems used in commercial buildings.
• Modulating Control Operation: Enables smooth proportional damper movement for precise airflow regulation.
• Extended Running Time: 150-second stroke supports controlled and stable damper positioning without abrupt movement.
• Compact and Lightweight Design: Simplifies installation and reduces mechanical load on damper shafts.

The LM24-MFT US delivers the reliability and precision required for consistent modulating damper control in commercial HVAC airflow management applications.
