Description

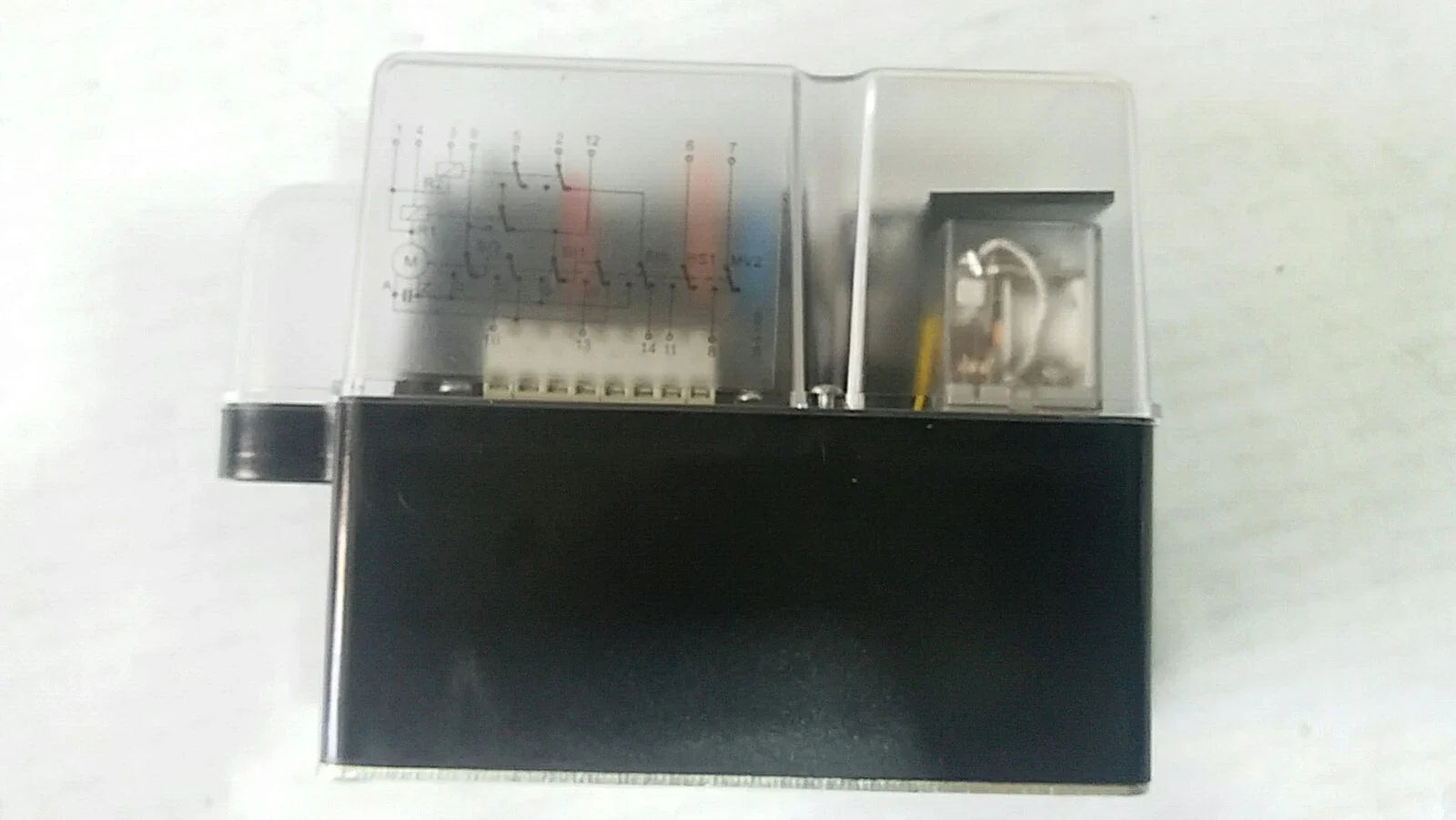

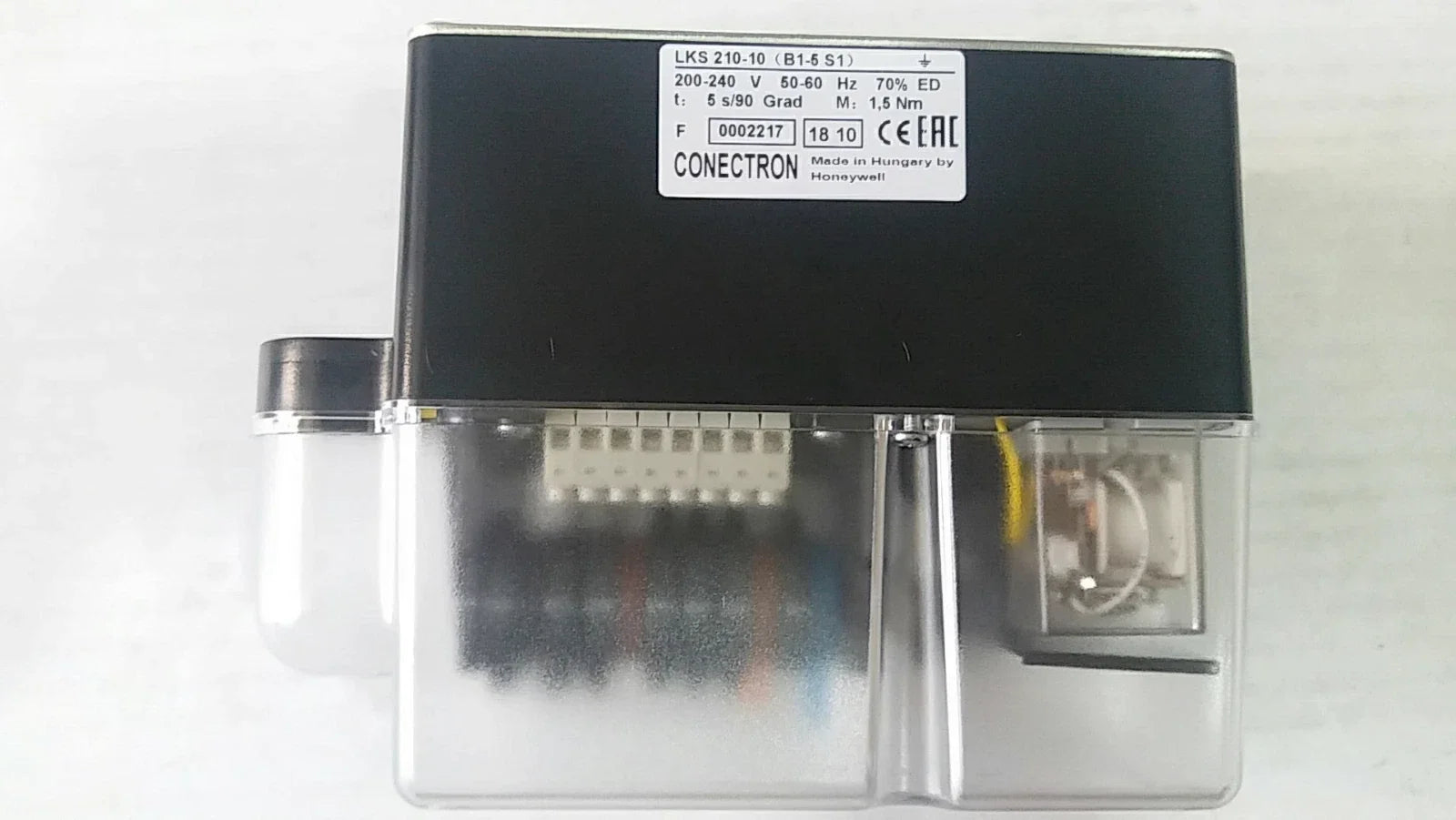

The Honeywell LKS210-10 is a servo-motor/damper actuator designed for burner and combustion applications where a reliable 200-240 V AC actuator provides precise 90° flap or damper positioning. With its worm-gear self-locking mechanism and rapid 5-second 90° stroke time, it ensures accurate control of air or fuel flows.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Actuator / Motion Control |
| Part Number |
LKS210-10 |
| Subcategory |
Servo Motor / Damper Actuator |
| Voltage |
200-240 V AC, 50/60 Hz |
| Duty Cycle |
Approx. 70% ED |
| Stroke Angle |
0° to 90° |
| Stroke Time |
~5 seconds for 90° stroke |
| Torque Output |
Approx. 1.5 Nm |
| Drive Shaft |
Square socket ~8×8 mm or Ø10 mm, shaft depth 25 mm |
| Gear Mechanism |
Worm gear with self-locking function |
| Housing Material |
Synthetic, self-extinguishing material |
| Protection Rating |
IP44 (standard variant) |
| Ambient Temperature Range |
–10 °C to +60 °C |
| Mounting |
Flange mounting (three M5 screws typical) |
| Weight |
Approx. 1 kg |
| Country of Manufacture |
Hungary (for some lots) |
Information About LKS210-10
The LKS210-10 is part of Honeywell’s LKS210 series of modulating actuators, primarily used in oil or diesel burner systems and industrial combustion setups. Typical specification notes indicate operation at 200-240 V AC, 50/60 Hz, with a duty cycle of 70% ED. It features a synthetic, self-extinguishing housing, worm gear drive with self-locking function (for secure flap positioning when power is off), and drive output shaft compatible with standard flame-train or damper linkages. This actuator is frequently found in retrofit installations for burner manufacturers such as Riello and other European burner OEMs.
Key Features:
- 200-240 V AC Operation (50/60 Hz): Suits standard burner control voltage ranges.
- 90° Stroke Angle in ~5 Seconds: Rapid actuator speed for improved system response.
- Self-Locking Worm Gear: Maintains flap position after power is removed, enhancing safety and reliability.
- High Torque Output: Typical torque around 1.5 Nm for damper/flap control in combustion systems.
- Synthetic, Self-Extinguishing Housing: Designed for safety in industrial heat/ combustion environments.
- Direct Shaft Coupling: Square socket (≈ 8×8 mm) or Ø10 mm shaft depth 25 mm for direct linkage connection.
- IP44 Protection Rating (depending on variant): Suitable for indoor burner room or industrial environment use.
- Maintenance-Free Design: Long service life with minimal upkeep required.
- Wide Ambient Temperature Range: Typical range –10 °C to +60 °C (operational environment).
- European OEM Compatibility: Frequently used as original or replacement actuator in burner assemblies and damper systems.
The LKS210-10 delivers the reliability and precision required for modulating burner or damper control in industrial and commercial combustion systems.
