| Model |

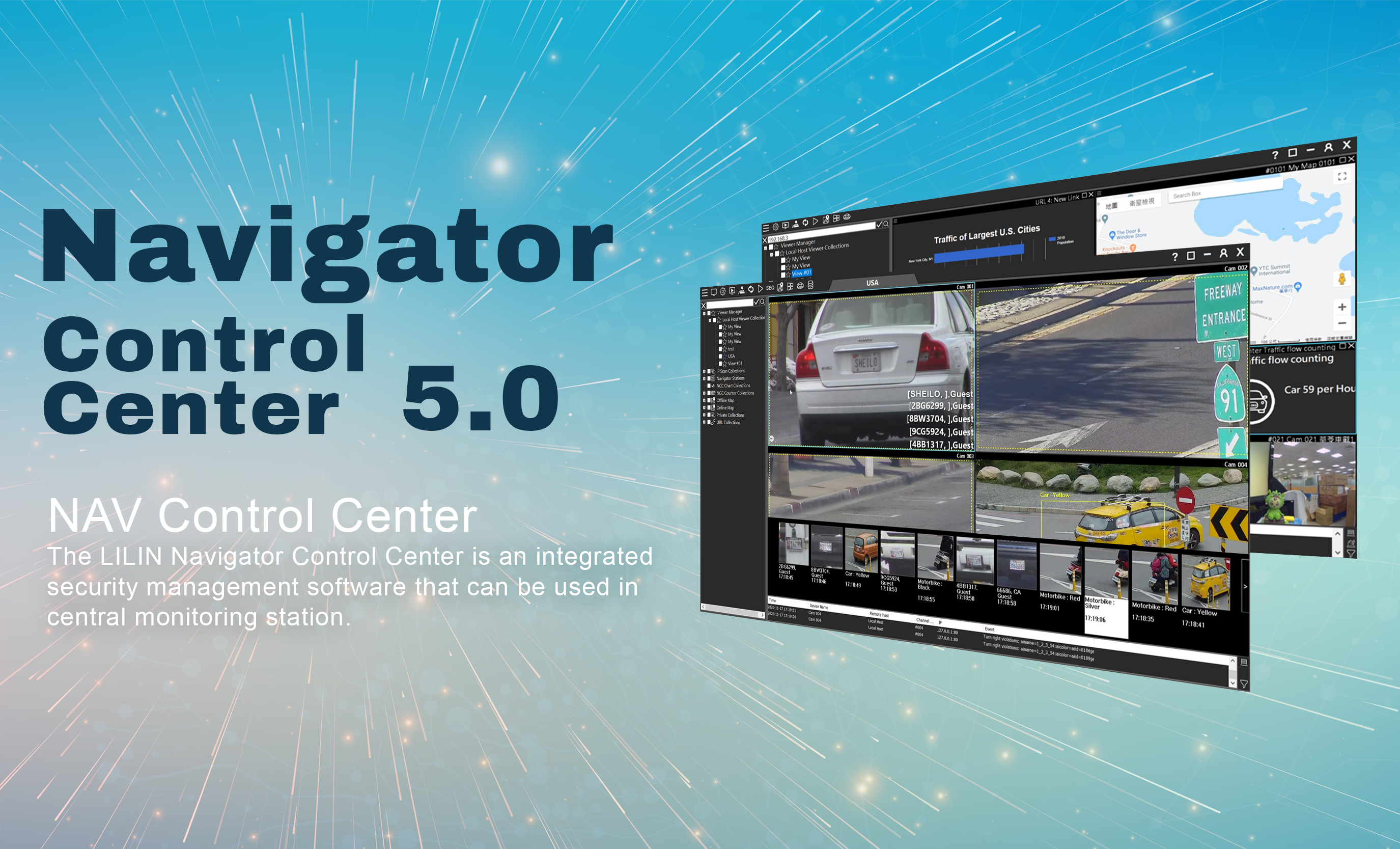

NAV Control Center 5.0 |
| Supported OS |
"Windows 10&11 IoT Enterprise 22H2 GAC 64bit ( Professional above), Windows Server 2012R2, 2016" |
| Numbers of live channel supported |
1 ~ 144 |
| Split Screen |
1~144, User-defined |
| Tier Architecture Administrative System |
Support multi-layer tree structure management system, up to 64 layers, each layer can support up to 64 NAV servers |
| IP Scan |
Quick IP device search and configuration |
| Video input |
LILIN IP camera, LILIN IP camera via HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming and ONVIF camera |
| Dual stream technology (Video output) |
Multi division view uses D1 decoding and full screen supports 1080P/3M/4M/5M/8M/12M decoding |
| LDAP/AD User Management |
Supported |
| Grouping setting |
512 groups supported and each group can support 1000 users |
| NAV Recorder Management |
Manage up to 4096 NAV Corporate servers |
| IP Device Management |
Simultaneously controls up to 65000 LILIN IP cameras, IP speed domes, DVR/DHD/NVR and NAV Live servers |
| AI Event Search and Playback |
Supported |
| Web browser |
Edge |
| Interface Language |
English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese |
| Multi-tier Architecture Administrative System |
Support multi-layer tree structure management system, up to 64 layers, each layer can support up to 64 NAV servers |
| LDAP/AD User Management |
Supported |
| Authentication |
Camera feature access permissions limited |
| Local Server Backup |
ViewManager camera settings, User Accounts, ANPR plate list, Facial Recognition list, NAV camera settings and eMaps |
| Remote Server Backup |
Backup data from NAV to NCC or restore data from NCC to NAV. |
| Sync Server Setting |
Synchronize user accounts, NAV camera settings, facial recognition lists, license plate recognition lists, ViewManager camera settings, emap settings, and remote group names. |
| Add NAV Server Function |
Manual |
| Assign Specific Camera View to NAV Server for Recording |
Supported |
| Advance Alarm DO Setting |
Supported |
| Advance Alarm DO Shortcut on Viewer Manager |
Supported |
| Add LPR Camera |
Supported |
| IP Device Management |
Simultaneously controls up to 65000 LILIN IP cameras, IP speed domes, DVR/DHD/NVR and NAV Live servers |
| Supports (Video Input)/Network video /IP video |
LILIN IP camera, LILIN IP camera via HTTPS, LILIN Fisheye camera, LILIN IP speed dome, LILIN DVR/NVR, LILIN DHD recorder, NAV live streaming, P2P live streaming and ONVIF camera |
| Camera Status Management |
Camera connection established, authentication successfully, live view established, and recording status displayed |
| Camera Preview |
Supported |
| Batch IP Cameras Settings |
Camera name |
| Playback compression |
H.265/ H.264/ JPEG |
| Dual stream technology (Video output) |
Multi division view uses D1 decoding and full screen supports 1080P/3M/4M/5M/8M/12M decoding |
| Camera name |
20 Characters |
| Camera View Group |
Drag and drop, DVR/DHD/NVR channels auto import and channel switching |
| View Group Channels |
Up to 144 simultaneous display (Depends on the server hardware and network bandwidth performance) |
| Camera view group |
User defined and the group permissions can be configured based on user accounts |
| OSD (On-Screen Display) |
People counting/Object counting/Tripwire detection/License plate/POS string |
| Spot Monitor |
Live sequence display and playback are supported |
| ViewManager lock screen |
Supported |
| Fisheye software decoding function (real-time image) |
4 channels split supported |
| Fisheye Dewarp |
Immervision lens supported |
| Fisheye Dewarp Mode |
(Ceiling and ground mounted) 1R One Region, 3R1O Three Regions One Fisheye, 4R Four Regions, 2R1P Two Regions One Panoramic 360 , 2P Two Panoramics 180, 8R1O Eight Regions One
(Fisheye Wall mounted) 1R One Region, 3R1O Three Regions One Fisheye, 4R Four Regions, 2R1P Two Regions One Panoramic 180 , 1WP One Wall Panoramic 180 , 8R1O Eight Regions One Fisheye |
| NVR P2P connection |
Supported |
| Edge IVS & edge people counting |
Supported |
| Video is in processing |
Customized |
| Corridor mode |
Support (IPCAM) |
| Digital zoom |
Yes, ePTZ supported for live and playback |
| PTZ Presets Naming |
Supported |
| PTZ Control |
Supported using a mouse to zoom in/out or move the live image |
| Sequence Mode |
Supported |
| Snapshot |
Supported |
| Screen Events |
Screen/network disconnection |
| Audio |
PCM/G.711/AAC live monitoring (one-way audio) |
| eMap Live Monitoring (offline) |
Up to 64 live images from IP cameras, DVR or NVR in each map at the same time |
| (eMap)Offline Maps |
Up to 128 offline maps(JPEG) |
| Online map services |
Both Google Maps and Baidu Maps are supported. GCJ-02(Mars Coordinates)、BD-09(Baidu coordinates)、WGS-84(World Geodetic System) |
| eMap Live Monitoring (online) |
Up to 64 live images from IP cameras, DVR or NVR in each map at the same time |
| (eMap)Online Maps |
Up to 128 online maps |
| eMap marker (offline) |
Up to 256 camera marks per offline map |
| eMap markers (online) |
Up to 1024 camera marks per online map |
| Snapshot |
Motion detection /external alarm /audio detection /face detection /face recognition /license plate recognition |
| GPS |
Support for GPS fleet movement tracking and map tracking, real-time traffic conditions on maps, and playback functionality. |
| Central counter (traffic behavior) |
Detection Zone, Parking Space Counting, Zone with Dwell/Parking Violation Tripwire / Traffic Flow, Left-turn Detection, Right-turn Detection, Wrong way Detection, Left-turn Violation, Right-turn Violation, Queuing Detection, U-turn Violation, Left-turn Violation on Red Light, Right-turn Violation on red light |
| Central counter (automatic time range) |
Yes, resetting time cycle and automatic reset range are available. |
| Limit of counter |
Can be embedded into the camera canvas and support up to 64 groups |
| Limit of Statistical Chart |
Statistical charts in HTML5 format, which can be embedded into the camera canvas and support up to 64 groups |
| Statistical chart category |
Bar Chart, Line Chart, Pie Chart, Stepped Chart |
| Central control statistics (duration) |
1, 4, 12 hours, 1 day, 1 week |
| Central control statistics (traffic behavior) |
Detection Zone, Parking Space Counting, Zone with Dwell/Parking Violation Tripwire / Traffic Flow, Left-turn Detection, Right-turn Detection, Wrong way Detection, Left-turn Violation, Right-turn Violation, Queuing Detection, U-turn Violation, Left-turn Violation on Red Light, Right-turn Violation on red light |
| Center Control Statistics (Vehicle Type) |
Person, Bicycle, Car, Motorbike, Bus, Train, Truck, boat, TUK TUK, Truck Trailer, Pickup Truck, Fire Engine, Sedan, Van |
| Alarm Triggering |
PC alarm sound, designated IP camera alarm DO output, eMail photo output, PTZ preset point output, notification TV wall projection, eMap marker display |
| Database Manager |
Various alarm events, screen/network disconnection, login and logout, operation event table |
| NAV Operation Status |
NAV host maintenance status |
| Alarm Output |
Support third party brands via TCP/IP network control output |
| Number plate recognition |
Optional |
| Facial Recognition |
Optional |
| Video decoder |
LILIN VD022 for video wall |
| Physical Monitors |
Up to 1440 physical remote monitors supported by network (based on number of video output available on external graphic card from dedicated server) |
| Rooms of the Wall |
199 rooms supported for various monitor layouts |
| Video Wall Monitor |
Each room can allocate up to 144 monitors to be combined freely |
| (TV Wall)Channel groups |
128 channel groups per room allowing different channel layouts to be arranged on the same video wall surface. |
| (TV Wall) Import View From Client to TV Wall |
Support View Manager canvas template |
| Video Channel |
Up to 144 channels per TV wall group |
| TV Wall |
Up to 144 channels per monitor, resolutions up to 12M |
| Display One Camera Over Several Monitor |
Supported |
| Sequence Mode |
32 groups supported in max |
| Playback Speed |
Fast Rewind: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X
Slow Rewind:-1/8, -1/4, -1/2
Fast Forward: 1/8, 1/4, 1/2, 1X, 2X, 4X, 8X, 16X, 32X
Slow Forward: 1/2, 1/4, 1/8 |
| Playback Search |
Remote and local server for time search, Alarm search, POS search, ANPR search, Face recognition search, Face search using image (In Face recognition server only), Aida search |
| Playback Tagging (Playback) |
H.265/ H.264 /JPEG |
| Multiple Playback |
Up to 36 channels playback simultaneously |
| Multiple channel playback |
Up to 36 channels playback Simultaneously (Depends on the hardware and network performance) |
| Asynchronous Time Playback for Same Camera |
Playback at different time points |
| Remote playback |
Remote multiple channel playback for SD card, DVR/DHD/NVR, and Navigator server |
| Instant Playback |
Quick playback of the last 5 minutes |
| Remote NAV Instant Video |
Multiple megapixel or D1 connections |
| Remote DVR/DHD/NVR Video Playback |
Supported NAV server/DVR/DHD/NVR/IP camera SD card etc. Up to 36 channels of simultaneous playback and backup |
| Backup / Playback (Software) |
NAV/DVR/DHD/NVR remote file download and saves to AVI or MP4 file format. JPEG snapshot also supported. |
| Account Freeze Scheduling |
Supported |
| User Group Management |
512 groups supported and each group can support 1000 users |
| LDAP/AD User Management |
Supported |
| Access right manageable |
Supported |
| Camera access and function |
Supported |
| Quick device search |
Supported |
| Sync with this machine |
Supported |
| Sync with this remote |
Supported |
| Database |
Database import and export, CVS report import and export |
| Database Filter |
User log report, event report, POS event report, ANPR event report, object counting report, AI event report, NAV server Status, GPS report, Face recognition report, Server report |
| IVS Statistics |
Supported |
| Fast playback of events |
Supported |
| (DB Manager)Central management |
Event logs from multiple stations |
| Access log |
Complete user access login operation table list |
| Startup setting |
When the NCC system starts, this program automatically opens. NCC auto login and automatically executes View Manager (full-screen mode), Alarm Manager, TVWall and eMap. |
| Screen Saver |
Live image, playback and key frame decoding |
| Scale prompt |
2x larger font size for message is supported |
| Prompt AI objects and text OSD |
Supported |
| GPU Decode |
GDI, Intel GPU and Nvidia GPU (Depends on the hardware or bandwidth performance) |
| Connect Mode |
Direct NVR/Camera streaming mode or NAV relay streaming mode |
| Streaming Mode |
Single stream, dual stream and low bandwidth stream |
| Languages |
English, Traditional Chinese, Spanish, German, French, Russian, Japanese, Portuguese, Italian, Simplified Chinese, Slovenian, Czech, Hungarian, Turkish, Arabic, Persian, Bengali, Vietnamese, Polish |
| Alarm snapshot path |
Customer Defined |
| Snapshot path |
Customer Defined |
| Playback Time |
Up to 24 hours |
| Anti-aliasing mode |
Supported |
| System Backup |
Local backup, remote backup, data restore to remote device |
| System Reboot Setting |
Instant, Reboot at system reboot time |
| Memory Management |
System memory usage limit, Mosaic TVWall memory usage limit, Control Center memory usage limit, View Manager memory usage limit, eMAP Center memory usage limit, Alarm Center memory usage limit. |
| System Limit Setting |
Limit max CPU usage |
| LPR System |
Optional |
| Facial Recoginiton System |
Optional |
| AMBER Alert |
Optional |
| CPU requirement |
Intel Core I5-8500 or abore (Depends on the server hardware and network bandwidth performance) |
| RAM requirement |
DDR4 16GB or above |
| GPU Minimum Requirement |
Intel HD630 or GTX 1650 4GB or above |
| Network Interface Card |
1GbE recommended or above |
