Description

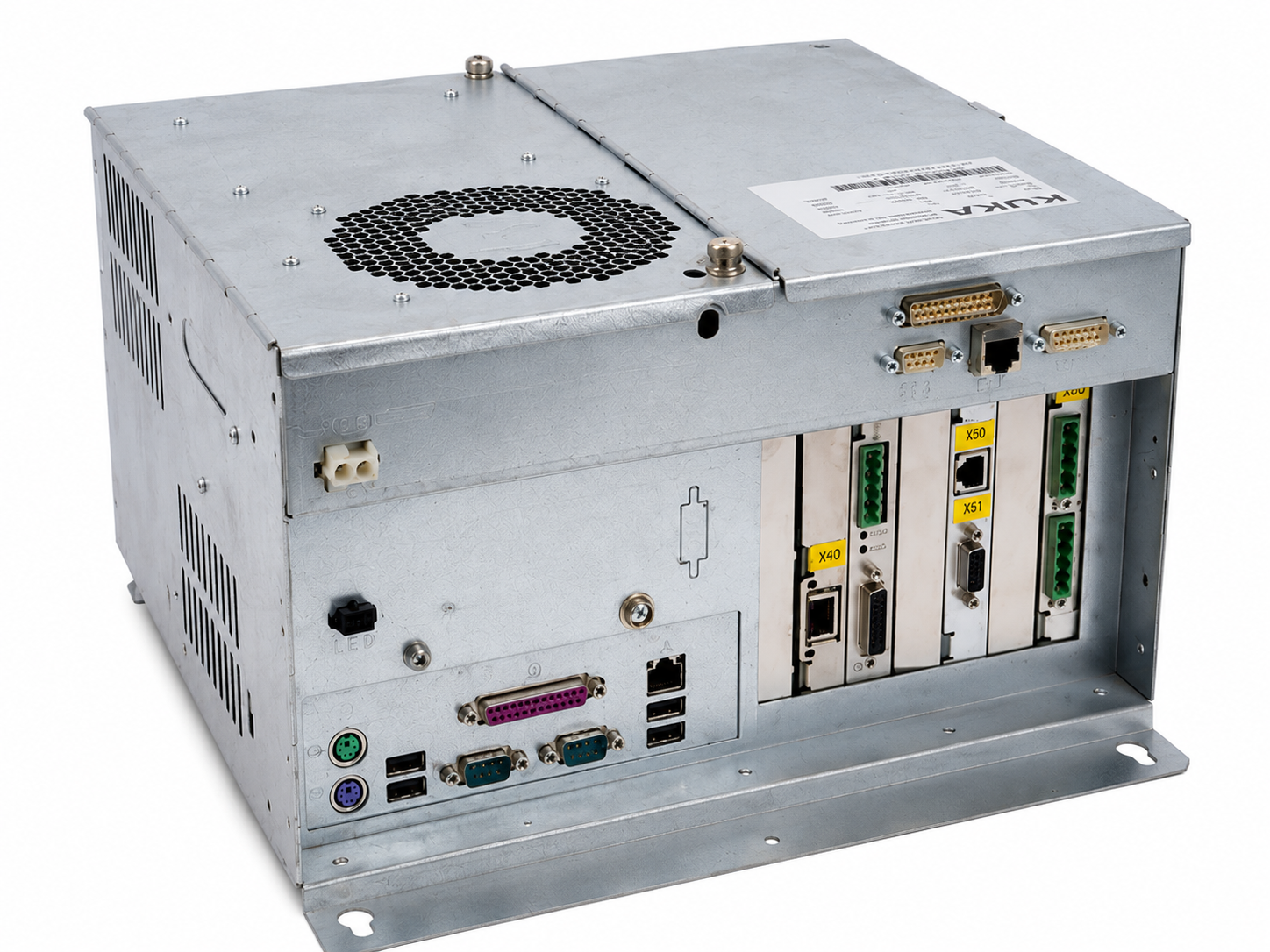

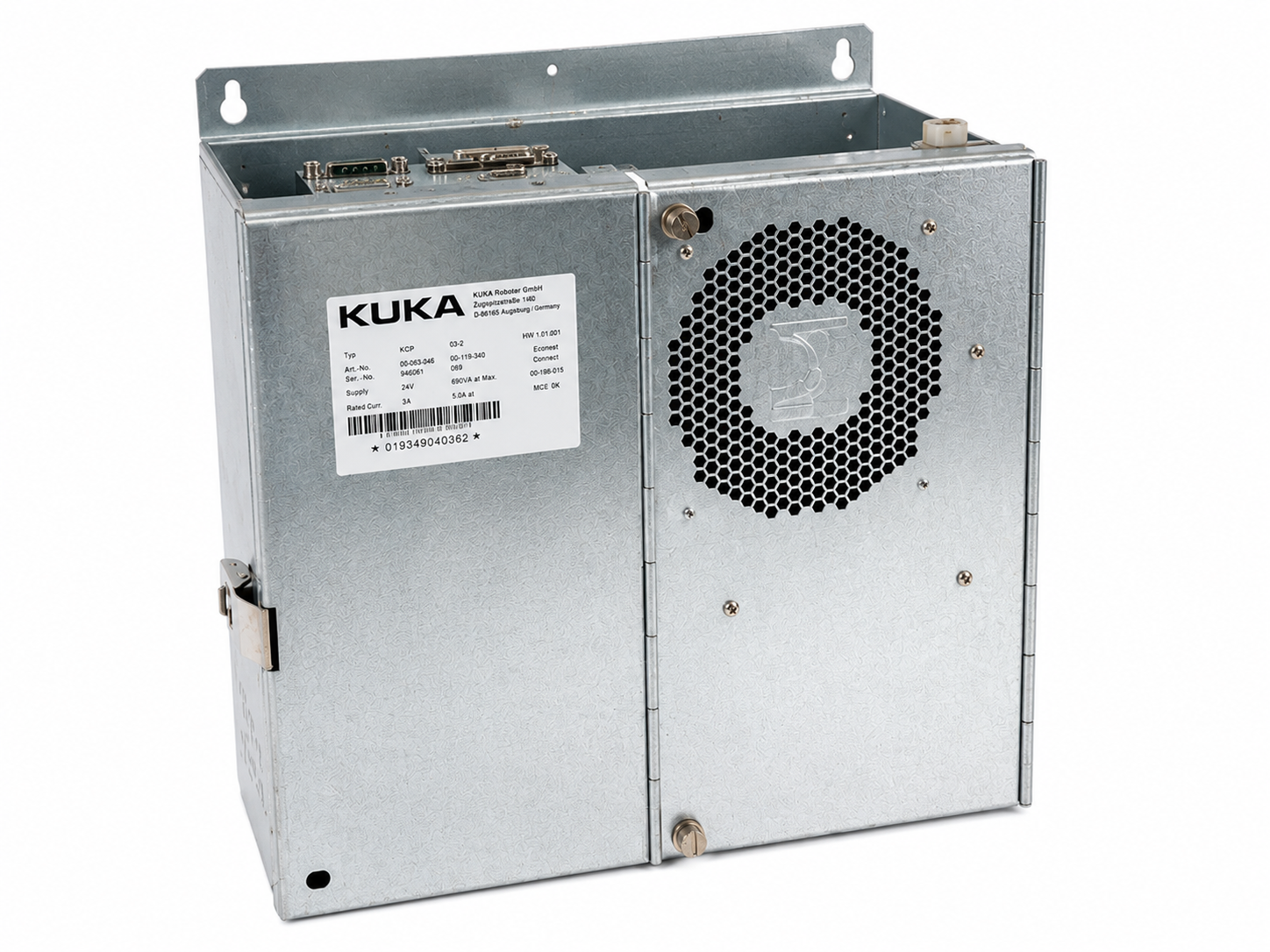

The KPC-ED05 is an industrial PC module used in KUKA KR C2 edition 2005 robot control systems. It features Pentium microprocessor technology, a compact and robust housing, and IP54-rated protection for demanding environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Kuka |
| Category |
|
| Part Number |
KPC-ED05 |
| Subcategory |
Industrial Computer |
| Product Type |
Industrial PC / Robot Control Unit |
| Compatible With |
KR C2, KRC2, KPS-600, KPS-600/20-ESC |
| Processor |
Pentium (or comparable) |
| Protection Class |
IP54
|
| Operating Temperature Range |
5 °C to 45 °C (up to 55 °C with cooling) |
| Max Axes Supported |
8 |
| Rated Voltage |
3×400–415 V AC |
| Frequency |
49–61 Hz |
| Rated Input Power |
7.3–13.5 kW (depending on drive class) |
| Communication Interfaces |
Ethernet, CAN, INTERBUS-S, Profibus, Profinet |
| Standards Compliance |
EN 60204-1, EN ISO 10218-1, and others |
| Weight |
25.00 lbs (approx. 11.34 kg) |
Information About KPC-ED05
The KPC-ED05 is a processor unit designed for integration in KUKA KR C2 and related robotic control systems such as KRC2 and KPS-600. It is built around Pentium microprocessor technology and supports technology-oriented application programming. With an IP54 protection rating and compliance with multiple industrial standards (including EN 60204-1 and EN ISO 10218-1), it ensures reliable operation in automation environments. The system is designed to operate within ambient temperatures from 278 K to 318 K, or up to 328 K with a cooling unit, and supports communication protocols like Ethernet, CAN, Profibus, and INTERBUS-S.
Key Features:
- Processor Technology: Equipped with Pentium microprocessor or equivalent for reliable control performance.
- Protection Rating: IP54-rated for dust and splash protection in industrial environments.
- Compatible Systems: Designed for KR C2, KRC2, KPS-600, and similar KUKA control systems.
- Connectivity: Supports Ethernet, CAN, INTERBUS-S, Profibus, and Profinet for versatile networking.
- Axis Support: Enables control of up to 8 axes in robotic configurations.
- Input Power: Operates at 3×400–415 V AC, 49–61 Hz, with rated power from 7.3 to 13.5 kW.
- Temperature Range: Operating range from 5 °C to 45 °C; extended with cooling.
The KPC-ED05 delivers the computing and environmental resilience required for advanced robotic control in KUKA automation systems.
