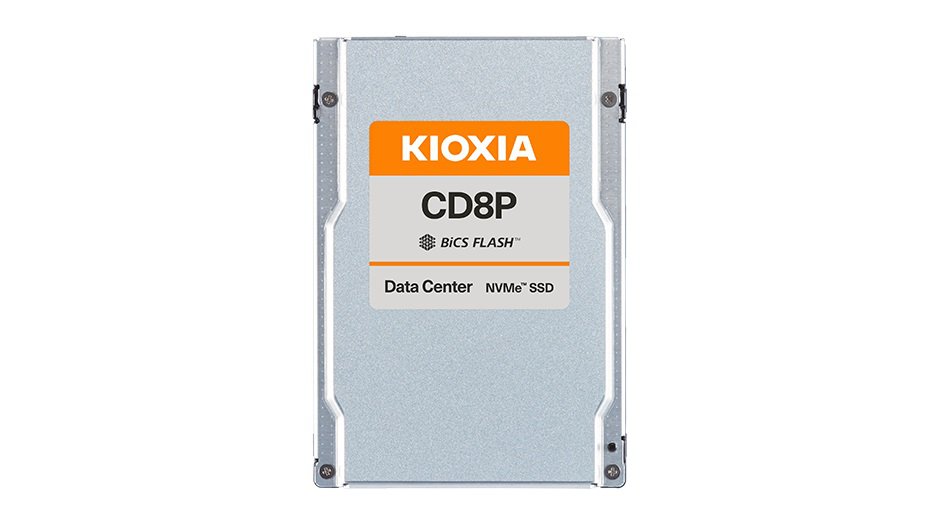

Kioxia KCD81PUG3T84 is a 3.84TB 2.5-inch enterprise SSD with PCIe 5.0 NVMe 2.0 interface, delivering up to 12,000 MB/s sequential read and 5,500 MB/s sequential write speeds. It offers 1 DWPD endurance, up to 1.9M IOPS random read, 200K IOPS random write, and high reliability with 2.5M hour MTTF, wide operating temperature, and shock and vibration tolerance.
Specifications
Model Number: KCD81PUG3T84
Brand: Kioxia
Alt Part Number(s): KCD81PUG3T84
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: KCD81PUG3T84
Capacity: 3.84 TB
Form Factor: 2.5-inch, 15mm thickness
Interface: PCIe 5.0, NVMe 2.0
Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)
Flash Memory Type: BiCS FLASH TLC
Sustained 128 KiB Sequential Read: 12,000 MB/s
Sustained 128 KiB Sequential Write: 5,500 MB/s
Sustained 4 KiB Random Read: 1,900K IOPS
Sustained 4 KiB Random Write: 200K IOPS
Supply Voltage: 12 V +/- 10 %; 3.3 V +/- 15 %
Power Consumption (Active): 19 W typ.
Power Consumption (Ready): 5 W typ.
MTTF: 2,500,000 hours
DWPD: 1
Thickness: 15 mm +0 / -0.5 mm
Width: 69.85 mm +/- 0.25 mm
Length: 100.45 mm Max
Weight: 130 g Max
Temperature (Operating): 0 °C to 76 °C
Temperature (Non-operating): -40 °C to 85 °C
Humidity (Operating): 5 % to 95 % R.H.
Vibration (Operating): 21.27 m/s² {2.17 Grms} (5 to 800 Hz)
Shock (Operating): 9.8 km/s² {1,000 G} (0.5 ms)
