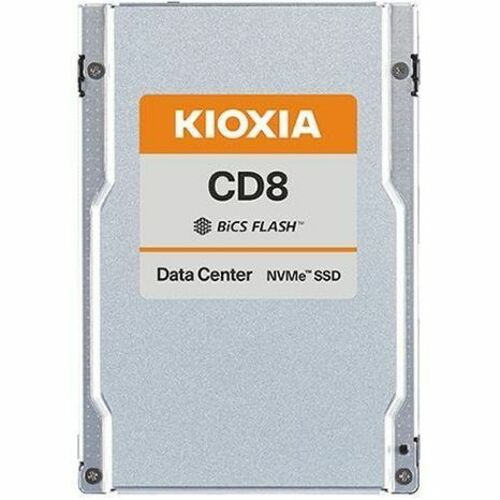

Kioxia SDF1D81GEB02T CD8 is a 12.8 TB solid state drive featuring a 2.5 inch form factor, BiCS FLASH TLC memory, PCIe Gen4 x4 and NVMe 1.4 interface, sequential read speeds up to 6600 MB/s, and sequential write speeds up to 6000 MB/s. It delivers up to 1050000 random read IOPS and 380000 random write IOPS, offers 3 DWPD endurance, includes power loss protection and end to end data correction, and is optimized for high density enterprise storage deployments.
Specifications
Model Number: SDF1D81GEB02T
Brand: Kioxia
Alt Part Number(s): SDF1D81GEB02T
Product Type: Solid State Drive
Technical Description
Brand: Kioxia
Model: SDF1D81GEB02T
Series: CD8
Hard Drive Size: 2.5"
SSD Capacity: 12.8 TB
Flash Type: BiCS FLASH TLC
Hard Drive Interface Type: PCIe Gen4 x4; NVMe 1.4
Max 4KB Random Read: 1050000 IOPS
Max 4KB Random Write: 380000 IOPS
MTBF: 2500000 Hours
Power / Device Type: Power Supply
Power Consumption Operational: 20 Watt
Power / Voltage Required: 12V +/- 10%; 3.3V +/- 15%
Width: 69.85 mm
Depth: 100.45 mm
Height: 15 mm
Weight: 130 g
Features: Designed for high-density storage deployments; Power loss protection (PLP); End-to-end data correction
Min Operating Temperature: 0 Celsius
Max Operating Temperature: 74 Celsius
Max Sequential Read: 6600 MB/s
Max Sequential Write: 6000 MB/s
Endurance: 3 DWPD
COO: Philippines
TAA Compliance: No
UNSPSC Code: 43201830
