Description

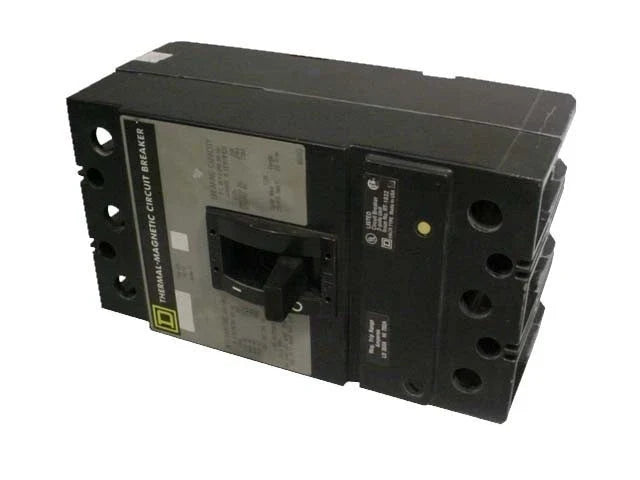

The Schneider Electric KIL36150 is a molded case circuit breaker designed to provide reliable overcurrent protection in industrial and commercial electrical distribution systems. This Square D breaker features a 150 amp trip rating within a 250 amp frame and supports operation up to 600 VAC for three-phase applications. It is engineered for dependable performance where current-limiting protection and robust construction are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric |
| Category |
Circuit Breaker |
| Part Number |
KIL36150 |
| Subcategory |
Molded Case Circuit Breaker |
| Breaker Type |
Molded Case Circuit Breaker |
| Frame Size |
250 Amp Frame |
| Trip Rating |
150 Amp |
| Poles |
3 |
| Voltage Rating |
600 VAC |
| Current Limiting |
Yes |
| Line Termination |
Lugs |
| Load Termination |
Lugs |
| Application |
Industrial / Commercial Power Distribution |
| Mounting Style |
Fixed |
| Weight |
9.00 lbs |
Information About KIL36150
The KIL36150 is part of Schneider Electric’s Square D molded case circuit breaker lineup, designed for dependable power distribution and equipment protection. It utilizes a current-limiting design to reduce fault energy and protect downstream components during short-circuit events. The breaker is built with lug terminations on both the line and load sides, allowing flexible installation in panelboards and switchgear. Its three-pole configuration and high voltage rating make it suitable for a wide range of industrial electrical systems.
Key Features:
- Current-Limiting Design: Reduces let-through energy during short-circuit conditions.
- 250 Amp Frame Size: Provides structural capacity with a 150 amp trip rating.
- Three-Pole Configuration: Supports three-phase electrical distribution systems.
- 600 VAC Rating: Suitable for high-voltage commercial and industrial applications.
- Dual-End Lugs: Line and load side lugs allow flexible wiring and installation.
- Molded Case Construction: Ensures durability and long service life.
- Square D Engineering: Designed to meet Schneider Electric quality and safety standards.
The KIL36150 delivers the reliability and precision required for industrial and commercial circuit protection.
