Description

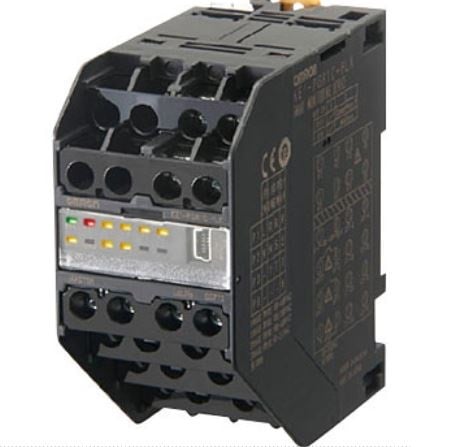

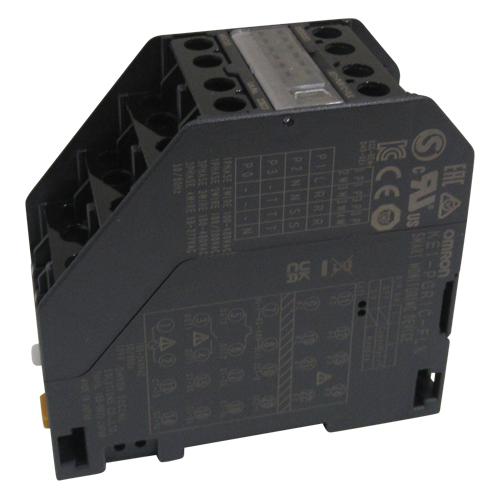

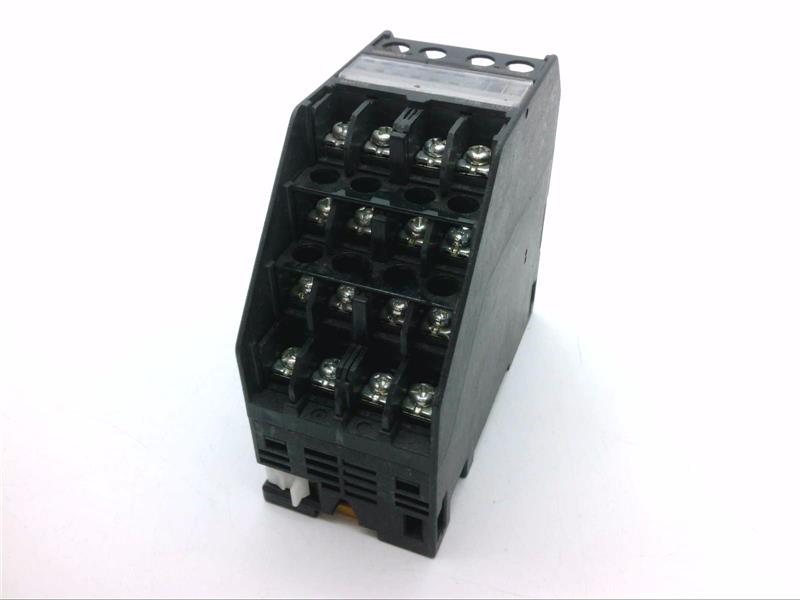

The KE1‑PGR1C‑FLK is a master unit from Omron’s KE1 Smart Measurement and Monitor series, designed to simultaneously monitor electrical power and earth leakage on industrial equipment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
KE1-PGR1C-FLK |
| Subcategory |
PC Board PLC/Add-On Board |
| Type |
Power and Earth Leakage Monitor |
| Monitoring Function |
Simultaneous power consumption and earth leakage monitoring |
| Communication Interface |
RS-485 (Modbus RTU)
|
| Expansion Capability |
Supports modular multi-circuit monitoring via CT and ZCT modules |
| Detection Function |
High-speed leakage detection and power monitoring |
| Output Type |
Digital (via RS-485), relay alarms via expansion |
| Mounting Type |
DIN-rail or panel-mounted (modular design) |
| Weight |
0.48 lbs |
Information About KE1-PGR1C-FLK
The KE1-PGR1C-FLK is a master monitoring unit from Omron’s KE1 Smart Measurement series, designed for combined power consumption and earth leakage monitoring in industrial control panels. Operating via RS-485 (Modbus RTU or CompoWay/F protocols), this unit allows real-time measurement and fault detection across single or multi-circuit systems. Supporting modular expansion with CT and ZCT units, it delivers comprehensive energy monitoring and early fault detection for improved safety and energy efficiency in industrial environments.
Key Features:
- Combined Monitoring: Simultaneously measures power usage and detects earth leakage faults in connected circuits.
- Modular Expansion Support: Integrates with CT (current transformer) and ZCT (zero-phase current transformer) expansion units to monitor up to 35 circuits.
- RS-485 Communication: Supports Modbus RTU and Omron CompoWay/F protocols for seamless integration with industrial control and monitoring systems.
- High-Speed Leakage Detection: Identifies leakage currents and voltage sags in as little as 25 ms, ensuring quick response to potential faults.
- Event Logging: Automatically records power fluctuations, leakage events, and voltage irregularities for diagnostics and maintenance tracking.
- Alarm Output: Includes pulse and relay outputs to trigger external alarms or system shutdowns upon detection of faults.
- Compact, Panel-Mountable Design: DIN-rail or panel-mounted form factor suitable for integration into control cabinets and distribution boards.
- Energy Management Ready: Assists in tracking and managing power consumption across machines and production lines for energy optimization.
- Global Compatibility: Designed to meet industrial safety and monitoring standards across global manufacturing sites.
- Official Documentation: Detailed operation manuals (KE1 series) available to support installation, configuration, and troubleshooting.
The KE1-PGR1C-FLK offers a versatile and scalable solution for electrical safety monitoring and energy management in industrial environments. By combining power and earth leakage monitoring into a single unit with networked communication, it streamlines system setup while providing critical protection against electrical hazards.
