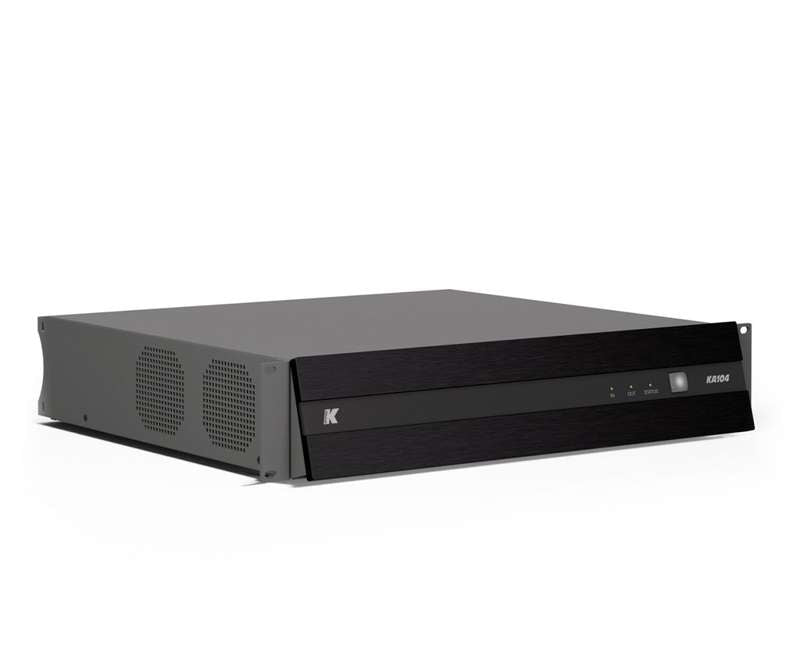

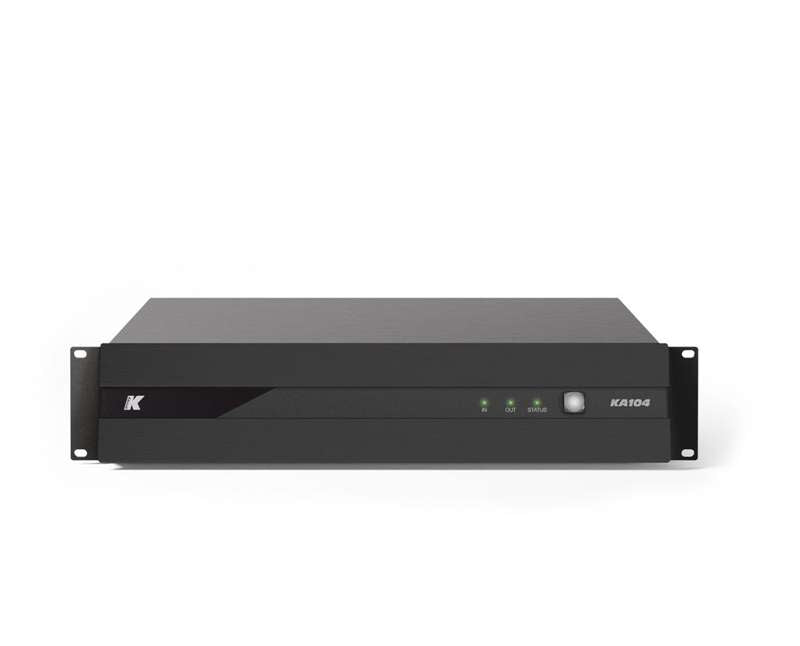

Kommander-KA104 – 4x2500W@4Ω Class-D Amplifier with DSP
The Kommander-KA104 is a fully featured 4x2500W@4Ω Class-D amplifier platform with integrated DSP, designed for seamless integration into the K-array ecosystem. It delivers pristine sound and complete control over connected loudspeakers, functioning as a standalone unit or in conjunction with other K-array amplifiers for complex applications.
The dedicated K-array Connect mobile app provides an intuitive interface for remote DSP control and signal routing configuration. For advanced system design and tuning, K-framework3 software offers powerful tools for managing large installations over wired LAN.
Specifications
General
-
Type: 4ch switching mode, Class D Amplifier
-
Output Power: 4 × 2500 W @ 4 Ω
-
Impedance: Minimum 4 Ω
-
Frequency Response: 20 Hz – 20 kHz (±1 dB)
-

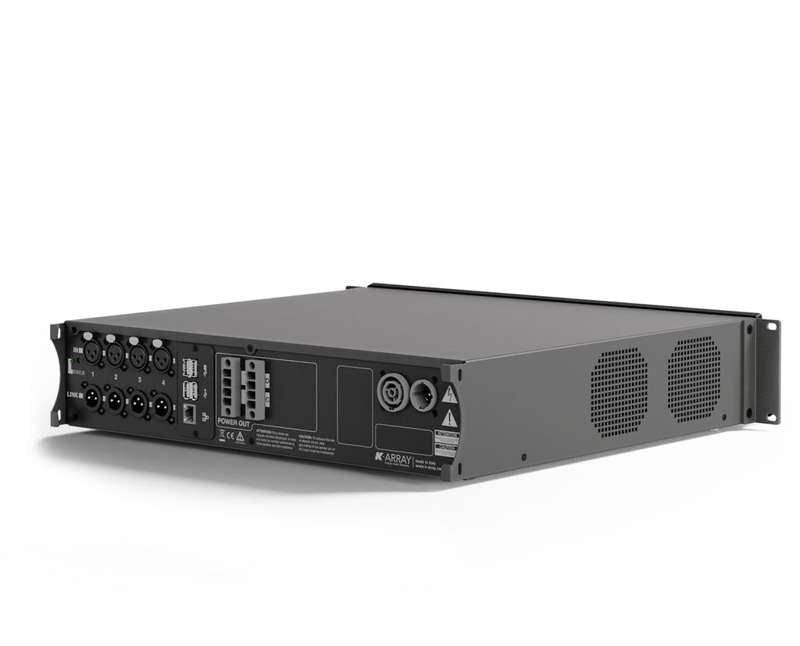

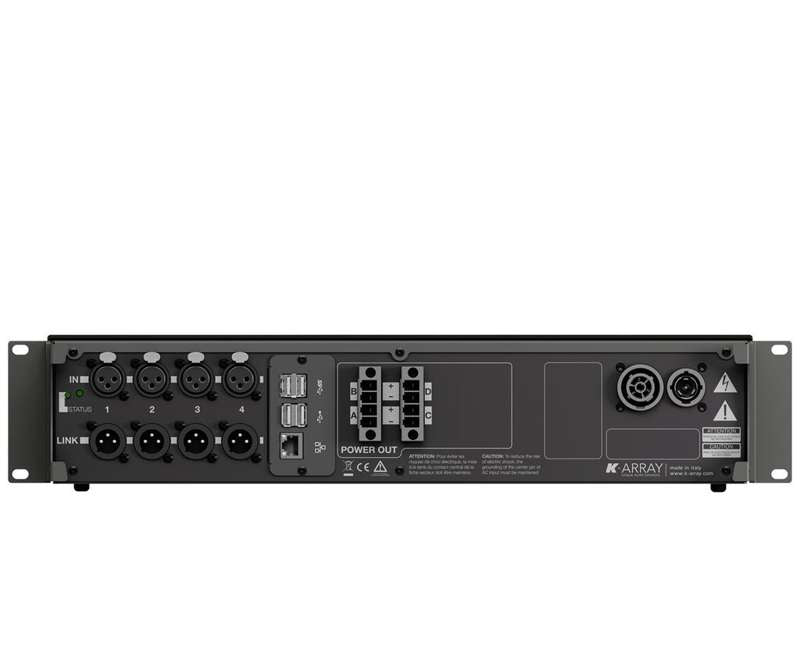

Connections:
-
Input: 4 × XLR-F balanced input
-
Link Output: 4 × XLR-M balanced LINK output
-
Speaker Output: 2 × PC 4/4-ST-7.62
-
Remote Connectivity: 1 × Ethernet RJ45, 4 × USB-A, Wi-Fi IEEE 802.11 b/g/n
-
Power: 1 × PowerCon TRUE IN, 1 × PowerCon TRUE Link
-
Built-in DSP: Grouping, Equalization, Limiters, Routing, Level, Loudspeaker presets
-
Remote Control: Wi-Fi and Ethernet via dedicated app and desktop software
Power Handling
-
Protections: Thermal protection, output short circuit, RMS output current protection, high-frequency protection, power limiter, clip limiter
-
Main Operating Range: 100–240V AC, 50–60 Hz with PFC
-
Power Consumption: 600 W @ 4 Ω load, Pink noise, 1/8 rated power
